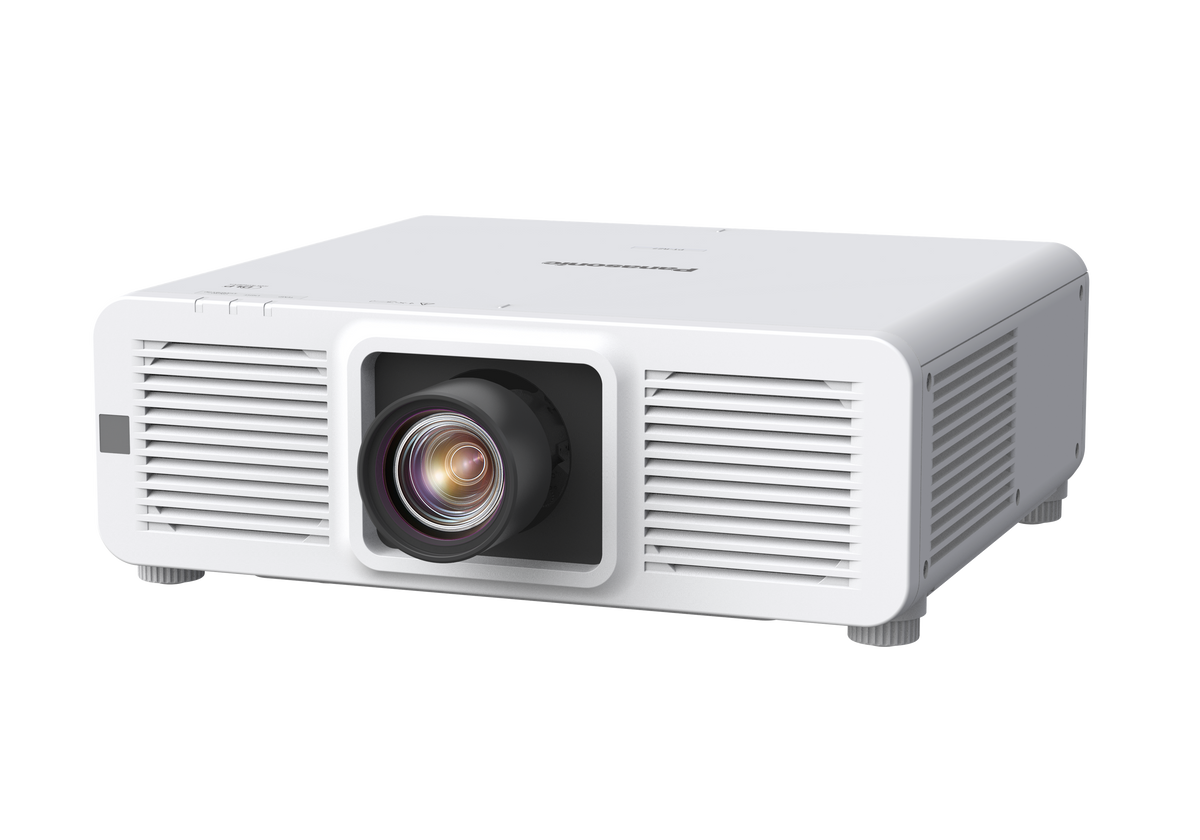

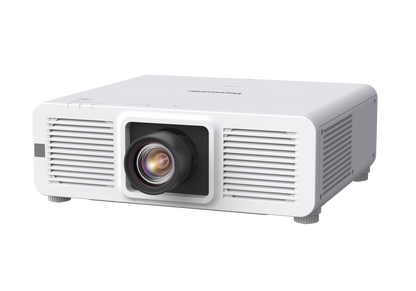

Panasonic PT-RZ7LWU: 7,500 Lumen WUXGA Laser DLP Projector (Lens Sold Separately), White
Model
:
PT-RZ7LWU
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-RZ7LWU at a Glance
- Brand
- Panasonic
- Model
- PT-RZ7LWU
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-RZ7LWU Overview
The Panasonic PT-RZ7LWU is a 7,500 lumen WUXGA laser DLP projector (lens sold separately). This listing is the white model. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 7,500 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: WUXGA (1920 x 1200 pixels)
- Lens: Optional (no lens included with this model)
- Lens shift: +50 %, -16 % vertical, +30 %, -10 % (with ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450) horizontal
- Contrast ratio 15,000:1 (Full On/Full Off, Dynamic Contrast [3])
- Operation noise 36 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-RZ7LWU |
| Type | Laser dlp projector |
| Projector type | 1-Chip DLP projector |
| Display method | DLP chip x 1, DLP projection system |
| Display Device: Panel size | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) |
| Display Device: Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diode |
| Light output | 7,500 lm |
| Light output (ANSI) | 7,500 lm |
| Light output (Center) | 7,700 lmPT-RQ6L/RZ6L: 6,700 lm |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 15,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Screen size (diagonal) | 1.27 to 5.08 m (50 to 200 in) with ET-DLE055,1.27 to 15.24 m (50 to 600 in) with ET-DLE060/ET-DLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350,2.54 to 8.89 m (100 to 350 in) with ET-DLE035, 2.54 to 10.16 m (100 to 400 in) |
| Center-to-corner zone ratio | 90% |
| Lens | Optional (no lens included with this model) |
| Lens shift: Vertical(from center of screen) | +50 %, -16 % (with ET-DLE020/ET-DLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450),+40 %, -16 % (with ET-DLE060) |
| Lens shift: Horizontal(from center of screen) | +30 %, -10 % (with ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450);+28 %, -10 % (with ET-DLE085/ET-DLE105); +19 %, -10 % (with ET-DLE060);+10 %, -20 % (with ET-DLE020) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals: HDMI IN | HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals: SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals: REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals: REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals: DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant),100Base-TX (Compatible with PJLink [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input) |
| Terminals: LAN | RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals: DC OUT | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals: USB TYPE A | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory (dual-use with DC OUT terminal) |
| Terminals: SLOT | Open slot for function boards, Intel SDM compatible |
| Protocol versions | IPv4, IPv6 |
| Power supply | AC 100 to 240 V, 50/60 Hz |
| Maximum power consumption | 690 W (7.0 to 3.2 A) (700 VA) |
| On-mode power consumption(Operating mode): Normal | [NORMAL] 540 W |
| On-mode power consumption(Operating mode): Eco | [ECO] 410 W |
Why Buy the Panasonic PT-RZ7LWU from Trianze Tech?
- Genuine Panasonic Laser DLP projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-RZ7LWU
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-RZ7LWU: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-RZ7LWU, Panasonic lists the following. Light output: 7,500 lm; Light output (ANSI): 7,500 lm; Resolution: WUXGA (1920 x 1200 pixels); Contrast ratio: 15,000:1 (Full On/Full Off, Dynamic Contrast [3]).
For the Panasonic PT-RZ7LWU, Panasonic lists the following. Lens: Optional (no lens included with this model); Screen size: 1.27 to 5.08 m (50 to 200 in) with ET-DLE055,1.27 to 15.24 m (50 to 600 in) with ET-DLE060/ET-DLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350,2.54; Lens shift vertical: +50 %, -16 % (with ET-DLE020/ET-DLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450),+40 %, -16 % (with ET-DLE060).
For the Panasonic PT-RZ7LWU, Panasonic lists the following. HDMI IN: HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant); SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant); REMOTE 1 IN: M3 stereo mini-jack x 1 for wired remote control; REMOTE 1 OUT: M3 stereo mini-jack x 1 for link control (for wired remote control); DIGITAL LINK IN / LAN: RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant),100Base-TX.
For the Panasonic PT-RZ7LWU, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 36 dB [NORMAL].
For the Panasonic PT-RZ7LWU, Panasonic lists the following. Dimensions: Approx. 498 x 170 x 440 mm (19 19/32" x 6 11/16" x 17 5/16")(With legs at shortest position, excluding protruding parts); Weight: 18.0 kg (39.7 lbs) or less; Power supply: AC 100 to 240 V, 50/60 Hz; Maximum power consumption: 690 W (7.0 to 3.2 A) (700 VA).
Trianze Tech stocks the Panasonic PT-RZ7LWU in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
