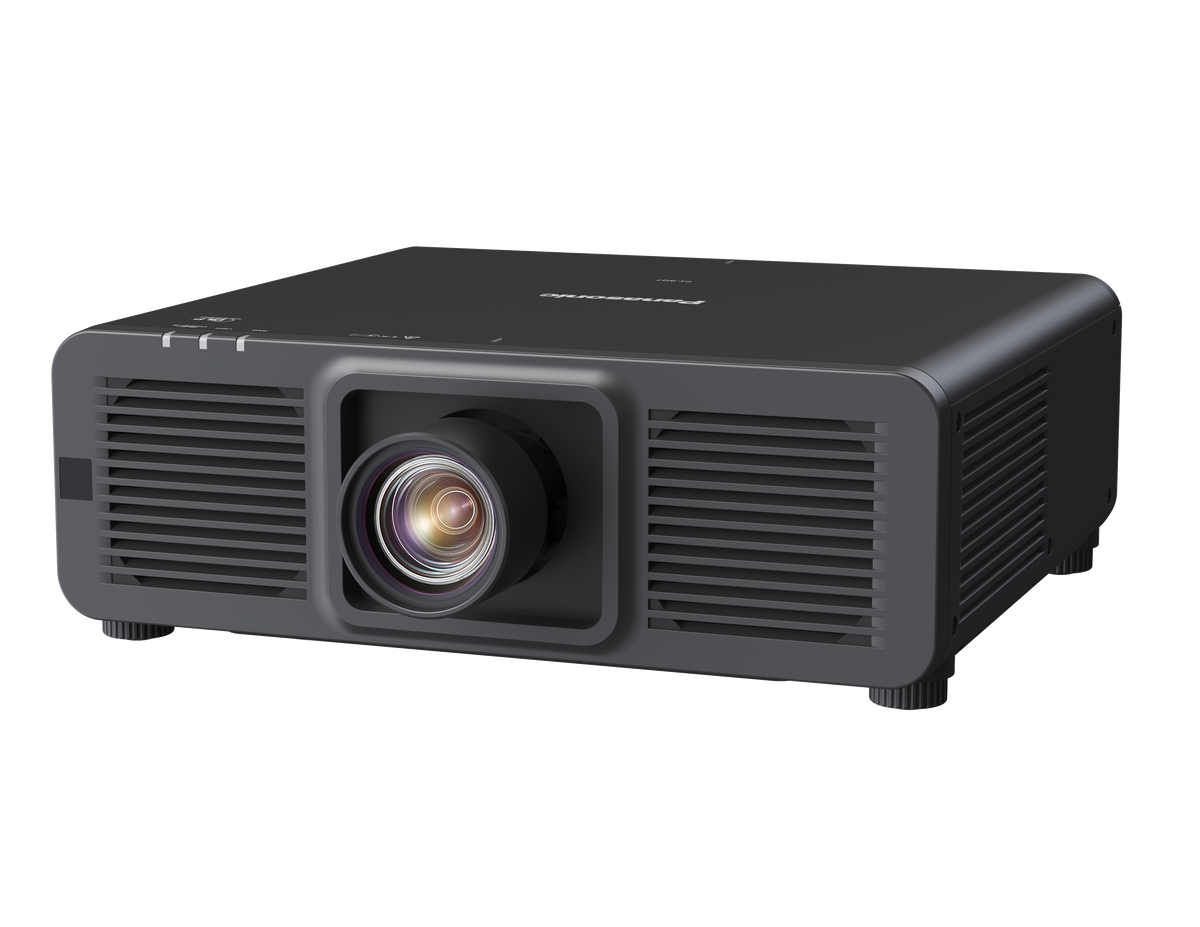

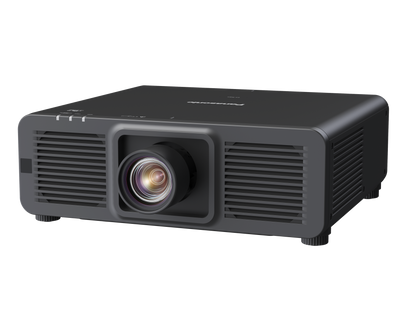

Panasonic PT-RQ6L: 6,500 Lumen 4K Laser DLP Projector (Lens Sold Separately)
Model
:
PT-RQ6L
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-RQ6L at a Glance
- Brand
- Panasonic
- Model
- PT-RQ6L
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-RQ6L Overview
The Panasonic PT-RQ6L is a 6,500 lumen 4K laser DLP projector (lens sold separately). Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 6,500 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: 4K (3840 x 2160 pixels) (Quad Pixel Drive: ON)
- Lens: Optional (no lens included with this model)
- Lens shift: +55 %, -18 % vertical, +30 %, -10 % (with ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450) horizontal
- Contrast ratio 15,000:1 (Full On/Full Off, Dynamic Contrast [3])
- Operation noise 35 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-RQ6L |
| Type | Laser dlp projector |
| Projector type | 1-Chip DLP projector |
| Display method | DLP chip x 1, DLP projection system |
| Display Device: Panel size | 16.5 mm (0.65 in) diagonal (16:9 aspect ratio) |
| Display Device: Number of pixels | 2,073,600 (1920 x 1080 pixels) |
| Light source | Laser diode |
| Light output | 6,500 lm |
| Light output (ANSI) | 6,500 lm |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | 4K (3840 x 2160 pixels) (Quad Pixel Drive: ON) |
| Contrast Ratio (typ.) | 15,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Screen size (diagonal) | 1.27 to 5.08 m (50 to 200 in) with ET-DLE055,1.27 to 15.24 m (50 to 600 in) with ET-DLE060/ET-DLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350,2.54 to 8.89 m (100 to 350 in) with ET-DLE035, 2.54 to 10.16 m (100 to 400 in) |
| Center-to-corner zone ratio | 90% |
| Lens | Optional (no lens included with this model) |
| Lens shift: Vertical(from center of screen) | +55 %, -18 % (with ET-DLE020/ET-DLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450),+44 %, -18 % (with ET-DLE060) |
| Lens shift: Horizontal(from center of screen) | +30 %, -10 % (with ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450);+28 %, -10 % (with ET-DLE085/ET-DLE105); +19 %, -10 % (with ET-DLE060);+10 %, -20 % (with ET-DLE020) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals: HDMI IN | HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals: SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals: REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals: REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals: DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant),100Base-TX (Compatible with PJLink [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input) |
| Terminals: LAN | RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals: DC OUT | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals: USB TYPE A | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory (dual-use with DC OUT terminal) |
| Terminals: SLOT | Open slot for function boards, Intel SDM standard SLOT-compatible |
| Protocol versions | IPv4, IPv6 |
| Power supply | AC 100 to 240 V, 50/60 Hz |
| Maximum power consumption | 650 W (6.6 to 2.9 A) (660 VA) |
| On-mode power consumption(Operating mode): Normal | [NORMAL] 500 W |
| On-mode power consumption(Operating mode): Eco | [ECO] 370 W |
| On-mode power consumption(Operating mode): Quiet | [QUIET] 365 W |
Why Buy the Panasonic PT-RQ6L from Trianze Tech?
- Genuine Panasonic Laser DLP projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-RQ6L
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-RQ6L: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-RQ6L, Panasonic lists the following. Light output: 6,500 lm; Light output (ANSI): 6,500 lm; Resolution: 4K (3840 x 2160 pixels) (Quad Pixel Drive: ON); Contrast ratio: 15,000:1 (Full On/Full Off, Dynamic Contrast [3]).
For the Panasonic PT-RQ6L, Panasonic lists the following. Lens: Optional (no lens included with this model); Screen size: 1.27 to 5.08 m (50 to 200 in) with ET-DLE055,1.27 to 15.24 m (50 to 600 in) with ET-DLE060/ET-DLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350,2.54; Lens shift vertical: +55 %, -18 % (with ET-DLE020/ET-DLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450),+44 %, -18 % (with ET-DLE060).
For the Panasonic PT-RQ6L, Panasonic lists the following. HDMI IN: HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant); SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant); REMOTE 1 IN: M3 stereo mini-jack x 1 for wired remote control; REMOTE 1 OUT: M3 stereo mini-jack x 1 for link control (for wired remote control); DIGITAL LINK IN / LAN: RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant),100Base-TX.
For the Panasonic PT-RQ6L, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 35 dB [NORMAL].
For the Panasonic PT-RQ6L, Panasonic lists the following. Dimensions: Approx. 498 x 170 x 440 mm (19 19/32" x 6 11/16" x 17 5/16")(With legs at shortest position, excluding protruding parts); Weight: 18.0 kg (39.7 lbs) or less; Power supply: AC 100 to 240 V, 50/60 Hz; Maximum power consumption: 650 W (6.6 to 2.9 A) (660 VA).
Trianze Tech stocks the Panasonic PT-RQ6L in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
