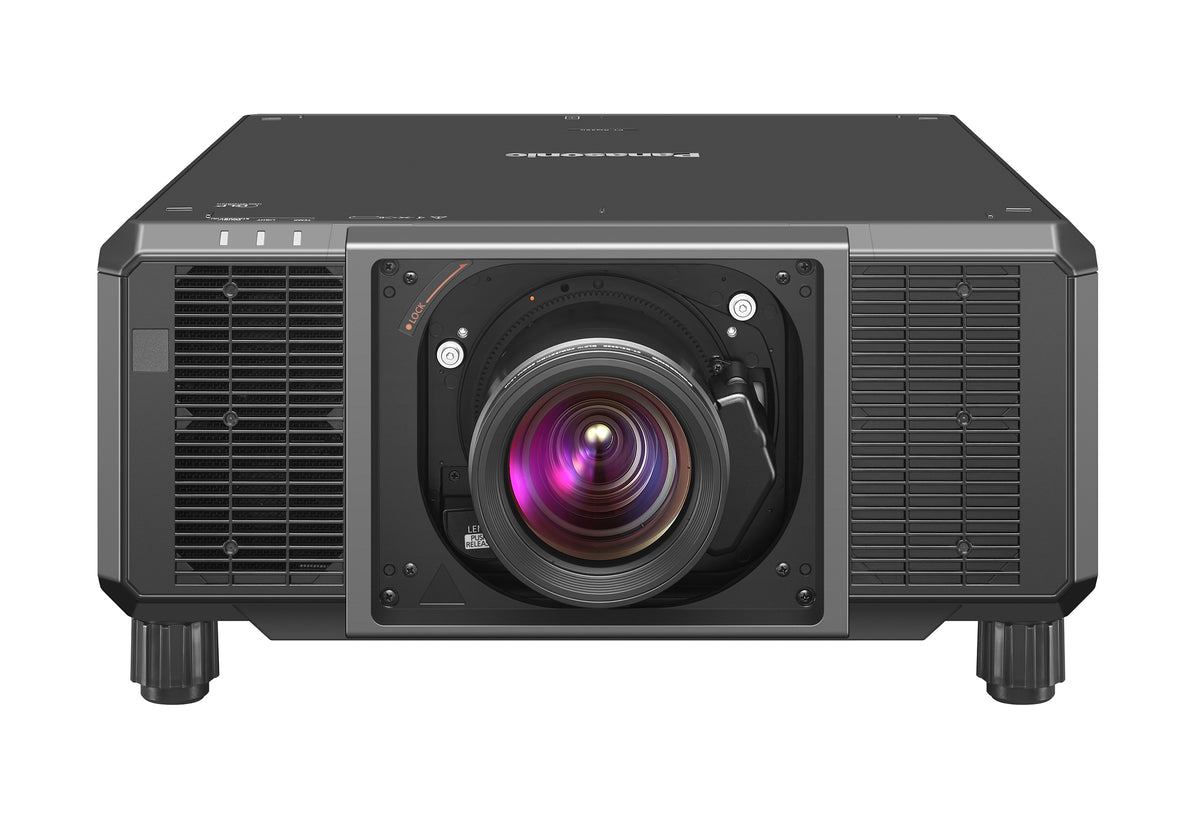

Panasonic PT-RQ25K: 20,000 Lumen 4K Laser DLP Projector (Lens Sold Separately)
Model
:
PT-RQ25K
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-RQ25K at a Glance
- Brand
- Panasonic
- Model
- PT-RQ25K
- Category
- Multimedia Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-RQ25K Overview
The Panasonic PT-RQ25K is a 20,000 lumen 4K laser DLP projector (lens sold separately). Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 20,000 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON)
- Lens: Optional (no lens included with this model)
- Lens shift: +/-66 % vertical, +/-24 % horizontal
- Contrast ratio 25,000:1 (Full On/Full Off, Dynamic Contrast [3])
- Operation noise 46 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-RQ25K |
| Type | Laser dlp projector |
| Projector type | 3-Chip DLP projector |
| Display method | DLP chip x 3, DLP projection system |
| Display Device: Panel size | 20.3 mm (0.8 in) diagonal (16:10 aspect ratio) |
| Display Device: Number of pixels | 2,304,000 (1920 x 1200 pixels) x 3 |
| Light source | Laser diode |
| Light output | 20,000 lm |
| Light output (ANSI) | 20,000 lm (ANSI) |
| Light output (Center) | 21,000 lm (Center) |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
| Contrast Ratio (typ.) | 25,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Screen size (diagonal) | 1.78 to 25.40 m (70 to 1000 in), 1.78 to 15.24 m (70 to 600 in) with ET-D75LE8/ET-D3LET80, 3.05 to 15.24 m (120 to 600 in) with ET-D75LE95, 5.08 to 15.24 m (200 to 600 in) with ET-D3LEU100/D3LEU101/D3LEW200/D3LEW201 |
| Center-to-corner zone ratio | 90% |
| Lens | Optional (no lens included with this model) |
| Lens shift: Vertical(from center of screen) | +/-66 % (52 % with ET-D75LE6/ET-D3LEW60/ET-D3LEW300/ET-D3LEW600, +71 % / +93 % with ET-D75LE95,+/-66 % with ET-D3LEU100/D3LEU101, +/-57 % with ET-D3LEW200/D3LEW201) (powered) |
| Lens shift: Horizontal(from center of screen) | +/-24 % (18 % with ET-D75LE6/ET-D3LEW60/ET-D3LEW300/ET-D3LEW600, +/-14 % with ET-D75LE95,-25 % / +30 % with ET-D3LEU100/D3LEU101, +/-18 % with ET-D3LEW200/D3LEW201) (powered) |
| Keystone correction range | Vertical: +/-45 degrees |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals: HDMI IN | HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals: DisplayPort IN | DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals: MULTI PROJECTOR SYNC IN | BNC x 1 |
| Terminals: MULTI PROJECTOR SYNC OUT | BNC x 1 |
| Terminals: MULTI SYNC IN/ 3D SYNC 1 IN/OUT (dual purpose) | BNC x 1(PT-RZ24K/RZ17K only) |
| Terminals: MULTI SYNC OUT/ 3D SYNC 2 OUT (dual purpose) | BNC x 1(PT-RZ24K/RZ17K only) |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals: SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals: REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals: REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals: REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals: LAN | RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals: DC OUT | USB Connector Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals: USB TYPE A | USB connector Type A x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
Why Buy the Panasonic PT-RQ25K from Trianze Tech?
- Genuine Panasonic Laser DLP projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-RQ25K
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-RQ25K: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-RQ25K, Panasonic lists the following. Light output: 20,000 lm; Light output (ANSI): 20,000 lm (ANSI); Resolution: 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON); Contrast ratio: 25,000:1 (Full On/Full Off, Dynamic Contrast [3]).
For the Panasonic PT-RQ25K, Panasonic lists the following. Lens: Optional (no lens included with this model); Screen size: 1.78 to 25.40 m (70 to 1000 in), 1.78 to 15.24 m (70 to 600 in) with ET-D75LE8/ET-D3LET80, 3.05 to 15.24 m (120 to 600 in) with ET-D75LE95, 5.08 to 15.24 m; Lens shift vertical: +/-66 %; Keystone: Vertical: +/-45 degrees.
For the Panasonic PT-RQ25K, Panasonic lists the following. HDMI IN: HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); DisplayPort IN: DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); MULTI PROJECTOR SYNC IN: BNC x 1; MULTI PROJECTOR SYNC OUT: BNC x 1; MULTI SYNC IN/ 3D SYNC 1 IN/OUT (dual purpose): BNC x 1(PT-RZ24K/RZ17K only); MULTI SYNC OUT/ 3D SYNC 2 OUT (dual purpose): BNC x 1(PT-RZ24K/RZ17K only).
For the Panasonic PT-RQ25K, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 46 dB [NORMAL].
For the Panasonic PT-RQ25K, Panasonic lists the following. Dimensions: Approx. 550 x 220 x 570 mm (21 5/8" x 8 11/16" x 22 7/16") (not including protruding parts); Weight: Approx. 35 kg (77.2 lbs); Power supply: AC 100 V, 120 V / AC 200 V, 240 V, 50 Hz/60 Hz; Maximum power consumption: AC 200 V, AC 240 V: 1,490 W (1,520 VA)AC 100 V, AC 120 V: 1,080 W (1,090 VA).
Trianze Tech stocks the Panasonic PT-RQ25K in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
