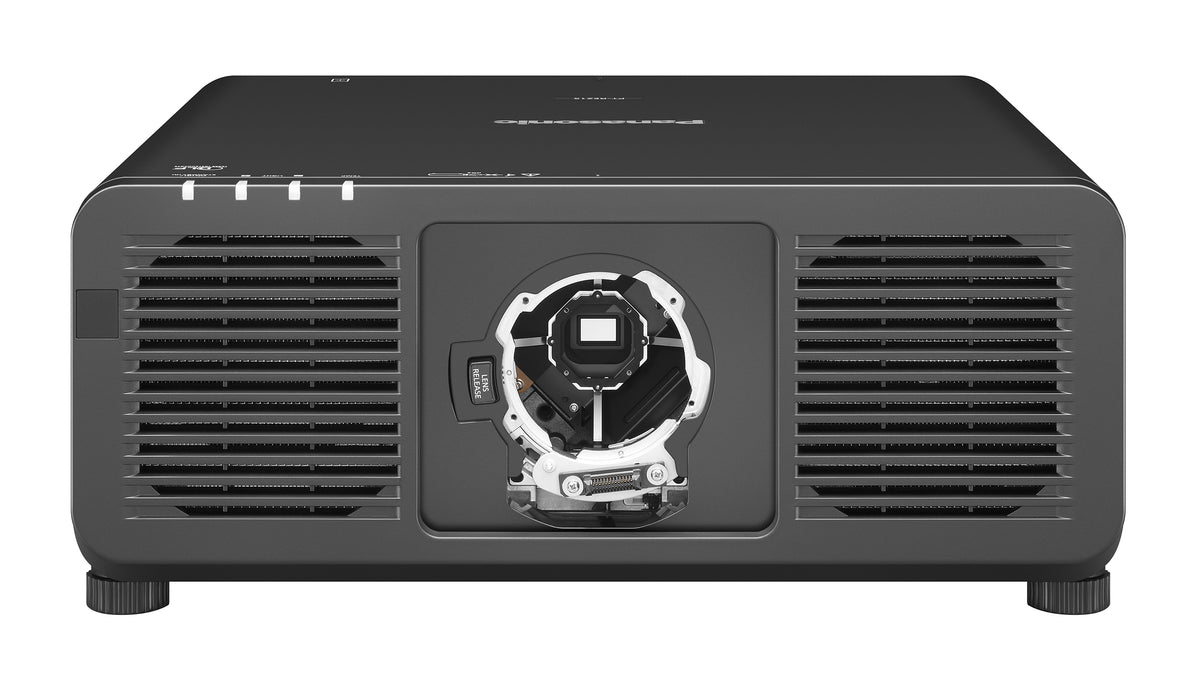

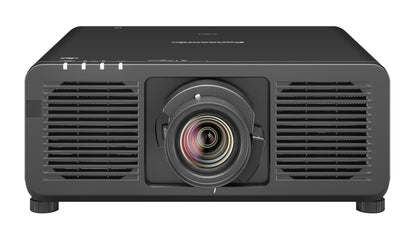

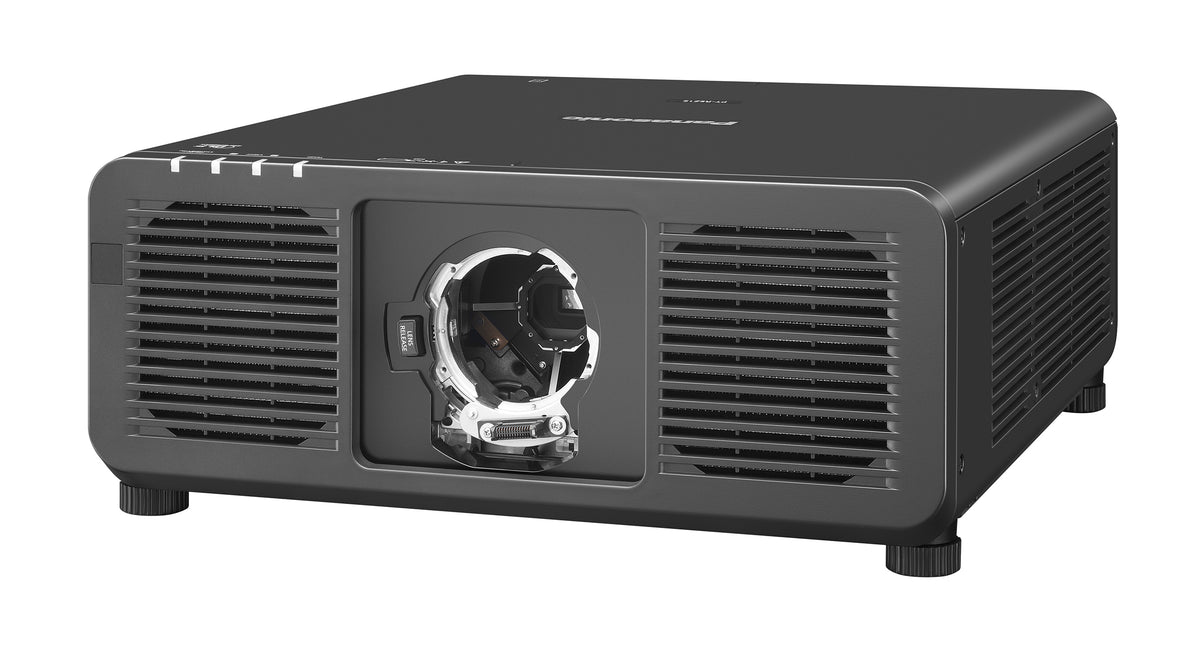

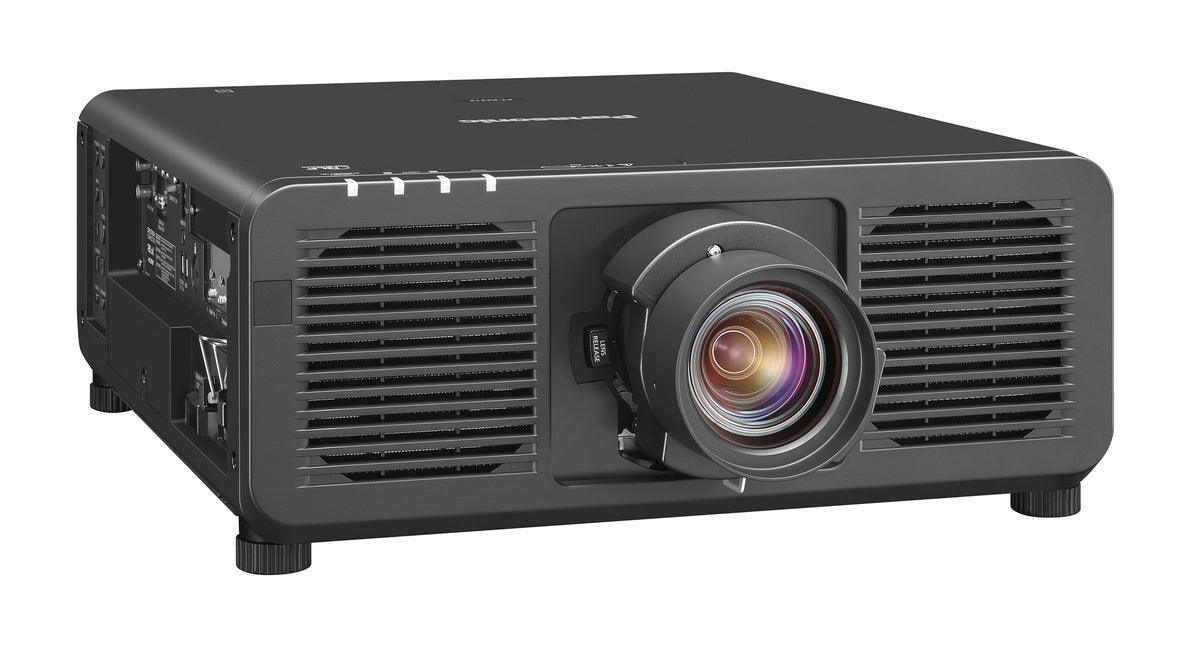

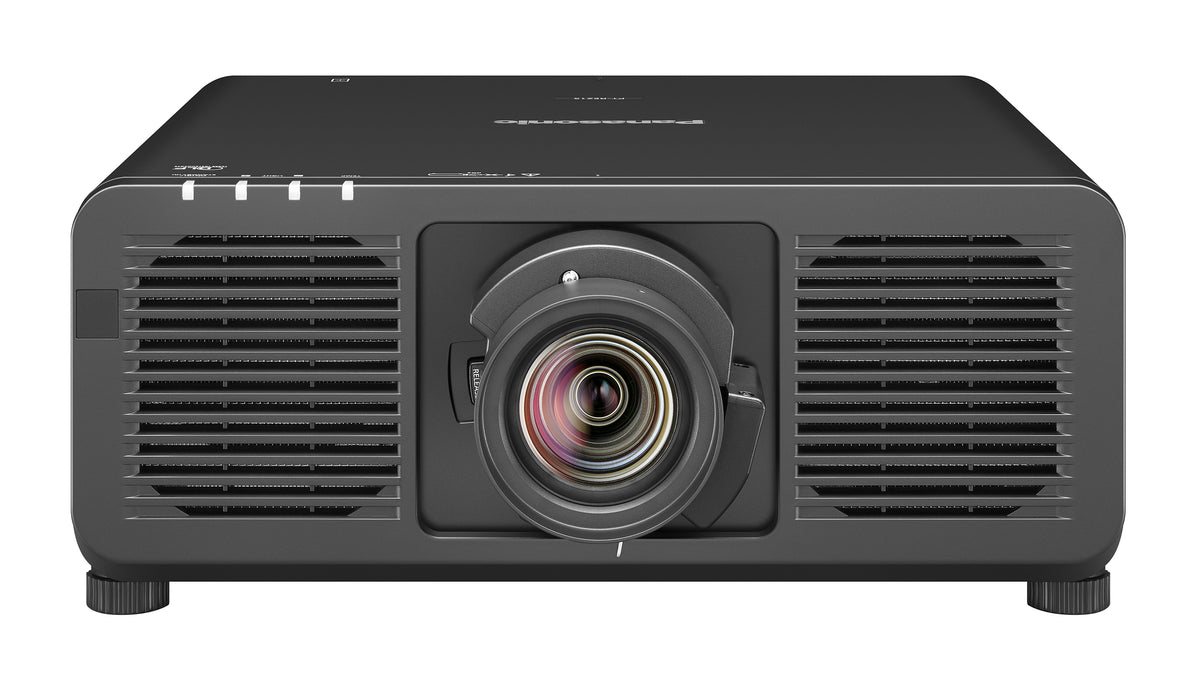

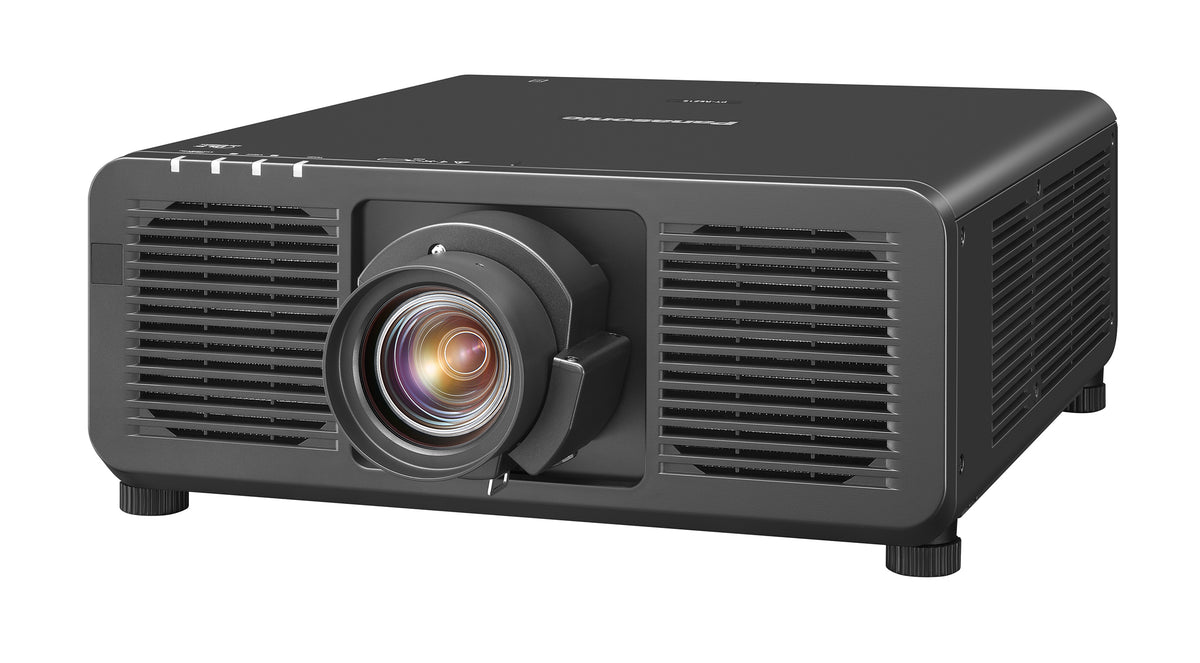

Panasonic PT-REZ15LBUG: 15,000 Lumen WUXGA Laser DLP Projector (Lens Sold Separately), Black
Model
:
PT-REZ15LBUG
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-REZ15LBUG at a Glance
- Brand
- Panasonic
- Model
- PT-REZ15LBUG
- Category
- Multimedia Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-REZ15LBUG Overview
The Panasonic PT-REZ15LBUG is a 15,000 lumen WUXGA laser DLP projector (lens sold separately). This listing is the black model. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 15,000 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: WUXGA (1920 x 1200 pixels)
- Lens: Optional powered zoom/focus lenses
- Lens shift: +/-60 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-50 % vertical, +/-29 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-23 % horizontal
- Contrast ratio 25,000:1 (Full On/Full Off, Dynamic Contrast [3])
- Operation noise 42 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-REZ15LBUG |
| Type | Laser dlp projector |
| Projector type | 1-Chip DLP projector |
| Display method | DLP chip x 1, DLP projection system |
| Display Device: Panel size | 0.8 in diagonal (16:10 aspect ratio) |
| Display Device: Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diode |
| Light output | 15,000 lm |
| Light output (ANSI) | 15,000 lm (ANSI) |
| Light output (Center) | 15,500 lm (Center) |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours[ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 25,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Screen size (diagonal) | 70 to 1000 inches (with ET-C1S600) |
| Center-to-corner zone ratio | 90% |
| Lens | Optional powered zoom/focus lenses |
| Lens shift: Vertical(from center of screen) | +/-60 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-50 % (with ET-C1W300/U090/U100), +78 to 88 % (with ET-C1U200) |
| Lens shift: Horizontal(from center of screen) | +/-29 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-23 % (with ET-C1W300/U090/U100), +/-9 % (with ET-C1U200) |
| Keystone correction range | Vertical: +/-40 degrees (+/-5 degrees with ET-C1U090/U100/U200; +/-10 degrees with ET-C1W300; +/-16 degrees with ET-C1W400; +/-22 degrees with ET-C1W500)Horizontal: +/-40 degrees |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals: HDMI IN | HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals: DisplayPort IN | DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal inputt) |
| Terminals: MULTI PROJECTOR SYNC IN | BNC x 1 |
| Terminals: MULTI PROJECTOR SYNC OUT | BNC x 1 |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals: SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals: REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals: REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals: REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals: LAN | RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals: DC OUT | USB connector Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals: USB TYPE A | USB connector Type A x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| Terminals: SLOT | Open slot for function boards, Intel SDM standard SLOT-compatible |
| Protocol versions | IPv4, IPv6 |
Why Buy the Panasonic PT-REZ15LBUG from Trianze Tech?
- Genuine Panasonic Laser DLP projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-REZ15LBUG
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-REZ15LBUG: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-REZ15LBUG, Panasonic lists the following. Light output: 15,000 lm; Light output (ANSI): 15,000 lm (ANSI); Resolution: WUXGA (1920 x 1200 pixels); Contrast ratio: 25,000:1 (Full On/Full Off, Dynamic Contrast [3]).
For the Panasonic PT-REZ15LBUG, Panasonic lists the following. Lens: Optional powered zoom/focus lenses; Screen size: 70 to 1000 inches (with ET-C1S600); Lens shift vertical: +/-60 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-50 % (with ET-C1W300/U090/U100), +78 to 88 % (with ET-C1U200); Keystone: Vertical: +/-40 degrees.
For the Panasonic PT-REZ15LBUG, Panasonic lists the following. HDMI IN: HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); DisplayPort IN: DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal inputt); MULTI PROJECTOR SYNC IN: BNC x 1; MULTI PROJECTOR SYNC OUT: BNC x 1; SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant); SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant).
For the Panasonic PT-REZ15LBUG, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours[ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 42 dB [NORMAL].
For the Panasonic PT-REZ15LBUG, Panasonic lists the following. Dimensions: 498 x 212 x 538 mm (19 19/32" x 8 11/32" x 21 3/16") (With feet at shortest position); Weight: Approx. 27.0 kg (59.52 lbs) (without lens); Power supply: AC 100 to 240 V, 50/60 Hz; Maximum power consumption: 1,090 W (11.5 to 4.7 A) (1,100 VA)(Power consumption is 1,040 W at AC 200 to 240 V).
Trianze Tech stocks the Panasonic PT-REZ15LBUG in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
