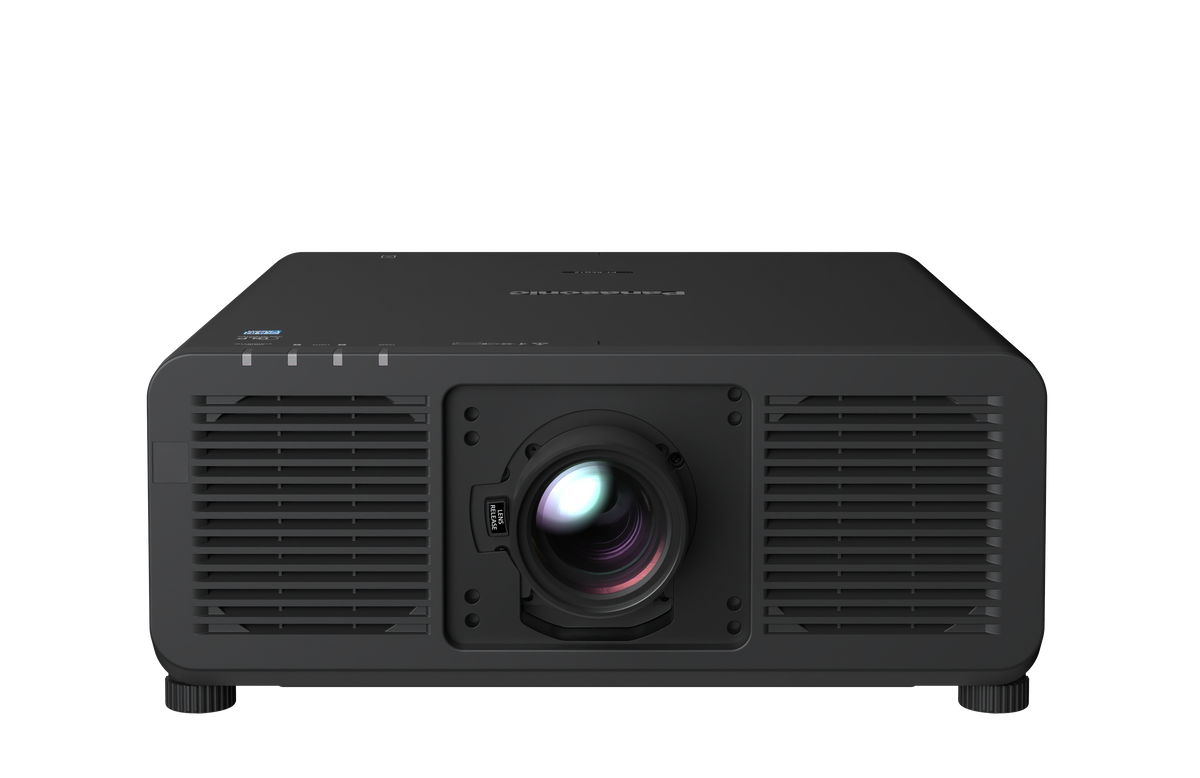

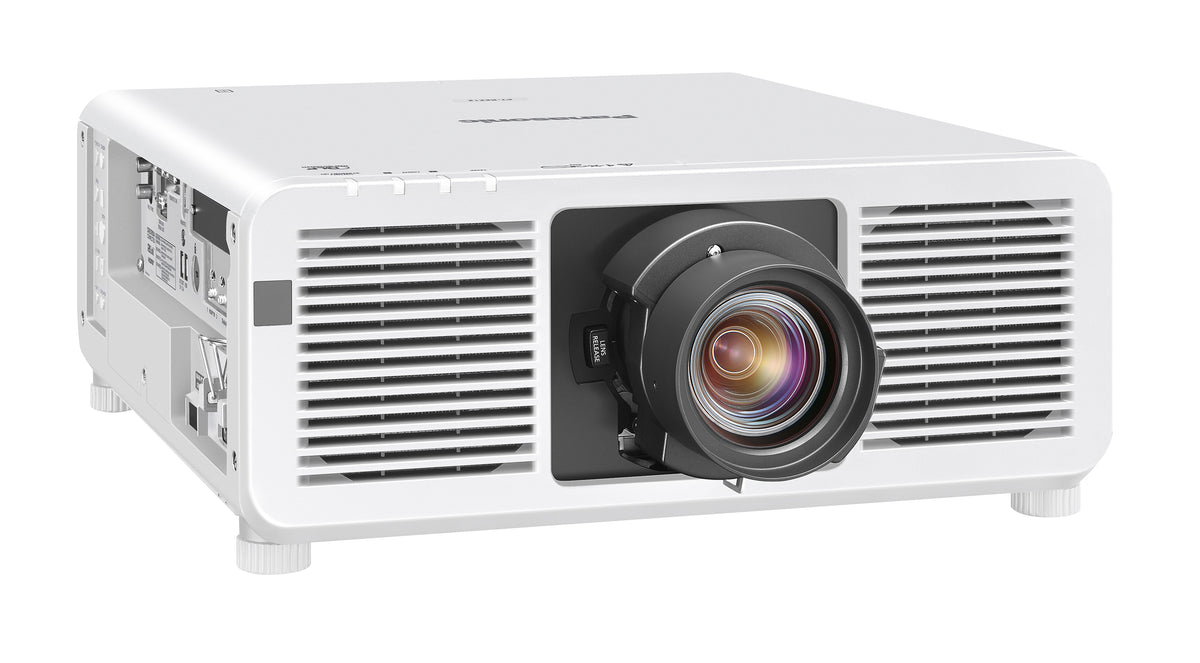

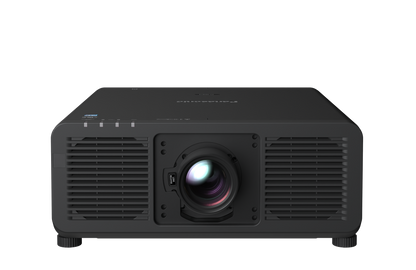

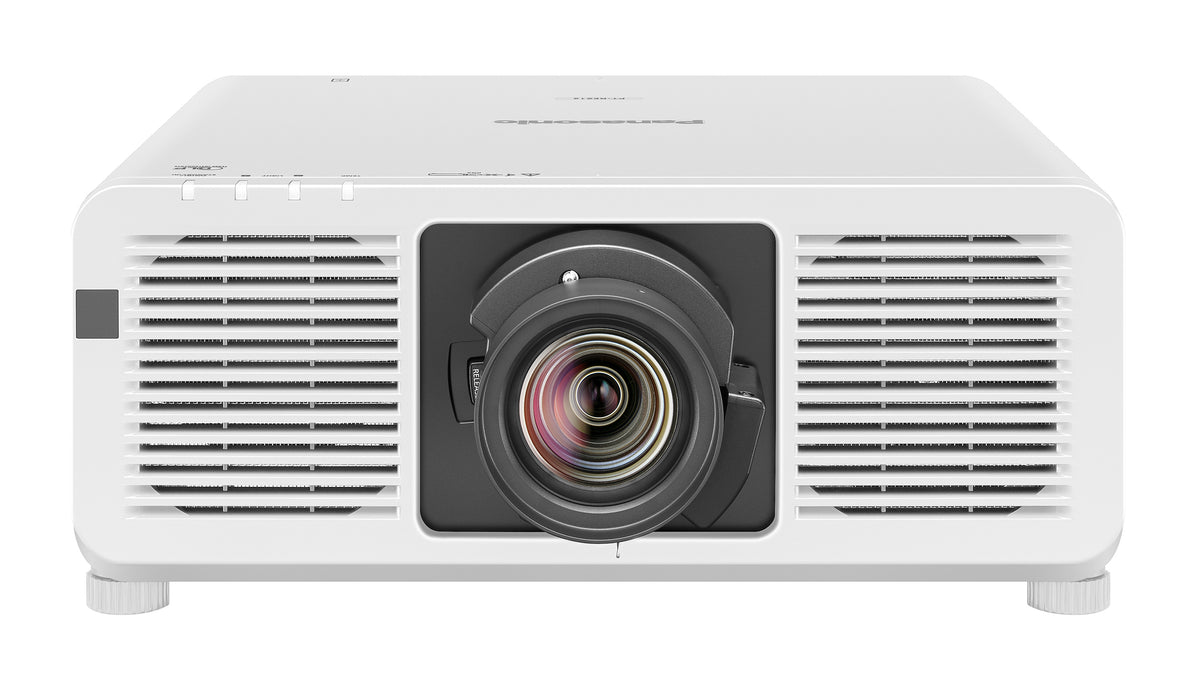

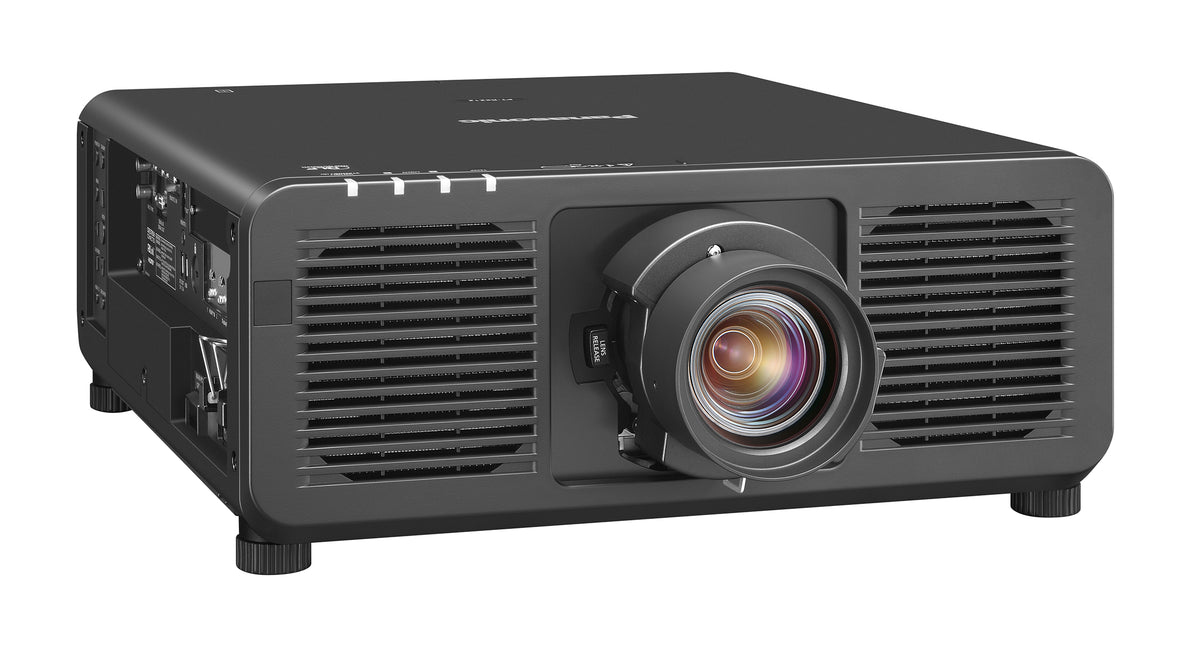

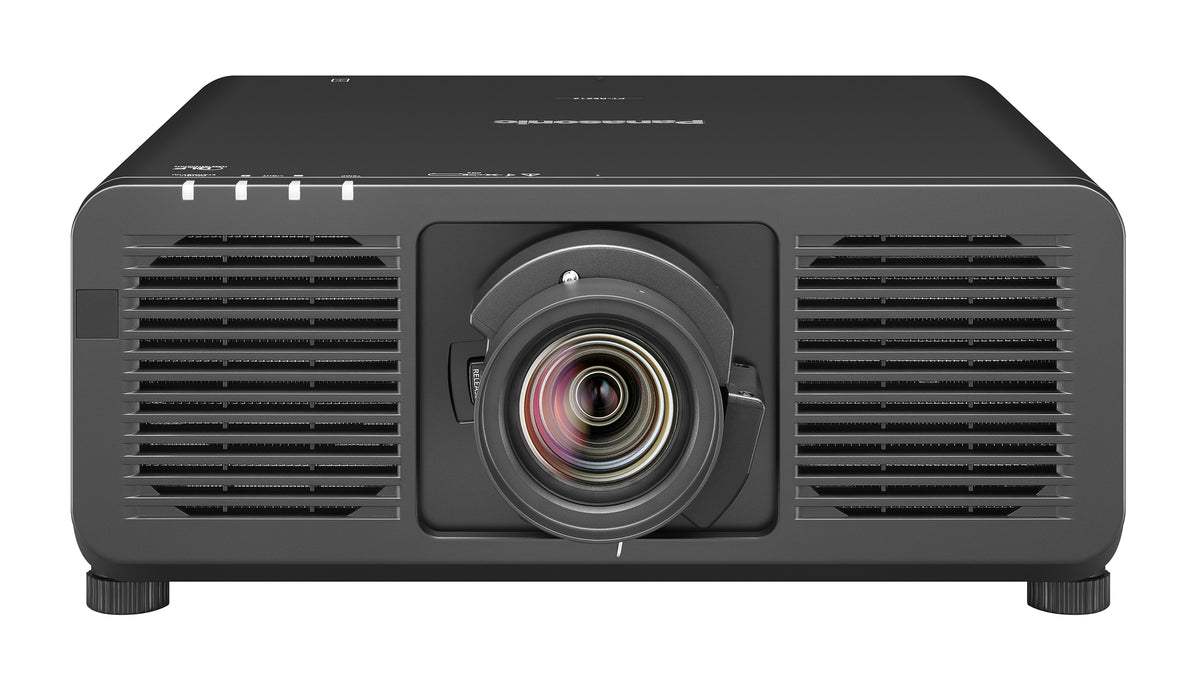

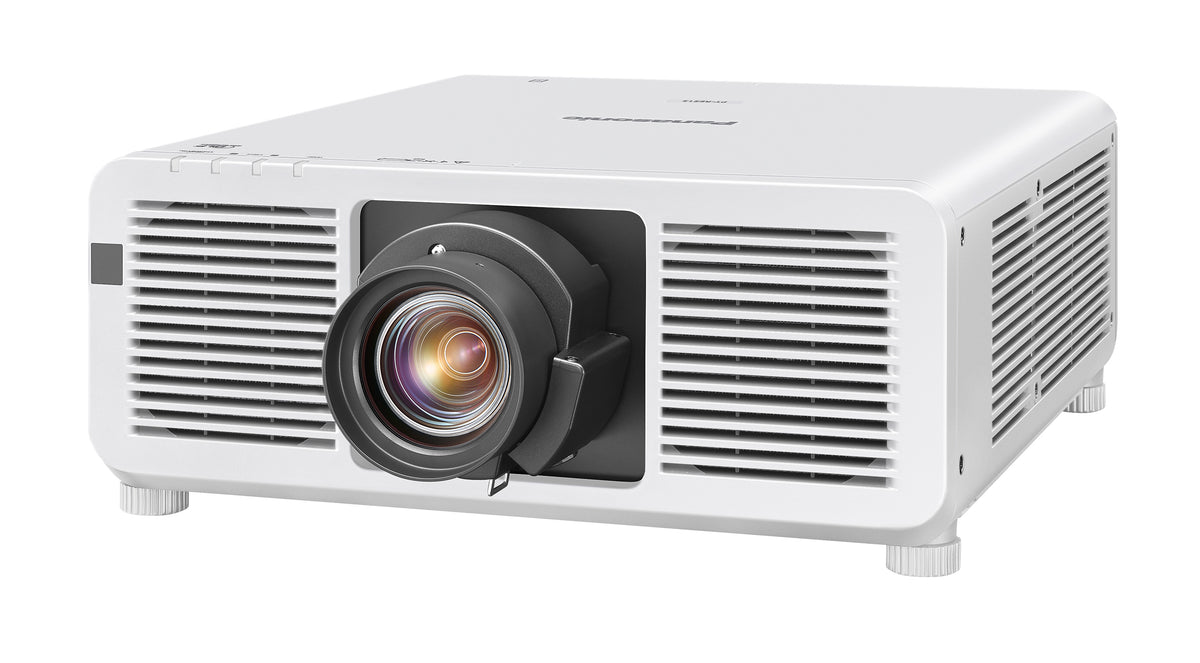

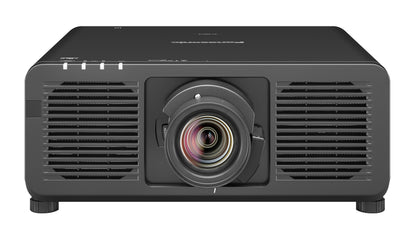

Panasonic PT-REZ12: 12,000 Lumen WUXGA Laser DLP Projector with Standard Throw Lens
Model
:
PT-REZ12
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-REZ12 at a Glance
- Brand
- Panasonic
- Model
- PT-REZ12
- Category
- Multimedia Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-REZ12 Overview
The Panasonic PT-REZ12 is a 12,000 lumen WUXGA laser DLP projector with a supplied standard throw lens. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 12,000 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: WUXGA (1920 x 1200 pixels)
- Lens: Powered zoom (throw ratio 1.36 to 2.10:1 for supplied lens), powered focus
- Lens shift: +/-60 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-50 % vertical, +/-29 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-23 % horizontal
- Contrast ratio 25,000:1 (Full On/Full Off, Dynamic Contrast [3])
- Operation noise 38 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-REZ12 |
| Type | Laser dlp projector |
| Projector type | 1-Chip DLP projector |
| Display method | DLP chip x 1, DLP projection system |
| Display Device: Panel size | 0.8 in diagonal (16:10 aspect ratio) |
| Display Device: Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diode |
| Light output | 12,000 lm |
| Light output (ANSI) | 12,000 lm (ANSI) |
| Light output (Center) | 12,400 lm (Center) |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 25,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Screen size (diagonal) | 70 to 1000 inches (with ET-C1S600) |
| Center-to-corner zone ratio | 90% |
| Lens | Powered zoom (throw ratio 1.36 to 2.10:1 for supplied lens), powered focus |
| Lens shift: Vertical(from center of screen) | +/-60 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-50 % (with ET-C1W300/U090/U100), +78 to 88 % (with ET-C1U200) |
| Lens shift: Horizontal(from center of screen) | +/-29 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-23 % (with ET-C1W300/U090/U100), +/-9 % (with ET-C1U200) |
| Keystone correction range | Vertical: +/-40 degrees (+/-5 degrees with ET-C1U090/U100/U200; +/-10 degrees with ET-C1W300; +/-16 degrees with ET-C1W400; +/-22 degrees with ET-C1W500)Horizontal: +/-40 degrees |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals: HDMI IN | HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals: DisplayPort IN | DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal inputt) |
| Terminals: MULTI PROJECTOR SYNC IN | BNC x 1 |
| Terminals: MULTI PROJECTOR SYNC OUT | BNC x 1 |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals: SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals: REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals: REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals: REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals: LAN | RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals: DC OUT | USB connector Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals: USB TYPE A | USB connector Type A x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| Terminals: SLOT | Open slot for function boards, Intel SDM compatible |
| Protocol versions | IPv4, IPv6 |
Why Buy the Panasonic PT-REZ12 from Trianze Tech?
- Genuine Panasonic Laser DLP projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-REZ12
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-REZ12: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-REZ12, Panasonic lists the following. Light output: 12,000 lm; Light output (ANSI): 12,000 lm (ANSI); Resolution: WUXGA (1920 x 1200 pixels); Contrast ratio: 25,000:1 (Full On/Full Off, Dynamic Contrast [3]).
For the Panasonic PT-REZ12, Panasonic lists the following. Lens: Powered zoom (throw ratio 1.36 to 2.10:1 for supplied lens), powered focus; Screen size: 70 to 1000 inches (with ET-C1S600); Lens shift vertical: +/-60 % (with ET-C1W400/W500/S600/T700/T800/T900), +/-50 % (with ET-C1W300/U090/U100), +78 to 88 % (with ET-C1U200); Keystone: Vertical: +/-40 degrees.
For the Panasonic PT-REZ12, Panasonic lists the following. HDMI IN: HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); DisplayPort IN: DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal inputt); MULTI PROJECTOR SYNC IN: BNC x 1; MULTI PROJECTOR SYNC OUT: BNC x 1; SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant); SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant).
For the Panasonic PT-REZ12, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 38 dB [NORMAL].
For the Panasonic PT-REZ12, Panasonic lists the following. Dimensions: 498 x 212 x 648 mm (19 19/32" x 8 11/32" x 25 1/2") (With feet at shortest position); Weight: Approx. 28.7 kg (63.27 lbs) (with supplied lens); Power supply: AC 100 to 240 V, 50/60 Hz; Maximum power consumption: 995 W (10.4 to 4.3 A) (1,005 VA)(Power consumption is 950 W at AC 200 to 240 V).
Trianze Tech stocks the Panasonic PT-REZ12 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
