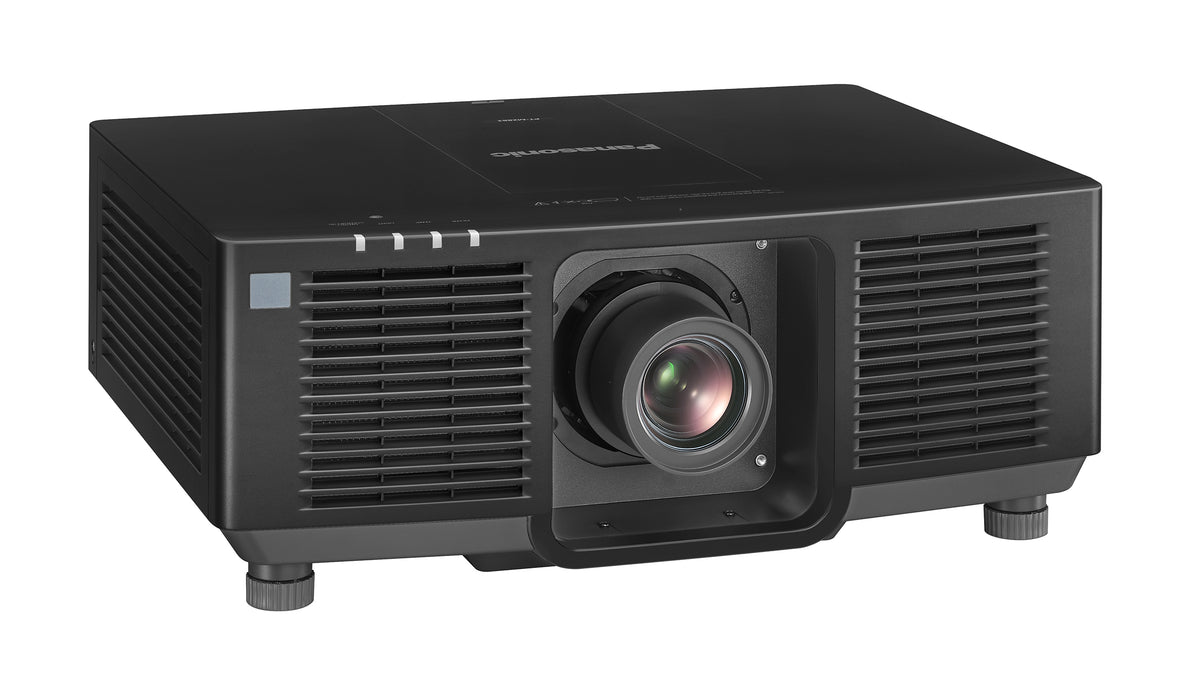

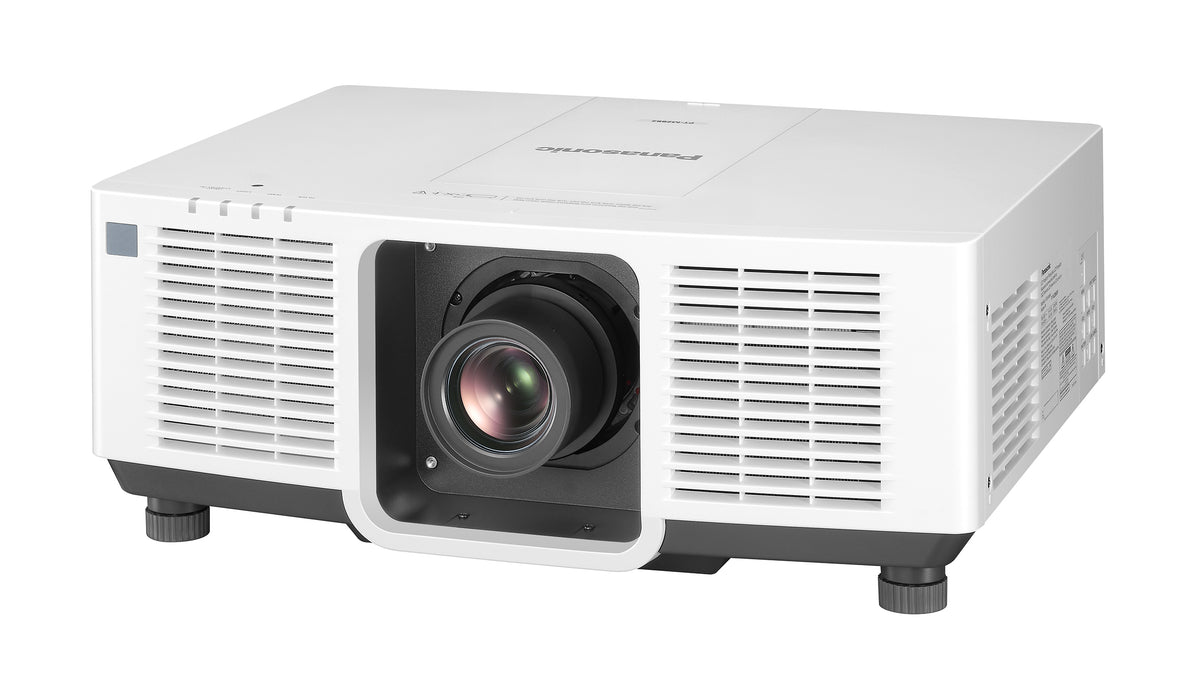

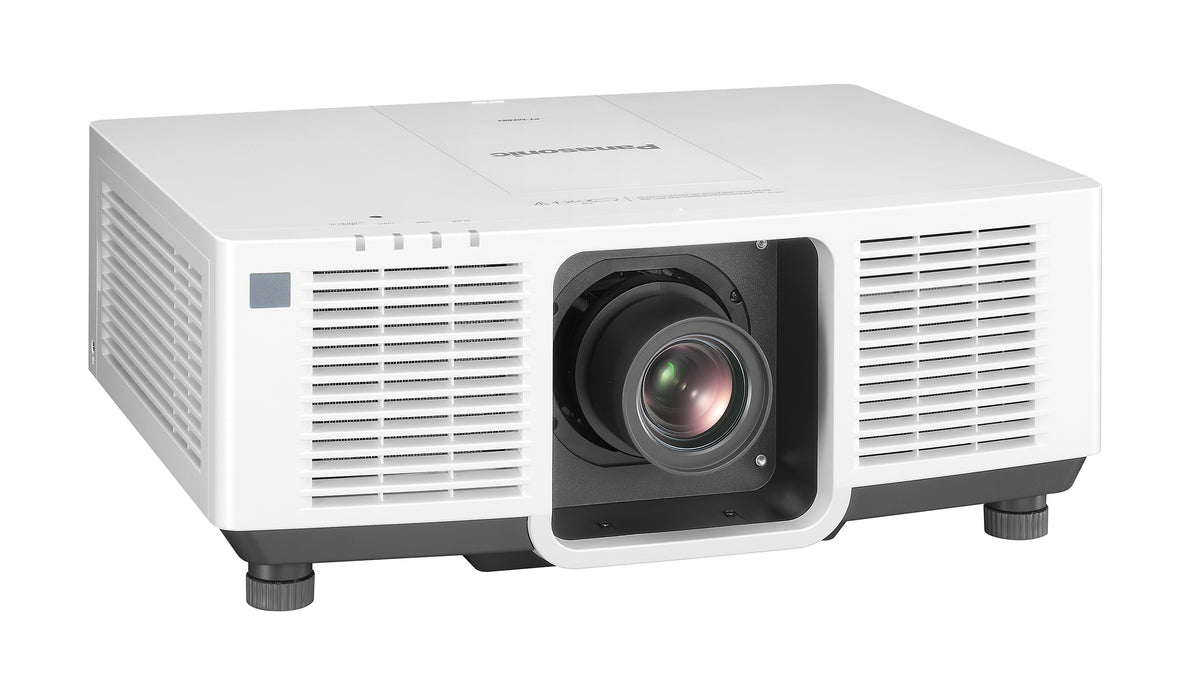

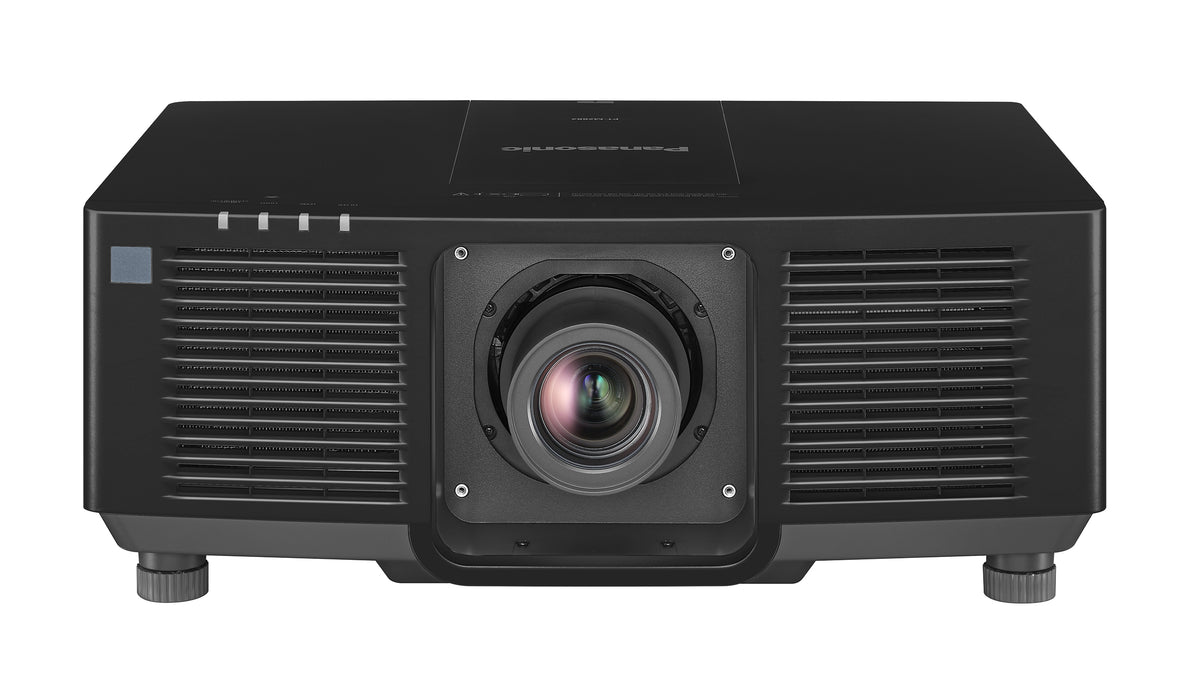

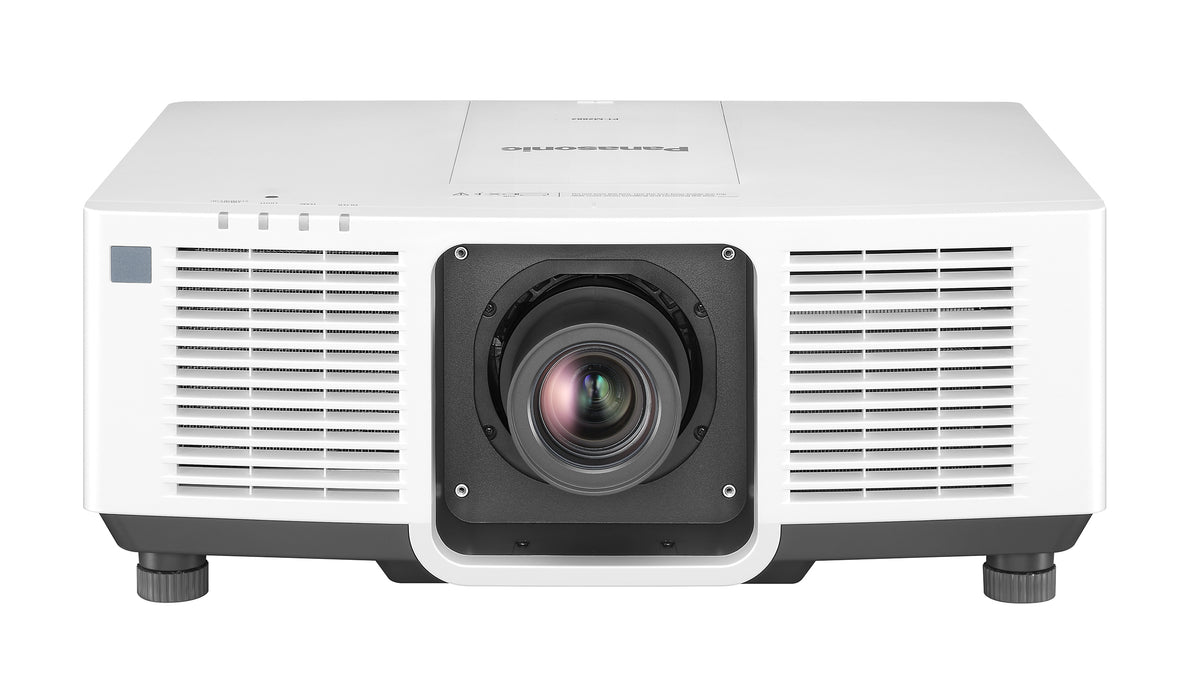

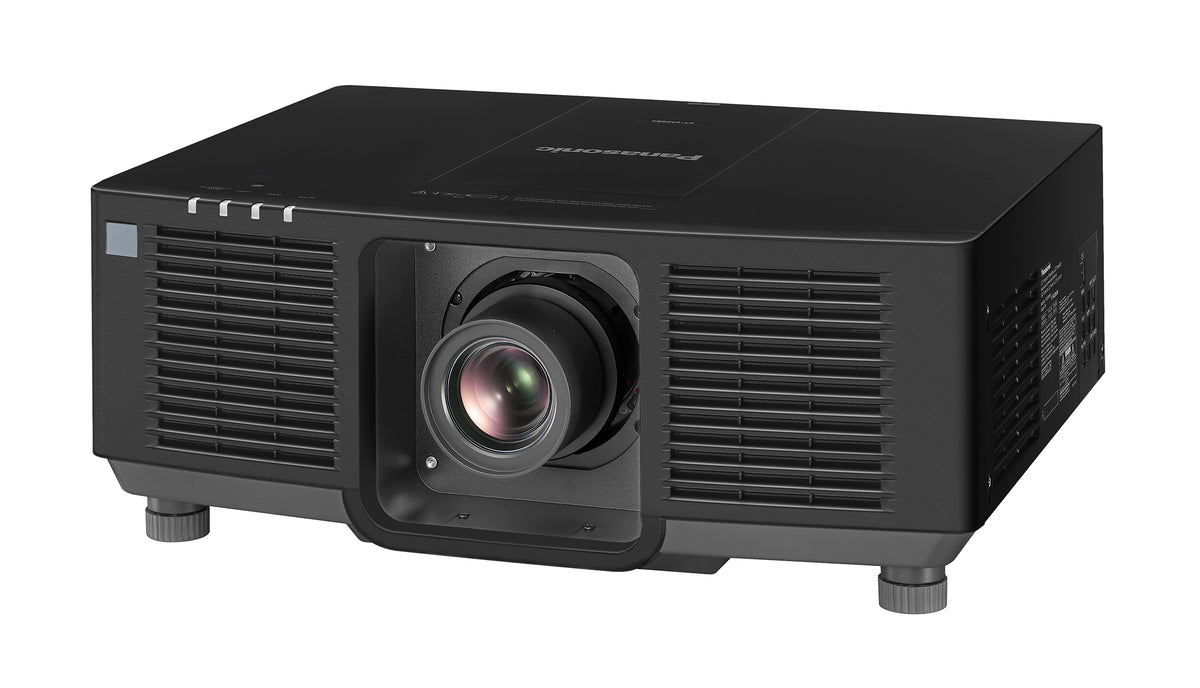

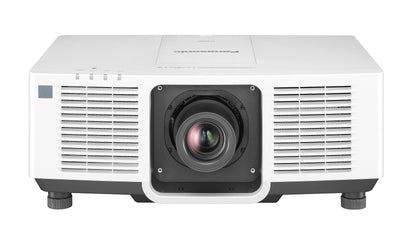

Panasonic PT-MZ882: 8,200 Lumen WUXGA Laser LCD Projector with Standard Throw Lens
Model
:
PT-MZ882
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-MZ882 at a Glance
- Brand
- Panasonic
- Model
- PT-MZ882
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-MZ882 Overview
The Panasonic PT-MZ882 is a 8,200 lumen WUXGA laser LCD projector with a supplied standard throw lens. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 8,200 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: WUXGA (1920 x 1200 pixels)
- Lens: Powered zoom (throw ratio 1.61 to 2.76:1), powered focus F = 1.7 to 2.3,f = 26.8 to 45.5 mm
- Lens shift: +/-67 % (powered), +/-60 % (with ET-ELW22), +/-50 % (with ET-ELU20) vertical, +/-35 % (powered), +/-30 % (with ET-ELW22), +/-24 % (with ET-ELU20) horizontal
- Contrast ratio 3,000,000:1 (Full On/Full Off)
- Operation noise 34 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-MZ882 |
| Type | Laser lcd projector |
| Projector type | LCD projector |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Display Device: Panel size | 19.3 mm (0.76 in) diagonal (16:10 aspect ratio) |
| Display Device: Drive method | Active matrix method |
| Display Device: Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diodes |
| Light output | 8,200 lm |
| Light output (ANSI) | 8,200 lm |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 3,000,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI signal input) |
| Screen size (diagonal) | 1.02 to 10.16 m (40 to 400 in), 1.52 to 10.16 m (60 to 400 in) with the ET-ELW22, 2.54 to 10.16 m (100 to 400 in) with the ET-ELU20, 16:10 aspect ratio |
| Center-to-corner zone ratio | 85% |
| Lens | Powered zoom (throw ratio 1.61 to 2.76:1), powered focus F = 1.7 to 2.3,f = 26.8 to 45.5 mm (for supplied lens; optional lenses also available) |
| Lens shift: Vertical(from center of screen) | +/-67 % (powered), +/-60 % (with ET-ELW22), +/-50 % (with ET-ELU20) |
| Lens shift: Horizontal(from center of screen) | +/-35 % (powered), +/-30 % (with ET-ELW22), +/-24 % (with ET-ELU20) |
| Keystone correction range | Vertical: +/-25 degrees (+/-22 degrees with ET-ELW21/ET-ELW22); (+/-25 degrees with ET-ELW20/ET-ELT22/ET-ELT23); (+/-5 degrees with ET-ELU20),Horizontal: +/-30 degrees (+/-15 degrees with ET-ELW21/ET-ELW22) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals: HDMI IN | HDMI x 3 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input), CEC supported |
| Terminals: COMPUTER IN(D-SUB 15pin) | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals: COMPUTER OUT(D-SUB 15pin) | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals: AUDIO IN(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals: AUDIO OUT(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals: MULTI PROJECTOR SYNC IN | D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant) |
| Terminals: MULTI PROJECTOR SYNC OUT | D-sub 9-pin (male) x 1 for link control |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant) |
| Terminals: SERIAL/MULTI-PROJECTOR SYNC IN | D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant) |
| Terminals: SERIAL/MULTI-PROJECTOR SYNC OUT | D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant) |
| Terminals: REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals: REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals: DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control)(HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2],Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input) |
| Terminals: LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink [Class 2], Art-Net) |
Why Buy the Panasonic PT-MZ882 from Trianze Tech?
- Genuine Panasonic Laser LCD projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-MZ882
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-MZ882: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-MZ882, Panasonic lists the following. Light output: 8,200 lm; Light output (ANSI): 8,200 lm; Resolution: WUXGA (1920 x 1200 pixels); Contrast ratio: 3,000,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI signal input).
For the Panasonic PT-MZ882, Panasonic lists the following. Lens: Powered zoom (throw ratio 1.61 to 2.76:1), powered focus F = 1.7 to 2.3,f = 26.8 to 45.5 mm (for supplied lens; optional lenses also available); Screen size: 1.02 to 10.16 m (40 to 400 in), 1.52 to 10.16 m (60 to 400 in) with the ET-ELW22, 2.54 to 10.16 m (100 to 400 in) with the ET-ELU20, 16:10 aspect ratio; Lens shift vertical: +/-67 % (powered), +/-60 % (with ET-ELW22), +/-50 % (with ET-ELU20); Keystone: Vertical: +/-25 degrees (+/-22 degrees with ET-ELW21/ET-ELW22); (+/-25 degrees with ET-ELW20/ET-ELT22/ET-ELT23); (+/-5 degrees with ET-ELU20),Horizontal: +/-30.
For the Panasonic PT-MZ882, Panasonic lists the following. HDMI IN: HDMI x 3 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input), CEC supported; COMPUTER IN(D-SUB 15pin): D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR); COMPUTER OUT(D-SUB 15pin): D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR); AUDIO IN(M3 Stereo Mini Jack): M3 stereo mini-jack x 1; AUDIO OUT(M3 Stereo Mini Jack): M3 stereo mini-jack x 1; MULTI PROJECTOR SYNC IN: D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant).
For the Panasonic PT-MZ882, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 34 dB [NORMAL].
For the Panasonic PT-MZ882, Panasonic lists the following. Dimensions: 561 x 224 x 439 mm (22 3/32" x 8 13/16" x 17 9/32") (With legs at shortest position, including lens and protruding parts); Weight: Approx. 18.6 kg (41.0 lbs) (with supplied lens); Power supply: AC 100 to 240 V, 50 Hz/60 Hz; Maximum power consumption: 465 W (5.1 to 2.5 A) (490 VA)(Power consumption is 445 W at AC 200 to 240 V).
Trianze Tech stocks the Panasonic PT-MZ882 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
