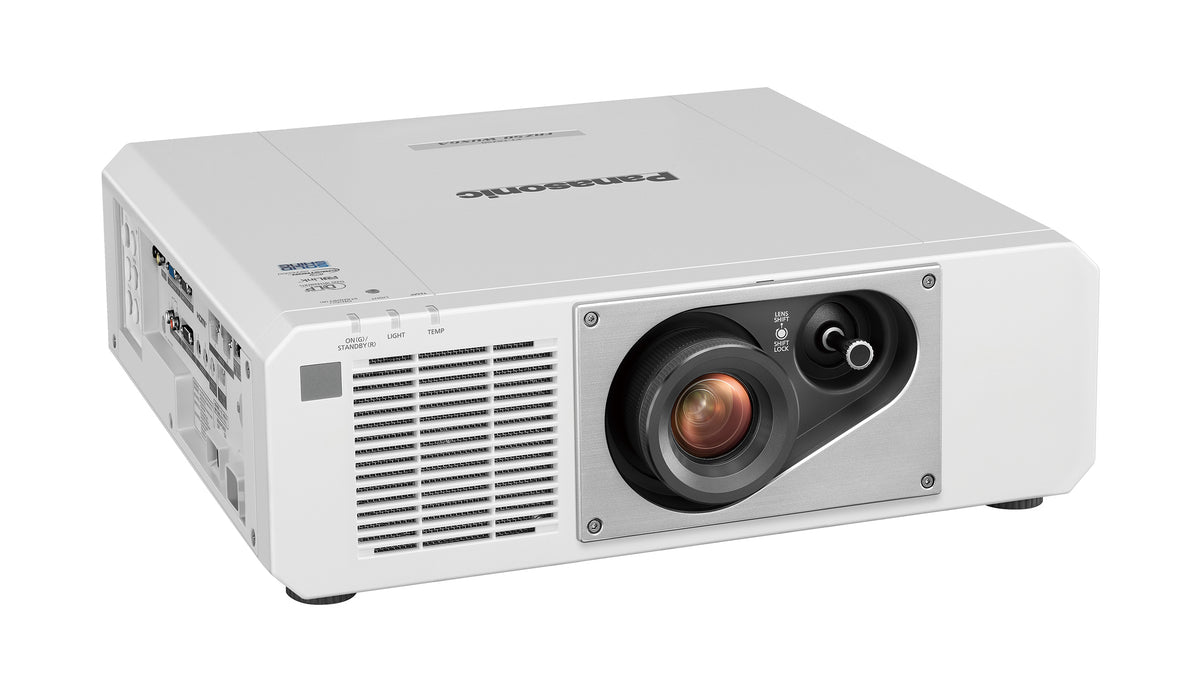

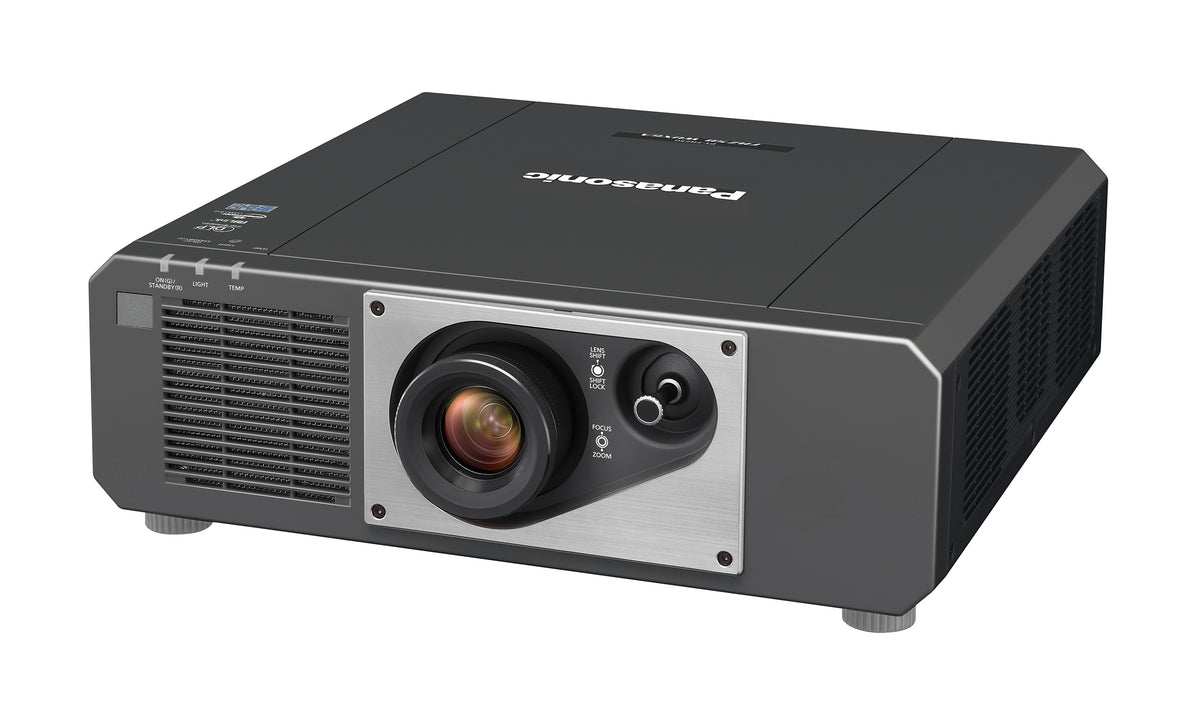

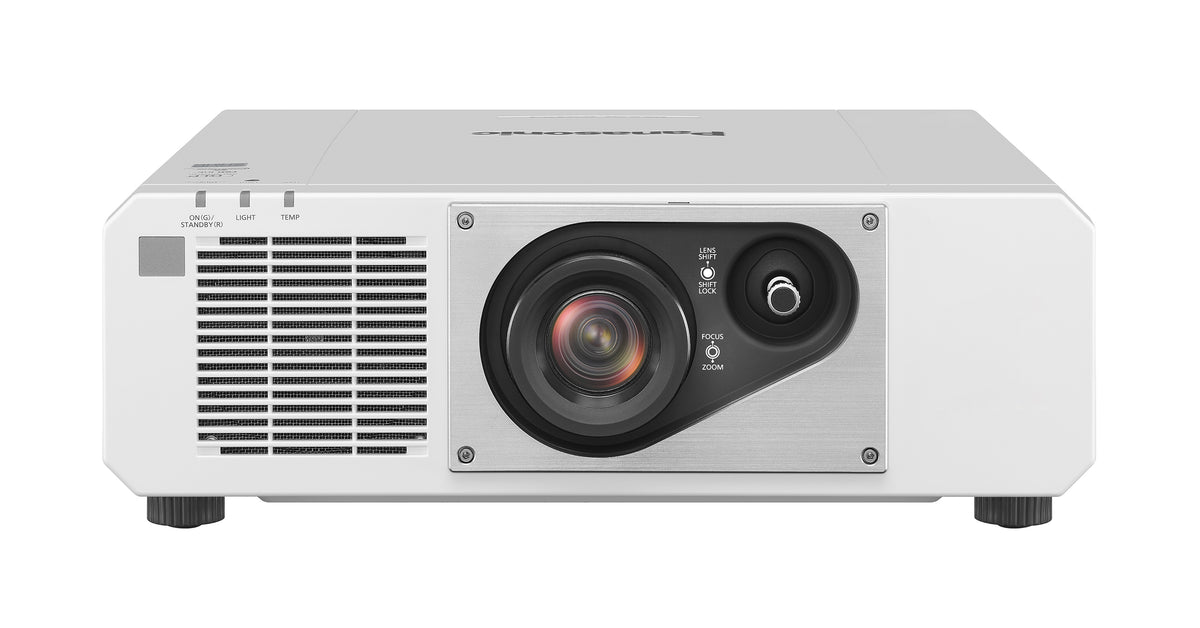

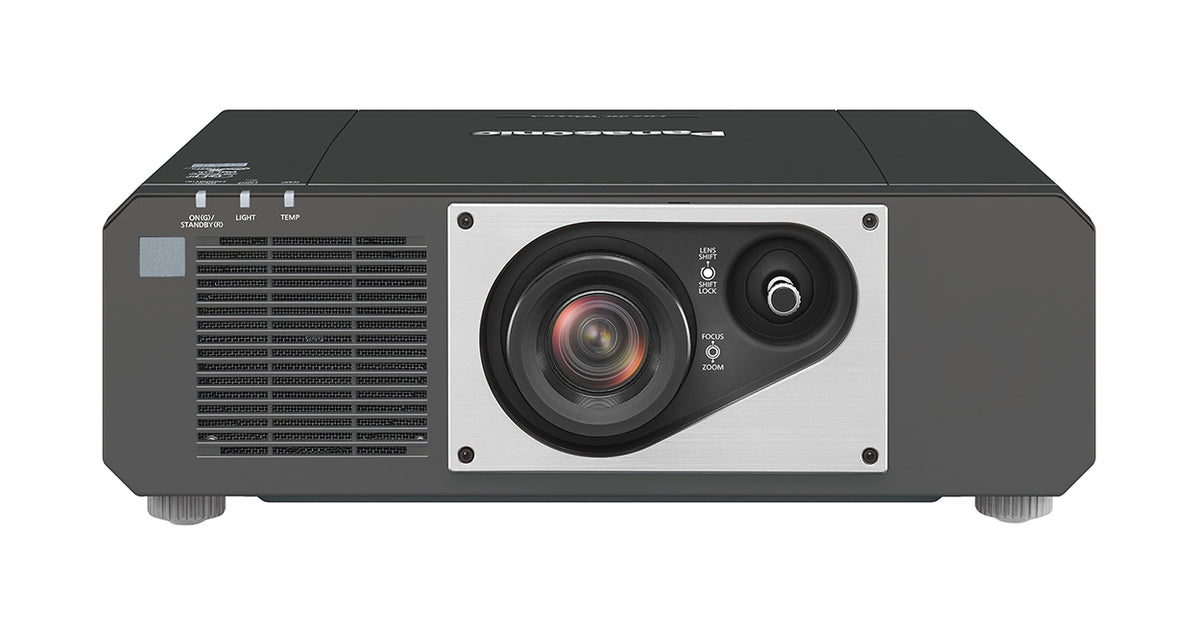

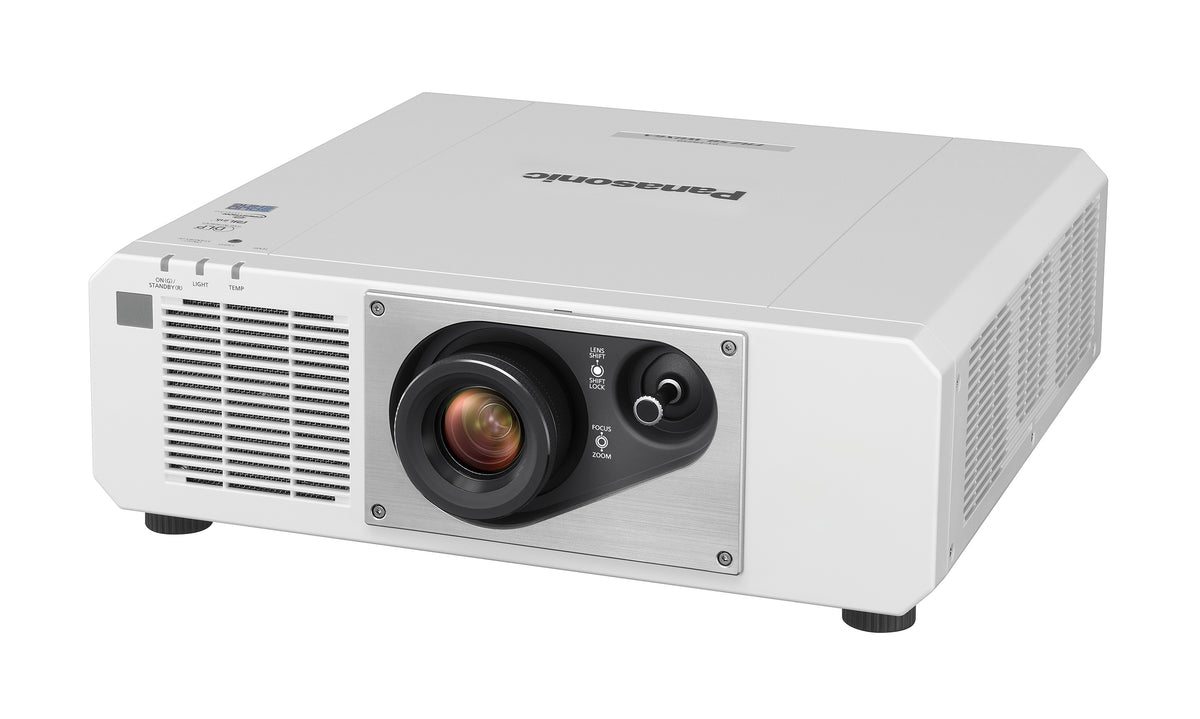

Panasonic PT-FRZ50: 5,200 Lumen Laser DLP Projector with Standard Throw Lens
Model
:
PT-FRZ50
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-FRZ50 at a Glance
- Brand
- Panasonic
- Model
- PT-FRZ50
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-FRZ50 Overview
The Panasonic PT-FRZ50 is a 5,200 lumen laser DLP projector with a supplied standard throw lens. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 5,200 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: 1920 x 1200 pixels
- Lens: 2.0x manual zoom (throw ratio: 1.46 to 2.94:1), manual focus, F 2.0 to 3.4, f 21.5 to 43.0 mm
- Lens shift: +64 %, -44 % (manual) vertical, +34 %, -27 % (manual) horizontal
- Contrast ratio 20,000:1
- Operation noise 32 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-FRZ50 |
| Type | Laser dlp projector |
| Projector type | 1-Chip DLP projector |
| Display method | DLP chip x 1, DLP projection system |
| Display Device: Panel size | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) |
| Display Device: Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diodes |
| Light output | 5,200 lm |
| Light output (ANSI) | 5,200 lm |
| Light output (Center) | 5,400 lm (Center) |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Resolution | 1920 x 1200 pixels |
| Contrast Ratio (typ.) | 20,000:1 (Full On/Full Off, Picture Mode: Dynamic, Dynamic Contrast 1, Operating Mode: Normal) |
| Screen size (diagonal) | 1.02 to 7.62 m (40 to 300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio | 90% |
| Lens | 2.0x manual zoom (throw ratio: 1.46 to 2.94:1), manual focus, F 2.0 to 3.4, f 21.5 to 43.0 mm |
| Lens shift: Vertical(from center of screen) | +64 %, -44 % (manual) |
| Lens shift: Horizontal(from center of screen) | +34 %, -27 % (manual) |
| Keystone correction range | Vertical: +/-40 degrees, Horizontal: +/-20 degrees |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals: HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input), CEC supported |
| Terminals: COMPUTER IN(D-SUB 15pin) | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals: COMPUTER OUT(D-SUB 15pin) | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals: VIDEO IN | Pin jack x 1 (composite video) |
| Terminals: AUDIO IN(M3 Stereo Mini Jack) | Pin jack x 1 (L, R) |
| Terminals: AUDIO IN(Pin Jack L/R) | M3 x 1 |
| Terminals: AUDIO OUT(M3 Stereo Mini Jack) | M3 x 1 (Variable) |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals: DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT compliant), PJLink (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.3 compatible, Deep Color compatible, 4K/60p signal input |
| Terminals: LAN | RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals: USB TYPE A | USB connector (Type A) x 1 (Output 5 V/2 A) |
| Power supply | AC 100 to 240 V, 50/60 Hz |
| Maximum power consumption | 465 W (5.0 to 2.0 A) |
| On-mode power consumption(Operating mode): Normal | [NORMAL] 370 W |
| On-mode power consumption(Operating mode): Eco | [ECO] 295 W |
| On-mode power consumption(Operating mode): Quiet | [QUIET] 295 W |
Why Buy the Panasonic PT-FRZ50 from Trianze Tech?
- Genuine Panasonic Laser DLP projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-FRZ50
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-FRZ50: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-FRZ50, Panasonic lists the following. Light output: 5,200 lm; Light output (ANSI): 5,200 lm; Resolution: 1920 x 1200 pixels; Contrast ratio: 20,000:1 (Full On/Full Off, Picture Mode: Dynamic, Dynamic Contrast 1, Operating Mode: Normal).
For the Panasonic PT-FRZ50, Panasonic lists the following. Lens: 2.0x manual zoom (throw ratio: 1.46 to 2.94:1), manual focus, F 2.0 to 3.4, f 21.5 to 43.0 mm; Screen size: 1.02 to 7.62 m (40 to 300 in), 16:10 aspect ratio; Lens shift vertical: +64 %, -44 % (manual); Keystone: Vertical: +/-40 degrees, Horizontal: +/-20 degrees.
For the Panasonic PT-FRZ50, Panasonic lists the following. HDMI IN: HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input), CEC supported; COMPUTER IN(D-SUB 15pin): D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR); COMPUTER OUT(D-SUB 15pin): D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR); VIDEO IN: Pin jack x 1 (composite video); AUDIO IN(M3 Stereo Mini Jack): Pin jack x 1 (L, R); AUDIO IN(Pin Jack L/R): M3 x 1.
For the Panasonic PT-FRZ50, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Operation noise: 32 dB [NORMAL].
For the Panasonic PT-FRZ50, Panasonic lists the following. Dimensions: 498 x 168 x 492 mm (19 5/8" x 6 5/8" x 19 3/8"); Weight: Approx. 16.0 kg (35.3 lbs); Power supply: AC 100 to 240 V, 50/60 Hz; Maximum power consumption: 465 W (5.0 to 2.0 A).
Trianze Tech stocks the Panasonic PT-FRZ50 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
