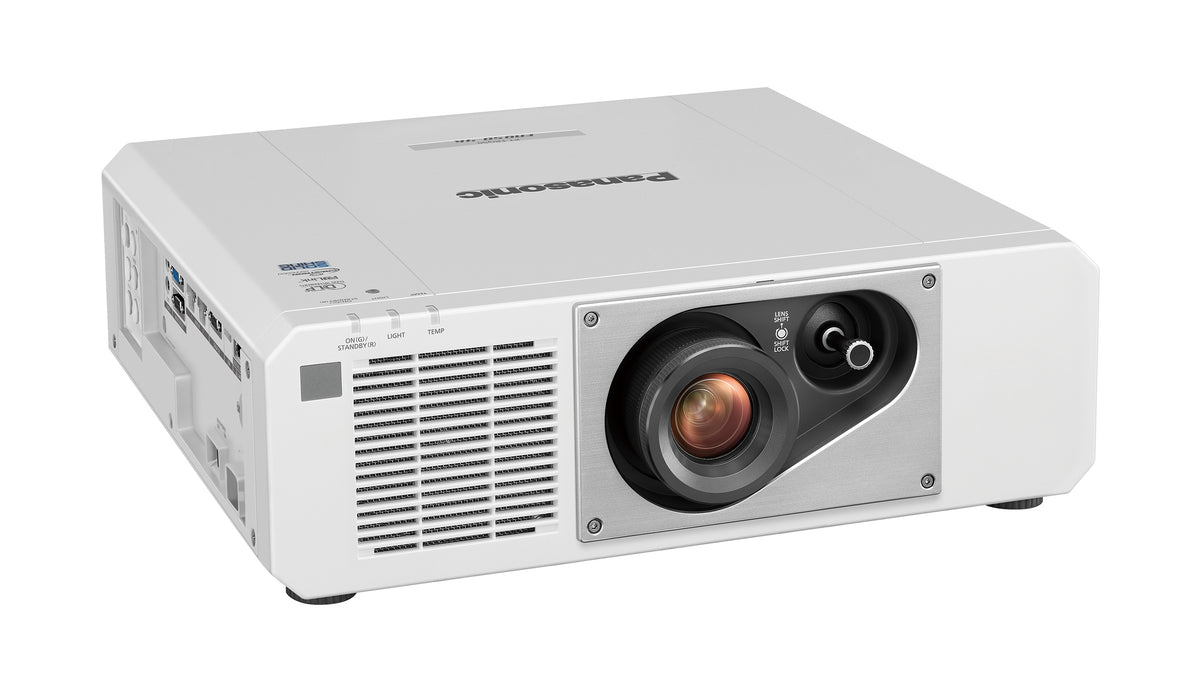

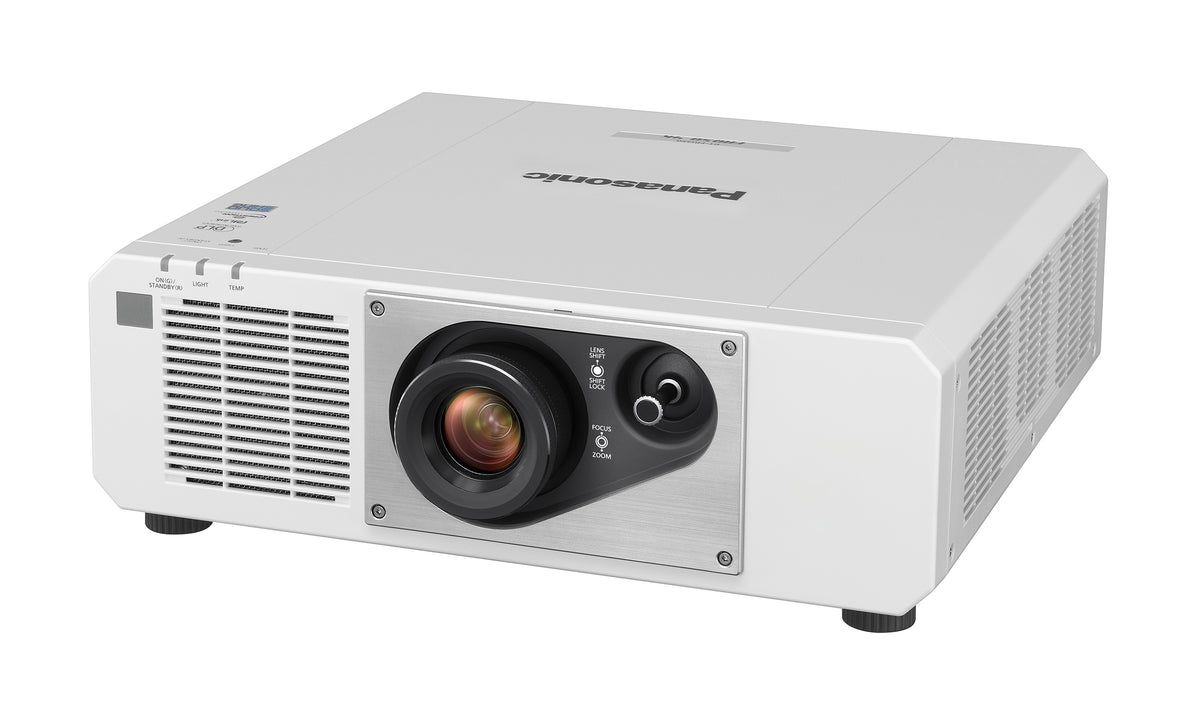

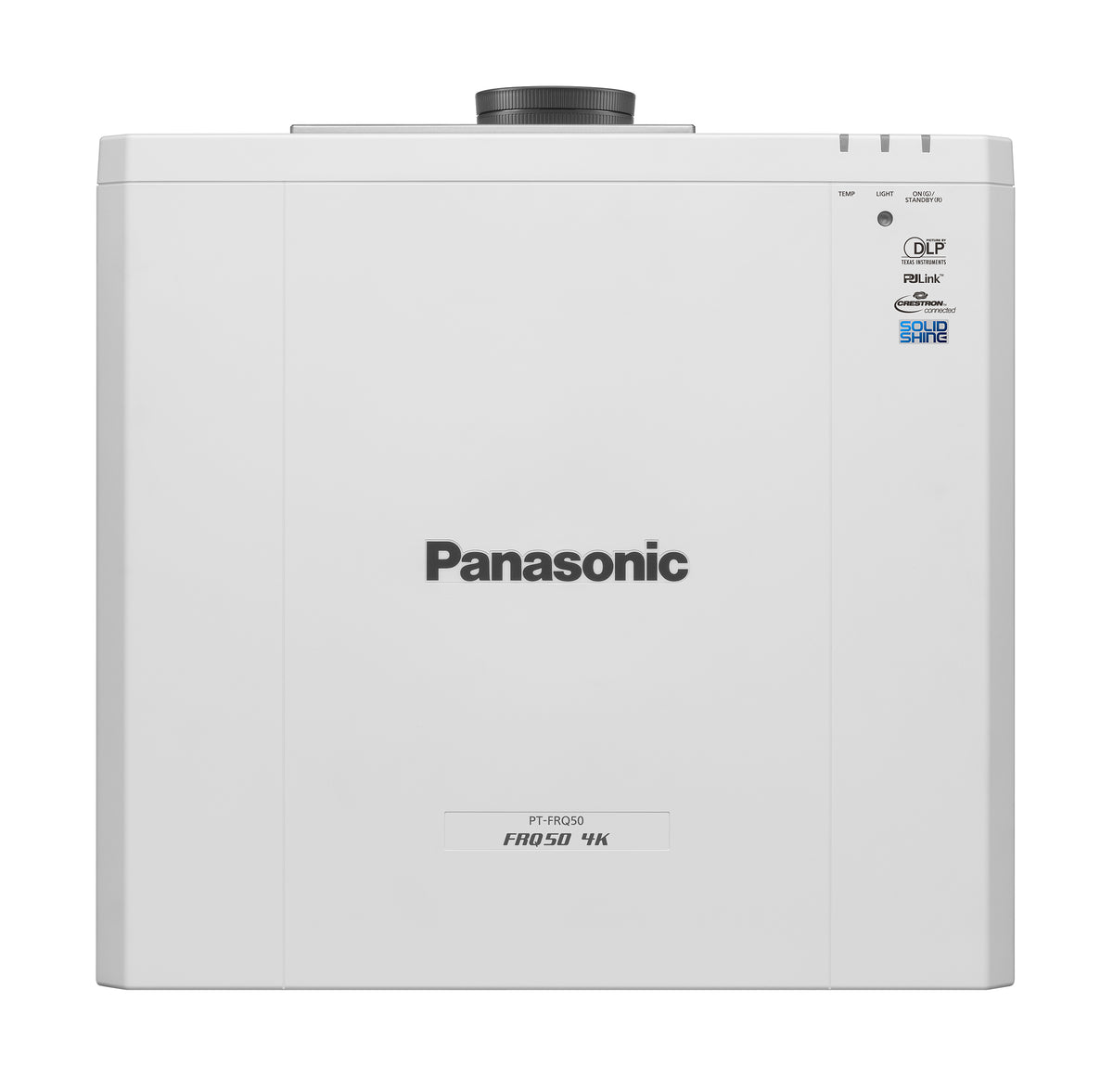

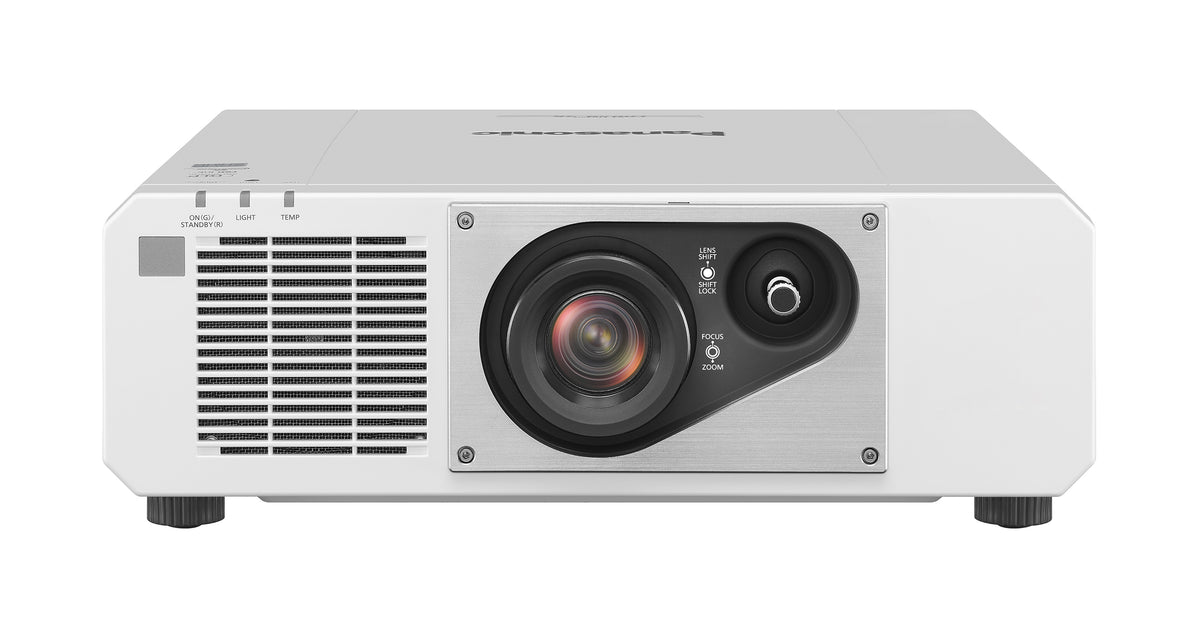

Panasonic PT-FRQ50UW: 5,200 Lumen 4K Laser DLP Projector with Standard Throw Lens, White
Model
:
PT-FRQ50UW
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-FRQ50UW at a Glance
- Brand
- Panasonic
- Model
- PT-FRQ50UW
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-FRQ50UW Overview
The Panasonic PT-FRQ50UW is a 5,200 lumen 4K laser DLP projector with a supplied standard throw lens. This listing is the white model. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 5,200 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: 4K (3840 x 2160 pixels) (With Quad Pixel Drive)
- Lens: 2.0x manual zoom (throw ratio: 1.46 to 2.93:1), manual focus, F 2.0 to 3.4, f 21.5 to 43.0 mm
- Lens shift: +71 %, -48 % (manual) vertical, +34 %, -27 % (manual) horizontal
- Contrast ratio 20,000:1 (Full On/Full Off)
- Operation noise 35 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-FRQ50UW |
| Type | Laser dlp projector |
| Projector type | 1-Chip DLP projector |
| Display method | DLP chip x 1, DLP projection system |
| Display Device: Panel size | 16.5 mm (0.65 in) diagonal (16:9 aspect ratio) |
| Display Device: Number of pixels | 1920 x 1080 pixels(If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.) |
| Light source | Laser diodes |
| Light output | 5,200 lm |
| Light output (ANSI) | 5,200 lm |
| Light output (Center) | 5,400 lm (Center) |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | 4K (3840 x 2160 pixels) (With Quad Pixel Drive) |
| Contrast Ratio (typ.) | 20,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input) |
| Screen size (diagonal) | 1.02 to 7.62 m (40 to 300 in), 16:9 aspect ratio |
| Center-to-corner zone ratio | 90% |
| Lens | 2.0x manual zoom (throw ratio: 1.46 to 2.93:1), manual focus, F 2.0 to 3.4, f 21.5 to 43.0 mm |
| Lens shift: Vertical(from center of screen) | +71 %, -48 % (manual) |
| Lens shift: Horizontal(from center of screen) | +34 %, -27 % (manual) |
| Keystone correction range | Vertical: +/-40 degrees, Horizontal: +/-20 degrees |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |

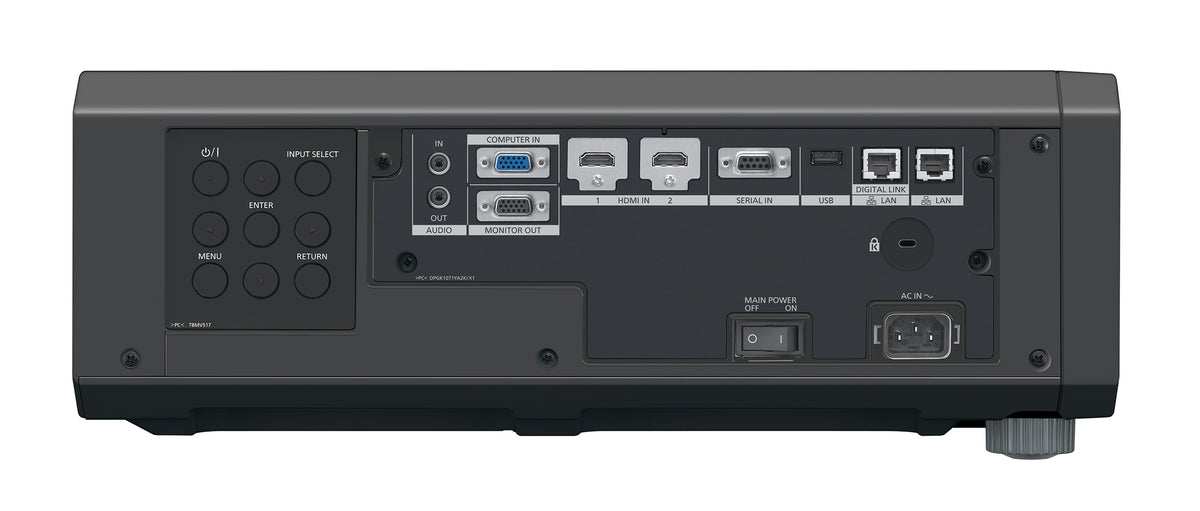

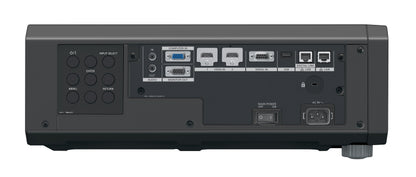

| Terminals: HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input), CEC supported |
| Terminals: COMPUTER IN(D-SUB 15pin) | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals: COMPUTER OUT(D-SUB 15pin) | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals: AUDIO IN(M3 Stereo Mini Jack) | M3 stereo mini-jack x 2 |
| Terminals: AUDIO OUT(M3 Stereo Mini Jack) | M3 stereo mini-jack x 2 |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals: DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal Input, Extron XTP) |
| Terminals: LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink [Class 2], Art-Net) |
| Terminals: USB TYPE A | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory, and for power supply (DC 5 V, maximum 2 A) |
| Terminals: SLOT | IPv4, IPv6 |
| Protocol versions | IPv4, IPv6 |
| Power supply | AC 100 to 240 V, 50/60 Hz,AC 110 V, 60 Hz (Taiwan) |
| Maximum power consumption | 480 W (5.0 to 2.2 A) (500 VA) |
| On-mode power consumption(Operating mode): Normal | [NORMAL] 420 W |
Why Buy the Panasonic PT-FRQ50UW from Trianze Tech?
- Genuine Panasonic Laser DLP projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-FRQ50UW
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-FRQ50UW: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-FRQ50UW, Panasonic lists the following. Light output: 5,200 lm; Light output (ANSI): 5,200 lm; Resolution: 4K (3840 x 2160 pixels) (With Quad Pixel Drive); Contrast ratio: 20,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input).
For the Panasonic PT-FRQ50UW, Panasonic lists the following. Lens: 2.0x manual zoom (throw ratio: 1.46 to 2.93:1), manual focus, F 2.0 to 3.4, f 21.5 to 43.0 mm; Screen size: 1.02 to 7.62 m (40 to 300 in), 16:9 aspect ratio; Lens shift vertical: +71 %, -48 % (manual); Keystone: Vertical: +/-40 degrees, Horizontal: +/-20 degrees.
For the Panasonic PT-FRQ50UW, Panasonic lists the following. HDMI IN: HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input), CEC supported; COMPUTER IN(D-SUB 15pin): D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR); COMPUTER OUT(D-SUB 15pin): D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR); AUDIO IN(M3 Stereo Mini Jack): M3 stereo mini-jack x 2; AUDIO OUT(M3 Stereo Mini Jack): M3 stereo mini-jack x 2; SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant).
For the Panasonic PT-FRQ50UW, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 35 dB [NORMAL].
For the Panasonic PT-FRQ50UW, Panasonic lists the following. Dimensions: 498 x 168 x 492 mm (19 5/8" x 6 5/8" x 19 3/8"); Weight: Approx. 16.1 kg (35.5 lbs); Power supply: AC 100 to 240 V, 50/60 Hz,AC 110 V, 60 Hz (Taiwan); Maximum power consumption: 480 W (5.0 to 2.2 A) (500 VA).
Trianze Tech stocks the Panasonic PT-FRQ50UW in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
