Panasonic PT-CMZ50BU: 5,200 Lumen WUXGA Laser LCD Projector with Ultra Short Throw Lens, Black
Model
:
PT-CMZ50BU
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-CMZ50BU at a Glance
- Brand
- Panasonic
- Model
- PT-CMZ50BU
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-CMZ50BU Overview
The Panasonic PT-CMZ50BU is a 5,200 lumen WUXGA laser LCD projector with a supplied ultra short throw lens. This listing is the black model. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 5,200 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: WUXGA (1920 x 1200 pixels)
- Lens: Fixed zoom, powered focus lens, F = 1.7, f = 2.81 mm, throw ratio: 0.235:1 (16:10 aspect ratio)
- Contrast ratio 3,000,000:1 (Full On/Full Off)
- Operation noise 34 dB [NORMAL]

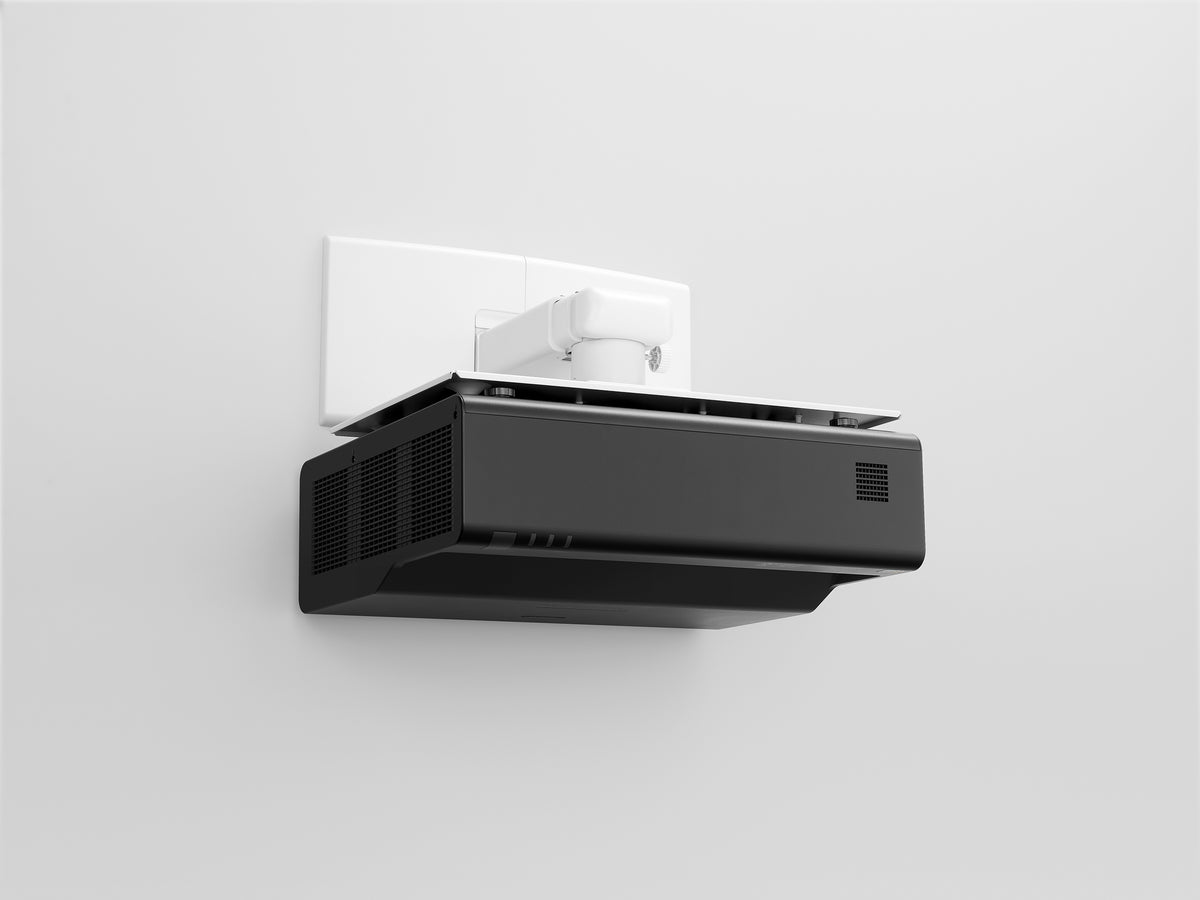

- Installation: Ceiling/floor, front/rear, free 360-degree installation
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-CMZ50BU |
| Type | Laser lcd projector |
| Projector type | LCD projector |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Display Device: Panel size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display Device: Drive method | Active matrix method |
| Display Device: Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diodes |
| Light output | 5,200 lm |
| Light output (ANSI) | 5,200 lm |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 2.03 to 3.05 m (80 to 120 in) (16:10 aspect ratio) |
| Center-to-corner zone ratio | 85% |
| Lens | Fixed zoom, powered focus lens, F = 1.7, f = 2.81 mm, throw ratio: 0.235:1 (16:10 aspect ratio)(Projection distance: 1 cm [1/3 in] for 80-inch image) |
| Digital Zoom Extender | Throw ratio 0.235 to 0.288:1 (16:10 aspect ratio) (Corresponding value) |
| Keystone correction range | Vertical: +/-3 degrees, Horizontal: +/-3 degrees |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |

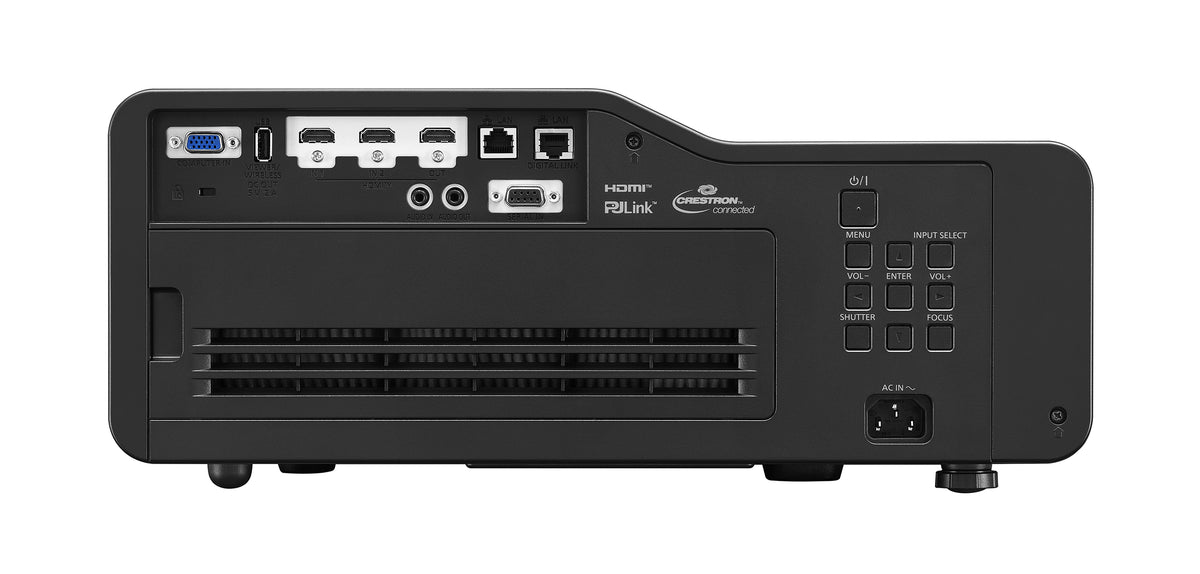

| Terminals: HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported |
| Terminals: HDMI OUT | HDMI 19-pin x 1 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal output) |
| Terminals: COMPUTER IN(D-SUB 15pin) | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals: AUDIO IN(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals: AUDIO OUT(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Terminals: DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], HDCP, Deep Color, 4K/30p signal input) |
| Terminals: LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink [Class 2] |
| Terminals: USB TYPE A | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,power supply (DC 5 V, maximum 2 A) |
| Protocol versions | IPv4, IPv6 |
| Power supply | AC 100 to 240 V, 50/60 Hz |
| Maximum power consumption | 325 W (3.4 to 1.4 A) (330 VA) (Power consumption is 310 W at AC 200 to 240 V) |
| On-mode power consumption(Operating mode): Normal | [NORMAL]290 W (AC 100 to 120 V), 280 W (AC 200 to 240 V) |
| On-mode power consumption(Operating mode): Eco | [ECO]215 W (AC 100 to 120 V), 205 W (AC 200 to 240 V) |
| On-mode power consumption(Operating mode): Quiet | [QUIET]210 W (AC 100 to 120 V), 200 W (AC 200 to 240 V) |
Why Buy the Panasonic PT-CMZ50BU from Trianze Tech?
- Genuine Panasonic Laser LCD projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-CMZ50BU
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-CMZ50BU: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-CMZ50BU, Panasonic lists the following. Light output: 5,200 lm; Light output (ANSI): 5,200 lm; Resolution: WUXGA (1920 x 1200 pixels); Contrast ratio: 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].).
For the Panasonic PT-CMZ50BU, Panasonic lists the following. Lens: Fixed zoom, powered focus lens, F = 1.7, f = 2.81 mm, throw ratio: 0.235:1 (16:10 aspect ratio)(Projection distance: 1 cm [1/3 in] for 80-inch image); Screen size: 2.03 to 3.05 m (80 to 120 in) (16:10 aspect ratio); Keystone: Vertical: +/-3 degrees, Horizontal: +/-3 degrees.
For the Panasonic PT-CMZ50BU, Panasonic lists the following. HDMI IN: HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported; HDMI OUT: HDMI 19-pin x 1 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal output); COMPUTER IN(D-SUB 15pin): D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR); AUDIO IN(M3 Stereo Mini Jack): M3 stereo mini-jack x 1; AUDIO OUT(M3 Stereo Mini Jack): M3 stereo mini-jack x 1; SERIAL IN: D-sub 9-pin (female) x 1 for computer control (RS-232C compliant).
For the Panasonic PT-CMZ50BU, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 34 dB [NORMAL].
For the Panasonic PT-CMZ50BU, Panasonic lists the following. Dimensions: Approx. 495 mm x 160 mm x 421 mm (19 1/2" x 6 19/64" x 16 37/64") (excluding feet and protrusions),Approx. 495 mm x 176 mm x 421 mm; Weight: Approx. 9.5 kg (20.9 lbs); Power supply: AC 100 to 240 V, 50/60 Hz; Maximum power consumption: 325 W (3.4 to 1.4 A) (330 VA) (Power consumption is 310 W at AC 200 to 240 V).
Trianze Tech stocks the Panasonic PT-CMZ50BU in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
