Panasonic ET-DLE020: Zoom Projector Lens, 4.1 to 4.4 mm Focal Length
Model
:
ET-DLE020
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic ET-DLE020 at a Glance
- Brand
- Panasonic
- Model
- ET-DLE020
- Category
- Projector Lenses
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic ET-DLE020 Overview

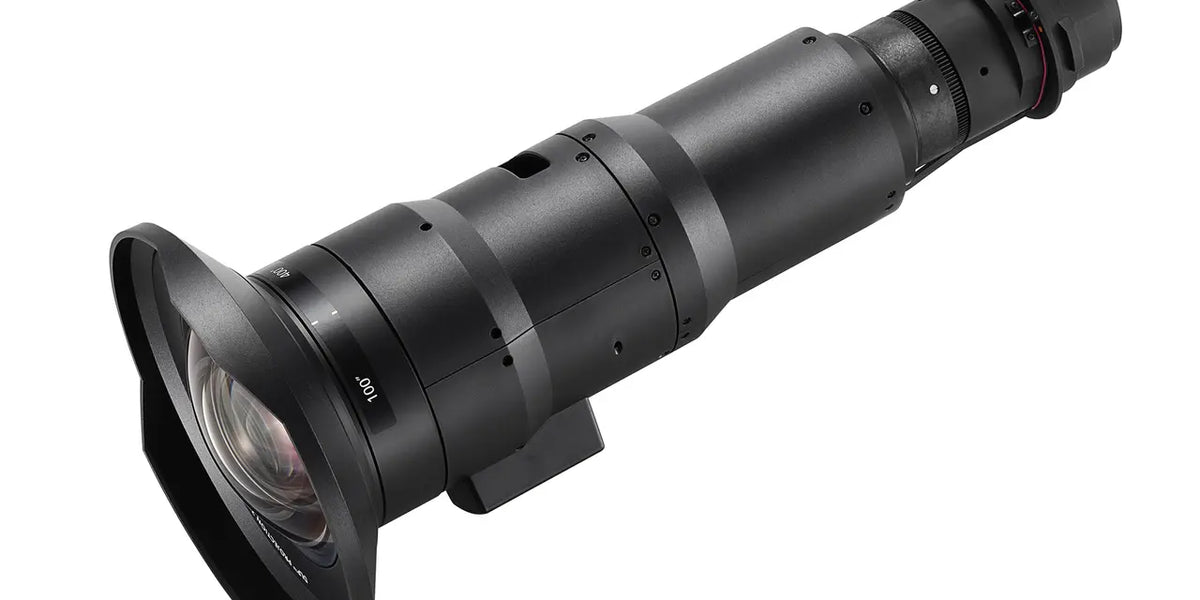

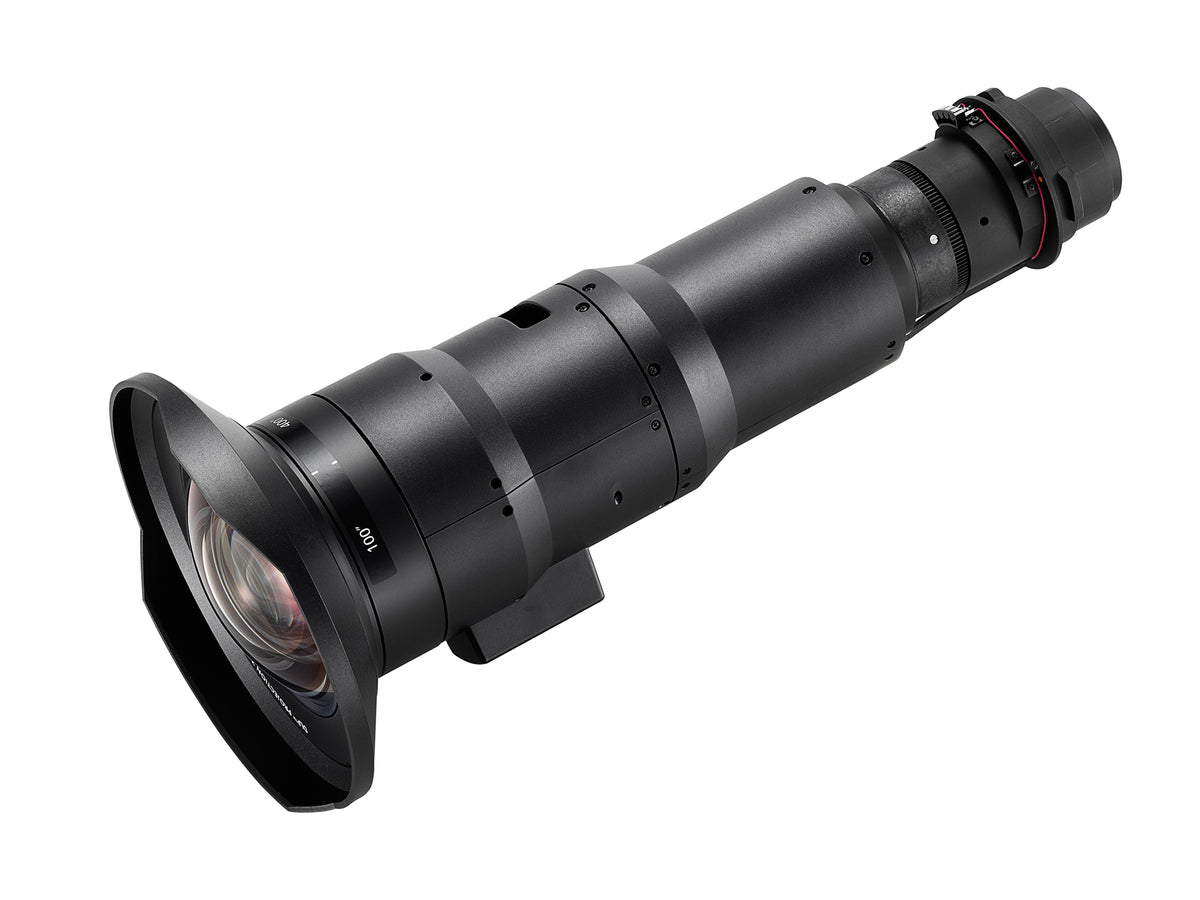

The Panasonic ET-DLE020 is a zoom projector lens and a 4.1 to 4.4 mm focal length for compatible Panasonic projectors. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Lens type: Ultra-Short-Throw Zoom Lens
- Throw ratio: 0.280 to 0.299:1
- Focal length: 4.1 to 4.4 mm
- F-number: 2.0
- Lens shift: +50 %, -16 % vertical
- Compatible projectors: PT-RQ7L / PT-RQ6L / PT-RZ7L / PT-RZ6L /PT-RZ990 / PT-RZ890 / PT-RZ790 / PT-RZ690 /PT-RCQ10 / PT-RCQ80 / PT-RZ120 / PT-RZ970 / PT-RW930 / PT-RX110
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ET-DLE020 |
| Type | Projector lens |
| Lens type | Ultra-Short-Throw Zoom Lens |
| F-number | 2.0 |
| Focal length (f) | 4.1 to 4.4 mm (5/32 to 11/64") |
| Screen size | 100 to 400 inches |
| Throw ratio: WUXGA | 0.280 to 0.299:1 |
| Throw ratio: WXGA | 0.294 to 0.314:1 |
| Throw ratio: XGA | 0.290 to 0.309:1 |
| Lens-shift: Vertical | +50 %, -16 % |
| Lens-shift: Horizontal | +10 %, -20 % |
| Zoom | Yes |
| Dimensions: (W) | 170 mm (6 11/16") |
| Dimensions: (H) | 170 mm (6 11/16") |
| Dimensions: (D) | 391 mm (15 13/32") |
| Weight [kg] | Approx. 3.2 kg (7.05 lbs) |
| Applicable projectors | PT-RQ7L / PT-RQ6L / PT-RZ7L / PT-RZ6L /PT-RZ990 / PT-RZ890 / PT-RZ790 / PT-RZ690 /PT-RCQ10 / PT-RCQ80 / PT-RZ120 / PT-RZ970 / PT-RW930 / PT-RX110 /PT-RZ870 / PT-RZ770 / PT-RW730 / PT-RZ660 / PT-RW620 |
| Dimensions(WxHxD) | 170 x 170 x 391 mm (6-11/16 x 6-11/16 x 15-13/32") |
| Throw ratio: 4K | 0.279 to 0.297:1 |
| Throw Ratio | WUXGA(0.280-0.299:1) |
| Compatibiliy | PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L |
Why Buy the Panasonic ET-DLE020 from Trianze Tech?
- Genuine Panasonic projector lens supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the ET-DLE020
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic ET-DLE020: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic ET-DLE020, Panasonic lists the following. Throw ratio: WUXGA: 0.280 to 0.299:1; Throw ratio: WXGA: 0.294 to 0.314:1; Throw ratio: XGA: 0.290 to 0.309:1; Focal length: 4.1 to 4.4 mm.
For the Panasonic ET-DLE020, Panasonic lists the following. Applicable projectors: PT-RQ7L / PT-RQ6L / PT-RZ7L / PT-RZ6L /PT-RZ990 / PT-RZ890 / PT-RZ790 / PT-RZ690 /PT-RCQ10 / PT-RCQ80 / PT-RZ120 / PT-RZ970 / PT-RW930 / PT-RX110; Compatibiliy: PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L.
For the Panasonic ET-DLE020, Panasonic lists the following. Lens type: Ultra-Short-Throw Zoom Lens; F-number: 2.0; Focal length: 4.1 to 4.4 mm; Zoom: Yes; Screen size: 100 to 400 inches.
For the Panasonic ET-DLE020, Panasonic lists the following. Lens-shift: Vertical: +50 %, -16 %; Lens-shift: Horizontal: +10 %, -20 %.
For the Panasonic ET-DLE020, Panasonic lists the following. Dimensions: 170 mm (6 11/16"); Weight: Approx. 3.2 kg (7.05 lbs).
Trianze Tech stocks the Panasonic ET-DLE020 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
