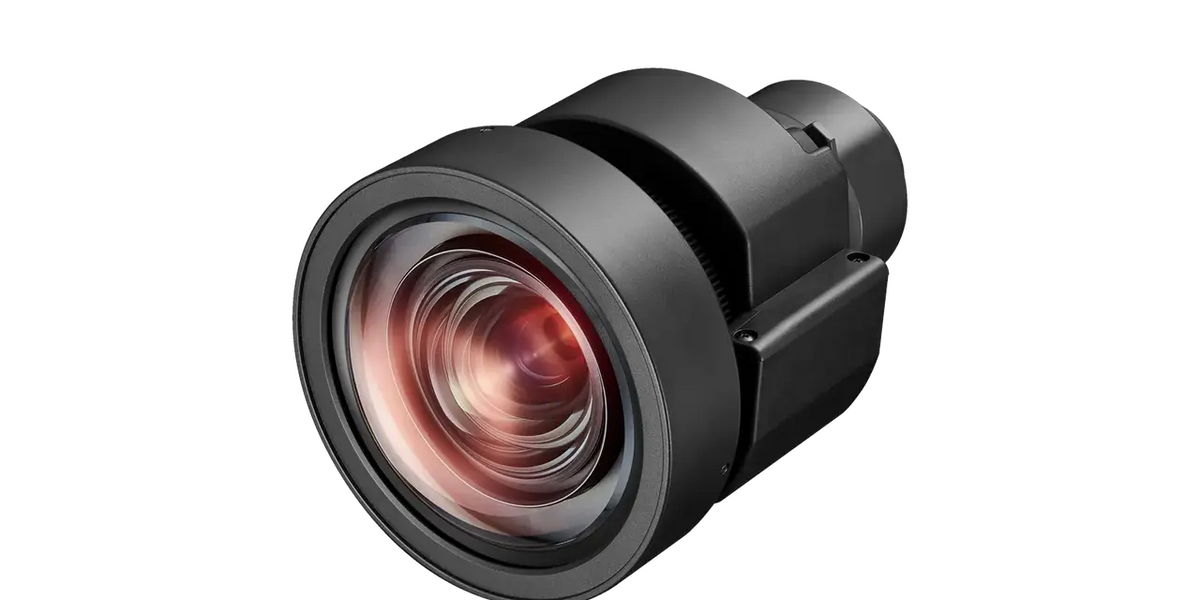

Panasonic ET-C1W500: Zoom Projector Lens, 16.7 to 24.6 mm Focal Length
Model
:
ET-C1W500
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic ET-C1W500 at a Glance
- Brand
- Panasonic
- Model
- ET-C1W500
- Category
- Projector Lenses
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic ET-C1W500 Overview
The Panasonic ET-C1W500 is a zoom projector lens and a 16.7 to 24.6 mm focal length for compatible Panasonic projectors. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Lens type: Zoom Lens
- Throw ratio: 0.940 to 1.39:1
- Focal length: 16.7 to 24.6 mm
- F-number: 1.8 to 2.3
- Lens shift: +/-60 % vertical
- Compatible projectors: PT-REQ15/REQ12/REQ10/REQ80/PT-REZ15/REZ12/REZ10/REZ80
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ET-C1W500 |
| Type | Projector lens |
| Lens type | Zoom Lens |
| F-number | 1.8 to 2.3 |
| Focal length (f) | 16.7 to 24.6 mm (21/32", 31/32") |
| Screen size | 70 to 1000 inches |
| Throw ratio: WUXGA | 0.940 to 1.39:1 |
| Auto Lens Identification function Compatible models | PT-REQ15/REQ12/REQ10/REQ80/PT-REZ15/REZ12/REZ10/REZ80 |
| Lens-shift: Vertical | +/-60 % |
| Lens-shift: Horizontal | +/-29 % |
| Zoom | x1.48 |
| Dimensions: (W) | Approx. 154 mm(6 1/16") |
| Dimensions: (H) | Approx. 155 mm(6 3/32") |
| Dimensions: (D) | Approx. 234 mm(9 7/32") |
| Weight [kg] | Approx. 2.4 kg (5.3 lbs) |
| Applicable projectors | PT-REQ15/REQ12/REQ10/REQ80//PT-REZ15/REZ12/REZ10/REZ80 |
| Dimensions(WxHxD) | 154 x 155 x 234 mm (6-1/16 x 6-3/32 x 9-7/32") |
| Throw Ratio | WUXGA (0.940-1.39:1) |
| Compatibiliy | PT-REQ15/REQ15L, PT-REQ12/REQ12L, PT-REQ10/REQ10L, PT-REQ80/REQ80L, PT-REZ15/REZ15L, PT-REZ12/REZ12L, PT-REZ10/REZ10L, PT-REZ80/REZ80L |
Why Buy the Panasonic ET-C1W500 from Trianze Tech?
- Genuine Panasonic projector lens supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the ET-C1W500
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic ET-C1W500: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic ET-C1W500, Panasonic lists the following. Throw ratio: WUXGA: 0.940 to 1.39:1; Throw Ratio: WUXGA (0.940-1.39:1); Focal length: 16.7 to 24.6 mm.
For the Panasonic ET-C1W500, Panasonic lists the following. Auto Lens Identification function Compatible models: PT-REQ15/REQ12/REQ10/REQ80/PT-REZ15/REZ12/REZ10/REZ80; Applicable projectors: PT-REQ15/REQ12/REQ10/REQ80//PT-REZ15/REZ12/REZ10/REZ80; Compatibiliy: PT-REQ15/REQ15L, PT-REQ12/REQ12L, PT-REQ10/REQ10L, PT-REQ80/REQ80L, PT-REZ15/REZ15L, PT-REZ12/REZ12L, PT-REZ10/REZ10L, PT-REZ80/REZ80L.
For the Panasonic ET-C1W500, Panasonic lists the following. Lens type: Zoom Lens; F-number: 1.8 to 2.3; Focal length: 16.7 to 24.6 mm; Zoom: x1.48; Screen size: 70 to 1000 inches.
For the Panasonic ET-C1W500, Panasonic lists the following. Lens-shift: Vertical: +/-60 %; Lens-shift: Horizontal: +/-29 %.
For the Panasonic ET-C1W500, Panasonic lists the following. Dimensions: Approx. 154 mm(6 1/16"); Weight: Approx. 2.4 kg (5.3 lbs).
Trianze Tech stocks the Panasonic ET-C1W500 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
