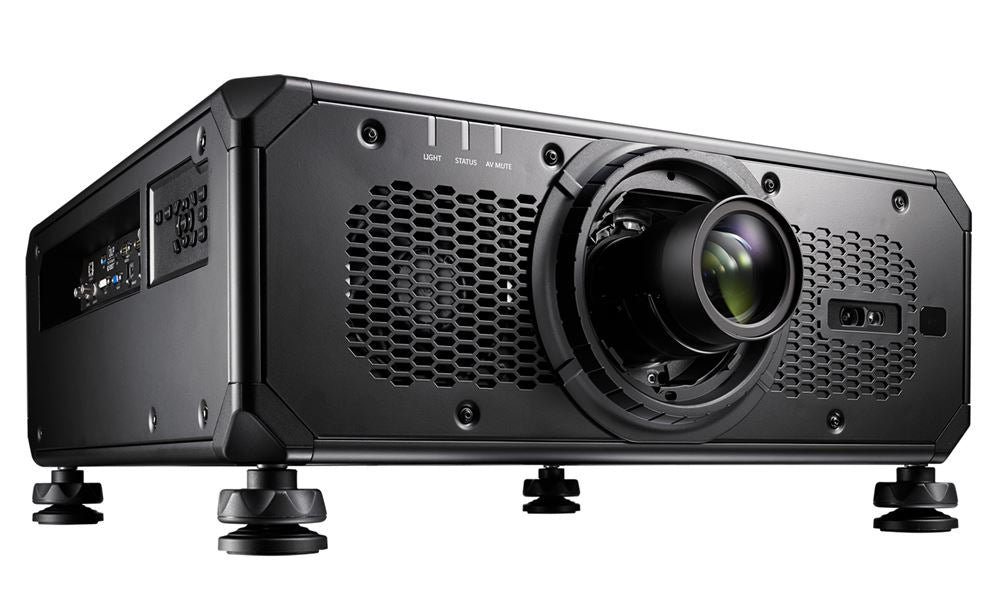

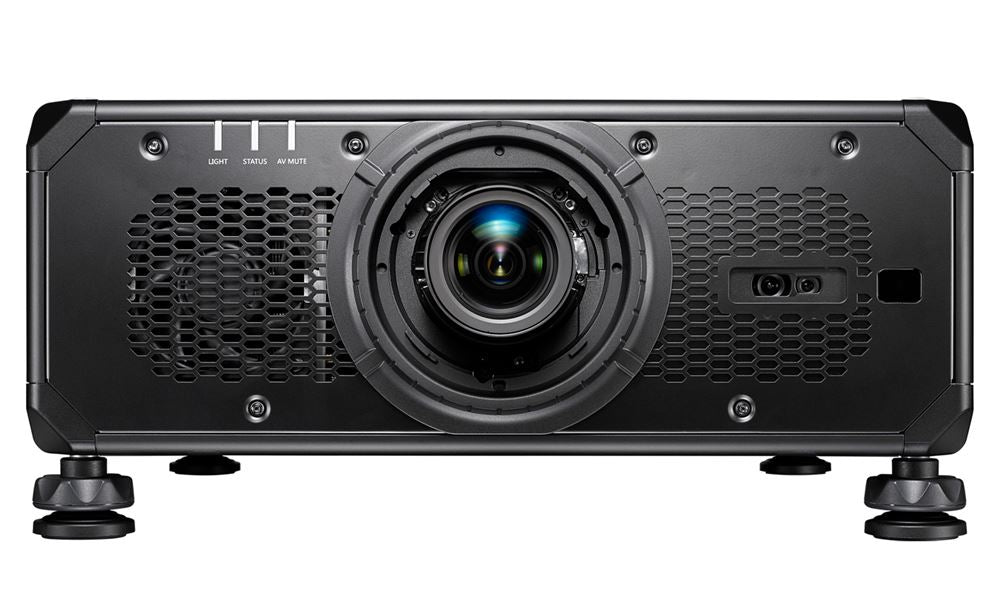

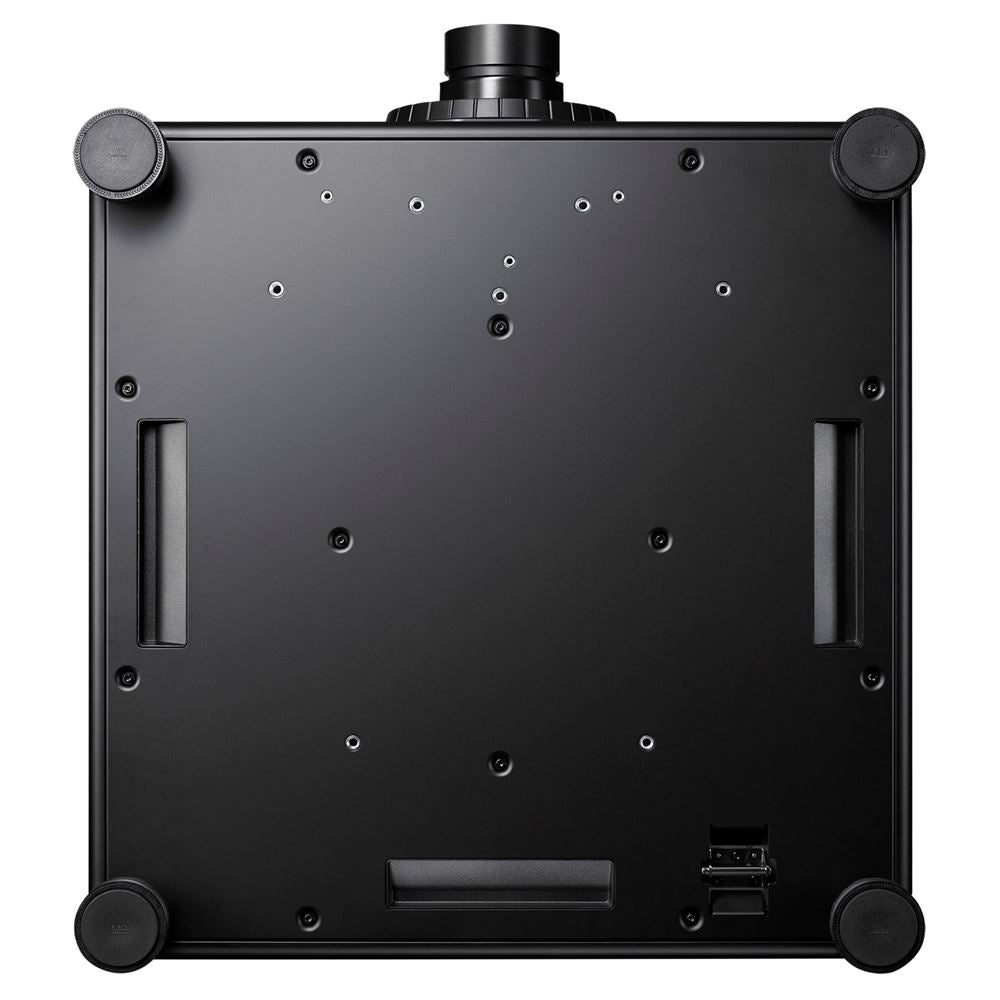

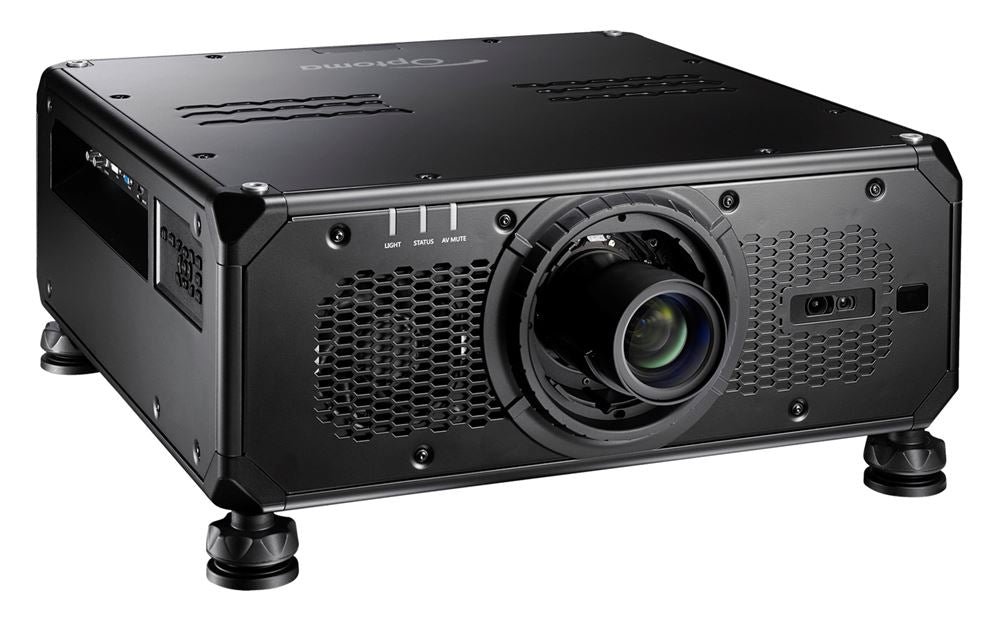

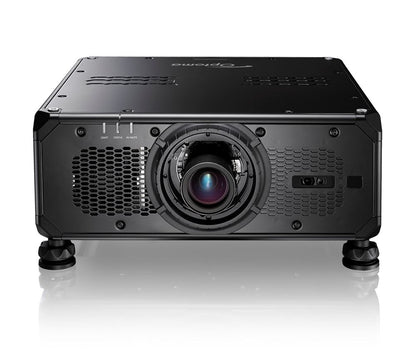

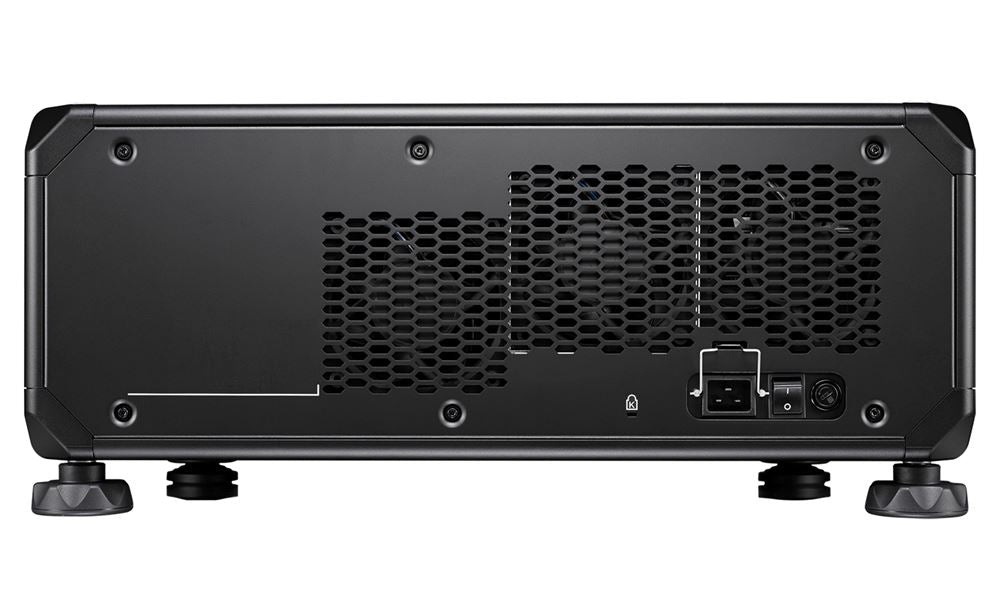

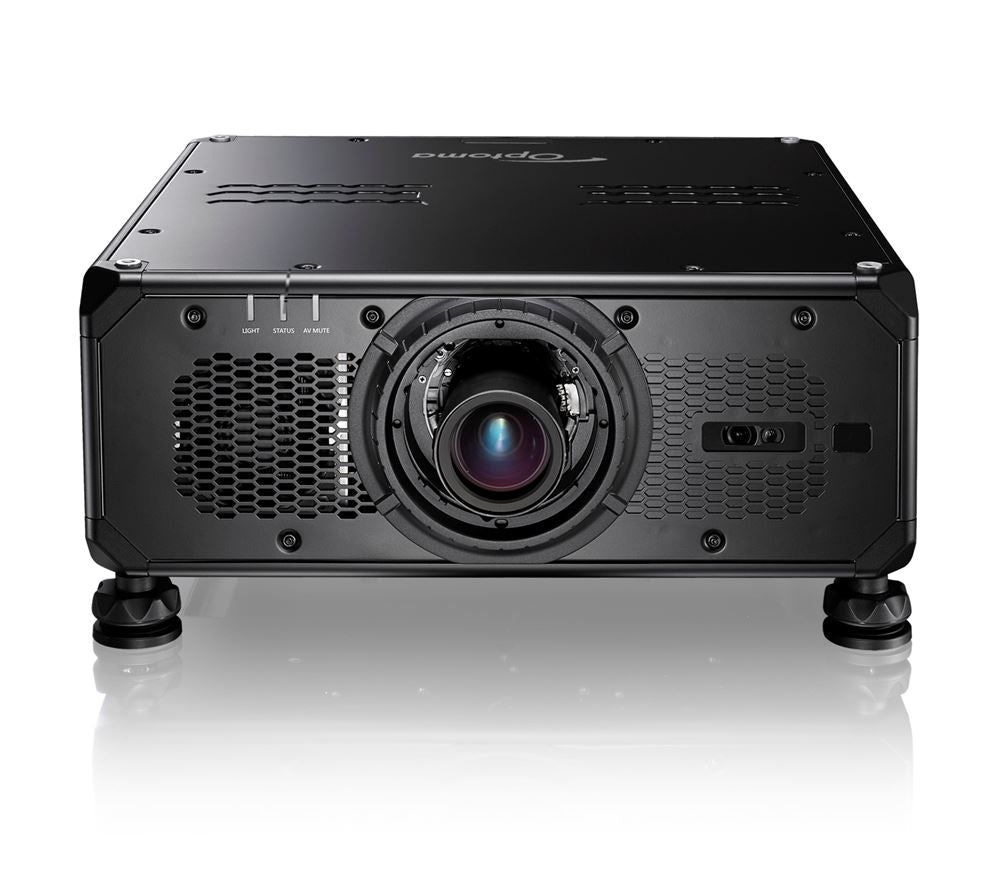

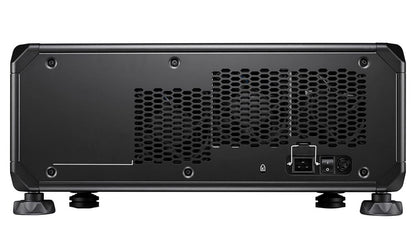

Optoma ZU2200: 22,000 Lumen WUXGA Laser Projector
Model
:
ZU2200
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Optoma ZU2200 at a Glance
- Brand
- Optoma
- Model
- ZU2200
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Optoma ZU2200 Overview
The high brightness ZU2200 professional laser projector fills a need for high-end installations, including the entertainment, exhibition, and digital signage markets. Part of Optoma's Ultra Bright Series, this projector offers incredibly high brightness of 22,000 lumens as well as extreme flexibility with eight interchangeable lenses to meet the needs of even the most complex installations. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- High brightness WUXGA DLP laser projector: 22,000 lumens
- Extreme installation flexibility: Eight interchangeable lenses
- Ultimate reliability: Built-in redundancy mode
- Striking lifelike images: Pure engine video processing and colour matching
- Redundant input with fast switching
- Integrated warping and edge blending processor
- Passive 3D compatibility
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ZU2200 |
| Resolution | WUXGA (1920x1200) |
| Brightness | 22,000 |
| ANSI brightness | 18,500 |
| Contrast ratio | 2,000,000:1 |
| Display technology | DLP |
| Light source | DuraCore MultiColor Laser |
| Light source life | 30,000 hours |
| Throw ratio | Dependent on lens |
| Lens options | BX-CTA11, 0.65 to 0.75:1, BX-CTA18, 0.84 to 1.02:1, BX-CTA19, 1.02 to 1.36:1, BX-CTA20, 1.2 to 1.5:1, BX-CTA21, 1.5 to 2.0:1, BX-CTA22, 2.0 to 4.0:1, BX-CTA23, 4.0 to 7.2:1, BX-CTA27, 7.2 to 10.8:1 |
| Screen size | Dependent on lens |
| Projection distance | Dependent on lens |
| Connections | Inputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI Outputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDMI, 1 x 3G-SDI Control 1 x RJ45, 1 x USB-A service, 1 |
| Wired network | Yes |
| Noise level | 38dB to 40dB |
| Power consumption | 590W to 1,200W |
| Power supply | AC 100 to 240 V @ 50/60 Hz |
| IP rating | IP5X |
| 24/7 operation | Yes |
| Dimensions (W x D x H) | 650 x 682 x 300.86 mm |
| Net weight | 54 kg |
Why Buy the Optoma ZU2200 from Trianze Tech?
- Genuine Optoma laser projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right lens, mount and screen for the ZU2200
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Optoma ZU2200: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Optoma ZU2200 is rated at 22,000 lumens, with 18,500 ANSI lumens and a contrast ratio of 2,000,000:1. Brightness is measured by the manufacturer under standard test conditions, so real rooms with ambient light need a screen and room lighting that match.
The Optoma ZU2200 has a native resolution of WUXGA (1920x1200) with a native 16:10 aspect ratio, and it accepts 16:9,16:10 content. Content at other resolutions is scaled to fit.
The Optoma ZU2200 offers a throw ratio of Dependent on lens. Lens options listed by Optoma: BX-CTA11, 0.65 to 0.75:1, BX-CTA18, 0.84 to 1.02:1, BX-CTA19, 1.02 to 1.36:1, BX-CTA20, 1.2 to 1.5:1, BX-CTA21, 1.5 to 2.0:1, BX-CTA22, 2.0 to 4.0:1, BX-CTA23, 4.0 to 7.2:1, BX-CTA27, 7.2 to 10.8:1. Projection distance is Dependent on lens m.
The Optoma ZU2200 uses a laser light source rated for up to 30,000 hours, so it needs no lamp changes in normal use. Optoma lists 24/7 operation as Yes. Dust protection is rated IP5X.
The Optoma ZU2200 connections are: Inputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI Outputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDMI, 1 x 3G-SDI Control 1 x RJ45, 1 x USB-A service, 1 x 12V trigger. Wired networking: Yes.
Trianze Tech stocks the Optoma ZU2200 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
