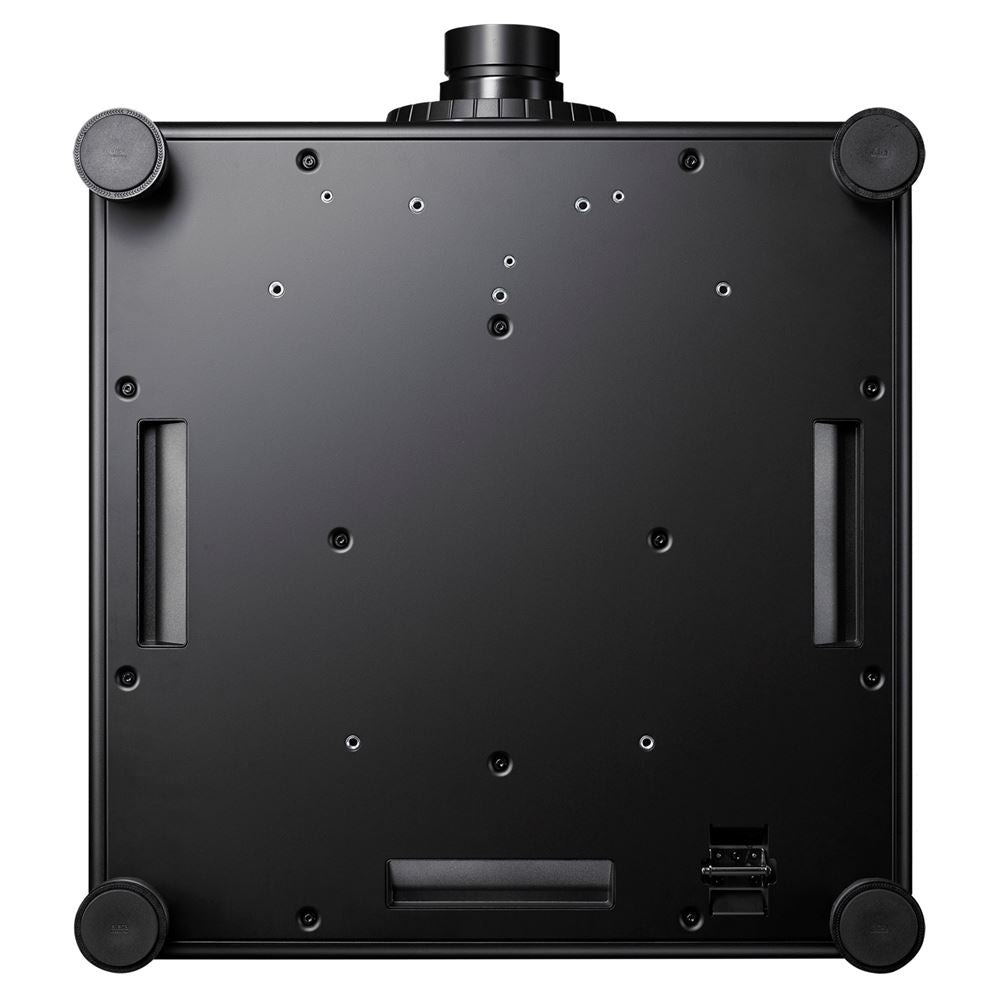

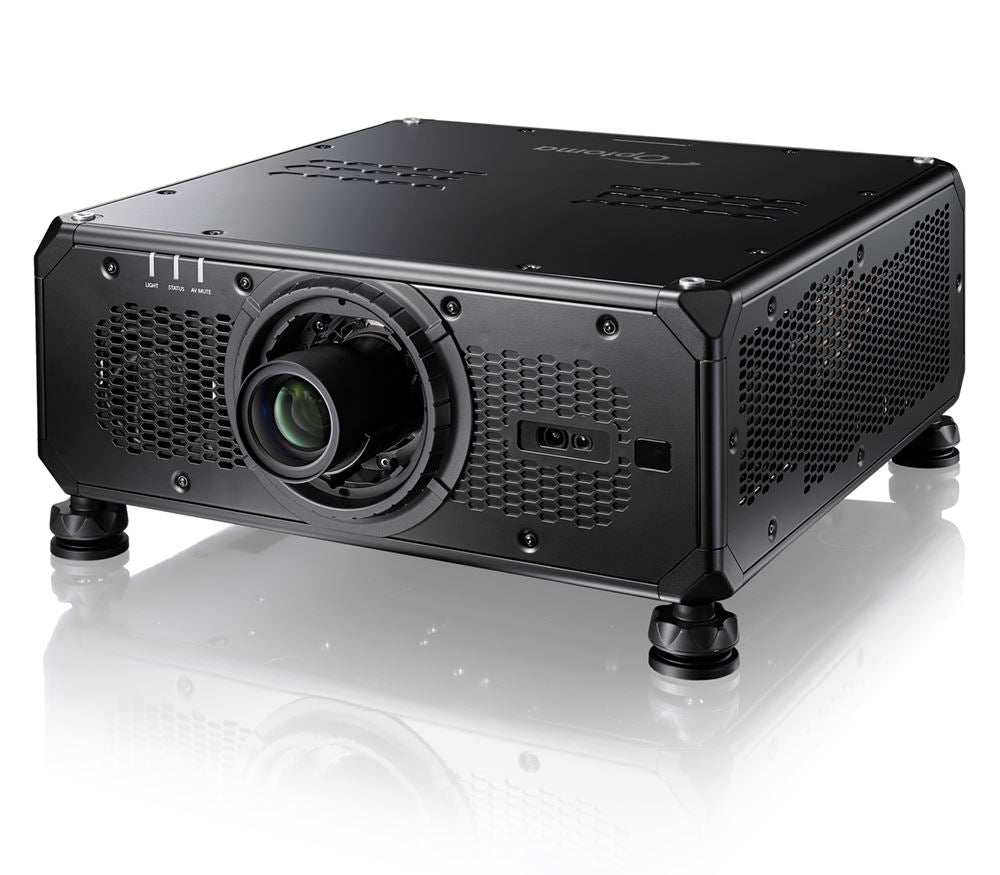

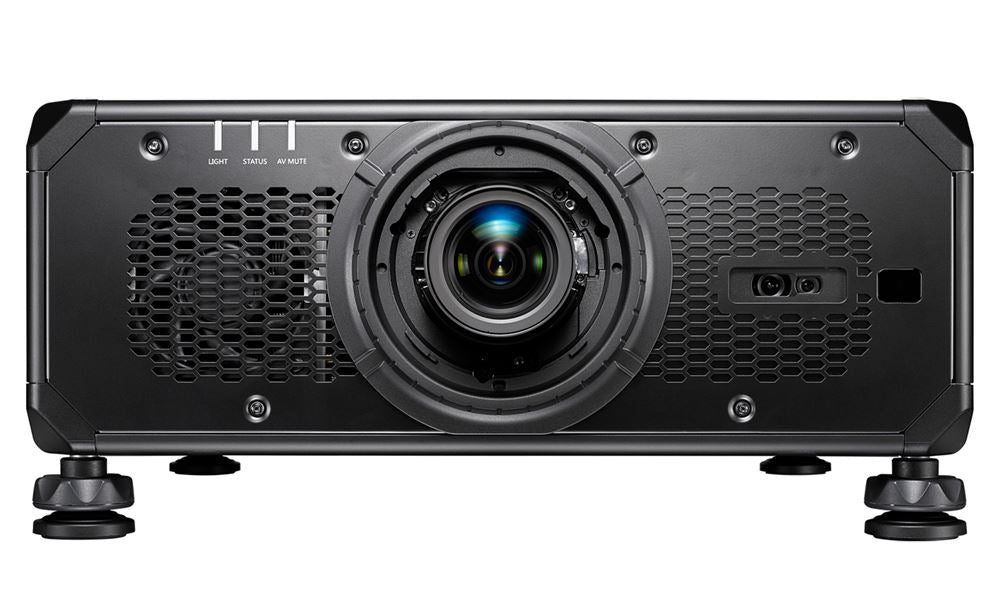

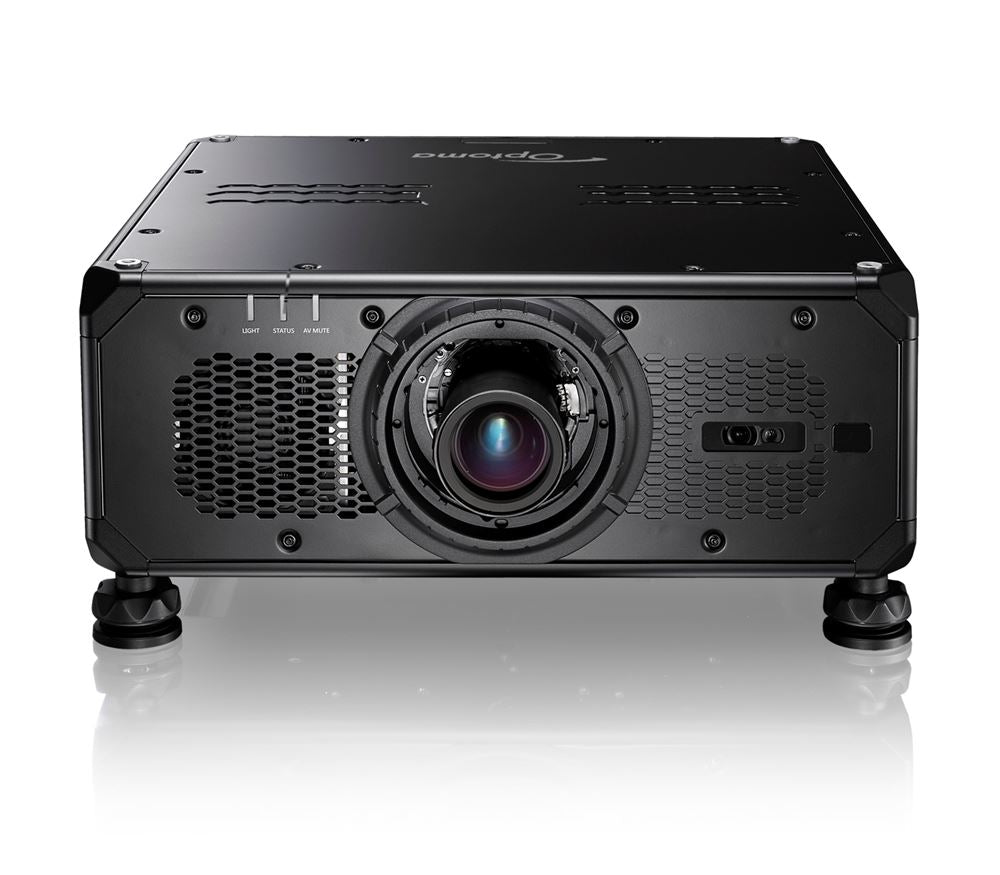

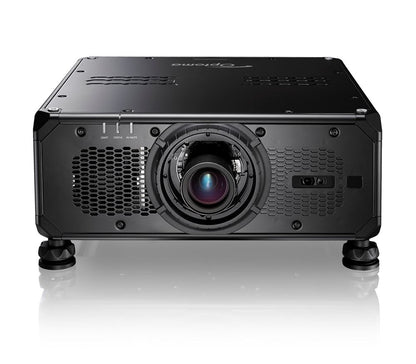

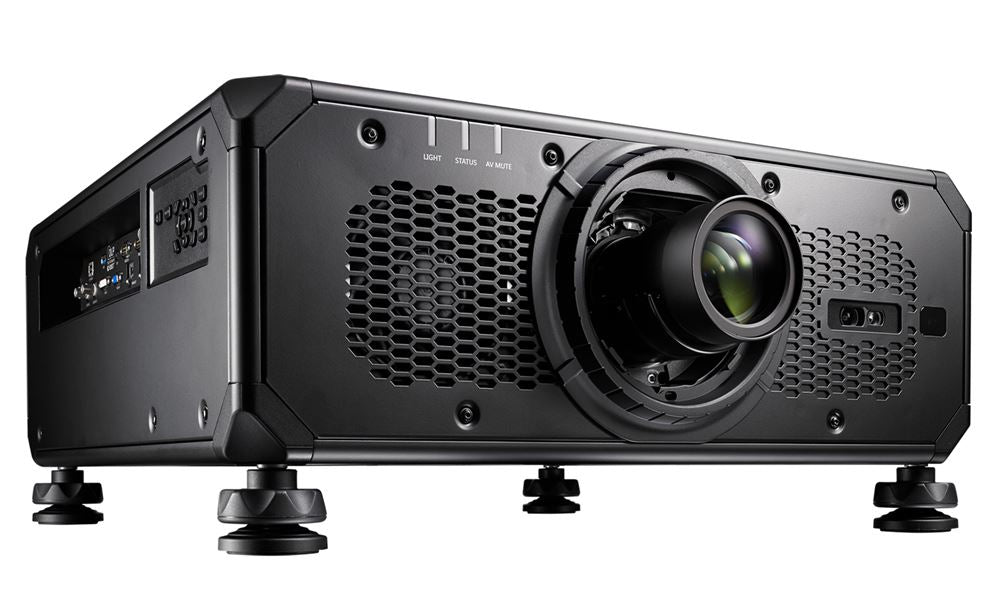

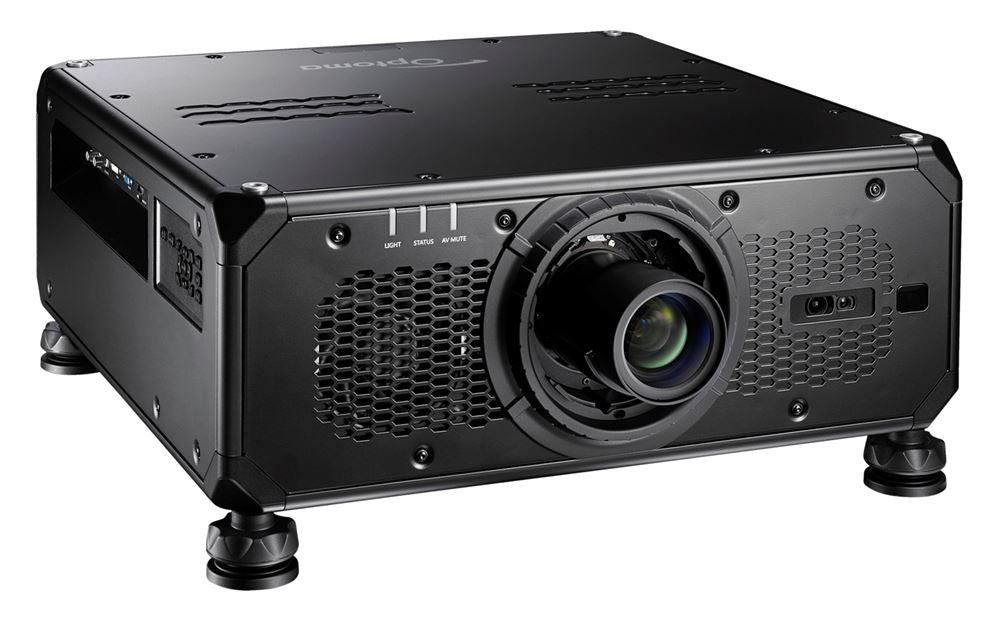

Optoma ZU1700: 17,000 Lumen WUXGA Laser Projector
Model
:
ZU1700
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Optoma ZU1700 at a Glance
- Brand
- Optoma
- Model
- ZU1700
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Optoma ZU1700 Overview
The high brightness ZU1700 professional laser projector fills a need for high-end installations, including the entertainment, exhibition, and digital signage markets. Part of Optoma's Ultra Bright Series, this projector offers incredibly high brightness of 17,000 lumens as well as extreme flexibility with eight interchangeable lenses to meet the needs of even the most complex installations. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- High brightness WUXGA DLP laser projector: 17,000 lumens
- Extreme installation flexibility: Eight interchangeable lenses
- Ultimate reliability: Built-in redundancy mode
- Striking lifelike images: Pure engine video processing, color matching, 4K HDR INPUT (HDR10/HLG)
- DuraCore
- Redundant input with fast switching
- Passive 3D compatibility
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ZU1700 |
| Resolution | WUXGA (1920x1200) |
| Brightness | 17,000 |
| ANSI brightness | 14,500 |
| Contrast ratio | 2,000,000:1 |
| Display technology | DLP |
| Light source | DuraCore Laser |
| Light source life | 30,000 hours |
| Throw ratio | Dependent on lens |
| Lens shift | Yes, see product downloads for more information |
| Lens options | BX-CTA11, 0.65 to 0.75:1, BX-CTA18, 0.84 to 1.02:1, BX-CTA19, 1.02 to 1.36:1, BX-CTA20, 1.2 to 1.5:1, BX-CTA21, 1.5 to 2.0:1, BX-CTA22, 2.0 to 4.0:1, BX-CTA23, 4.0 to 7.2:1, BX-CTA27, 7.2 to 10.8:1 |
| Screen size | Dependent on lens |
| Projection distance | Dependent on lens |
| Connections | Inputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI 2.0, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI Outputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDMI 2.0, 1 x 3G-SDI Control 1 x RJ45, 1 x USB-A |
| Wired network | Yes |
| Noise level | 36dB to 38dB |
| Power consumption | 460W to 1,000W |
| Power supply | AC 100 to 240 V @ 50/60 Hz |
| IP rating | IP5X |
| 24/7 operation | Yes |
| Dimensions (W x D x H) | 650 x 682 x 300.86 mm |
| Net weight | 50 kg |
Why Buy the Optoma ZU1700 from Trianze Tech?
- Genuine Optoma laser projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right lens, mount and screen for the ZU1700
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Optoma ZU1700: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Optoma ZU1700 is rated at 17,000 lumens, with 14,500 ANSI lumens and a contrast ratio of 2,000,000:1. Brightness is measured by the manufacturer under standard test conditions, so real rooms with ambient light need a screen and room lighting that match.
The Optoma ZU1700 has a native resolution of WUXGA (1920x1200) with a native 16:10 aspect ratio, and it accepts 16:9,16:10 content. Content at other resolutions is scaled to fit.
The Optoma ZU1700 offers a throw ratio of Dependent on lens, lens shift of Yes, see product downloads for more information. Lens options listed by Optoma: BX-CTA11, 0.65 to 0.75:1, BX-CTA18, 0.84 to 1.02:1, BX-CTA19, 1.02 to 1.36:1, BX-CTA20, 1.2 to 1.5:1, BX-CTA21, 1.5 to 2.0:1, BX-CTA22, 2.0 to 4.0:1, BX-CTA23, 4.0 to 7.2:1, BX-CTA27, 7.2 to 10.8:1. Projection distance is Dependent on lens m.
The Optoma ZU1700 uses a laser light source rated for up to 30,000 hours, so it needs no lamp changes in normal use. Optoma lists 24/7 operation as Yes. Dust protection is rated IP5X.
The Optoma ZU1700 connections are: Inputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI 2.0, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI Outputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDMI 2.0, 1 x 3G-SDI Control 1 x RJ45, 1 x USB-A service, 1 x 12V trigger. Wired networking: Yes.
Trianze Tech stocks the Optoma ZU1700 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
