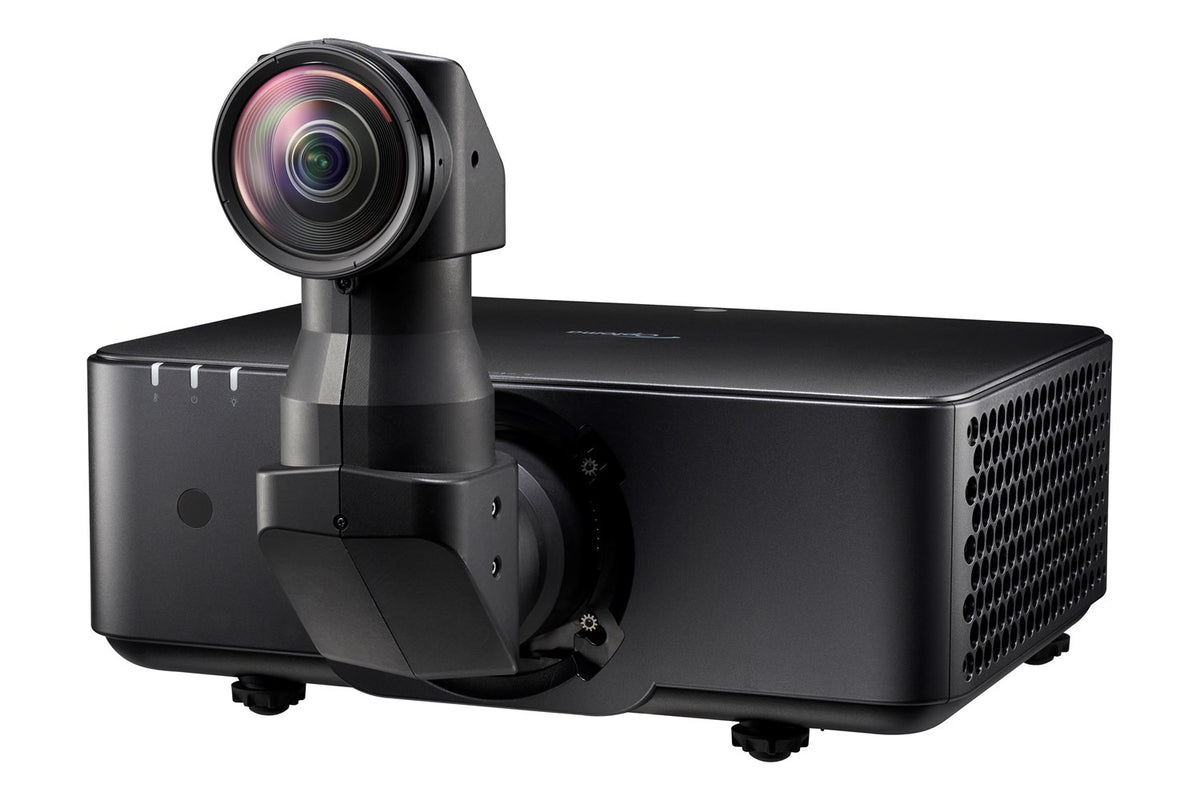

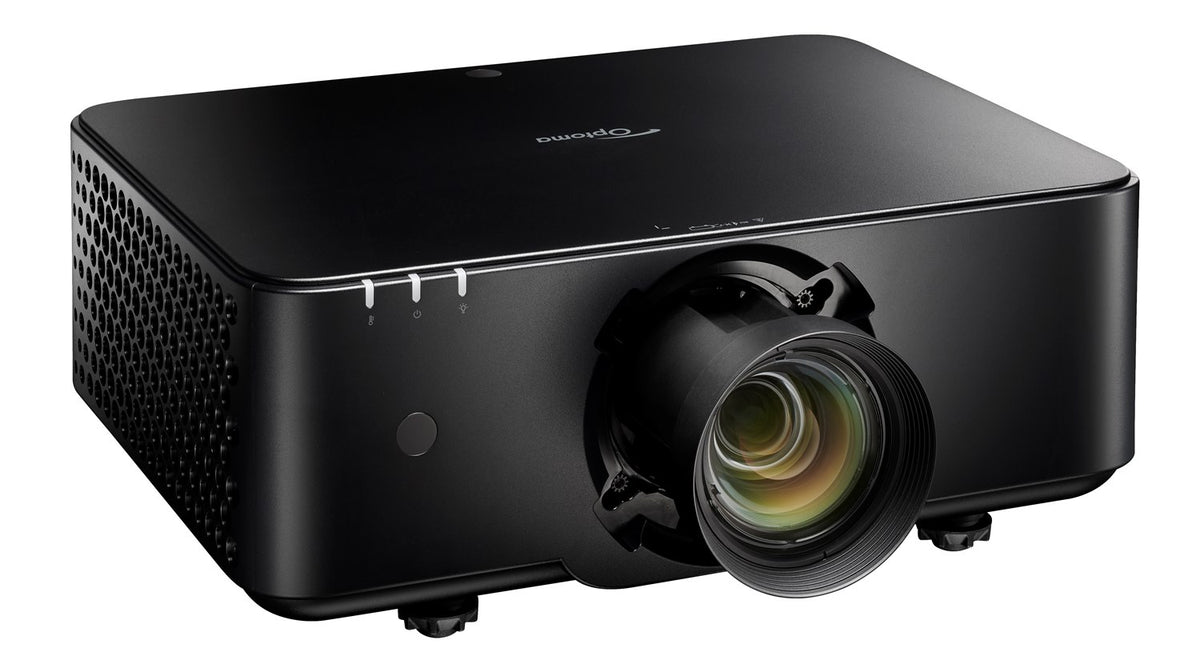

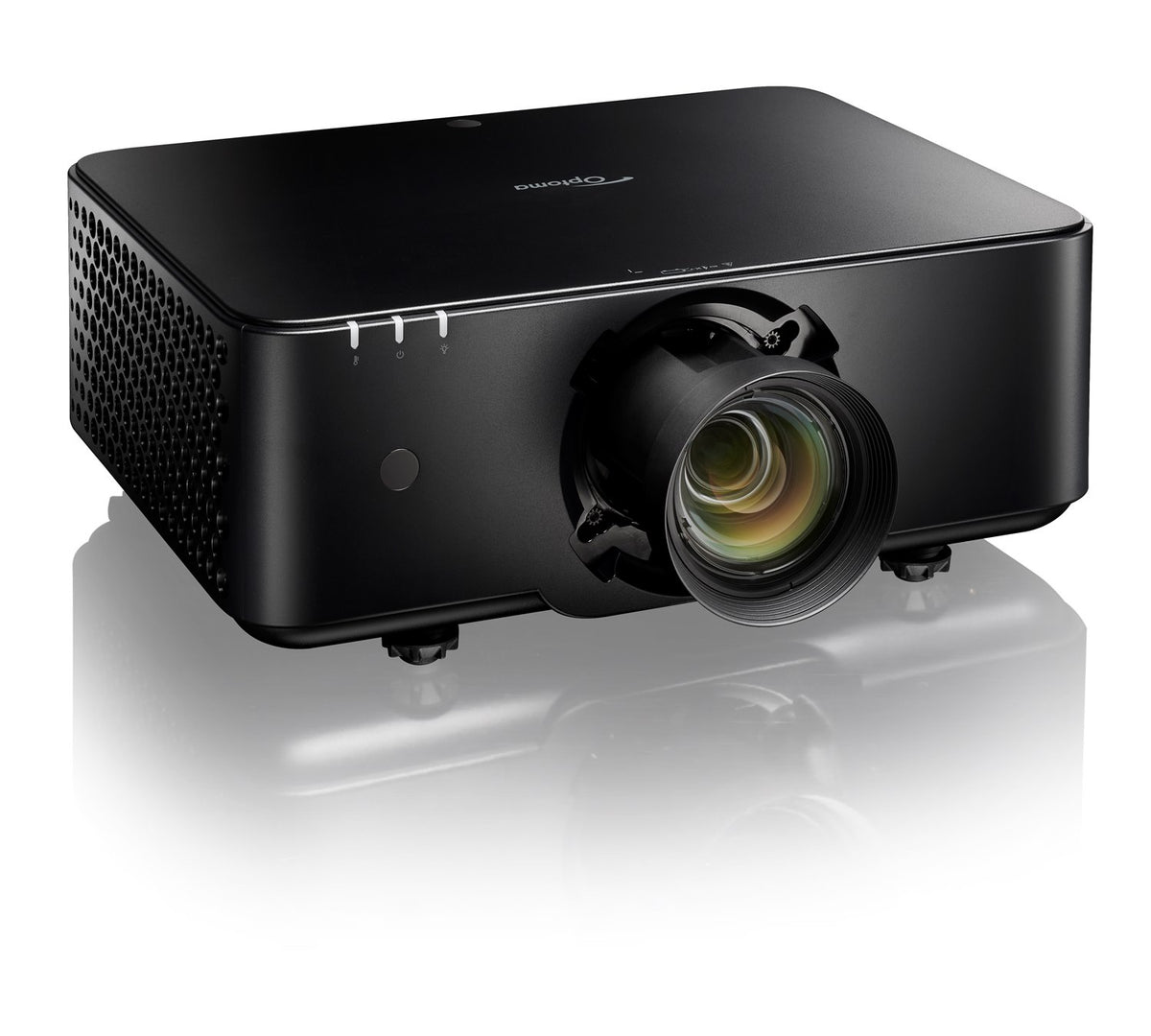

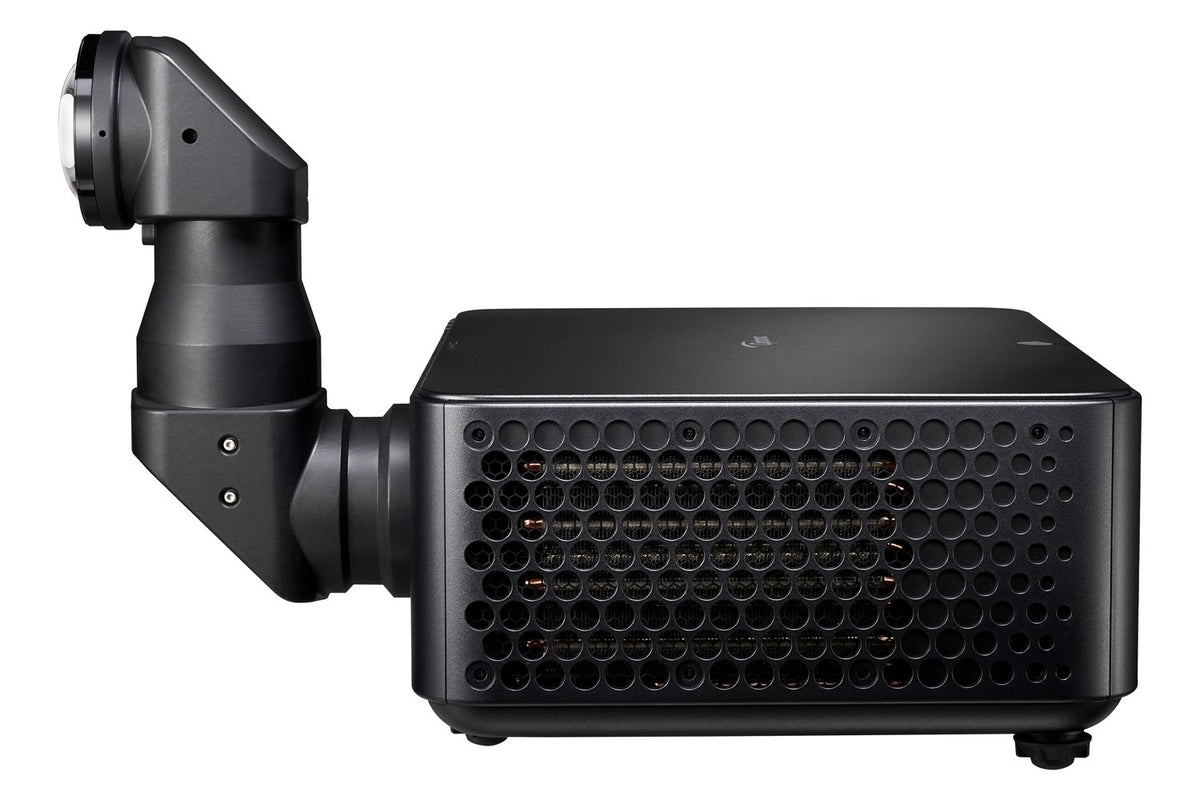

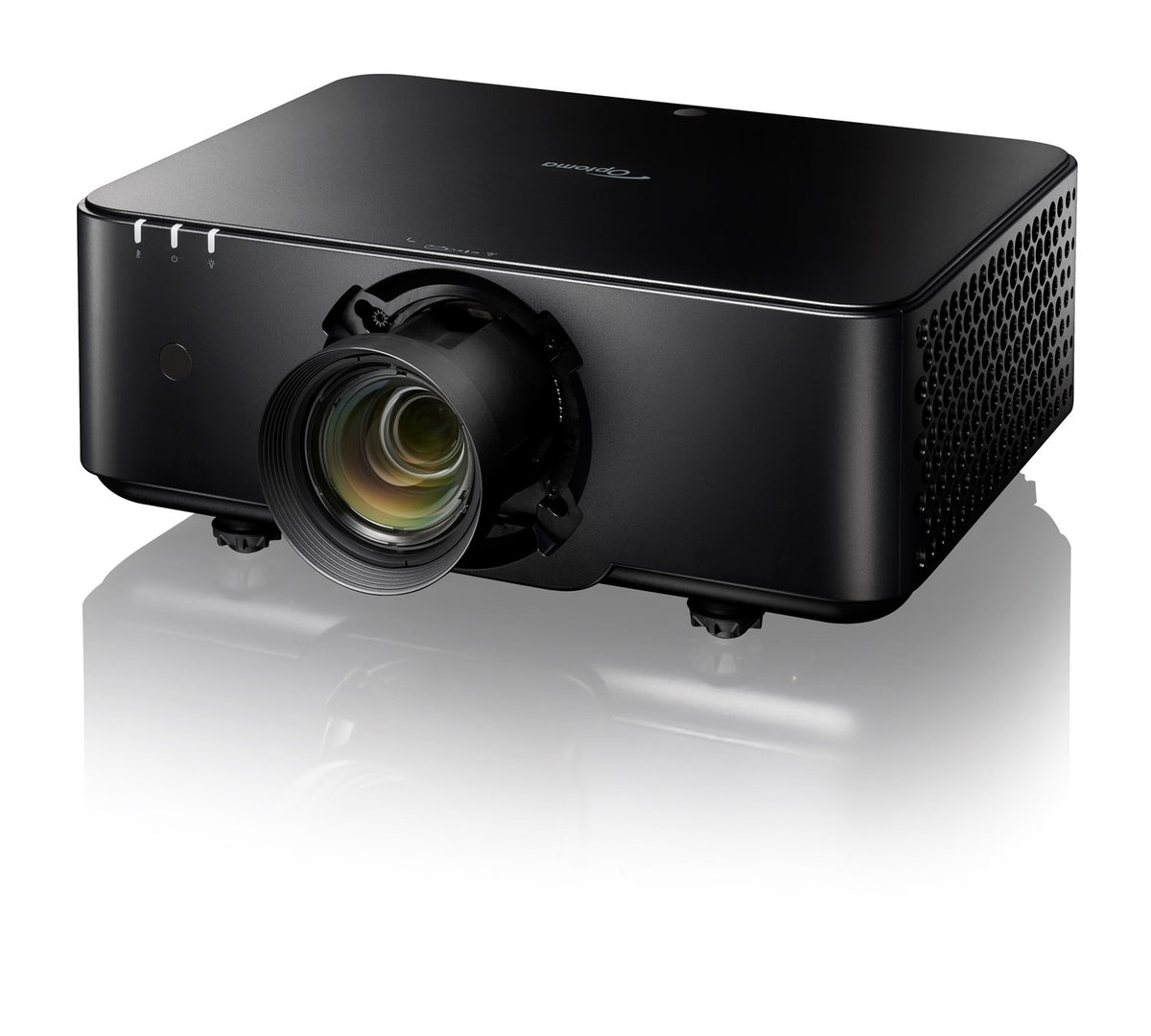

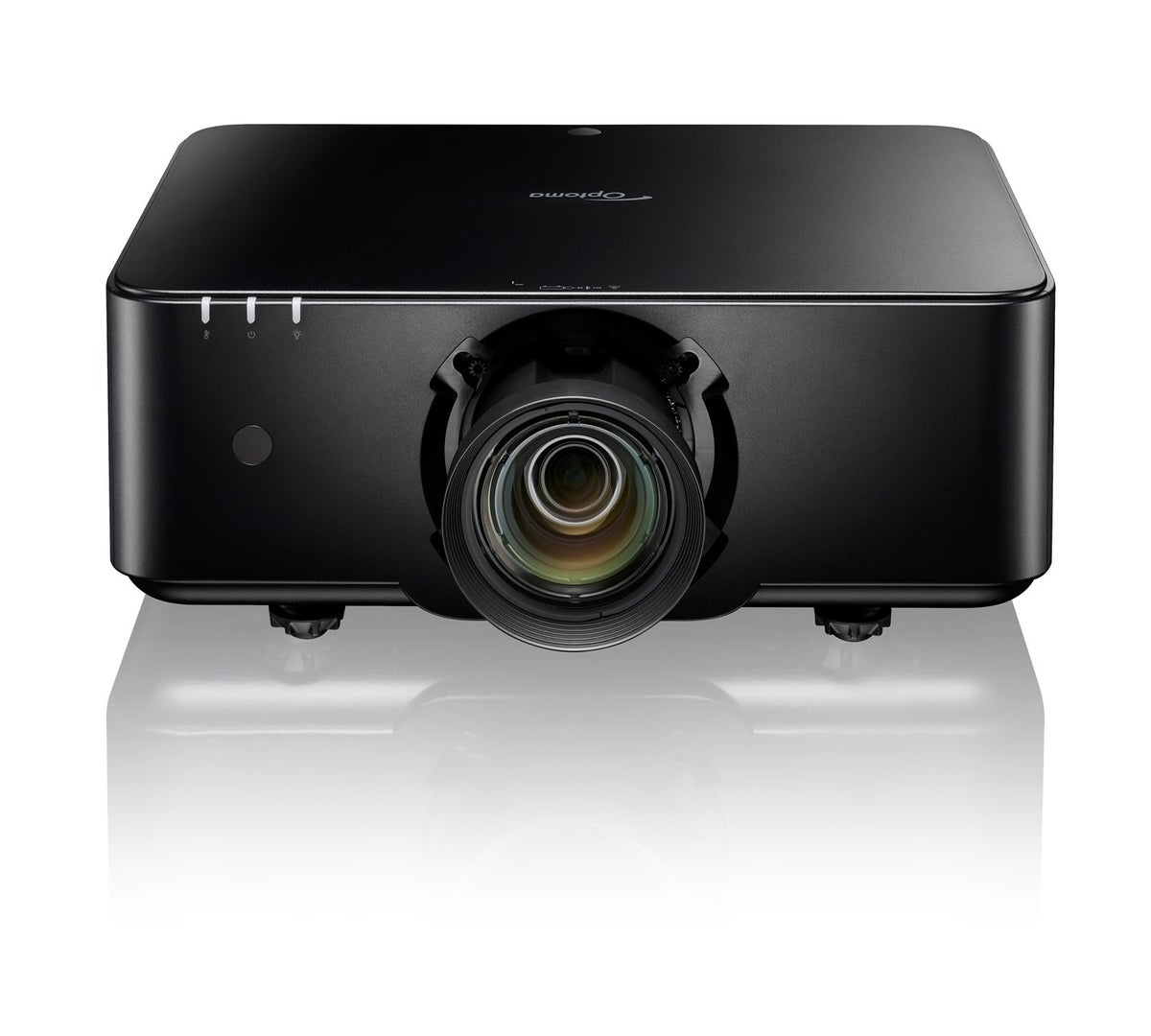

Optoma ZK1120: 11,000 Lumen 4K UHD Laser Projector
Model
:
ZK1120
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Optoma ZK1120 at a Glance
- Brand
- Optoma
- Model
- ZK1120
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Optoma ZK1120 Overview
The ZK1120 4K UHD+ (3840 x 2400) interchangeable lens laser projector delivers stunning visuals with enhanced colors and lifelike contrast, and features such as built-in edge-blending and warping and 4K HDR compatibility. Powered by a new generation of Texas Instruments (TI) HEP DMD chipsets brings stunning visuals with enhanced colours and lifelike contrast. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- High brightness: 11,000 lumen 4K UHD+ WQUXGA laser projector
- DuraCore laser technology: Up to 30,000 hours laser light source
- 10 lens options: 0.34:1 to 8.6:1 for flexible utilization of installation space
- Venue versatility: Ideal for digital signage, rental & staging, corporate and immersive applications
- HDR and HLG compatible
- Integrated warping and edge blending processor
- Connect anytime, anywhere
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ZK1120 |
| Resolution | 4K UHD+ (3840x2400) |
| Brightness | 11,000 |
| ANSI brightness | 9,300 |
| Contrast ratio | 4,000,000:1 |
| Display technology | DLP |
| Light source | DuraCore Laser |
| Light source life | 30,000 hours |
| Throw ratio | Dependent on lens |
| Lens options | BX-CTA28, 0.34:1 to 0.37:1, BX-CTA10, 0.50:1 to 0.65:1, BX-CTA11, 0.78:1 to 0.90:1, BX-CTA12, 0.90:1 to 1.30:1, BX-CTA07, 1.30:1 to 1.80:1, BX-CTA08, 1.25:1 to 2.0:1, BX-CTA20, 1.44:1 to 1.8:1, BX-CTA21, 1.80:1 to 2.40:1 |
| Screen size | Dependent on lens |
| Projection distance | Dependent on lens |
| Connections | Inputs 2 x HDMI 2.0, 1 x DisplayPort 4K, 1 x 3D sync, 1 x HDBaseT 4K Outputs 1 x 3D sync, 1 x HDMI 2.0, 1 x USB-A power 2A Control 1 x Wired remote, 1 x RJ45, 1 x RS232 |
| Wired network | Yes |
| Noise level | 35dB to 40dB |
| Power consumption | 375W to 655W |
| Power supply | 100, 240V, 50, 60Hz |
| IP rating | IP5X |
| 24/7 operation | Yes |
| Dimensions (W x D x H) | 535 x 396 x 189 mm |
| Net weight | 16.8 kg |
Why Buy the Optoma ZK1120 from Trianze Tech?
- Genuine Optoma laser projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right lens, mount and screen for the ZK1120
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Optoma ZK1120: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Optoma ZK1120 is rated at 11,000 lumens, with 9,300 ANSI lumens and a contrast ratio of 4,000,000:1. Brightness is measured by the manufacturer under standard test conditions, so real rooms with ambient light need a screen and room lighting that match.
The Optoma ZK1120 has a native resolution of 4K UHD+ (3840x2400) with a native 16:10 aspect ratio, and it accepts 4:3,16:9,16:10,21:9 content. Content at other resolutions is scaled to fit.
The Optoma ZK1120 offers a throw ratio of Dependent on lens. Lens options listed by Optoma: BX-CTA28, 0.34:1 to 0.37:1, BX-CTA10, 0.50:1 to 0.65:1, BX-CTA11, 0.78:1 to 0.90:1, BX-CTA12, 0.90:1 to 1.30:1, BX-CTA07, 1.30:1 to 1.80:1, BX-CTA08, 1.25:1 to 2.0:1, BX-CTA20, 1.44:1 to 1.8:1. Projection distance is Dependent on lens m.
The Optoma ZK1120 uses a laser light source rated for up to 30,000 hours, so it needs no lamp changes in normal use. Optoma lists 24/7 operation as Yes. Dust protection is rated IP5X.
The Optoma ZK1120 connections are: Inputs 2 x HDMI 2.0, 1 x DisplayPort 4K, 1 x 3D sync, 1 x HDBaseT 4K Outputs 1 x 3D sync, 1 x HDMI 2.0, 1 x USB-A power 2A Control 1 x Wired remote, 1 x RJ45, 1 x RS232. Wired networking: Yes.
Trianze Tech stocks the Optoma ZK1120 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
