Bose MA12EX: Modular Column Array Loudspeaker with 160 Degree Coverage, White
The Bose Professional MA12EX is a full range modular column array loudspeaker built for acoustically demanding indoor and outdoor spaces across Dubai, Abu Dhabi and the wider UAE and GCC. Twelve full range drivers deliver wide 160 degree horizontal coverage with tightly controlled vertical dispersion, keeping speech intelligible in reverberant lobbies, transit hubs and outdoor plazas.
Key Features

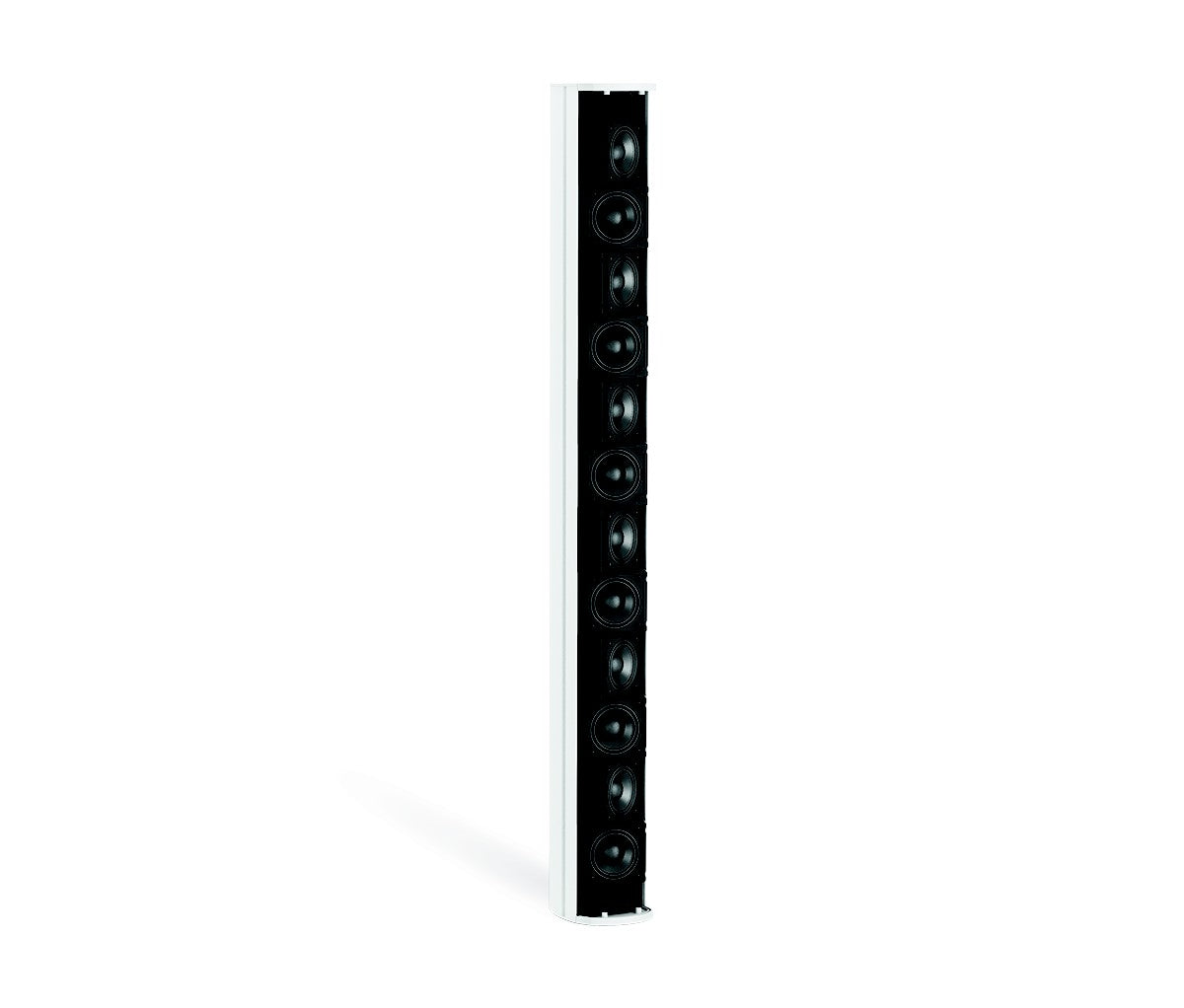

- Twelve 2.25 inch full range drivers in a vertical line array for wide horizontal coverage and narrow vertical pattern control
- 160 degree horizontal by 20 degree vertical nominal dispersion from the Articulated Array design
- Weather resistant components rated for outdoor installation
- 150W long term power handling (600W peak) with 112dB maximum SPL at 1 meter
- Slim column enclosure blends into lobbies, corridors and retail environments
Technical Specifications
| Frequency Response (+/-3dB) | 75 Hz to 13 kHz |
| Frequency Range (-10dB) | 58 Hz to 16 kHz |
| Nominal Dispersion | 160 degrees horizontal x 20 degrees vertical |
| Long Term Power Handling | 150W (600W peak) |
| Sensitivity (1W/1m) | 87 dB SPL |
| Maximum SPL at 1m | 112 dB SPL (118 dB SPL peak) |
| Drivers | Twelve 2.25 inch (57mm) full range drivers |
| Recommended High Pass Filter | 65 Hz |
| Color | White |
| Part Number | 317302-0200 |
Why Buy the Bose MA12EX from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Fast delivery and professional installation across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio design support from Trianze Tech for lobbies, retail and outdoor deployments
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Bose MA12EX delivers a nominal dispersion of 160 degrees horizontal by 20 degrees vertical, thanks to its Articulated Array design with twelve full range drivers, making it well suited for wide lobbies, retail floors and outdoor plazas.
Yes. The MA12EX uses weather resistant components that allow it to be installed outdoors as well as indoors, making it suitable for covered walkways, transit hubs and outdoor plazas across the UAE.
The Bose MA12EX produces a maximum SPL of 112 dB continuous and 118 dB peak at 1 meter, with 150W long term power handling and 600W peak power handling.
The MA12EX uses twelve 2.25 inch (57mm) full range drivers arranged in a vertical line array, delivering wide horizontal coverage with tightly controlled vertical dispersion.
The MA12EX is a passive loudspeaker requiring external amplification, with a recommended 65 Hz high pass filter. It pairs well with Bose Professional PowerSpace or PowerShareX amplifiers and ControlSpace processors for a complete zoned audio system.
