Elo 15.6 Inch EloPOS System: Modular Touchscreen POS Terminal
Model
:
E536624
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

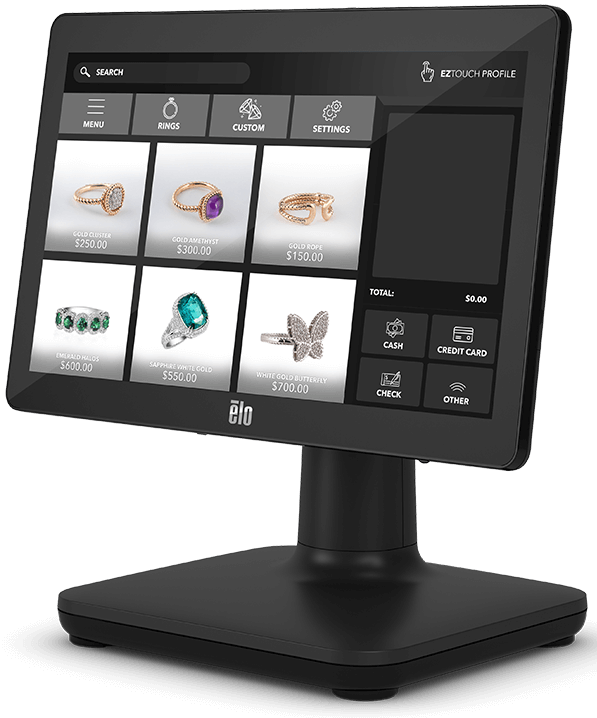

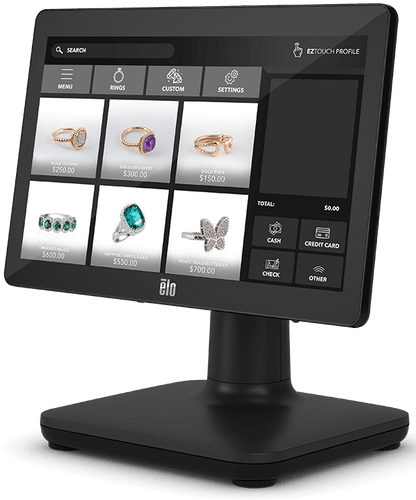

Elo 15.6 Inch EloPOS System: Modular Touchscreen POS Terminal

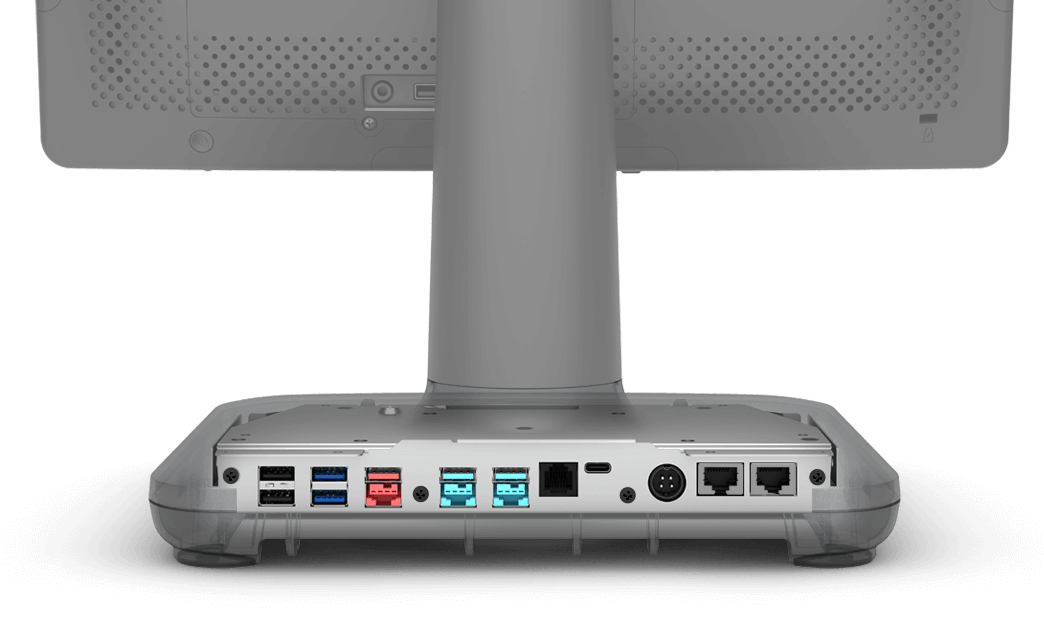

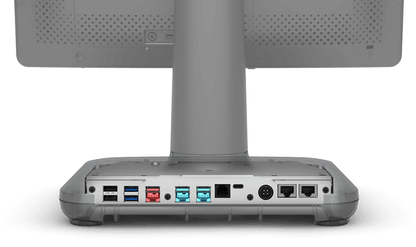

The EloPOS System combines modern aesthetics, modular flexibility, and commercial-grade reliability. Purpose-built for point of sale, it offers a 15.6 inch touchscreen display, a choice of Intel processors, and an integrated expansion hub to connect the peripherals retailers need, from a customer-facing display to a payment reader, printer, cash drawer, or barcode scanner.
Key Features
- 15.6 inch Full HD PCAP 10-touch display, 1920x1080 resolution, 300 nits brightness
- Intel Core i5-9500TE processor with Intel vPro, 8GB RAM (expandable to 32GB), 256GB SSD
- Elo Edge Connect supports up to 4 peripherals: fingerprint scanner, EMV reader, barcode scanner, or MSR
- Full-function USB-C port connects a customer-facing display with a single cable for touch, data, and power
- Splash-proof, retail-hardened housing backed by Elo's standard 3-year warranty
Technical Specifications
| Spec | Detail |
|---|---|
| Screen | 15.6 inch Full HD (1920x1080), PCAP 10-touch, 300 nits, 700:1 contrast, 16:9 |
| Compute | Intel Core i5-9500TE, Intel Q370 Express chipset, Intel UHD Graphics 630, TPM 2.0 |
| Memory | 8GB DDR4 RAM (expandable to 32GB), 256GB M.2 SATA SSD |
| Connectivity | 3x USB 3.0, 2x USB 2.0, Gigabit LAN, Wi-Fi 802.11ac, Bluetooth 5.0, USB-C, cash drawer port |
| OS | Windows 10 IoT Enterprise LTSC (also available with no OS for Linux deployment) |
| Mounting | 75mm VESA, optional countertop stand, pole mount, floor stand, or wall mount |
Why Buy the Elo EloPOS System from Trianze Tech?
- Genuine Elo Touch Solutions hardware sourced through Trianze Tech
- Purpose-built, modular POS terminal for retail, hospitality, and quick-service environments
- Professional AV and IT integration support across Dubai, Abu Dhabi, and the GCC
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Elo Edge Connect lets up to four peripherals, such as a fingerprint scanner, EMV reader, barcode scanner, or magnetic stripe reader, attach directly to the edge of the touchscreen, with the ability to add or move them later as business needs change.
Yes, its full-function USB-C port allows a customer-facing display such as the Elo 1302L to be connected with a single cable, providing touch, data, and power without extra cabling.
It supports Windows 10 IoT Enterprise, or can be ordered with no OS and is pretested with Linux SuSE, Ubuntu, and Red Hat, giving businesses the flexibility to choose the software environment that fits their needs.
It offers a standard 75mm VESA mounting system with optional countertop stand, pole mount, floor stand, and wall mount configurations, giving retailers flexibility to match their checkout layout.
It features a splash-proof, retail-hardened housing rigorously tested to withstand continuous public use in commercial environments, backed by Elo's standard 3-year warranty.
