Bose DesignMax DM8SE: 150W Two-Way Coaxial Surface-Mount Loudspeaker, White
Model
:
892116-0200
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Bose DesignMax DM8SE: 150W Two-Way Coaxial Surface-Mount Loudspeaker, White

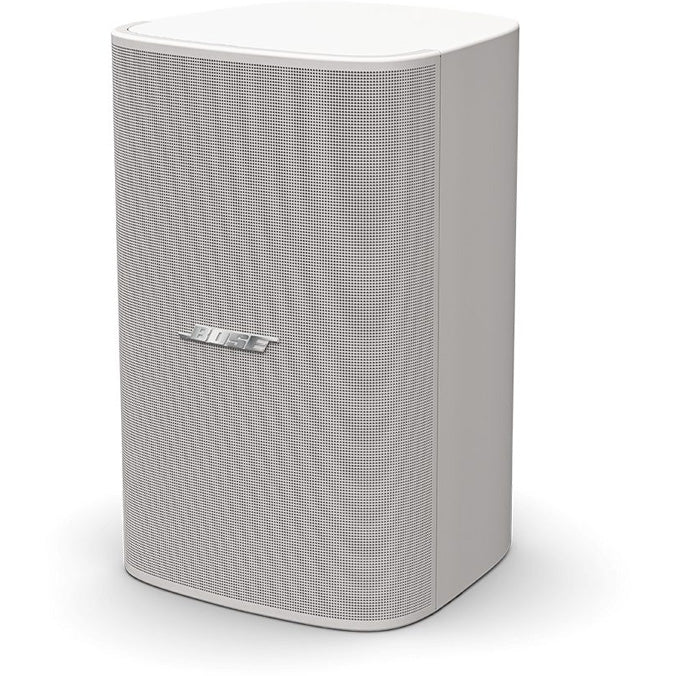

The Bose Professional DesignMax DM8SE is a 150 watt two-way coaxial surface-mount loudspeaker built for foreground music and premium commercial sound installations across Dubai, Abu Dhabi and the wider UAE and GCC. An 8-inch woofer and center-firing 1-inch coaxial compression driver deliver a wide 52 Hz to 20 kHz frequency range with premium aesthetics that complement any interior.
Key Features
- Two-way coaxial design with an 8-inch woofer and 1-inch center-firing compression driver
- 150W power handling for powerful foreground music SPL
- 52 Hz to 20 kHz frequency range
- Locks onto a hidden QuickHold U-bracket for fast, secure surface-mount installation
- 8 ohm nominal impedance (transformer bypass) for flexible amplifier pairing
Technical Specifications
| Power Handling | 150W |
| Frequency Range | 52 Hz to 20 kHz |
| Drivers | 8 inch woofer and 1 inch center-firing coaxial compression driver |
| Nominal Impedance | 8 ohm (transformer bypass) |
| Dimensions (loudspeaker) | 395 x 249 x 255mm (15.6 x 9.8 x 10.0 in) |
| Dimensions (with bracket) | 395 x 249 x 272mm (15.6 x 9.8 x 10.7 in) |
| Mounting | Hidden QuickHold U-bracket, surface-mount |
| Color | White |
| Part Number | 892116-0200 |
Why Buy the Bose DesignMax DM8SE from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Fast delivery and professional installation across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio design support from Trianze Tech for retail, hospitality and foreground music deployments
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Bose DesignMax DM8SE is rated at 150W, using an 8-inch woofer paired with a 1-inch center-firing coaxial compression driver to deliver a 52 Hz to 20 kHz frequency range.
The DM8SE locks onto a hidden QuickHold U-bracket for fast, secure surface-mount installation, keeping the mounting hardware concealed for a clean architectural finish.
The DM8SE has a nominal impedance of 8 ohms with the transformer bypassed, allowing direct pairing with low-impedance commercial amplifiers as well as 70V or 100V distributed systems via an included transformer.
The DM8SE measures 395 x 249 x 255mm (15.6 x 9.8 x 10.0 in) as a standalone loudspeaker, or 395 x 249 x 272mm (15.6 x 9.8 x 10.7 in) including the QuickHold mounting bracket.

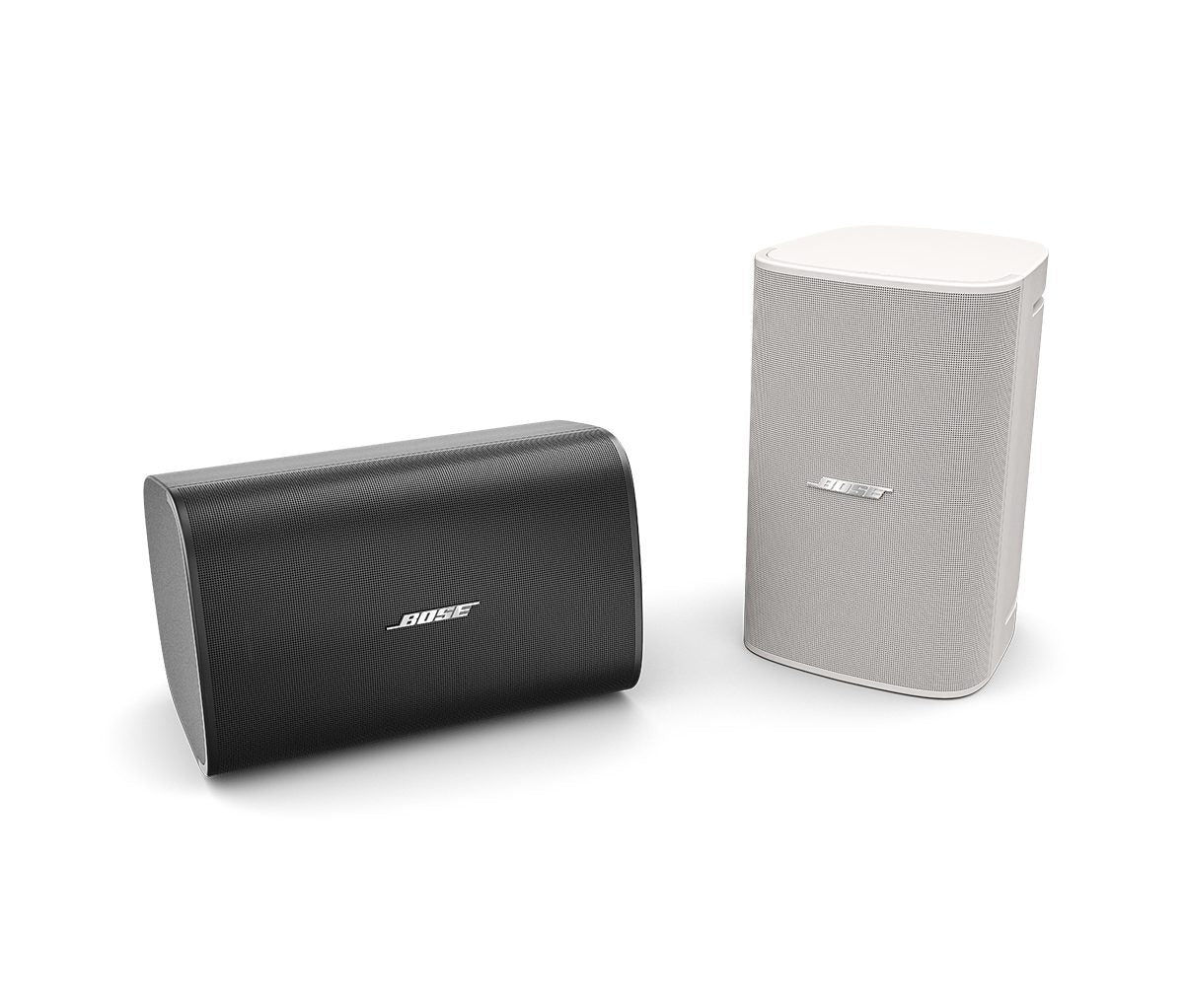

Yes, the DM8SE is available in both white (892116-0200) and black (892116-0100) finishes to match different interior and architectural color schemes.
Trianze Tech stocks the Bose DesignMax DM8SE loudspeaker in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
