dBTechnologies ES-503: Powered PA Stereo System
Brand
:dBTechnologies
Model
:
ES-503
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

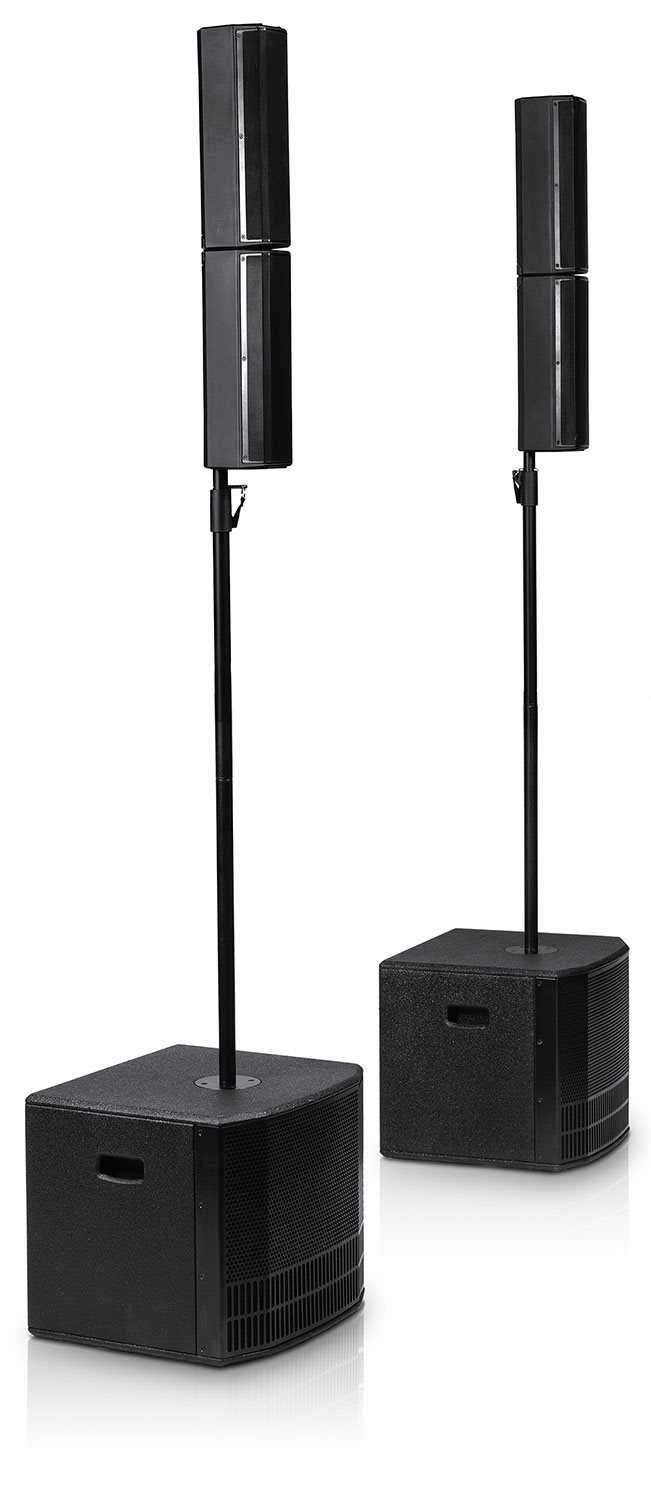

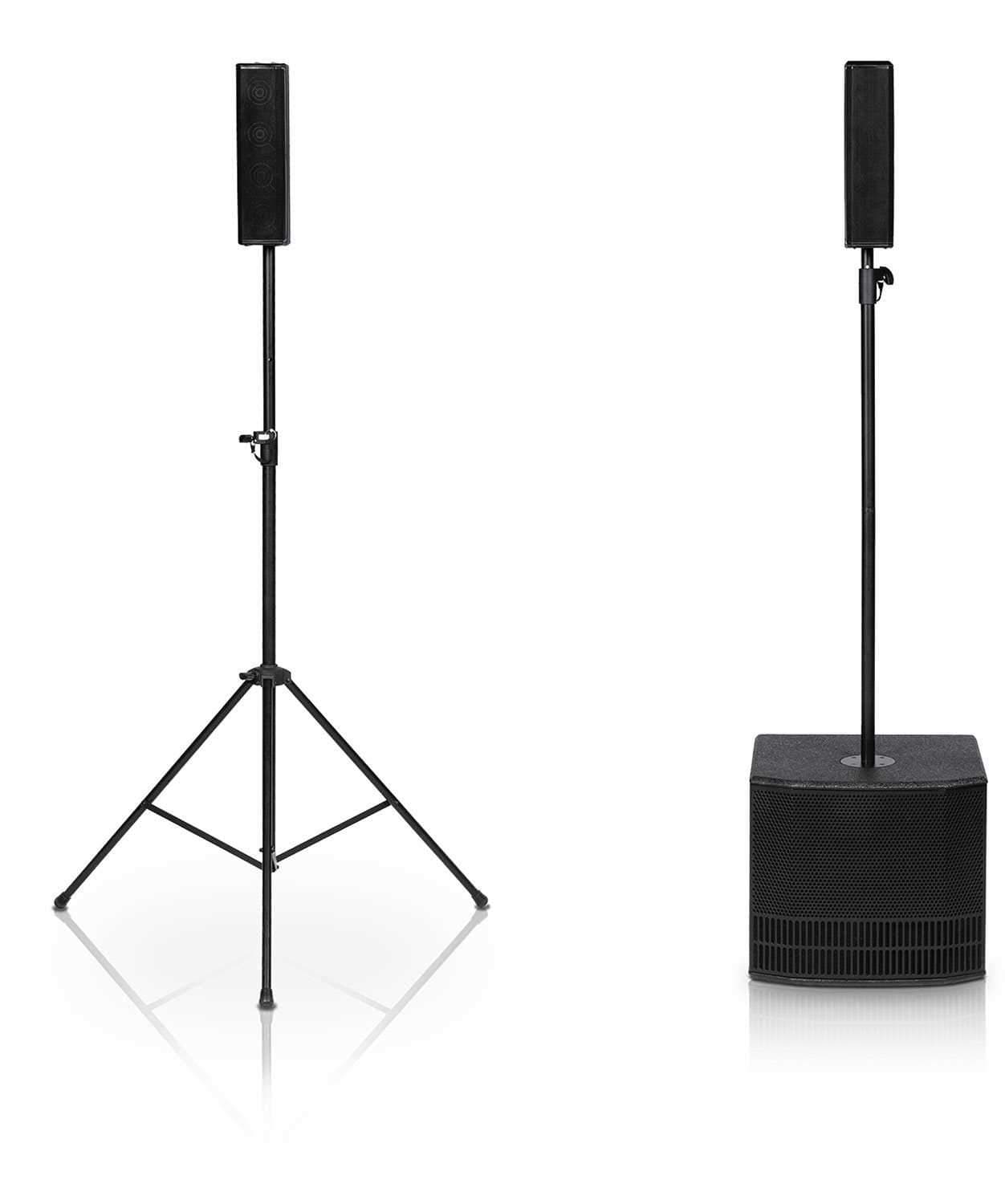

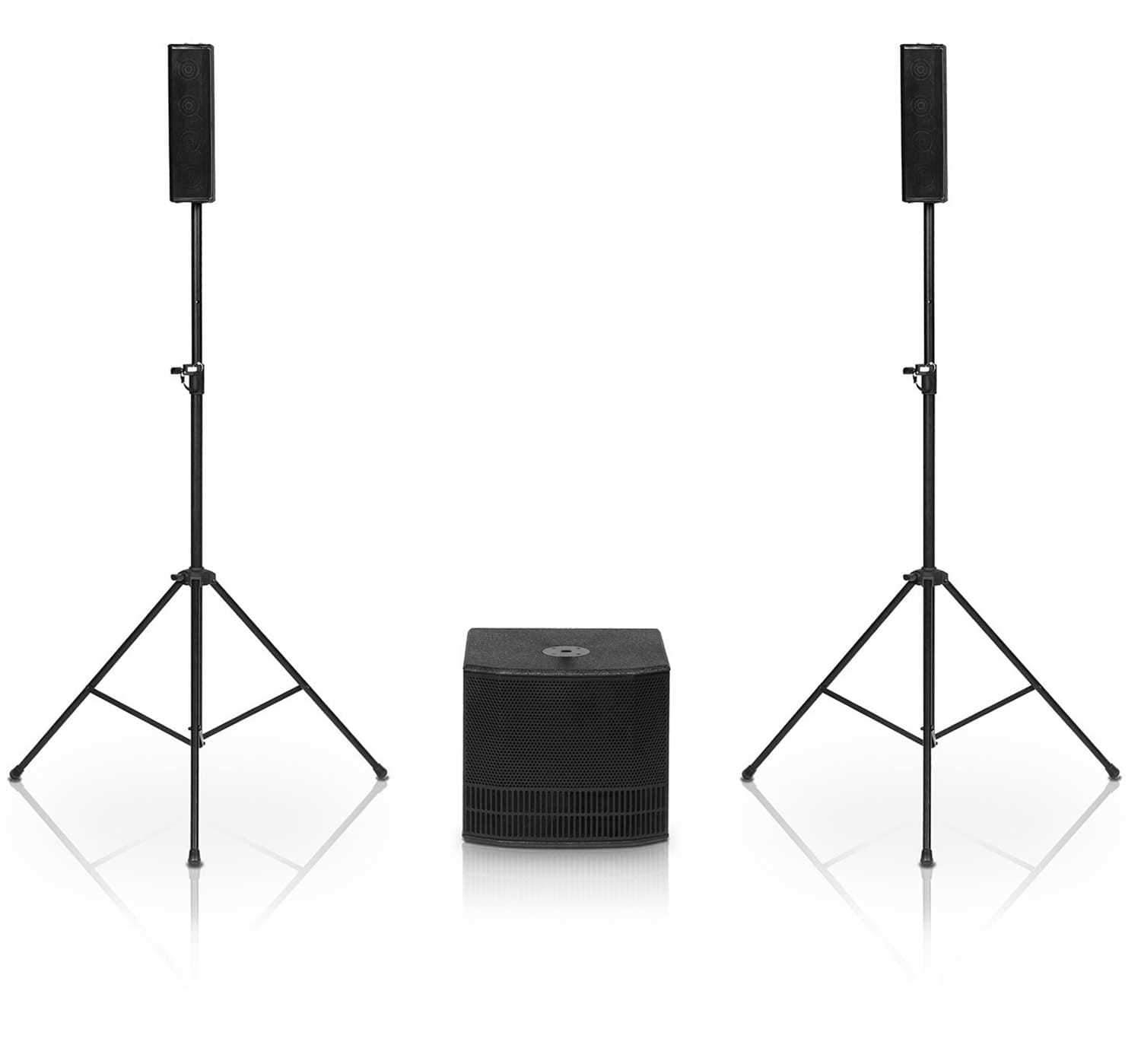

dBTechnologies ES-503: Powered PA Stereo System

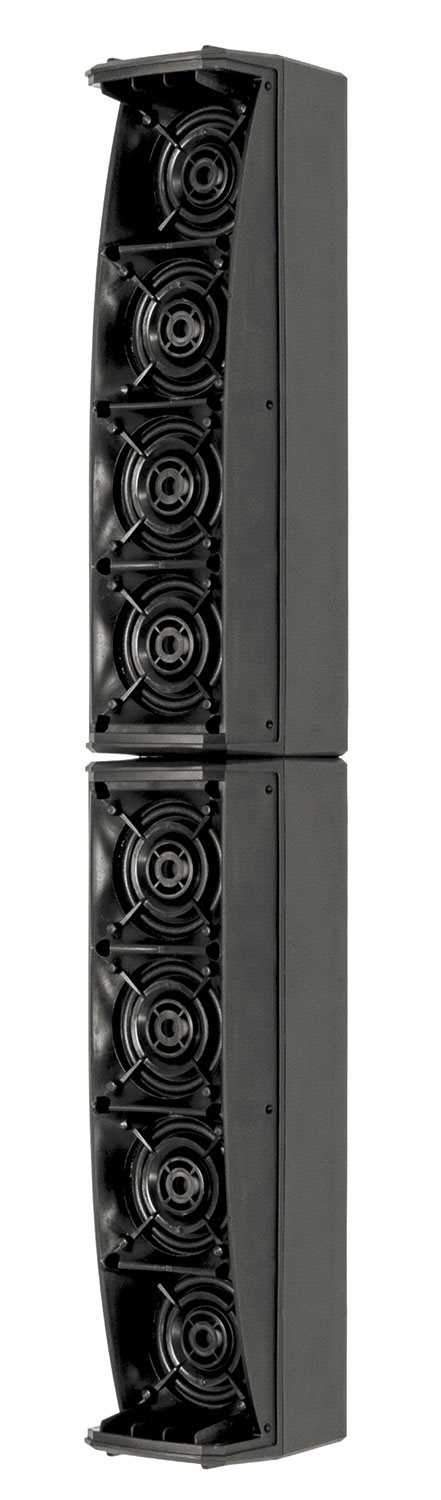

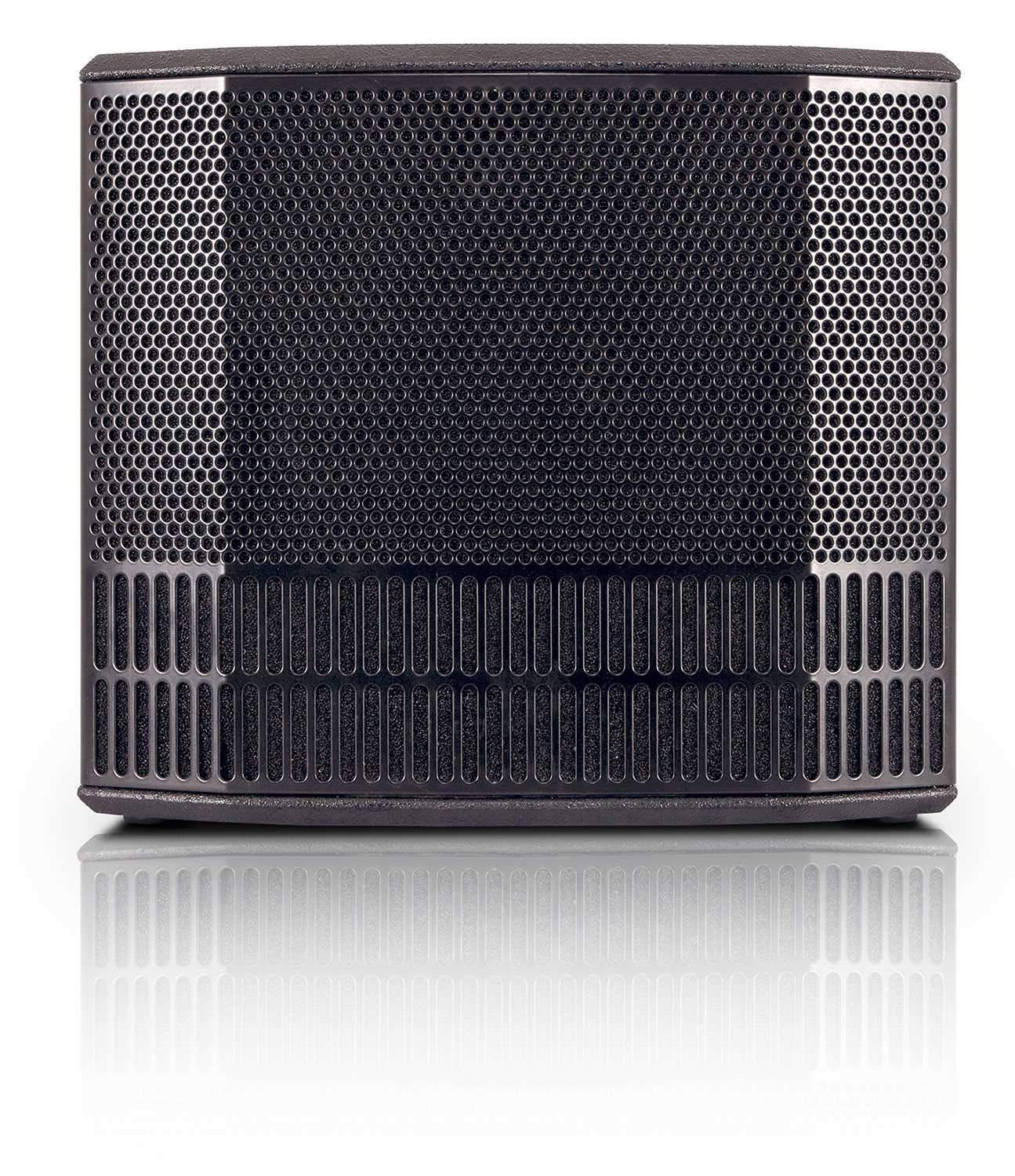

ES503 is a 1000W Power Amp Peak sound system composed by 2 slave 4x 3 inch full-range tops and 1 master 12 inch subwoofer. dBTechnologies's components and design allow an amazing SPL/size ratio: 95mm x 355mm x 137mm and 1.9 kg for the tops and 465mm x 400mm x 430mm 16.4 kg for the subwoofer for an overall 121 db SPL. The sub hosts a Digipro G3 amp module with auto-range PSU and a 3-channels mixer with Bluetooth connection. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Bluetooth
- Oled display interface
- Digital mixer on-board
- 3 Input channels (mic/instr/line)
- Customizable output channel (mix/monitor/aux)
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | dBTechnologies |
| Model | ES-503 |
| Product Type | All-in-One PA Systems |
| Frequency response [-10dB] | 37 to 15.000 Hz |
| Max SPL | 121 dB |
| Mf - Hf | 8 x 3 inch |
| Type MF - HF | Neodymium |
| LF | 12 inch |
| Directivity | 95 x 65 degrees |
| Amp technology | Digipro G3 |
| Amp class | Class-D |
| Power amp peak | 1000 W |
| Controller | DSP 24 Bit/48 kHz |
| Limiter | dual active, peak, RMS, thermal |
| Crossover frequency LF-HF | 206 Hz |
| Mic/instrument channel | 1 Combo (XLR/Jack) balanced/unbalanced input |
| Line channels | 2 combo (XLR/jack) balanced/unbalanced inputs |
| Media channel | 1 bluetooth built-in receiver |
| Mix output | 1 XLR balanced output |
| Housing (subwoofer) | 15mm black painted plywood |
| Housing (tops) | polypropylene PP |
Why Buy the dBTechnologies ES-503 Powered PA Stereo System from Trianze Tech?
- Genuine dBTechnologies product sourced through authorized channels with local UAE support
- Pre-sales help matching the ES-503 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The dBTechnologies ES-503 has a frequency response of 37 to 15.000 Hz.
Published specifications list the weight of the dBTechnologies ES-503 as 4.19lbs./1.9Kg.
The dBTechnologies ES-503 lists its max spl as 121 dB.
Bluetooth. Oled display interface.
Digital mixer on-board. 3 Input channels (mic/instr/line).
Trianze Tech stocks the dBTechnologies ES-503 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
