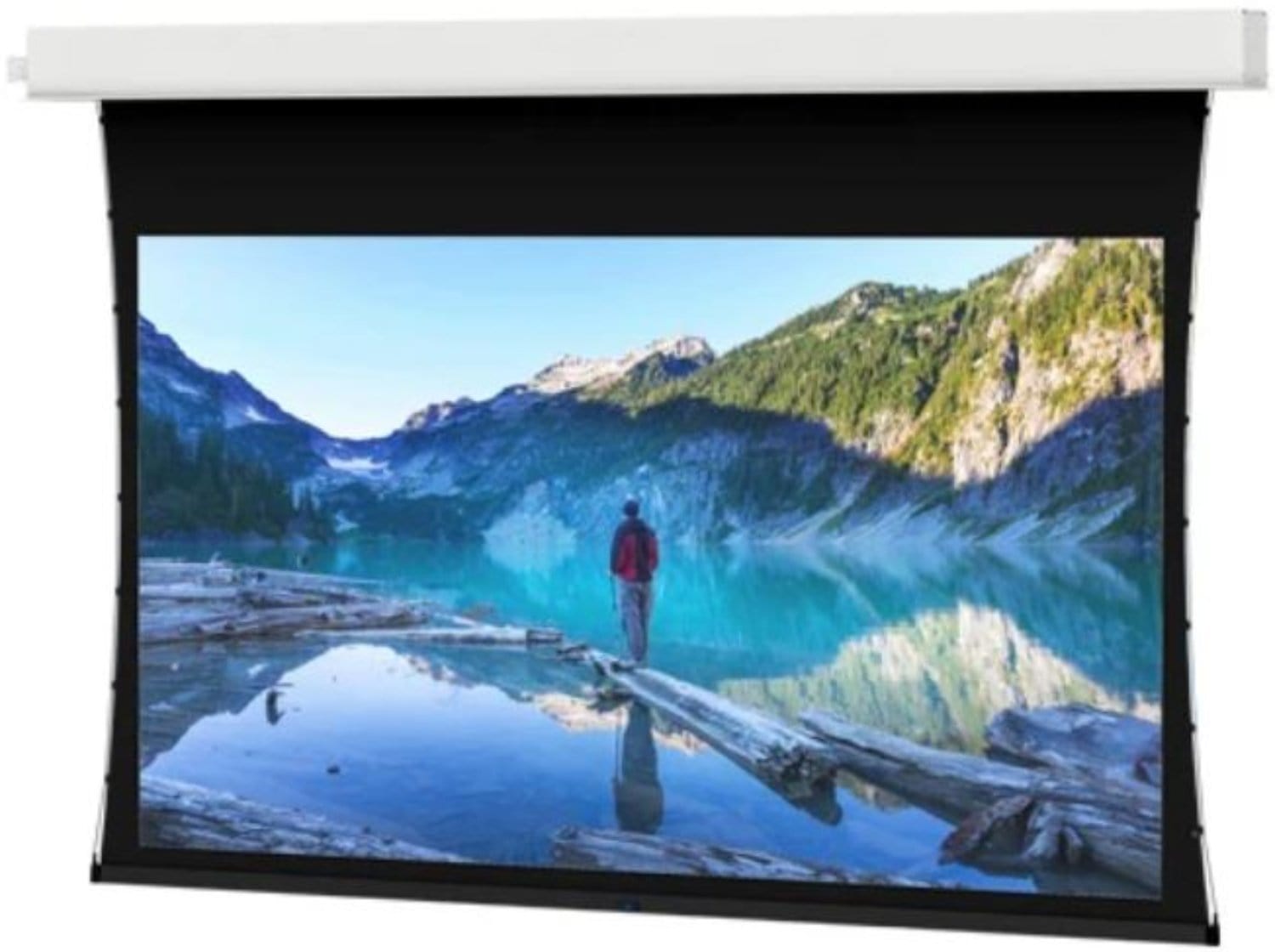

Da-Lite 14763EL: Tensioned Advantage Series Complete 108x192 Ceiling Recessed Electric Screen
The Tensioned Advantage ceiling recessed electric screen series is designed with ceiling trim in place, concealing the rough opening and eliminating the need for additional trim work once the screen is installed. Its two-stage installation option allows the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Standard Low Voltage Control (LVC) and available optional controls allow screen operation flexibility
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
- Decora-style, three-button wall switch
- All sizes standard with 12 inch of black drop except for Parallax Pure which is standard with 2 inch
- Smooth Roll Technology to keep your screen perfectly flat
- TruGuide Electric Screen Tensioning System provides optimal viewing surface smoothness
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Da-Lite |
| Model | 14763EL |
| Product Type | Electric Video Projection Screens |
| Projection Series | Tensioned Advantage Series |
| Screen Type | Electric |
| Mount Type | Ceiling Recessed |
| Surface | HD Progressive 1.3 |
| Format | HDTV (16:9) |
| Viewable Diagonal | 220 inch |
| Viewable Width | 192 inch |
| Viewable Height | 108 inch |
| Ship Length | 218.5 inch |
| Ship Width | 22.88 inch |
| Ship Height | 17.75 inch |
| Ship Weight | 464 lbs |
| Freight Class | 125 |
Why Buy the Da-Lite 14763EL Tensioned Advantage Series Complete 108x192 Ceiling from Trianze Tech?
- Genuine Da-Lite product sourced through authorized channels with local UAE support
- Pre-sales help matching the 14763EL to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Da-Lite 14763EL lists its screen type as Electric.
The Da-Lite 14763EL lists its mount type as Ceiling Recessed.
The Da-Lite 14763EL lists its format as HDTV (16:9).
Standard Low Voltage Control (LVC) and available optional controls allow screen operation flexibility. UL Plenum rated case.
White powder-coated case for a clean aesthetic. Decora-style, three-button wall switch.
Trianze Tech stocks the Da-Lite 14763EL in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
