Crestron CP4 4-Series Control System
Model
:
CP4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

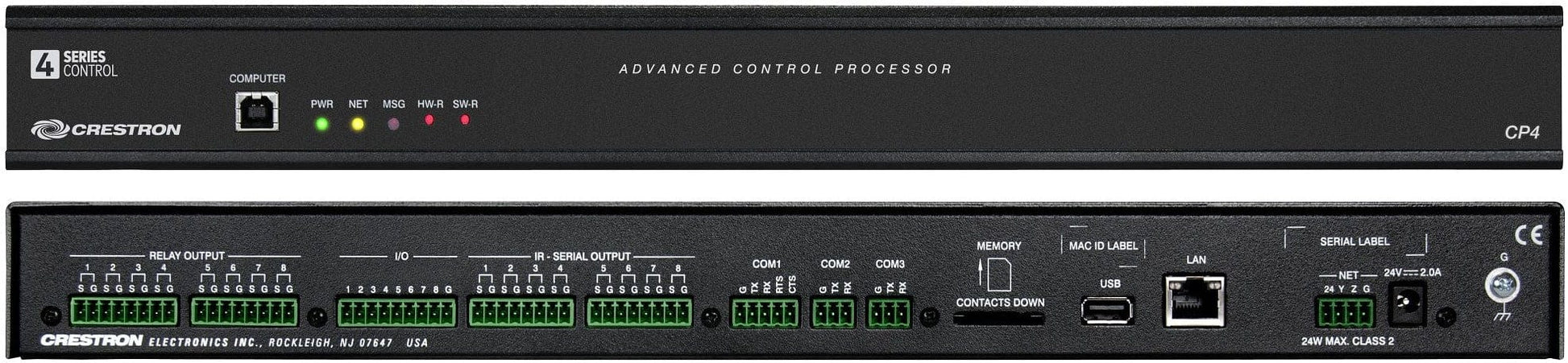

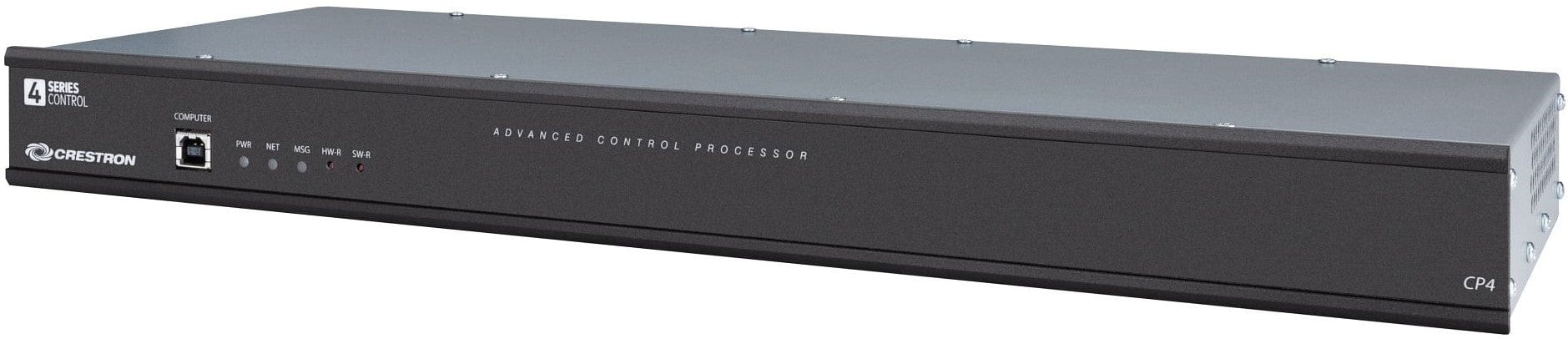

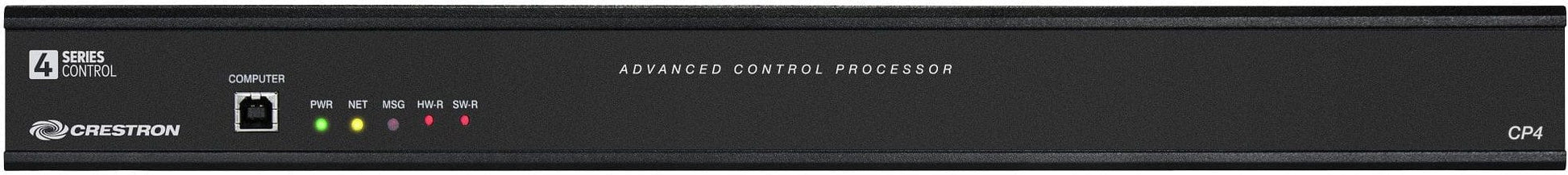

Crestron CP4 4-Series Control System
The CP4 is a secure, high-performance control processor with a powerful 4-Series control engine, designed to integrate and automate technology within any modern networked home, commercial building, or government facility across Dubai, Abu Dhabi, and the wider GCC.
Key Features
- 4-Series control system with 2 GB SDRAM and 8 GB flash memory
- Embedded 4-Series multicore CPU processor
- iPhone, iPad, and Android device control app support
- XPanel computer and web based control, modular programming architecture

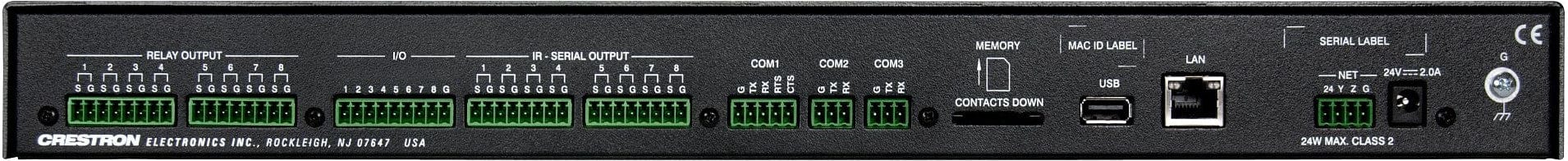

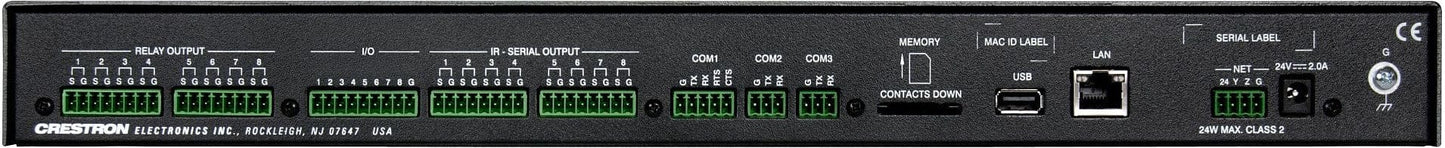

- Onboard IR/serial, COM, I/O, relay, Cresnet network, and high-speed gigabit Ethernet control ports
- High-speed USB 2.0 host port and rear panel memory card slot
- Crestron Fusion software room monitoring and scheduling support
- XiO Cloud service provisioning and management support
- Enterprise-class network security including SNMP V3, native BACnet, and IPv6
- Integrates with Apple HomeKit technology and is rack mountable
Technical Specifications
| Specification | Detail |
|---|---|
| Control Engine | Crestron 4-Series, real-time preemptive multi-threaded kernel, up to 10 simultaneous programs |
| Ethernet | 100/1000 Mbps, TCP/IP, UDP/IP, DHCP, SSL, TLS, SSH, SFTP, IEEE 802.1X, SNMP, BACnet, IPv4/IPv6 |
| RS-232/422/485 | Bidirectional, up to 115.2k baud, hardware and software handshaking |
| IR/Serial | 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 up to 115.2k baud |
| Memory | 2 GB SDRAM, 8 GB flash, SD/SDHC card slot up to 32 GB, USB storage up to 1 TB |
| Relay Outputs | 8 normally open isolated relays, rated 1 A at 30 VAC/VDC |
| I/O Ports | 8 Versiport digital input/output or analog input ports |
| IR/Serial Outputs | 8 IR output ports, up to 1.2 MHz, plus 1-way serial TTL/RS-232 |
| COM Ports | 1x RS-232/422/485 and 2x RS-232, up to 115.2k baud |
| Memory Card Slot | 1x SD card slot, accepts SD/SDHC up to 32 GB for log storage |
| USB | 1x USB Type A host port, 1x USB Type B computer console port |
| LAN | 1x 8-pin RJ45, 100/1000Base-TX Ethernet port |
| NET | 1x 4-pin Cresnet master port with pass-through power option |
| Power Input | 24VDC 2.0A, PW-2420RU power pack included |
| Power Consumption | 15 W typical, not including connected Cresnet devices |
| Operating Temperature | 41 to 113°F (5 to 45°C) |
| Humidity | 10% to 90% RH, noncondensing |
| Enclosure | Metal aluminum chassis, black finish, extruded metal faceplate |
| Mounting | Freestanding or 1 RU 19 inch rack mountable, adhesive feet and rack ears included |
| Dimensions | 1.70 in H x 17.28 in W (19.00 in with rack ears) x 6.56 in D |
| Weight | 3.12 lb (1.42 kg) |
Why Buy the Crestron CP4 from Trianze Tech?
- Genuine Crestron stock with manufacturer warranty
- UAE based inventory for fast Dubai and GCC wide delivery
- Pre sales consultation on control system architecture and programming scope
- Professional installation, programming, and commissioning available
- Ongoing technical support from a Dubai based AV integration team
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Trianze Tech supplies the Crestron CP4 as genuine, manufacturer warranted stock from local Dubai inventory. Purchasing through Trianze Tech means authentic hardware, full UAE warranty coverage, system design consultation, and professional programming support across Dubai, Abu Dhabi, and the wider GCC. Contact the team via WhatsApp at +971 58 161 3661 for a quote.
The CP4 uses a real-time, preemptive multi-threaded and multitasking kernel with a Transaction-Safe Extended FAT file system, supporting up to 10 simultaneously running programs. This makes it suitable for complex automation projects that combine AV, lighting, climate, and security control in a single deployment.
The CP4 supports enterprise grade network security including IEEE 802.1X authentication, Active Directory service authentication, SSL, TLS, SSH, SFTP, and FIPS 140-2 compliant encryption, along with SNMP V3 remote IT management. This makes it suitable for government facilities and corporate networks with strict IT security policies.
Yes. The CP4 is freestanding or 1 RU 19 inch rack mountable, with adhesive feet and rack ears included in the box, so it fits directly into a standard AV or IT equipment rack without additional hardware.
Yes. The CP4 supports XiO Cloud service provisioning and management, allowing integrators to configure, monitor, and update multiple CP4 deployments remotely across different sites from a single cloud dashboard, reducing the need for on-site visits.
