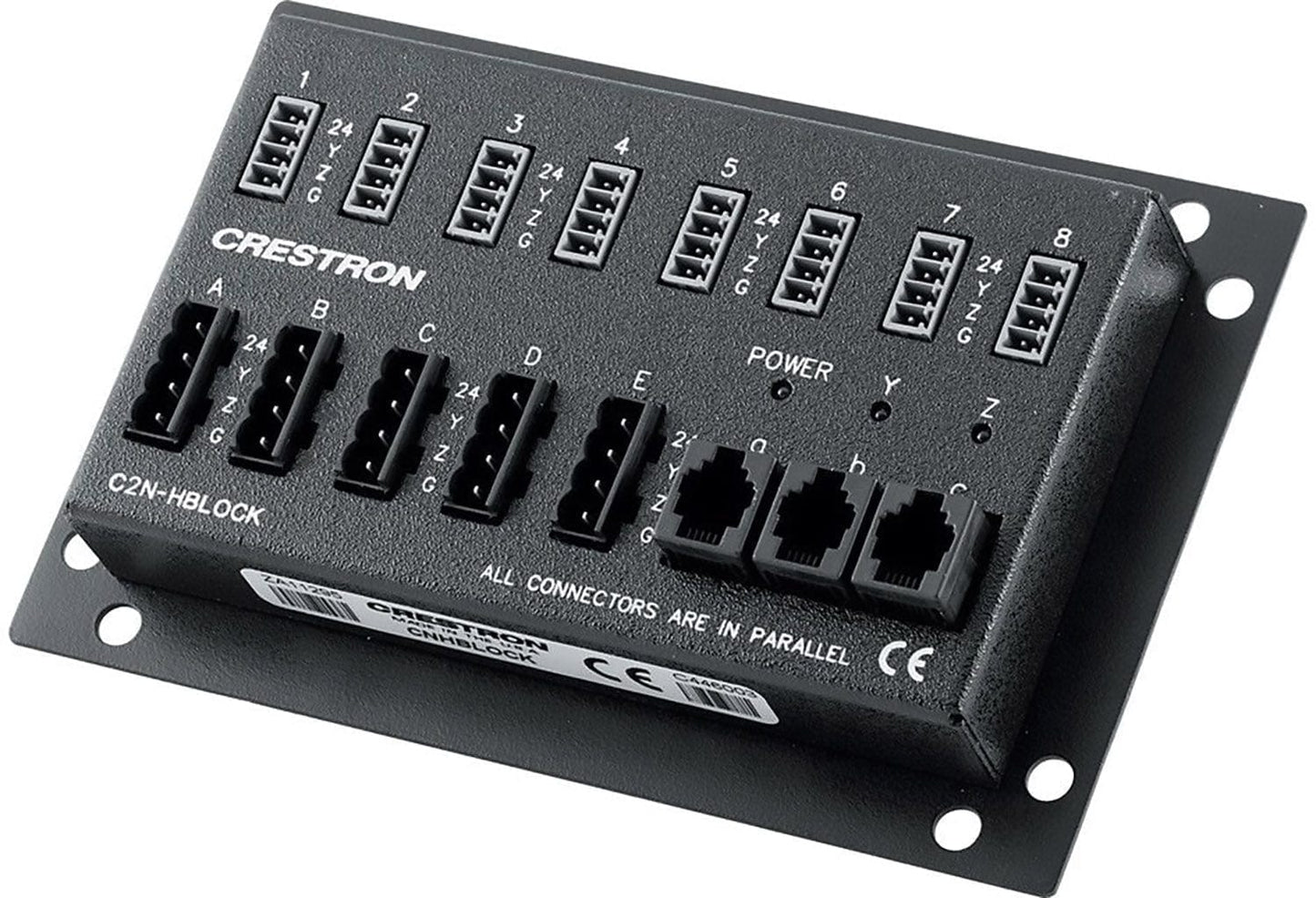

Crestron C2N-HBLOCK Distribution Block
Model
:
C2N-HBLOCK
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp

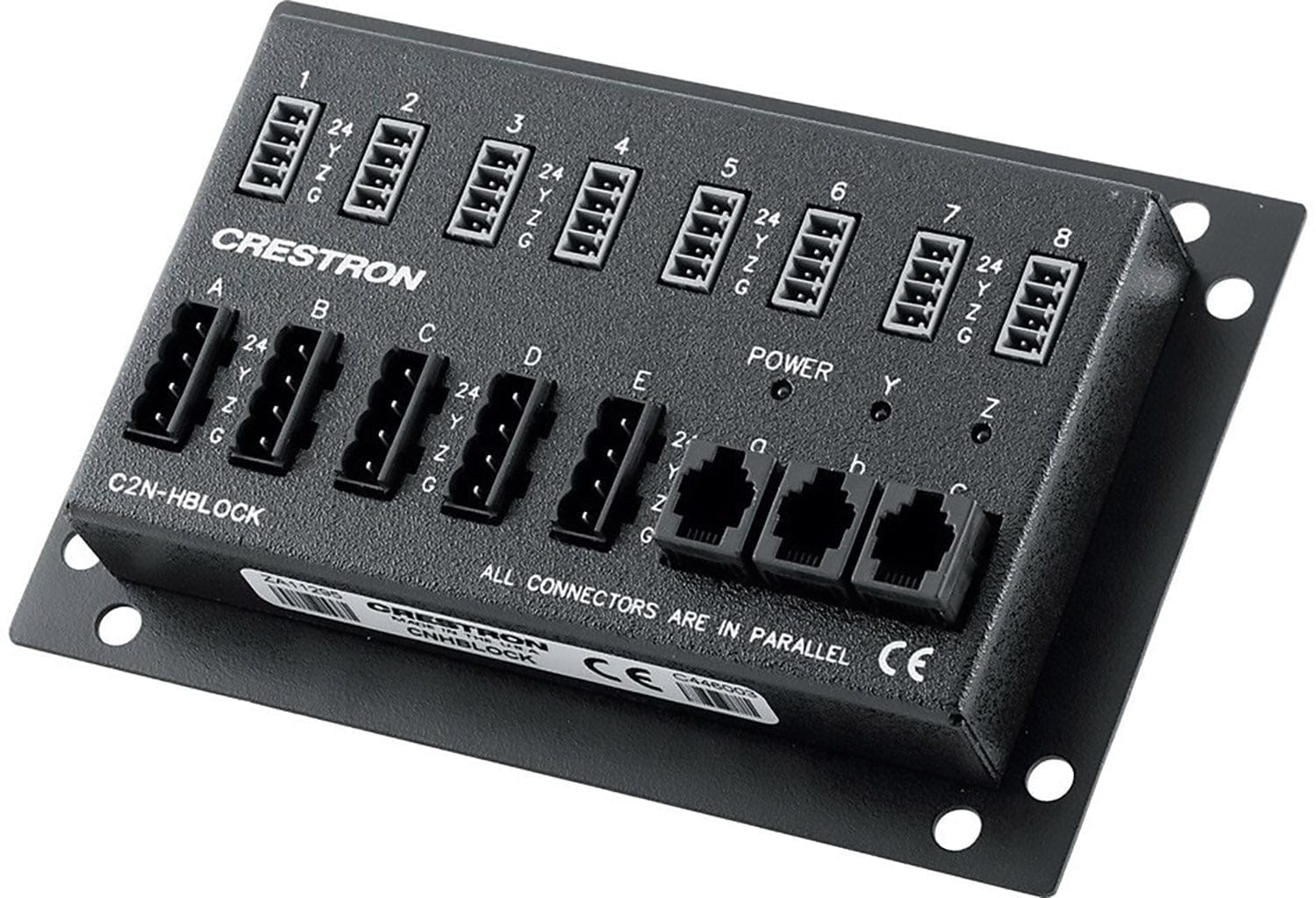

Crestron C2N-HBLOCK Multi-type Cresnet Distribution Block
The C2N-HBLOCK is a parallel distribution block for terminating multiple Cresnet cables from a single control run, built for residential, hospitality, and commercial Crestron installations across Dubai, Abu Dhabi, and the wider GCC. Three connector types accommodate standard 4-wire Cresnet, High-Power Cresnet, and RJ11 modular wiring on one compact unit.
Key Features
- Parallel termination for up to 16 Cresnet devices across three connector banks
- Diagnostic LEDs confirm network power and data integrity at a glance
- Cascadable design, link multiple units for expanded Cresnet distribution
- Included mounting plate for standalone surface mounting
- Rack mountable up to three units with the optional CNXRMAK kit
Technical Specifications
| Specification | Detail |
|---|---|
| Connectors 1 to 8 | 8x 4-pin 3.5mm detachable terminal blocks, Cresnet distribution ports |
| Connectors A to E | 5x 4-pin 5mm detachable terminal blocks, Cresnet distribution ports |
| Connectors a to c | 3x 6-pin RJ11 female, RJ11-style Cresnet distribution ports |
| Power Indicator | 1x green LED, indicates Cresnet power present at any port |
| Data Indicators | 2x red LEDs, indicate presence and integrity of the Cresnet data signal |
| Enclosure | Metal with black finish, surface mount box with removable mounting plate |
| Height | 1.33 in (34 mm) including mounting plate |
| Width | 6.55 in (167 mm) including mounting plate |
| Depth | 4.30 in (110 mm) including mounting plate |
| Weight | 10.9 oz (309 g) including all supplied terminal block connectors |
| Wiring | All Cresnet ports are wired in parallel |
Why Buy the Crestron C2N-HBLOCK from Trianze Tech?
- Genuine Crestron stock with manufacturer warranty
- UAE based inventory for fast Dubai and GCC wide delivery
- Pre sales consultation on Cresnet system wiring design
- Professional installation and commissioning available
- Ongoing technical support from a Dubai based AV integration team
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Trianze Tech supplies the Crestron C2N-HBLOCK as genuine, manufacturer warranted stock from local Dubai inventory. Purchasing through Trianze Tech means authentic hardware, full UAE warranty coverage, expert wiring consultation, and installation support across Dubai, Abu Dhabi, and the wider GCC. Contact the team via WhatsApp at +971 58 161 3661 for a quote.
The C2N-HBLOCK provides 16 Cresnet distribution ports across three connector types: 8 standard 4-pin 3.5mm terminals, 5 4-pin 5mm terminals, and 3 RJ11 modular ports. All ports are wired in parallel, so any combination of standard, high power, or RJ11 Cresnet devices can be connected simultaneously up to that total.
Yes. Multiple C2N-HBLOCK units can be cascaded to expand Cresnet connectivity beyond the 16 ports of a single unit, and up to three units can be rack mounted together using the optional CNXRMAK rack mount kit, sold separately.
The C2N-HBLOCK includes one green power LED that confirms Cresnet power is present at any connected port, plus two red LEDs that indicate the presence and integrity of the Cresnet data signal, giving installers instant visual confirmation of network health without extra test equipment.
The C2N-HBLOCK ships with a removable mounting plate for standalone surface mounting in a wall box, cabinet, or equipment closet. For rack room installations, up to three units can be combined onto the optional CNXRMAK rack mount kit for a tidy 19 inch rack presentation.
