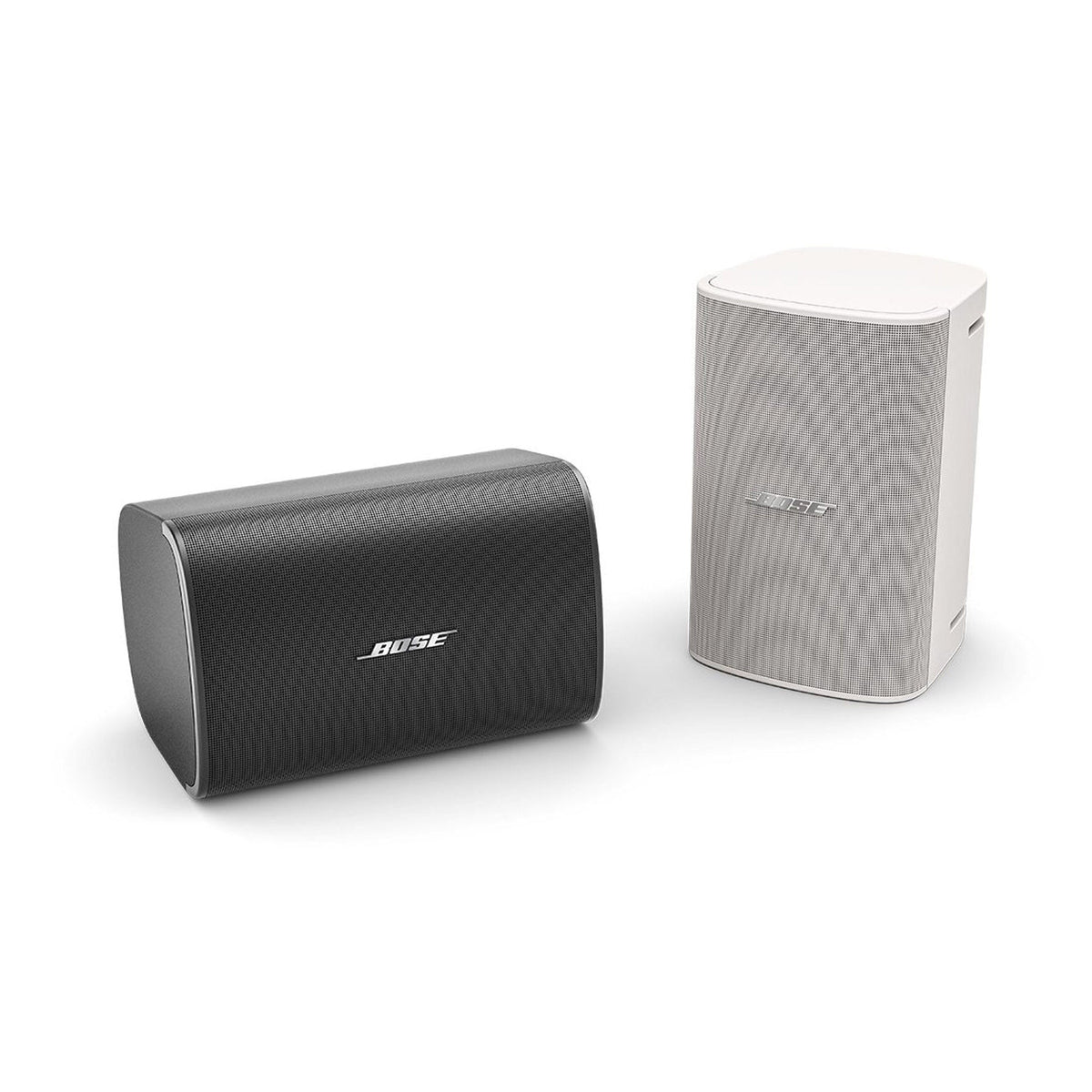

Bose DesignMax DM6SE: 6.5 Inch Coaxial Surface Mount Loudspeaker, Black
Model
:
DM6SE (829682-0120)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Bose DesignMax DM6SE: 6.5 Inch Coaxial Surface Mount Loudspeaker, Black
The Bose Professional DesignMax DM6SE is a 125 watt coaxial two way surface mount loudspeaker, the largest surface mount model in the DesignMax SE range, built for larger commercial spaces across Dubai, Abu Dhabi and the wider UAE and GCC and distributed and installed by Trianze Tech. Its 6.5 inch woofer and 1.25 inch coaxial tweeter deliver rich low end and clear highs with premium black aesthetics.
Key Features
- Coaxial two way 6.5 inch woofer and 1.25 inch tweeter mounted within the Dispersion Alignment system
- Frequency range of 59 Hz to 20 kHz from a 125 watt rated enclosure
- Surface mounted design that locks onto a hidden QuickHold U-bracket for fast, secure installation
- IP55 outdoor rated for covered outdoor or semi exposed installations
- Compact 8 ohm design that scales up sound output without a larger footprint
Technical Specifications
| Power Rating | 125 W |
| Driver Complement | 6.5 inch woofer, 1.25 inch coaxial tweeter |
| Frequency Range | 59 Hz to 20 kHz |
| Impedance | 8 ohm |
| Dimensions, Loudspeaker Only (H x W x D) | 340 x 222 x 229 mm (13.4 x 8.7 x 9.0 in) |
| Dimensions with Bracket (H x W x D) | 340 x 222 x 245 mm (13.4 x 8.7 x 9.7 in) |
| Net Weight (single unit) | 6.40 kg (14.1 lb) |
| Mounting | Hidden QuickHold U-bracket, surface mount |
| Enclosure Rating | IP55 |
| Color | Black |
| Part Number | 829682-0120 |
Why Buy the Bose DesignMax DM6SE from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Fast delivery and professional installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial sound system design support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DM6SE is a 125 watt coaxial two way loudspeaker with a 6.5 inch woofer and 1.25 inch tweeter, delivering a frequency range of 59 Hz to 20 kHz at 8 ohm impedance.
The DM6SE carries an IP55 rating, making it suitable for covered outdoor areas and semi exposed installations in addition to standard indoor commercial spaces.
The DM6SE has a net weight of 6.40 kg (14.1 lb) per unit, with dimensions of 340 x 222 x 229 mm (13.4 x 8.7 x 9.0 in) as a standalone loudspeaker.
The DM6SE is a surface mount loudspeaker that locks onto a hidden QuickHold U-bracket, bringing the total depth to 245 mm (9.7 in) with the bracket attached.
The DM6SE is the largest of the DesignMax SE surface mount range, stepping up to a 6.5 inch woofer, 125 watt power handling and 59 Hz low frequency extension, ahead of the 5.25 inch DM5SE and 3.5 inch DM3SE.
Trianze Tech stocks the Bose DesignMax DM6SE in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
