Bose DesignMax DM5SE: 5.25 Inch Coaxial Surface Mount Loudspeaker, Black
Model
:
DM5SE (829705-0120)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

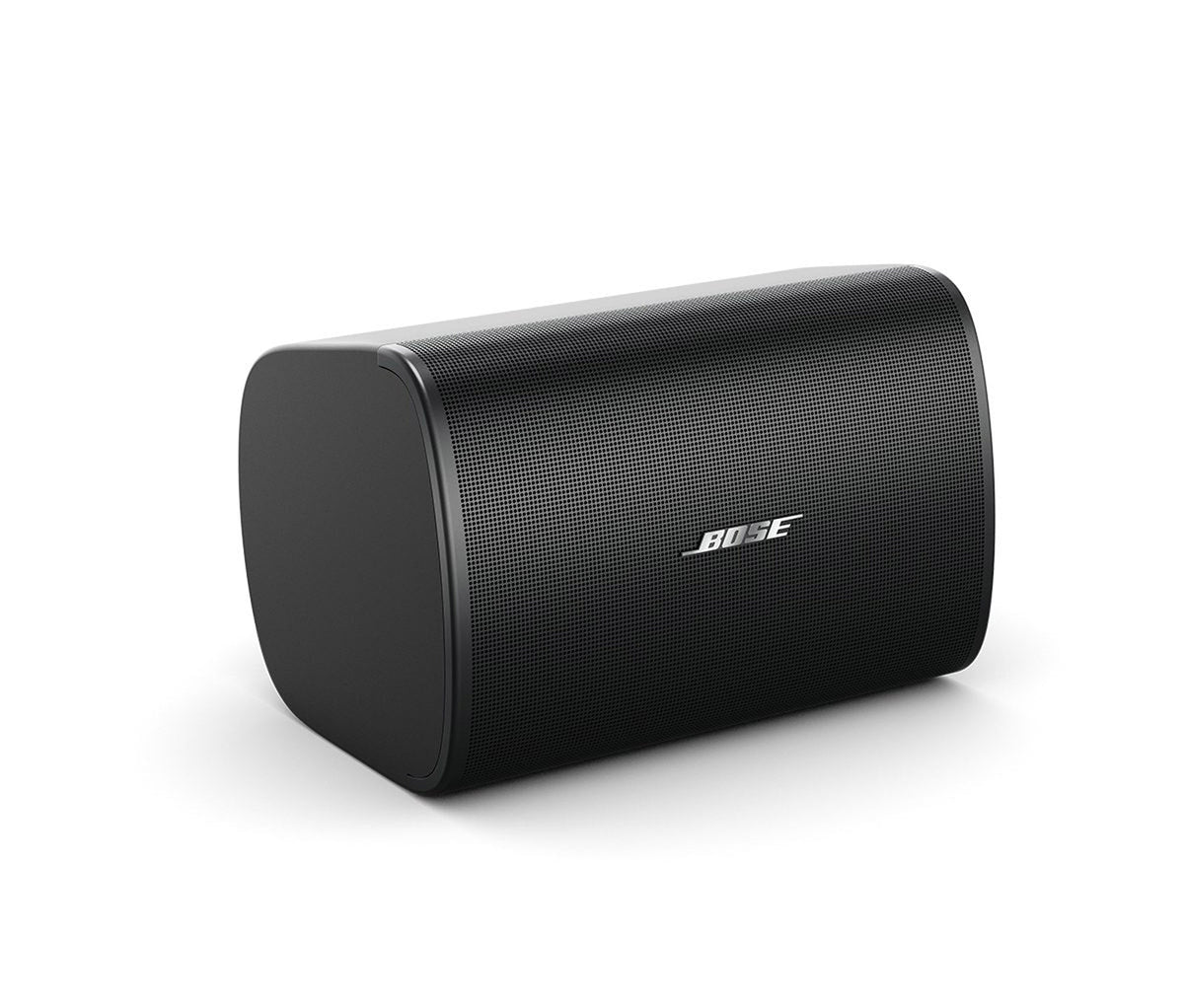

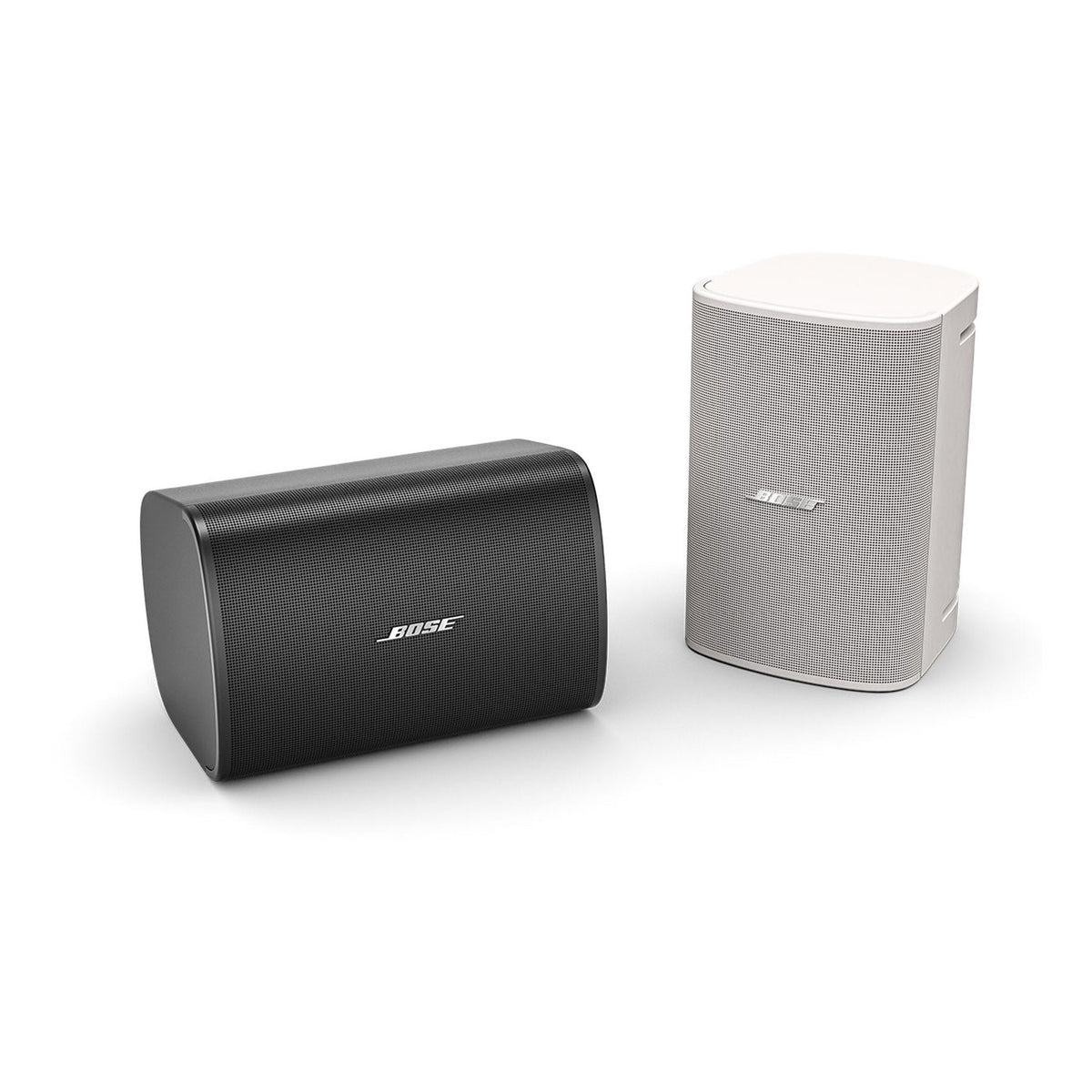

Bose DesignMax DM5SE: 5.25 Inch Coaxial Surface Mount Loudspeaker, Black
The Bose Professional DesignMax DM5SE is a 60 watt coaxial two way surface mount loudspeaker delivering rich low end and clear, intelligible highs for mid sized commercial spaces, distributed and installed across Dubai, Abu Dhabi and the wider UAE and GCC by Trianze Tech. Its premium black finish and Dispersion Alignment driver system suit retail, hospitality and office installations that demand both sound quality and a clean aesthetic.
Key Features
- Coaxial two way 5.25 inch woofer and 1 inch tweeter mounted within the Dispersion Alignment system
- Frequency range of 65 Hz to 20 kHz from a 60 watt rated enclosure
- Surface mounted design that locks onto a hidden QuickHold U-bracket for fast, secure installation
- IP55 outdoor rated for covered outdoor or semi exposed installations
- Premium black finish that complements modern commercial interiors
Technical Specifications
| Power Rating | 60 W |
| Driver Complement | 5.25 inch woofer, 1 inch coaxial tweeter |
| Frequency Range | 65 Hz to 20 kHz |
| Dimensions, Loudspeaker Only (H x W x D) | 286 x 192 x 197 mm (11.2 x 7.5 x 7.7 in) |
| Dimensions with Bracket (H x W x D) | 286 x 192 x 215 mm (11.2 x 7.5 x 8.4 in) |
| Mounting | Hidden QuickHold U-bracket, surface mount |
| Enclosure Rating | IP55 |
| Color | Black |
| Part Number | 829705-0120 |
Why Buy the Bose DesignMax DM5SE from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Fast delivery and professional installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial sound system design support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DM5SE is a 60 watt coaxial two way loudspeaker with a 5.25 inch woofer and 1 inch tweeter, delivering a frequency range of 65 Hz to 20 kHz.
The DM5SE carries an IP55 rating, making it suitable for covered outdoor areas and semi exposed installations in addition to standard indoor commercial spaces.
The DM5SE is a surface mount loudspeaker that locks onto a hidden QuickHold U-bracket, allowing fast, secure installation without visible mounting hardware.
The DM5SE measures 286 x 192 x 197 mm (11.2 x 7.5 x 7.7 in) as a standalone loudspeaker, or 286 x 192 x 215 mm (11.2 x 7.5 x 8.4 in) with the mounting bracket attached.
The DM5SE steps up from the DM3SE with a larger 5.25 inch woofer, 60 watt power handling and deeper 65 Hz low frequency extension, suited to mid sized rooms needing more output and bass than the 3.5 inch DM3SE provides.
Trianze Tech stocks the Bose DesignMax DM5SE in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
