Bose DesignMax DM5P: 60W Two-Way Coaxial Pendant Loudspeaker, Black
The Bose Professional DesignMax DM5P is a 60 watt two-way coaxial pendant loudspeaker built for open ceiling spaces across Dubai, Abu Dhabi and the wider UAE and GCC. A coaxial 5.25-inch woofer and 1-inch tweeter mounted within the Dispersion Alignment system deliver rich lows and clear, intelligible highs, while a recessed single-point suspension keeps the fixture sleek and unobtrusive.
Key Features
- Coaxial 5.25-inch woofer and 1-inch tweeter within the Dispersion Alignment system
- 60W power handling, 240W peak, with 65 Hz to 20 kHz frequency range
- Recessed single-point suspension for a clean, minimal pendant appearance
- Includes a 4.5 meter (15 foot) Gripple adjustable suspension cable
- Top-mounted Euroblock 6-pin connector with loop-through for daisy chaining fixtures
Technical Specifications
| Power Handling | 60W (240W peak) |
| Peak SPL | 111 dB |
| Frequency Range | 65 Hz to 20 kHz |
| Drivers | 5.25 inch coaxial woofer and 1 inch tweeter |
| Dimensions | 259mm (10.2 in) diameter x 300mm (11.8 in) depth |
| Suspension | 1 suspension point, 1 safety cable point, 4.5m Gripple cable included |
| Connector | Euroblock 6-pin with loop-through, top-mounted |
| Color | Black |
| Part Number | 841166-0120 |
Why Buy the Bose DesignMax DM5P from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Fast delivery and professional installation across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio design support from Trianze Tech for open ceiling and atrium spaces
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DM5P is rated at 60W continuous with 240W peak power handling, using a coaxial 5.25-inch woofer and 1-inch tweeter to deliver a 65 Hz to 20 kHz frequency range and 111 dB peak SPL.
The DM5P uses a recessed single-point suspension system with one suspension attachment point and one safety cable attachment point, and ships with a 4.5 meter (15 foot) Gripple adjustable suspension cable.

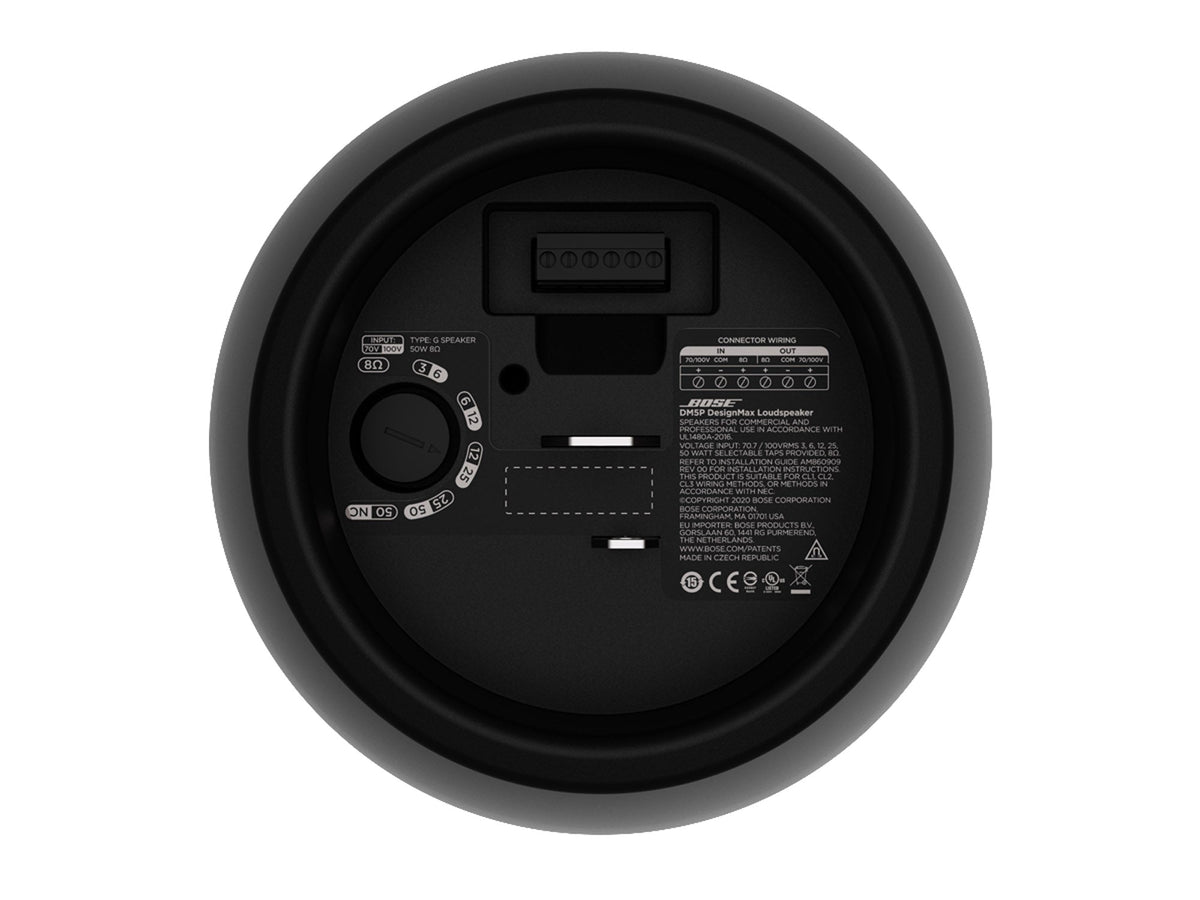

Yes, the DM5P uses a top-mounted Euroblock 6-pin connector with loop-through wiring, allowing multiple pendant fixtures to be daisy chained on a single cable run.
The DM5P measures 259mm (10.2 in) in diameter by 300mm (11.8 in) in depth, giving it a compact profile for open ceiling installations.

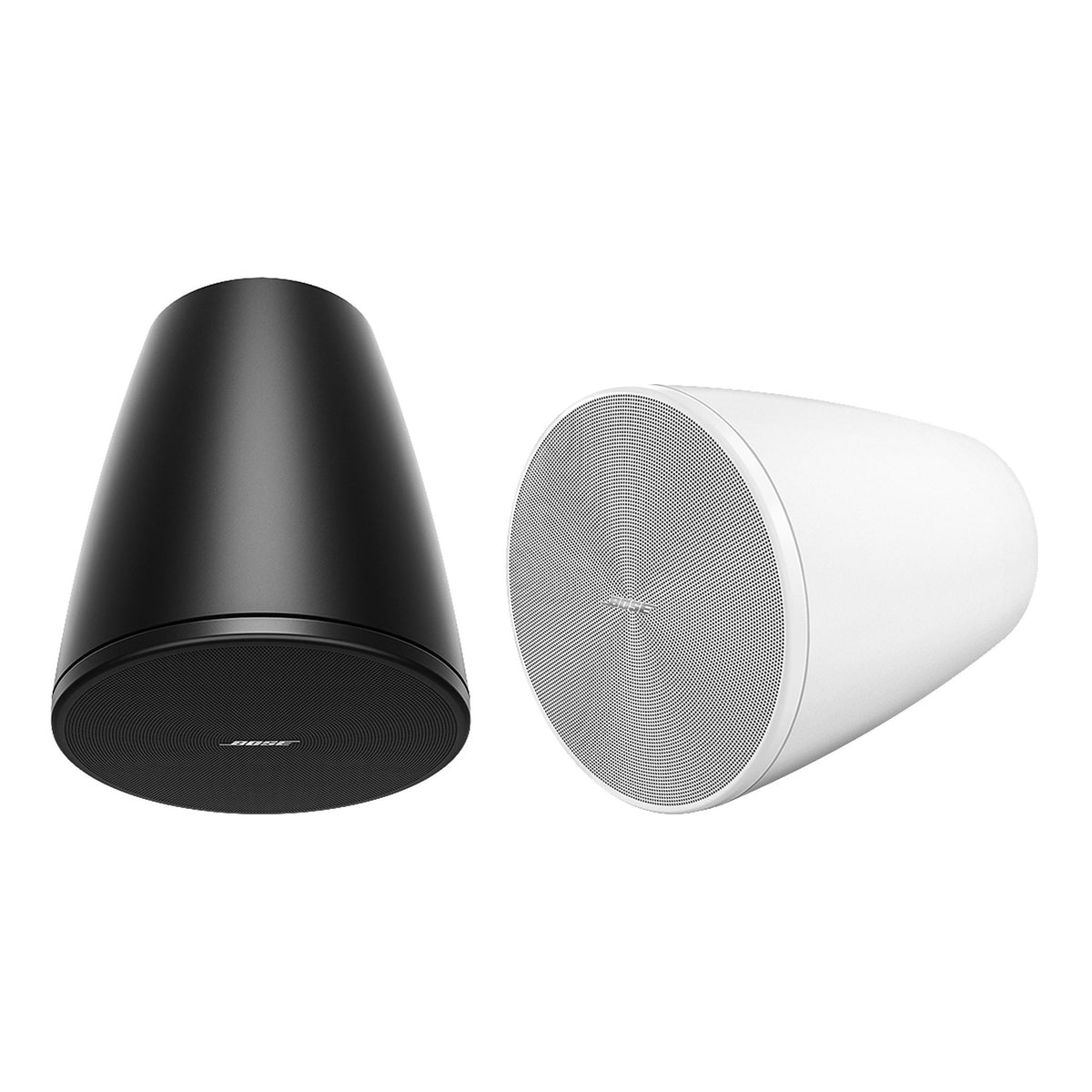

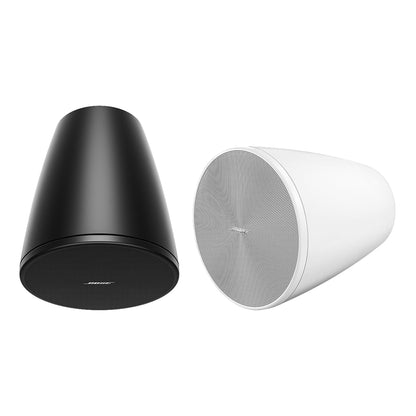

Yes, the DM5P is available in both black (841166-0120) and white finishes to suit different ceiling and interior designs.
