Bose DesignMax DM12SE: 12 Inch Coaxial Outdoor Surface Mount Speaker in White | A01114-0200
Model
:
A01114-0200
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support

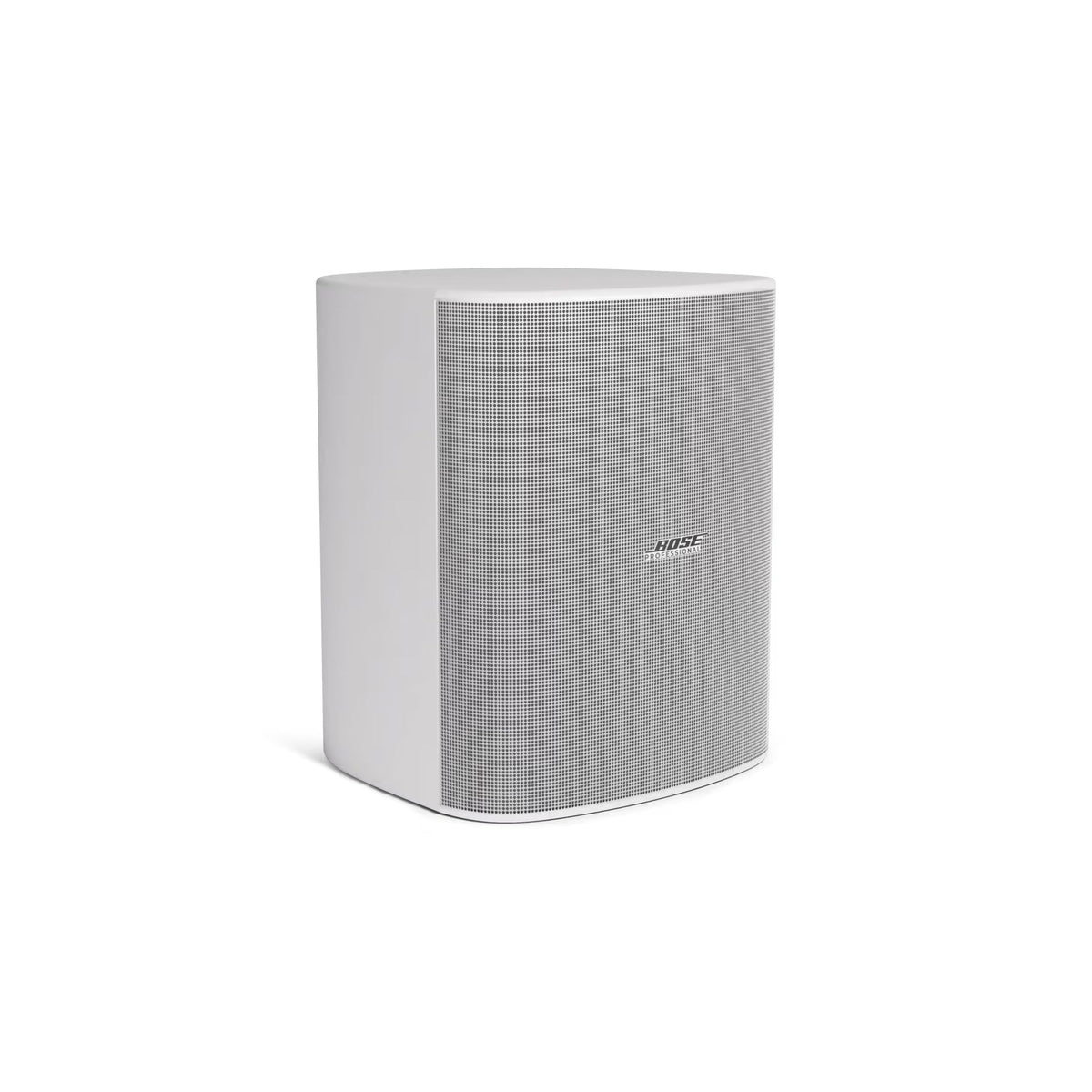

Bose DesignMax DM12SE: 12 Inch Coaxial Outdoor Surface Mount Speaker in White | A01114-0200
The Bose DesignMax DM12SE is Bose Professional's largest and most powerful DesignMax loudspeaker, a 12 inch coaxial surface mount speaker built for installed AV systems that need wide, even coverage and deep bass from a single weatherized enclosure. Distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech.
Key Features

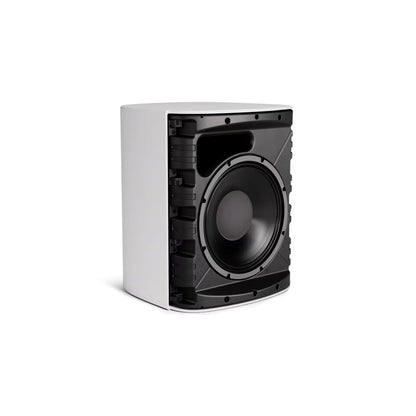

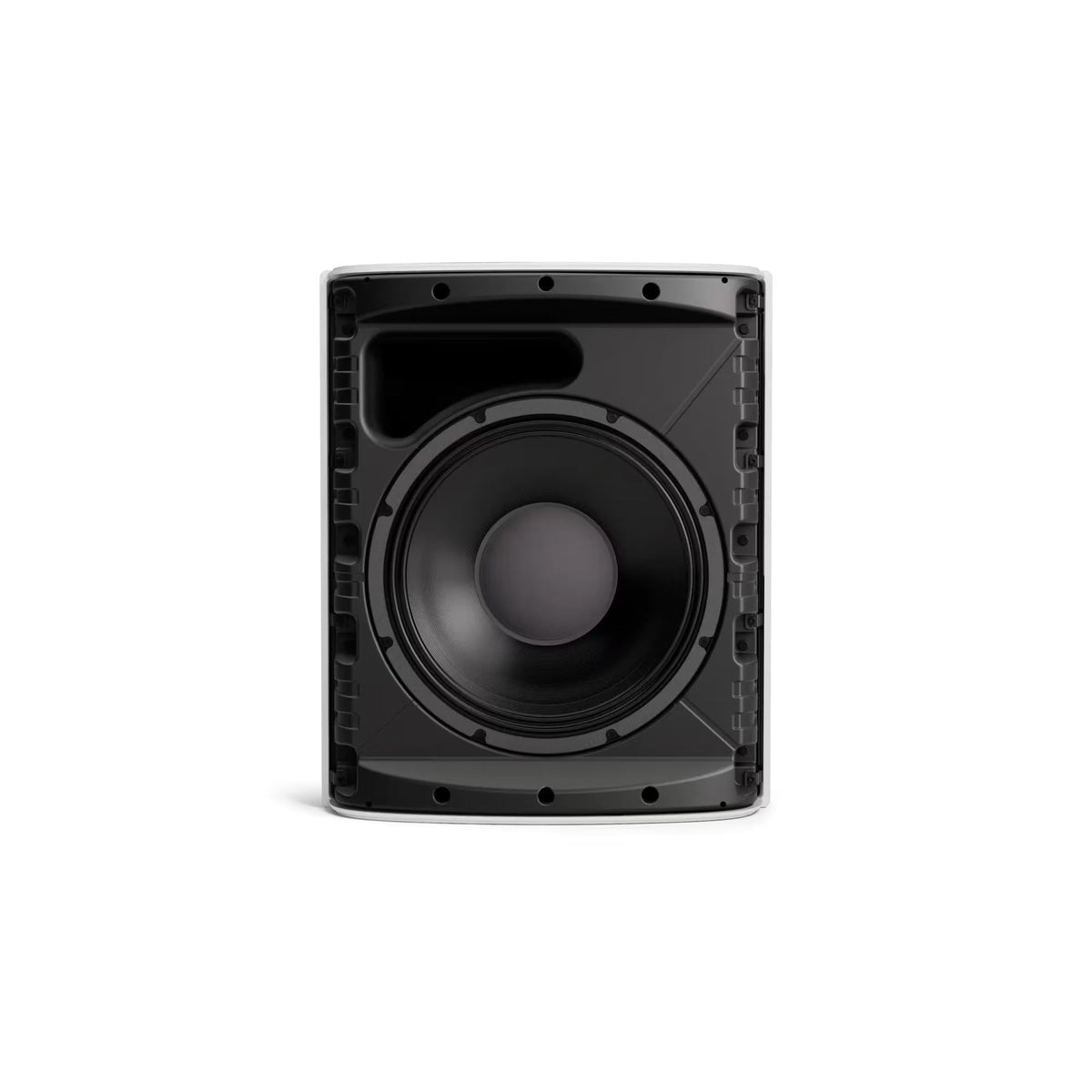

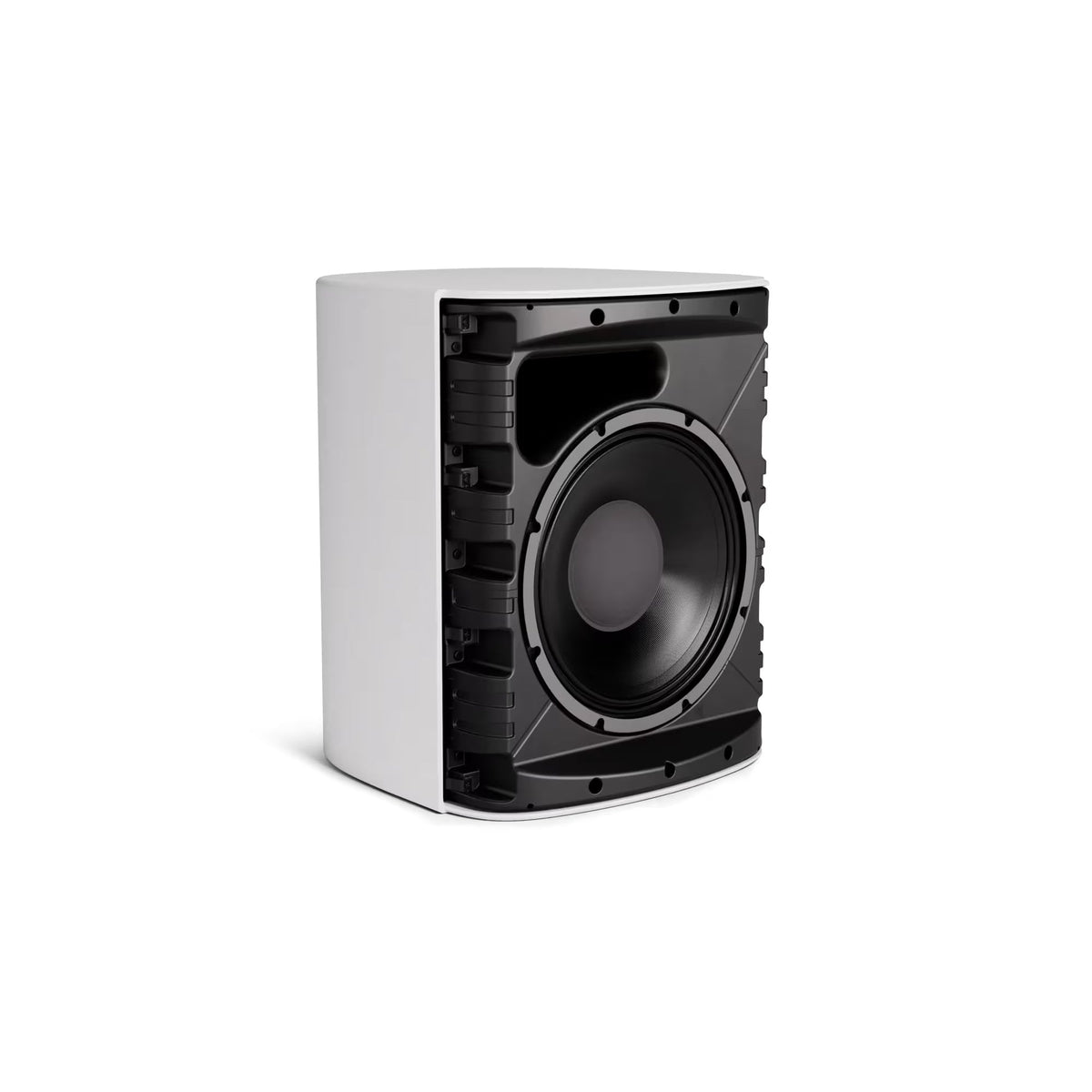

- 12 inch coaxial 2 way driver with physically aligned HF and LF transducers for accurate phase response
- Consistent 102 degree conical coverage for even sound across the listening area
- Bass response extending down to 38 Hz without needing a separate subwoofer in many applications
- Weatherized, injection molded IP55 rated enclosure for indoor and outdoor use
- Included rugged pan and tilt bracket with M8 threaded inserts for fast, precise aiming
Technical Specifications
| Driver Type | 12 inch coaxial, 2 way |
| Coverage Pattern | 102 degree conical |
| Low Frequency Extension | 38 Hz |
| Enclosure Rating | IP55, weatherized injection molded |
| Mounting | Included pan and tilt bracket, M8 threaded inserts |
| Finish | White |
| Part Number | A01114-0200 |
Why Buy the Bose DesignMax DM12SE from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Expert installation guidance for outdoor and weather exposed AV deployments
- Fast delivery across Dubai, Abu Dhabi and the GCC
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DM12SE delivers consistent 102 degree conical coverage from its coaxial 12 inch driver, providing even sound across the listening area without needing multiple speakers.
Yes. The DM12SE has an IP55 rated, weatherized injection molded enclosure built for both indoor and outdoor installation, including exposed courtyards, patios and poolside areas.
The DM12SE extends down to 38 Hz, giving it enough low frequency output for many music and speech reinforcement applications without a separate subwoofer.

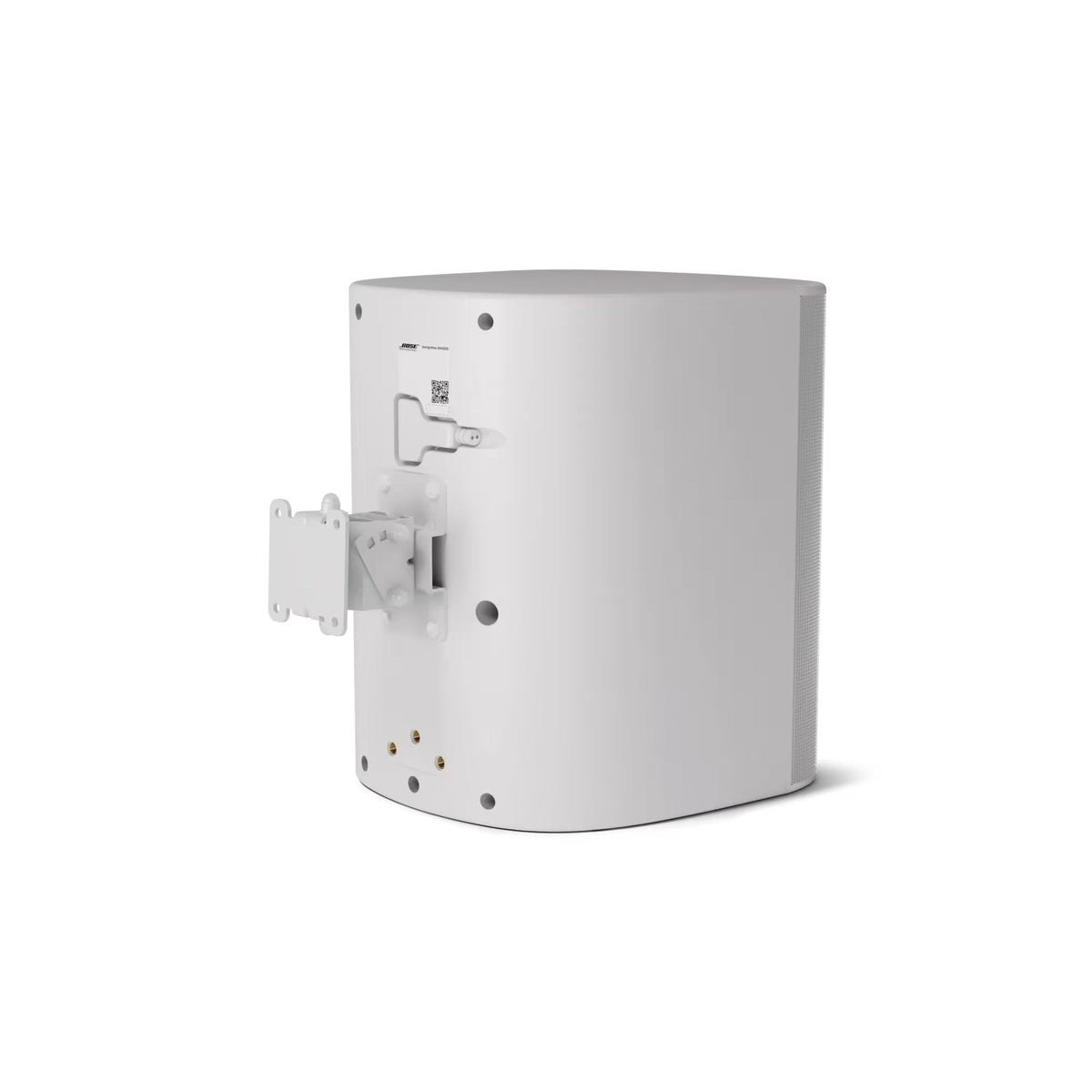

Every DM12SE ships with a rugged pan and tilt bracket plus M8 threaded inserts on the enclosure, allowing fast installation and precise aiming during setup.
Yes. The DM12SE white finish carries part number A01114-0200, while the black finish is A01114-0100, so installers can match either interior or exterior color schemes.
Trianze Tech stocks the Bose DesignMax DM12SE in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
