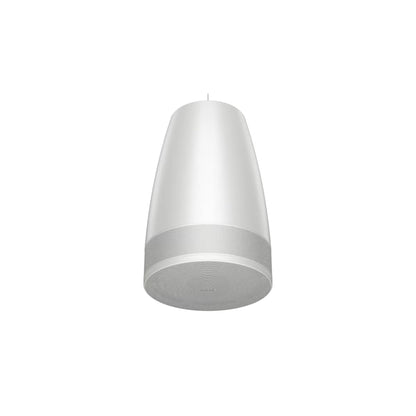

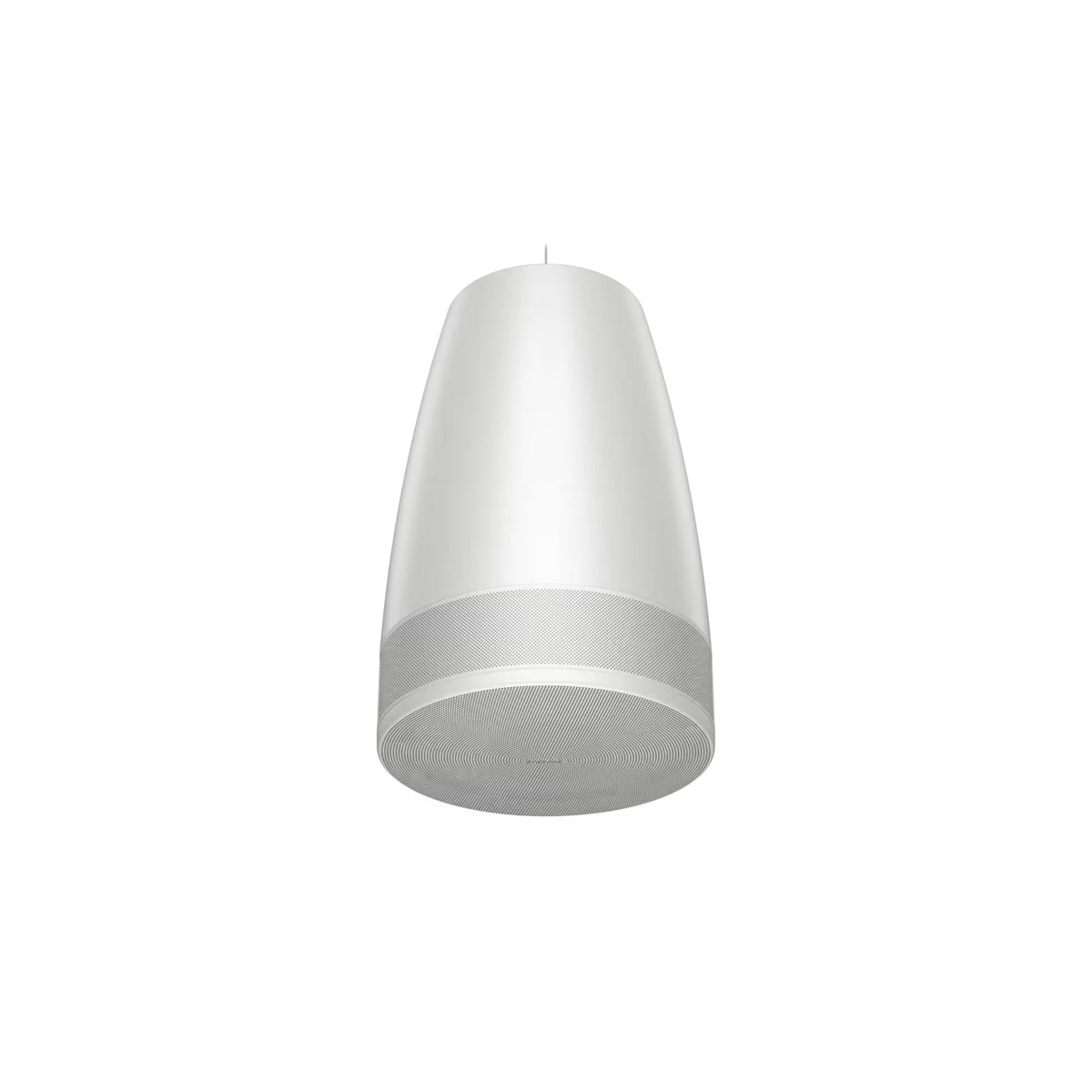

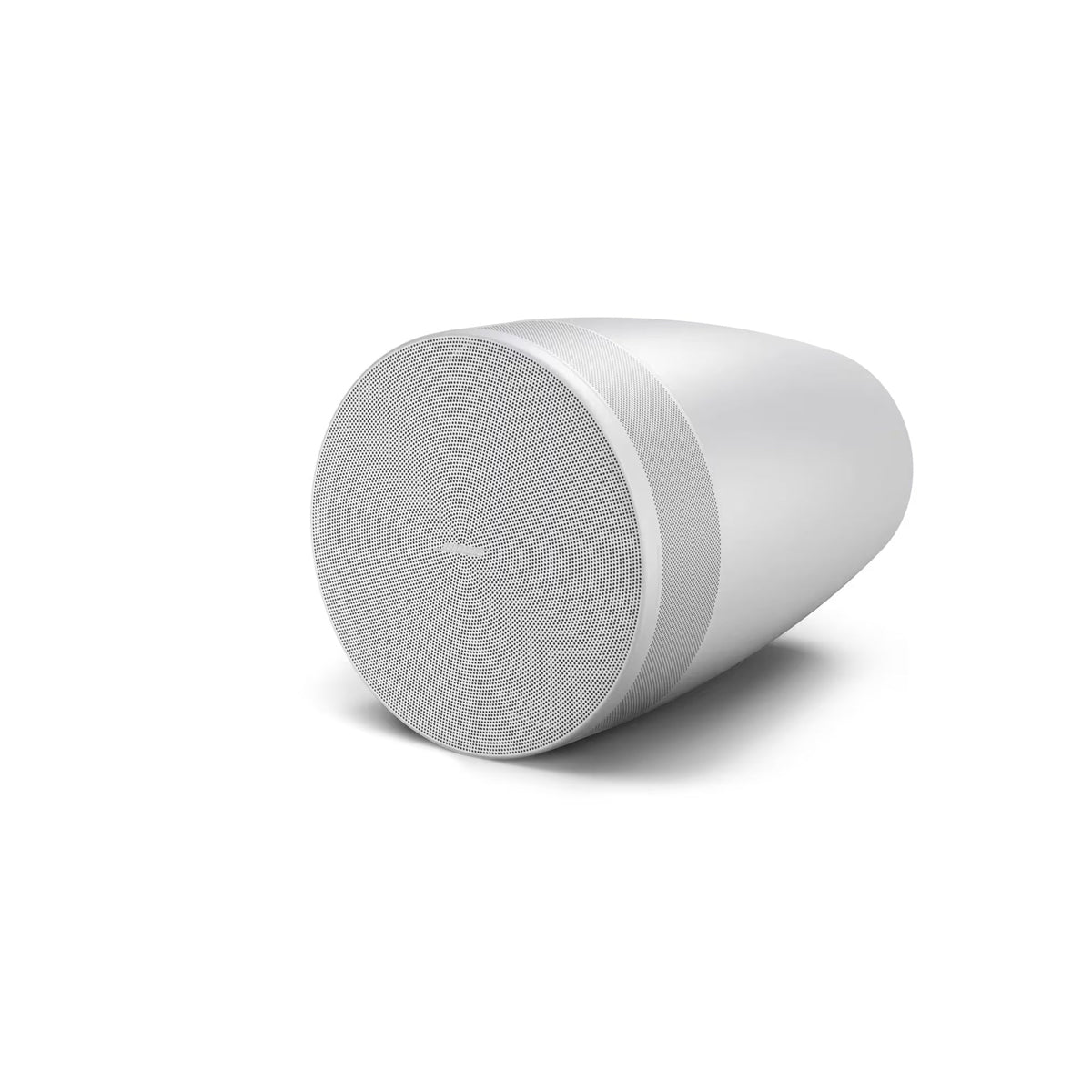

Bose DesignMax Luna DML88P 70V/100V Pendant Loudspeaker: White
The Bose DesignMax Luna DML88P is a genuine Bose Professional all in one pendant loudspeaker, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech for open ceiling retail, hospitality, fitness and education installations.
Key Features

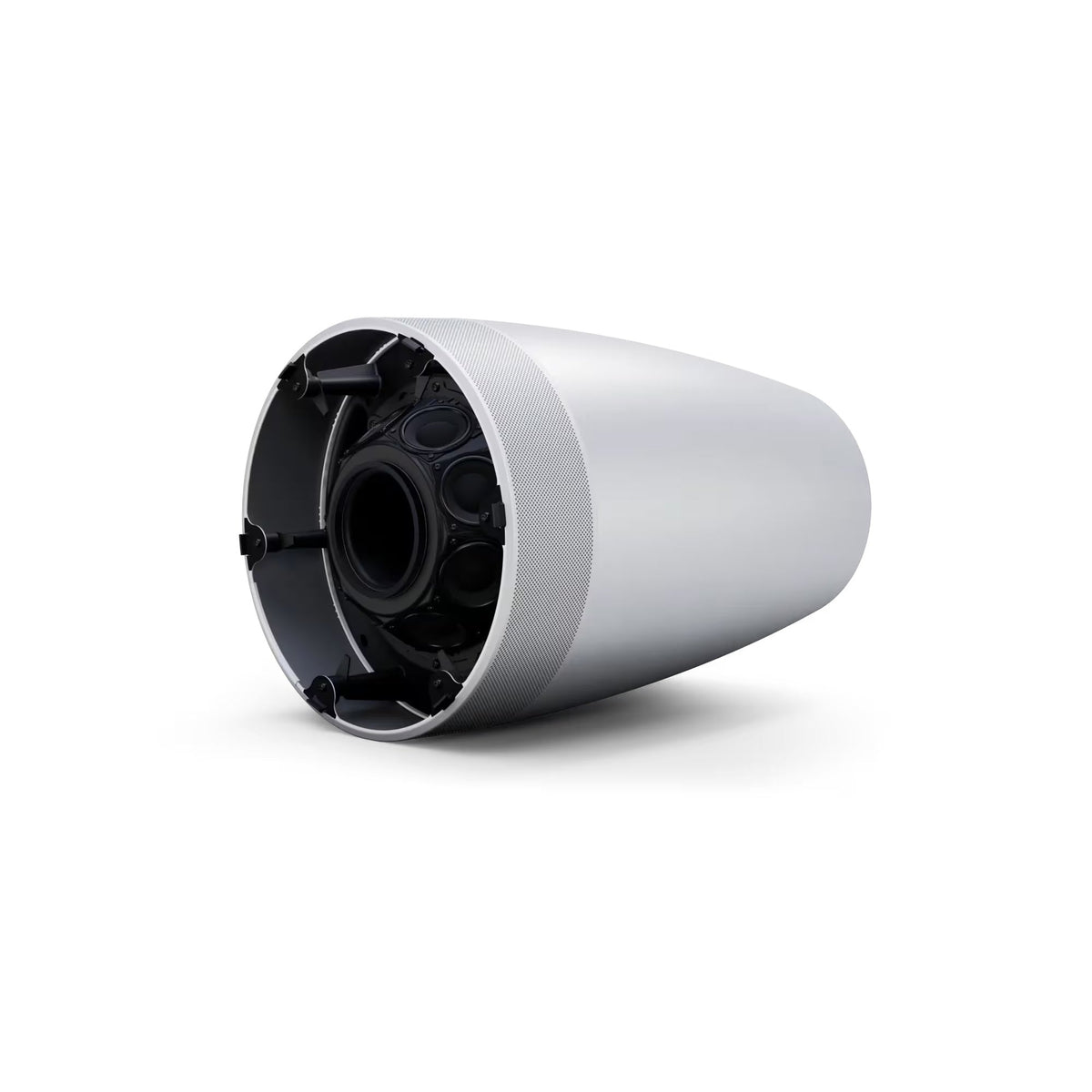

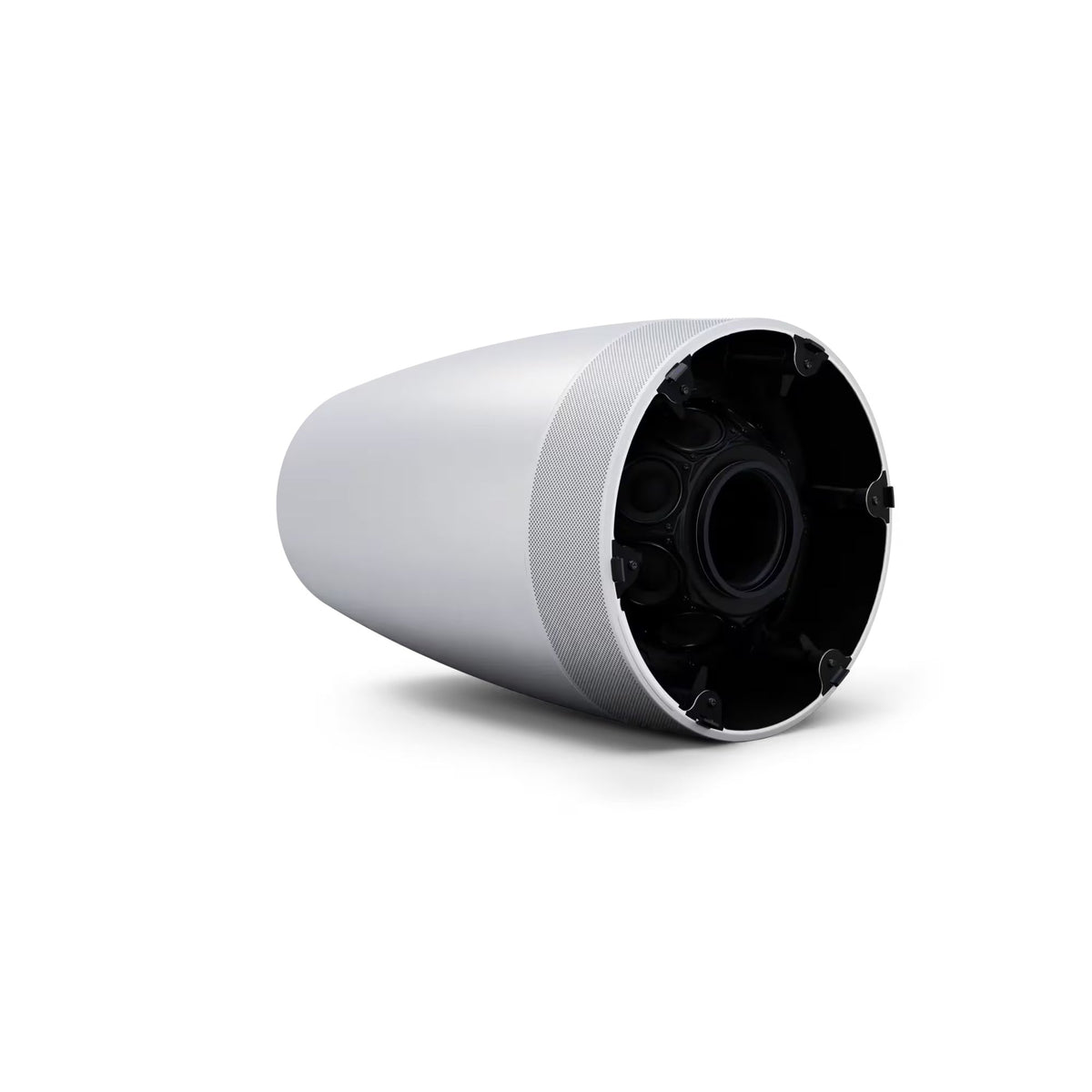

- Ring Array configuration with eight 2 inch mid high drivers and an integrated 8 inch woofer
- 140 degree conical coverage eliminates hot spots and reduces the number of pendants needed per zone
- 111 dB peak SPL with frequency extension to 40 Hz, removing the need for a separate subwoofer
- Single or two point suspension with concealed wiring and a 6 pin Euroblock connector for loop through daisy chaining
Technical Specifications
| Frequency Response (-3dB) | 50 Hz to 15 kHz |
| Frequency Range (-10dB) | 40 Hz to 20 kHz |
| Maximum SPL | 111 dB peak |
| Coverage Pattern | 140 degree conical |
| Drivers | Eight 2 inch mid high drivers plus integrated 8 inch woofer |
| Suspension | Single or two point, 88 lb safe working load cable |
| Connector | 6 pin Euroblock with loop through daisy chain |
| Certifications | UL 1480A, NFPA 70 and 90A |

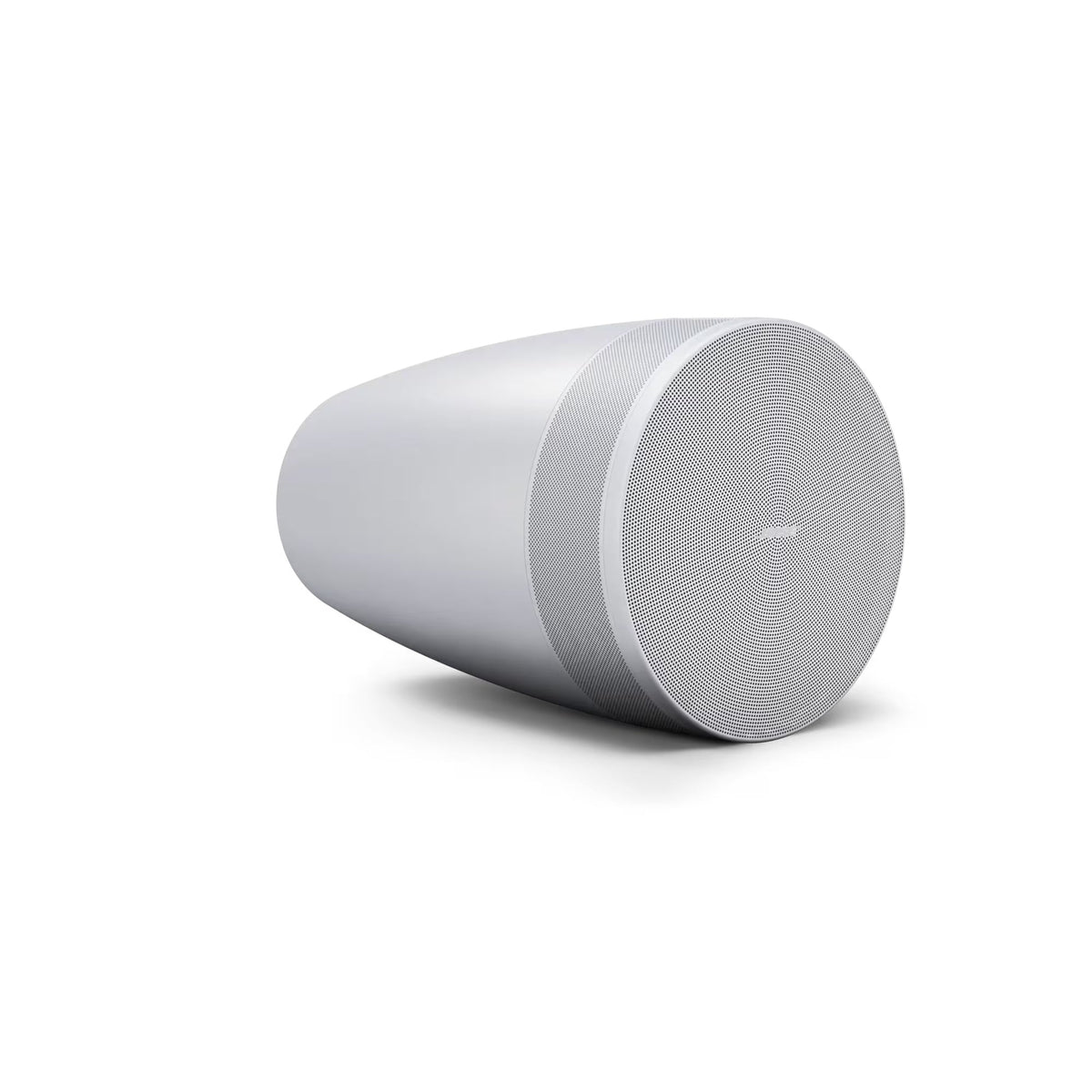

| Finish | Paintable grille, White |
| Part Number | 892117-0200 |
Why Buy the Bose DesignMax Luna DML88P from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio design support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Bose DML88P uses a Ring Array driver configuration to deliver 140 degree conical coverage from a single pendant, giving even sound across a wide floor area and reducing the number of loudspeakers needed per zone.
No. The DML88P has an integrated 8 inch woofer and extends down to 40 Hz at -10dB, which covers most commercial background music and paging needs without adding a subwoofer.

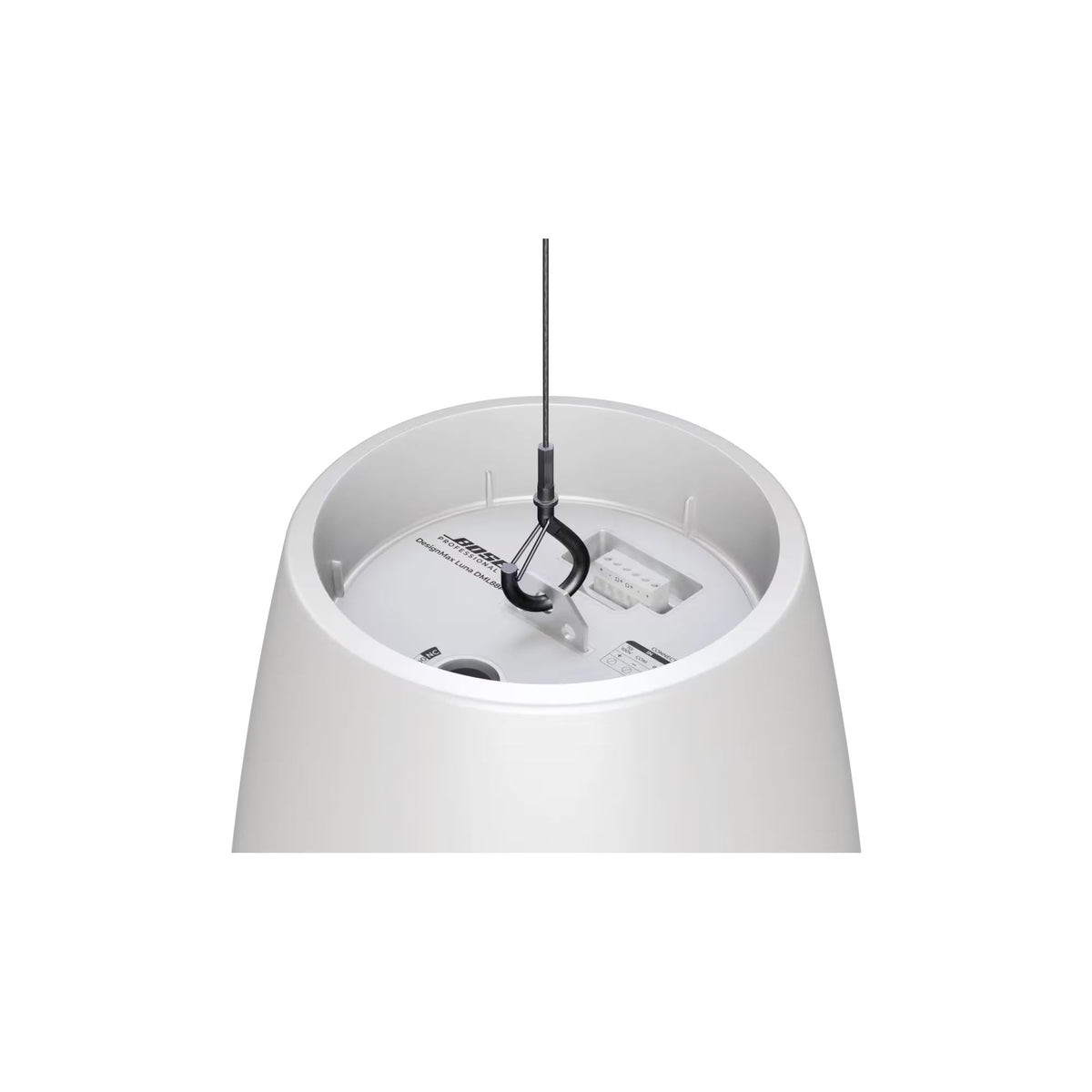

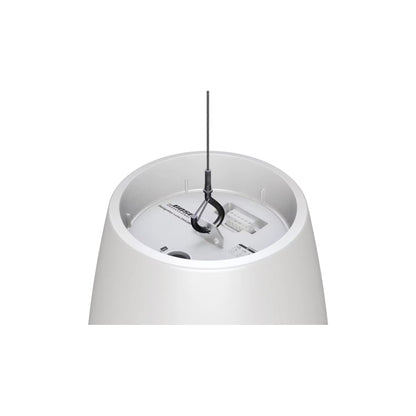

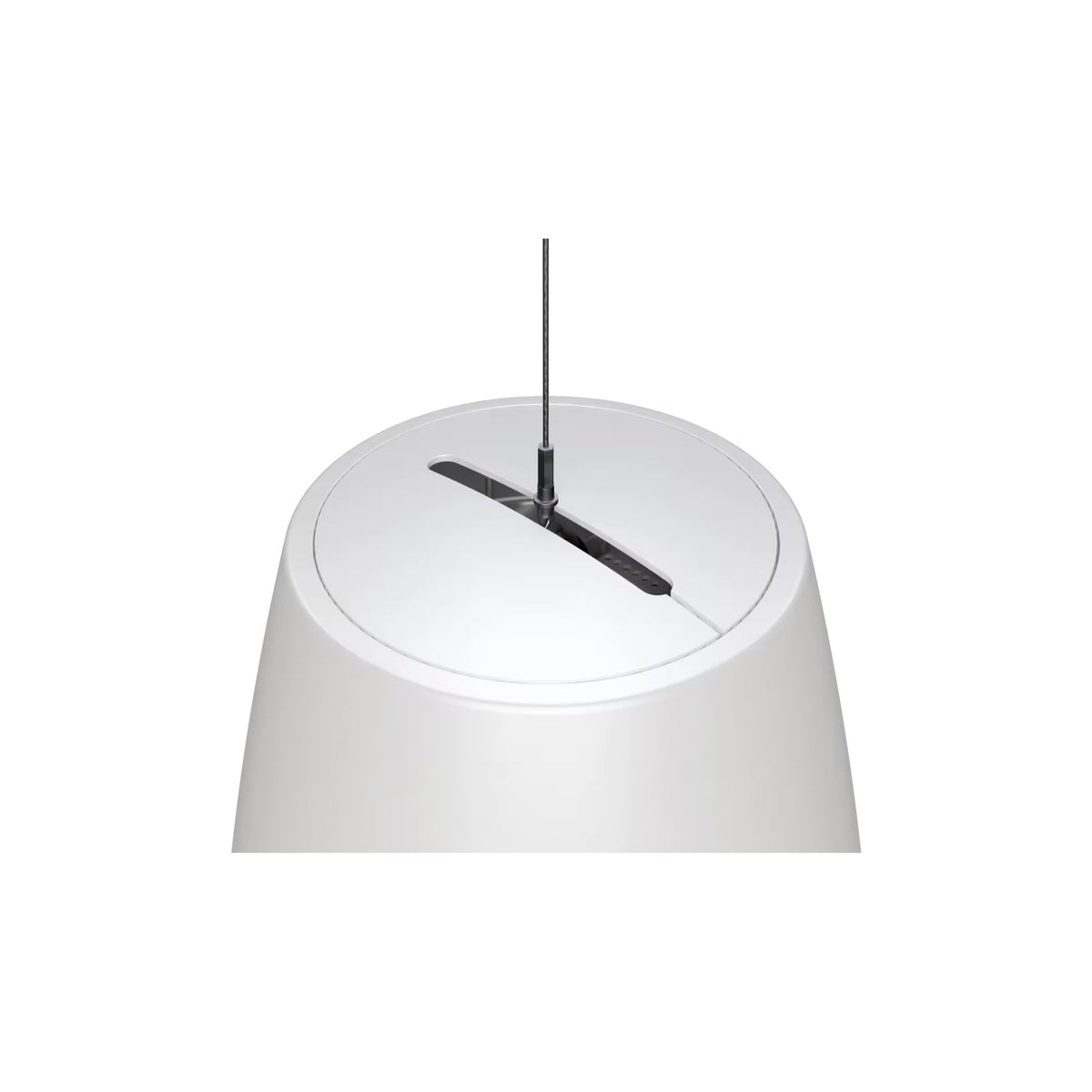

The DML88P supports single point or two point suspension with concealed wiring, using a cable rated for an 88 lb safe working load, allowing balanced hangs even in challenging ceiling conditions.
Yes. The DML88P carries UL 1480A and NFPA 70 and 90A certifications, confirming it meets code requirements for commercial and life safety sound system installations.

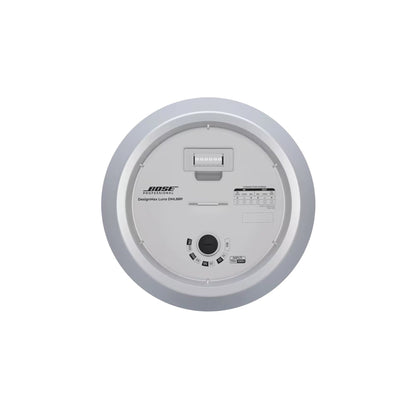

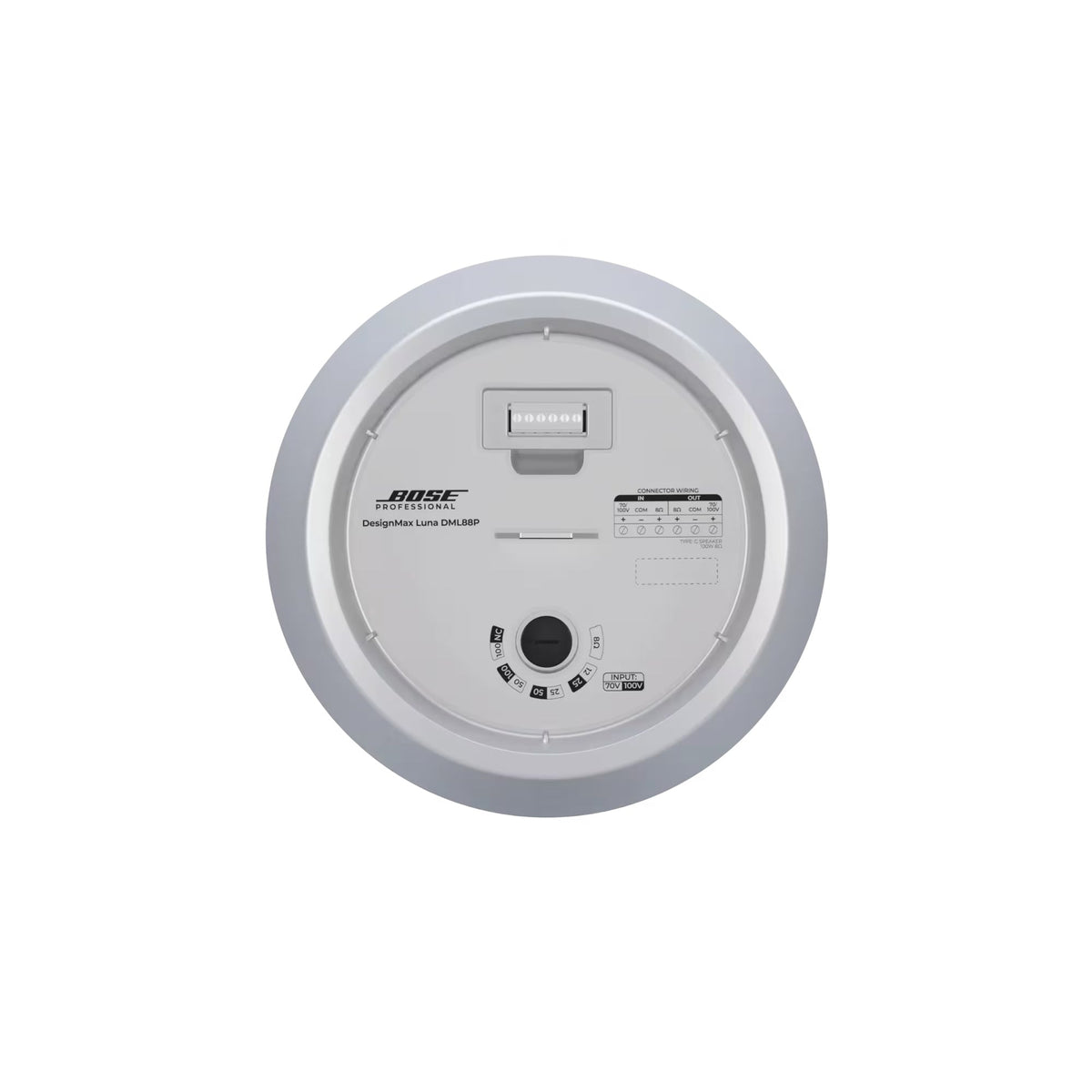

Yes. The DML88P uses a 6 pin Euroblock connector with loop through capability, so multiple pendants can be daisy chained on a single wiring run for efficient installation.
