Bose DesignMax Luna DML88P: 70V/100V Ring Array Pendant Loudspeaker, Black
The Bose DesignMax Luna DML88P is a genuine Bose Professional pendant loudspeaker, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech for open ceiling commercial sound installations.
Key Features
- Proprietary Ring Array of eight 2 inch mid high drivers plus an integrated 8 inch woofer
- 140 degree conical coverage down to 40Hz without a separate subwoofer
- 111dB max SPL and 560W peak power handling
- Single or two point suspension with 6-pin Euroblock loop-through wiring
Technical Specifications
| Driver Configuration | 8 x 2 inch mid high drivers, integrated 8 inch woofer |
| Frequency Response | 50Hz to 15kHz (-3dB), 40Hz to 20kHz (-10dB) |
| Coverage | 140 degree conical |
| Maximum SPL | 111dB peak |
| Power Handling | 560W peak |
| Power Taps | 70/100V and 8 ohm transformer bypass |
| Connector | 6-pin Euroblock with loop-through daisy chain |
| Certifications | UL 1480A, NFPA 70/90A |
| Color | Black |
| Part Number | 892117-0100 |
Why Buy the Bose DesignMax Luna DML88P from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio design support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DML88P uses a Ring Array of eight 2 inch mid high drivers arranged around an integrated 8 inch woofer, delivering 140 degree conical coverage from a single pendant enclosure.

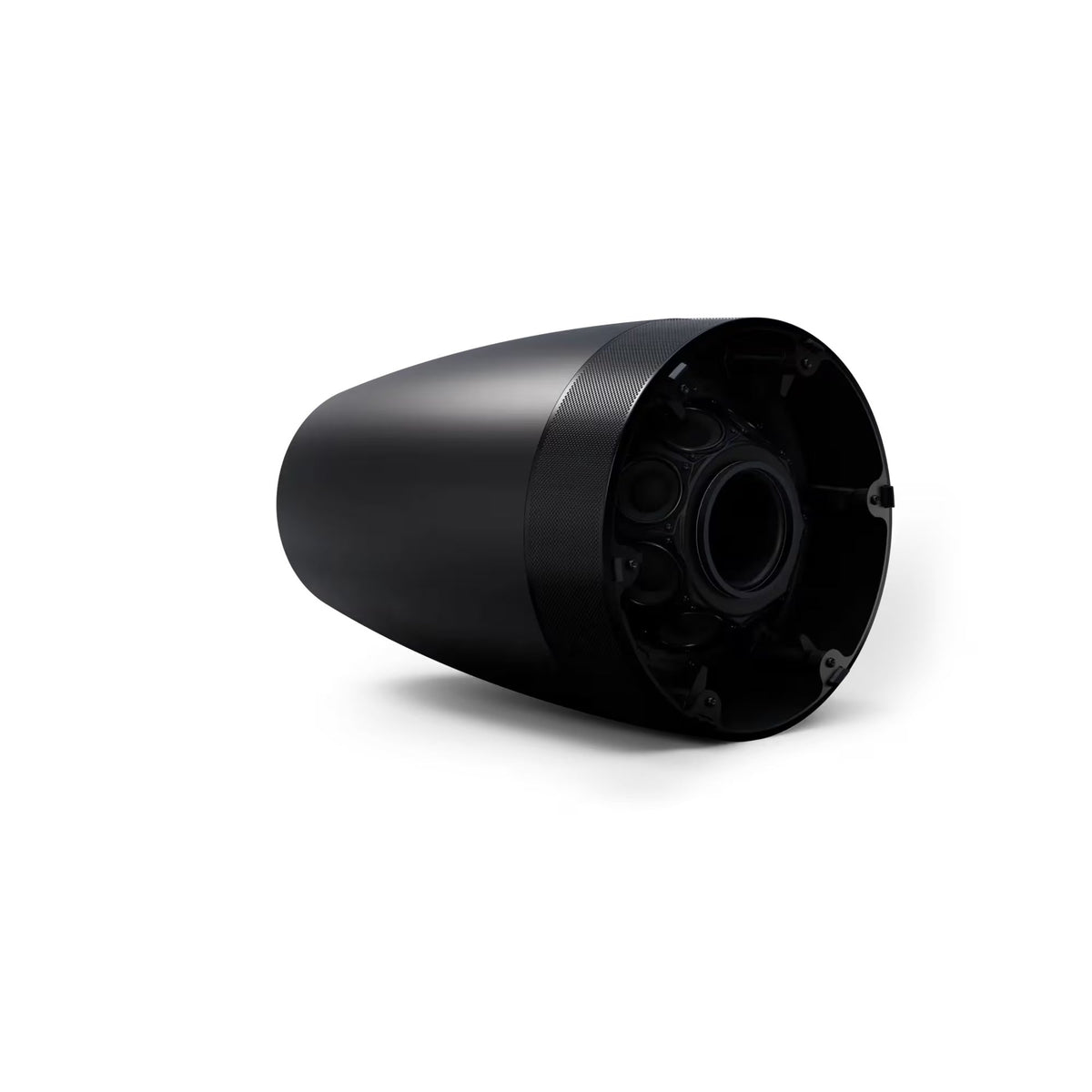

No. The DML88P extends down to 40Hz on its own thanks to the integrated 8 inch woofer, so most open ceiling installations do not need a separate subwoofer.
The DML88P reaches 111dB max SPL with 560W peak power handling, and can be run on 70/100V distributed lines or at 8 ohms via transformer bypass.

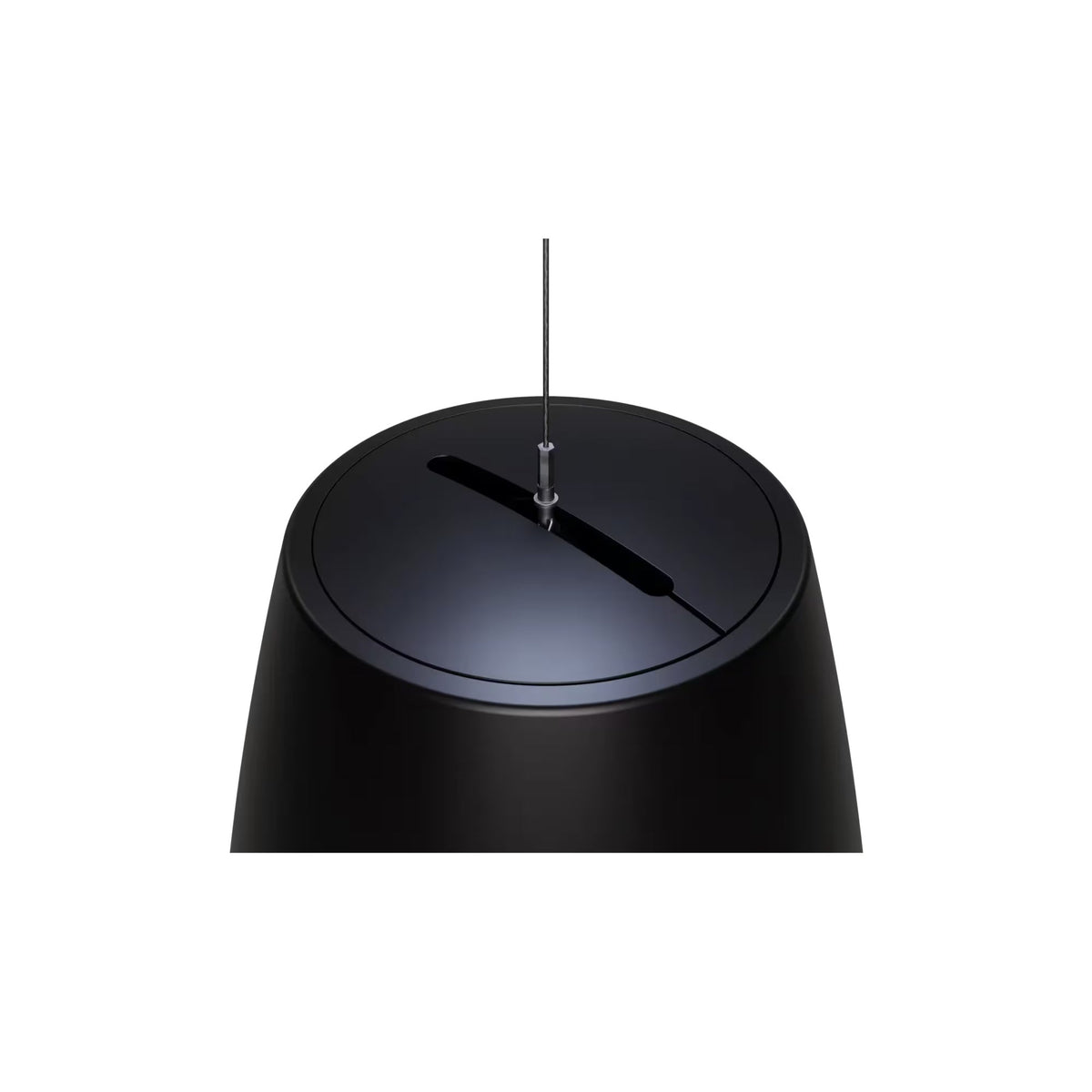

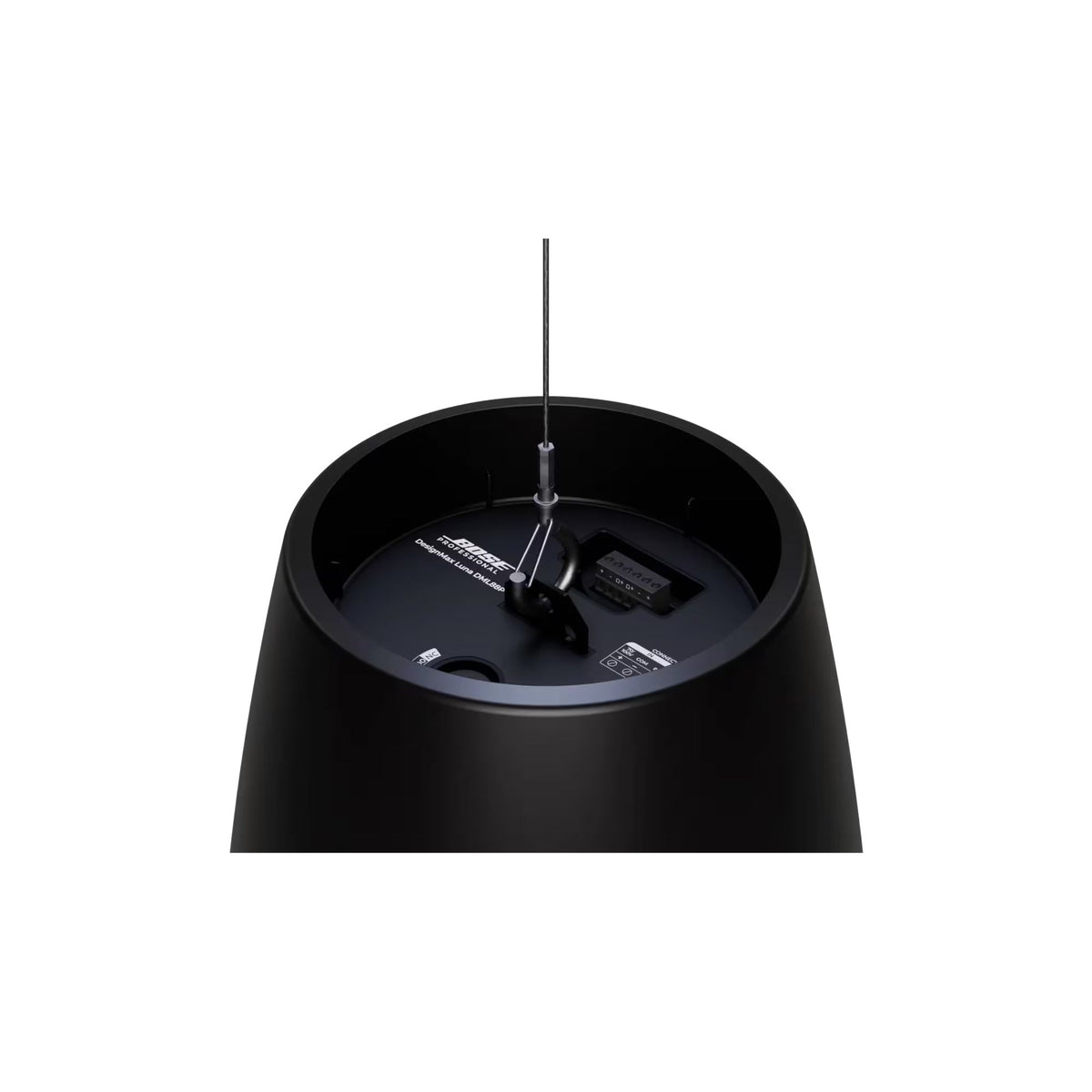

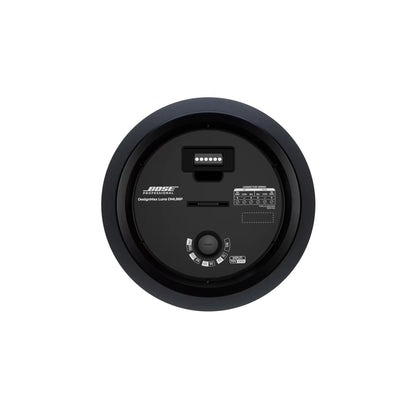

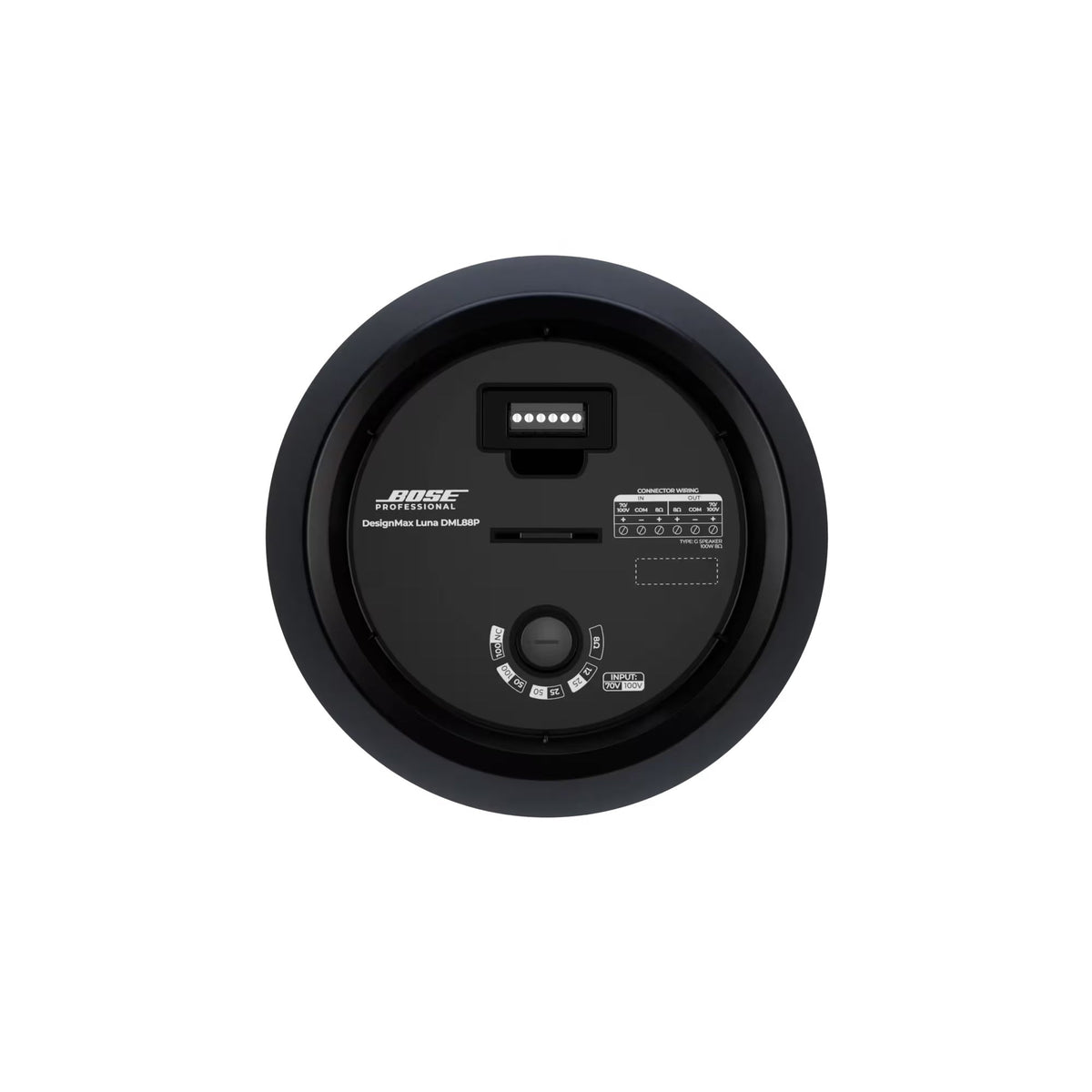

The DML88P supports single cable or two point suspension depending on the structural ceiling condition, with a 6-pin Euroblock connector that loop-throughs for daisy chaining multiple units on the same run.
Yes. The DML88P carries UL 1480A and NFPA 70/90A certifications for code compliant commercial deployment, and features a paintable grille to match interior design finishes.
Trianze Tech stocks the Bose DesignMax Luna DML88P pendant loudspeaker in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
