Bose Surface Mount Pan and Tilt Bracket: White Adjustable Mount for AMU, DesignMax and FreeSpace Speakers | 889687-0200
Model
:
889687-0200
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

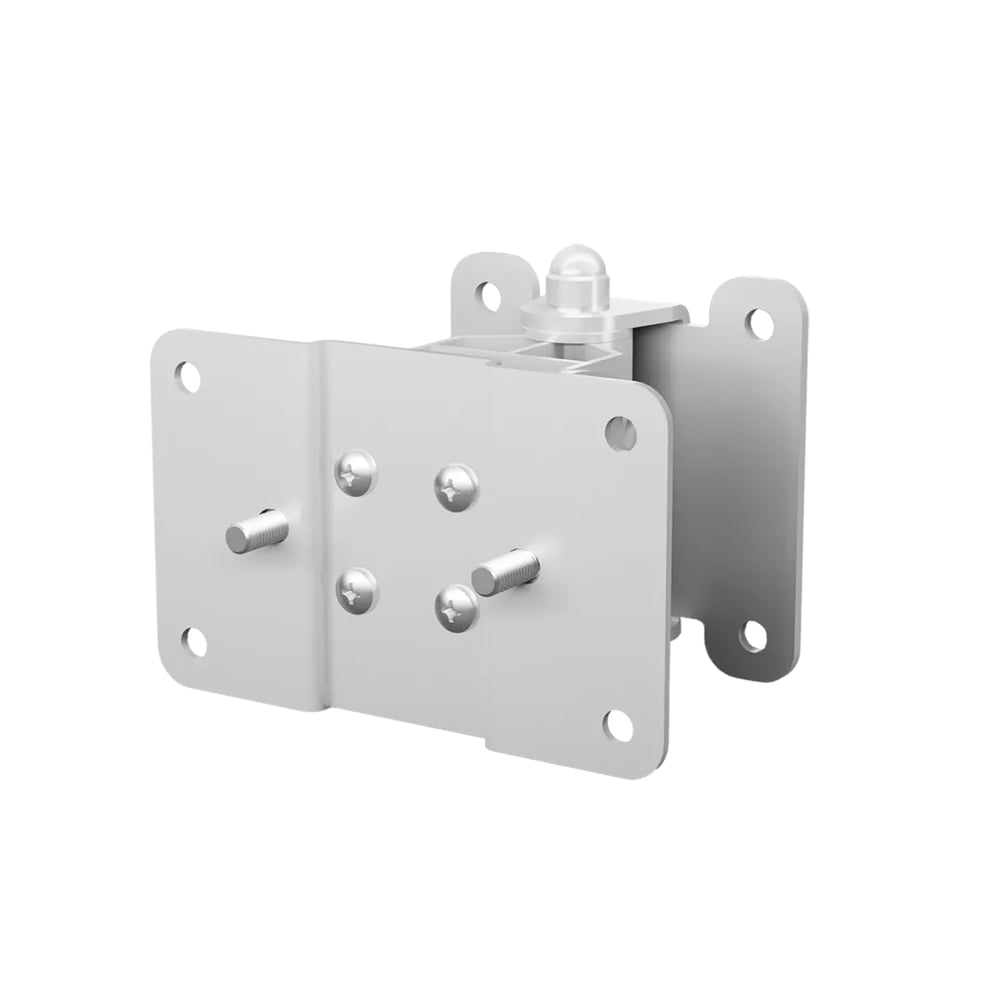

Bose Surface Mount Pan and Tilt Bracket: White Adjustable Mount for AMU, DesignMax and FreeSpace Speakers | 889687-0200
The Bose Surface Mount Pan and Tilt Bracket in white gives installers pitch and yaw adjustment for compatible Bose Professional loudspeakers, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech.
Key Features
- Adjustable pan and tilt mounting for horizontal or vertical speaker orientation
- Fits the 4 M8 threaded inserts on the rear panel of compatible speakers
- Compatible with DesignMax DM3SE, DM5SE, DM6SE and DM8SE, FreeSpace FS2SE and FS4SE, 402 Series V, AMM108, and AMU105, AMU108, AMU206 and AMU208
- White finish matches white finish loudspeaker enclosures for a clean installed look
Technical Specifications
| Weight | 1.11 kg |
| Dimensions | 152 x 111 x 112 mm |
| Color | White |
| Mounting | 4 x M8 threaded insert, pan and tilt adjustable |
| Compatible Speakers | DesignMax DM3SE, DM5SE, DM6SE, DM8SE; FreeSpace FS2SE, FS4SE; 402 Series V; AMM108; AMU105, AMU108, AMU206, AMU208 |
| Part Number | 889687-0200 |
Why Buy the Bose Surface Mount Pan and Tilt Bracket from Trianze Tech?
- Genuine Bose Professional accessory sourced and supported locally in the UAE
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio installation support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
It fits the 4 M8 threaded inserts on Bose DesignMax DM3SE, DM5SE, DM6SE and DM8SE, FreeSpace FS2SE and FS4SE, 402 Series V, AMM108, and AMU105, AMU108, AMU206 and AMU208 loudspeakers.
Yes, the bracket provides adjustable pan and tilt so installers can aim the loudspeaker horizontally and vertically after mounting.
The 889687-0200 is finished in white to match white finish loudspeaker enclosures. A black version, part number 889687-0100, is also available.
The bracket weighs 1.11 kg and measures 152 x 111 x 112 mm.
The bracket supports both horizontal and vertical loudspeaker orientation, giving installers flexibility in how the speaker is aimed.
Trianze Tech stocks the Bose Surface Mount Pan and Tilt Bracket in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
