Bose DesignMax DM6C: 125W Two-Way Coaxial In-Ceiling Loudspeaker, Black
Model
:
829679-0120
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Bose DesignMax DM6C: 125W Two-Way Coaxial In-Ceiling Loudspeaker, Black
The Bose Professional DesignMax DM6C is a 125 watt two-way coaxial in-ceiling loudspeaker built for background and foreground music across Dubai, Abu Dhabi and the wider UAE and GCC. A 6.5-inch woofer and 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system deliver rich lows and clear, intelligible highs, and QuickHold mounting arms make installation fast and secure.
Key Features
- Coaxial 6.5-inch woofer and 1.25-inch tweeter within the Dispersion Alignment system
- 125W power handling with a 59 Hz to 20 kHz frequency range
- 88 dB sensitivity (1W @ 1m) for efficient coverage at moderate amplifier power
- 120 degree conical nominal coverage angle (1 to 4 kHz)
- QuickHold mounting arms for fast, tool-light in-ceiling installation
Technical Specifications
| Power Handling | 125W |
| Frequency Response (-3dB) | 70 Hz to 20 kHz |
| Frequency Range (-10dB) | 59 Hz to 20 kHz |
| Sensitivity (1W/1m) | 88 dB SPL |
| Drivers | 6.5 inch woofer and 1.25 inch coaxial tweeter |
| Nominal Impedance | 8 ohm (transformer bypass) |
| Coverage Angle (1-4kHz) | 120 degrees conical |
| Crossover | 1.7 kHz passive two-way |
| Dimensions (loudspeaker) | 356mm x 239mm (14.0 x 9.4 in) diameter x depth |
| Dimensions (backcan) | 287mm x 223mm (11.3 x 8.8 in) diameter x depth |
| Color | Black |
| Part Number | 829679-0120 |
Why Buy the Bose DesignMax DM6C from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Fast delivery and professional installation across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio design support from Trianze Tech for background and foreground music systems
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DM6C is rated at 125W, using a 6.5-inch woofer and 1.25-inch coaxial tweeter to deliver a frequency range of 59 Hz to 20 kHz with 88 dB sensitivity at 1W/1m.

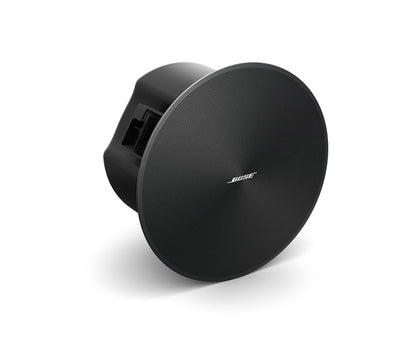

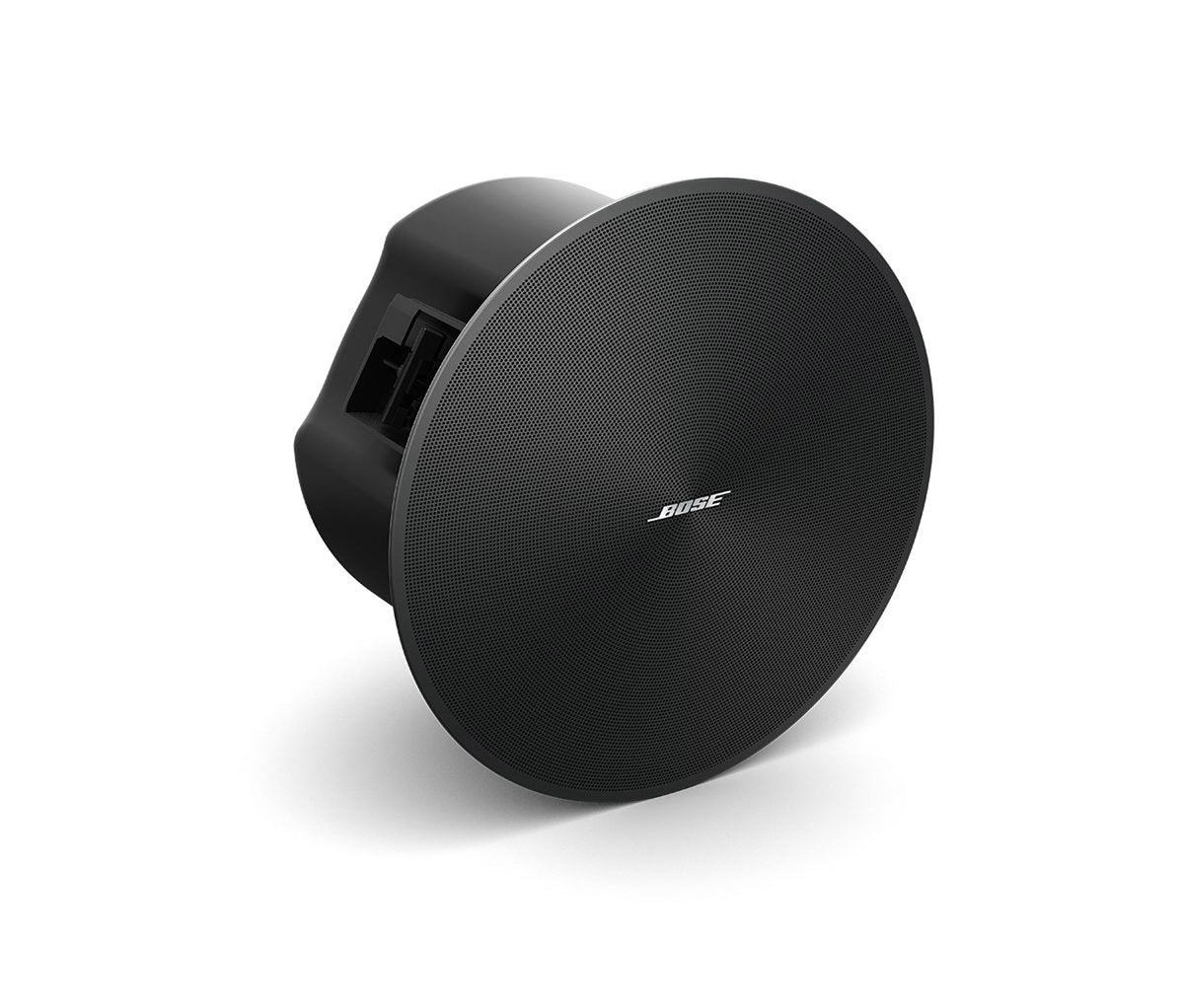

The DM6C installs using QuickHold mounting arms that clamp against the back of the ceiling material for a fast, tool-light installation without additional bracing in most standard ceilings.
The DM6C has a nominal coverage angle of 120 degrees conical between 1 and 4 kHz, giving even sound distribution across a room from a single ceiling location.
The DM6C has a nominal impedance of 8 ohms with the transformer bypassed, and includes a passive two-way crossover at 1.7 kHz between the woofer and tweeter.
The DM6C loudspeaker measures 356mm x 239mm (14.0 x 9.4 in) diameter by depth, with a backcan measuring 287mm x 223mm (11.3 x 8.8 in) diameter by depth.
Trianze Tech stocks the Bose DesignMax DM6C in-ceiling loudspeaker in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
