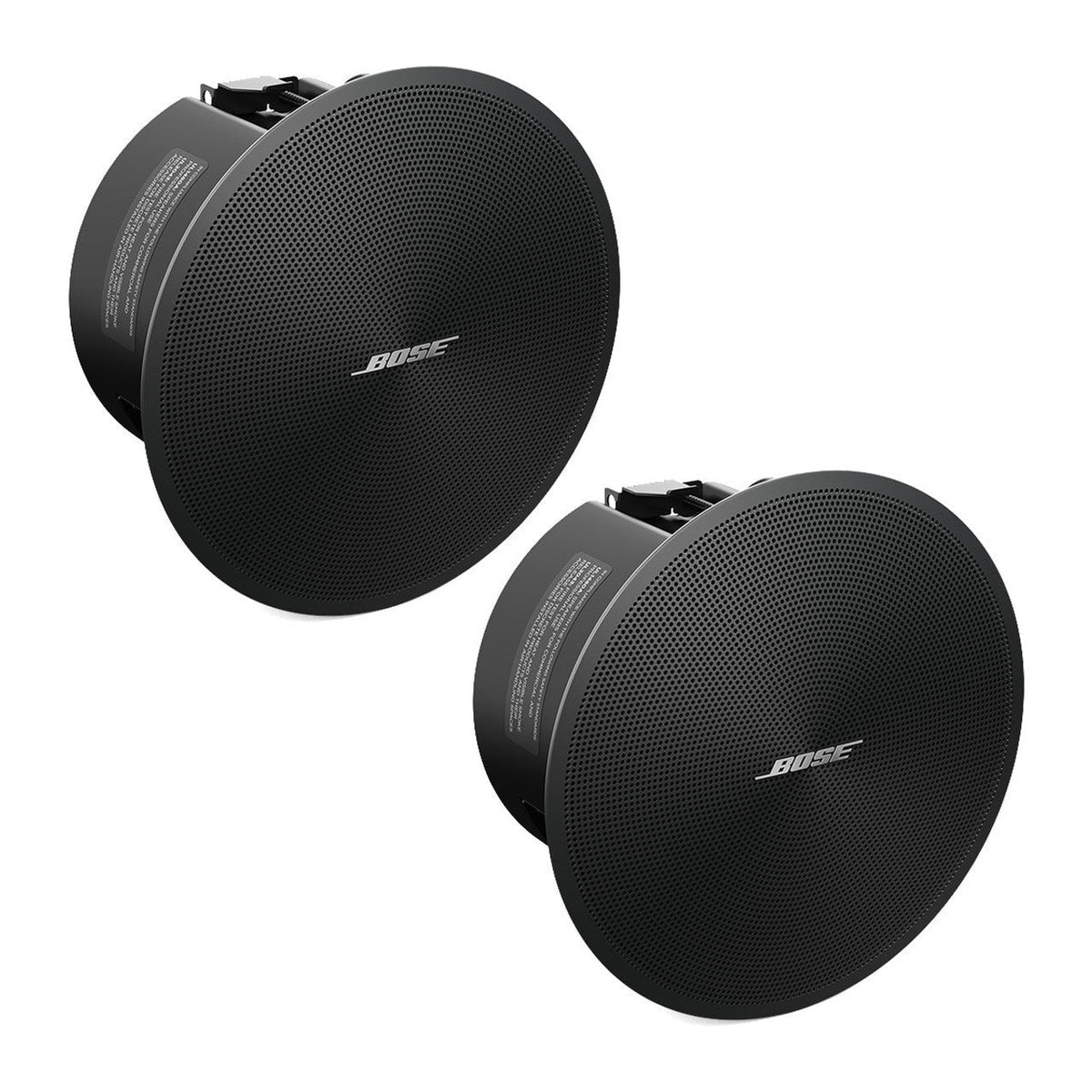

Bose DesignMax DM2C-LP: 2.25 Inch In-Ceiling Loudspeaker Pair, Black
Model
:
815011-0110
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Bose DesignMax DM2C-LP: 2.25 Inch In-Ceiling Loudspeaker Pair, Black
The Bose DesignMax DM2C-LP is a genuine Bose Professional low profile in ceiling loudspeaker pair for background music in tight ceiling voids, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech.
Key Features
- 20W loudspeaker with a 2.25 inch transducer covering 85Hz to 19kHz

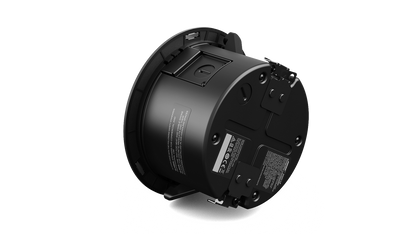

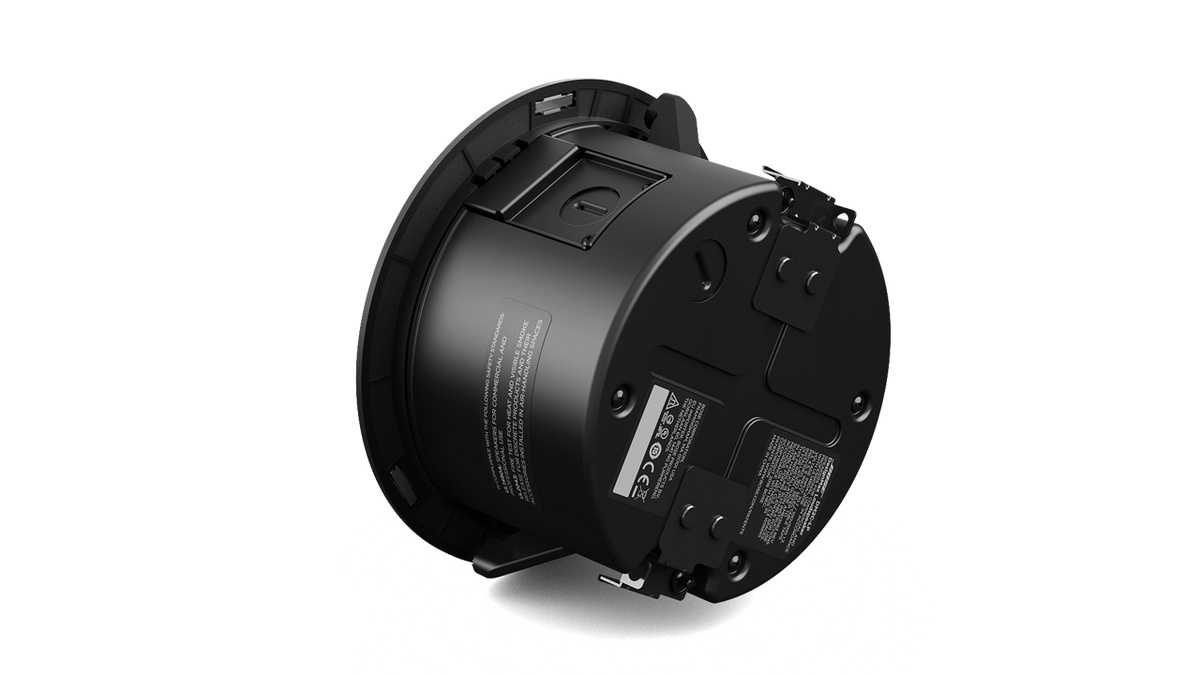

- Low profile backcan measuring just 165mm in diameter for tight ceiling spaces
- Installs via Bose QuickHold mounting arms through a 39mm cutout
- 150 degree conical coverage between 1 and 4kHz
Technical Specifications
| Part Number | 815011-0110 |
| Power Handling | 20W continuous |
| Frequency Response | 95Hz to 18,000Hz (-3dB) |
| Coverage Angle | 150 degrees conical (1-4kHz) |
| Sensitivity | 84dB SPL / 1W @ 1m |
| Grille Dimensions | 155 x 155mm |
| Weight | 1.6kg per speaker, 0.7kg backcan |
| Color | Black |
Why Buy the Bose DesignMax DM2C-LP from Trianze Tech?
- Genuine Bose Professional loudspeakers sourced and supported locally in the UAE
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial sound design support from Trianze Tech for retail, hospitality and worship spaces
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DM2C-LP handles 20W of continuous power through its 2.25 inch transducer, covering an 85Hz to 19kHz frequency range suited to background music.
The DM2C-LP uses a low profile backcan measuring 165mm (6.5 inches) in diameter, making it suitable for tight ceiling voids where standard backcans will not fit.
The DM2C-LP installs via Bose's QuickHold mounting arms, which clamp the loudspeaker securely to the ceiling material through a 39mm diameter cutout.
The DM2C-LP has a nominal coverage angle of 150 degrees conical between 1 and 4kHz, giving even background music coverage across small to mid sized rooms.
Each DM2C-LP loudspeaker weighs 1.6kg (3.6 lb), with the low profile backcan adding a further 0.7kg (1.6 lb).
Trianze Tech stocks the Bose DesignMax DM2C-LP ceiling loudspeaker pair in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
