Bose ArenaMatch Utility AMU105: 5.25 Inch IP55 Outdoor Loudspeaker with 100 x 100 Degree Coverage, Black

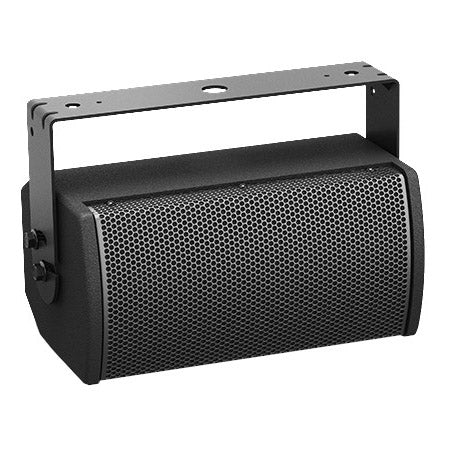

The Bose ArenaMatch Utility AMU105 is an ultra compact outdoor loudspeaker built for zone fill coverage and high SPL foreground music, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech. It shares the same EMB2S compression driver and IP55 weather rating as the larger ArenaMatch array modules, delivering consistent tonal balance in a small, unobtrusive enclosure suited to stadiums, resorts, outdoor retail and hospitality venues.
Key Features
- 100 degree x 100 degree constant directivity high frequency horn for wide, even coverage
- 5.25 inch Bose LF5 woofer paired with an EMB2S extended high frequency compression driver
- 118 dB peak SPL from a 100 W RMS, 400 W PMPO rated enclosure
- IP55 weather rated for permanent outdoor, direct exposure installation
- Passive crossover with 70V and 100V transformer taps for distributed audio systems
Technical Specifications
| Frequency Response (+/-3dB) | 100 Hz to 16 kHz |
| Frequency Range (-10dB) | 90 Hz to 16 kHz |
| Coverage Pattern (H x V) | 100 degrees x 100 degrees |
| Peak SPL | 118 dB |
| Power Rating | 100 W RMS, 400 W PMPO |
| Impedance / Sensitivity | 8 ohm, 90 dB |
| Driver Complement | 5.25 inch Bose LF5 woofer, EMB2S compression driver |
| Dimensions (H x W x D) | 152 x 304 x 229 mm (6.0 x 12.0 x 9.0 in) with input cover |
| Enclosure Rating | IP55 |
| Mounting | 2x M8 threaded inserts, 75mm 2 bolt pattern, U-bracket compatible |
| Crossover | Passive, 2.0 kHz, with 70V/100V transformer taps |
| Part Number | 811433-0110 |
Why Buy the Bose ArenaMatch Utility AMU105 from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Fast delivery and professional installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial and pro audio system design support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The AMU105 delivers 118 dB peak SPL from a 100 W RMS, 400 W PMPO rated enclosure, making it suitable for high level outdoor zone fill and foreground music applications.
The AMU105 uses a 100 degree x 100 degree constant directivity high frequency horn paired with a 5.25 inch Bose LF5 woofer, giving wide, even horizontal and vertical coverage from a single compact enclosure.
Yes. The AMU105 carries an IP55 weather rating for direct exposure outdoor installations, and shares its EMB2S compression driver with Bose's larger ArenaMatch array modules for consistent tonal balance.
The AMU105 has 2x M8 threaded inserts on a 75mm 2 bolt pattern that accept a U-bracket, and includes a passive crossover with 70V and 100V transformer taps for distributed 70/100V audio systems.
The AMU105 has a frequency response of 100 Hz to 16 kHz (+/-3dB), extending to 90 Hz to 16 kHz at -10dB, with an 8 ohm impedance and 90 dB sensitivity.
