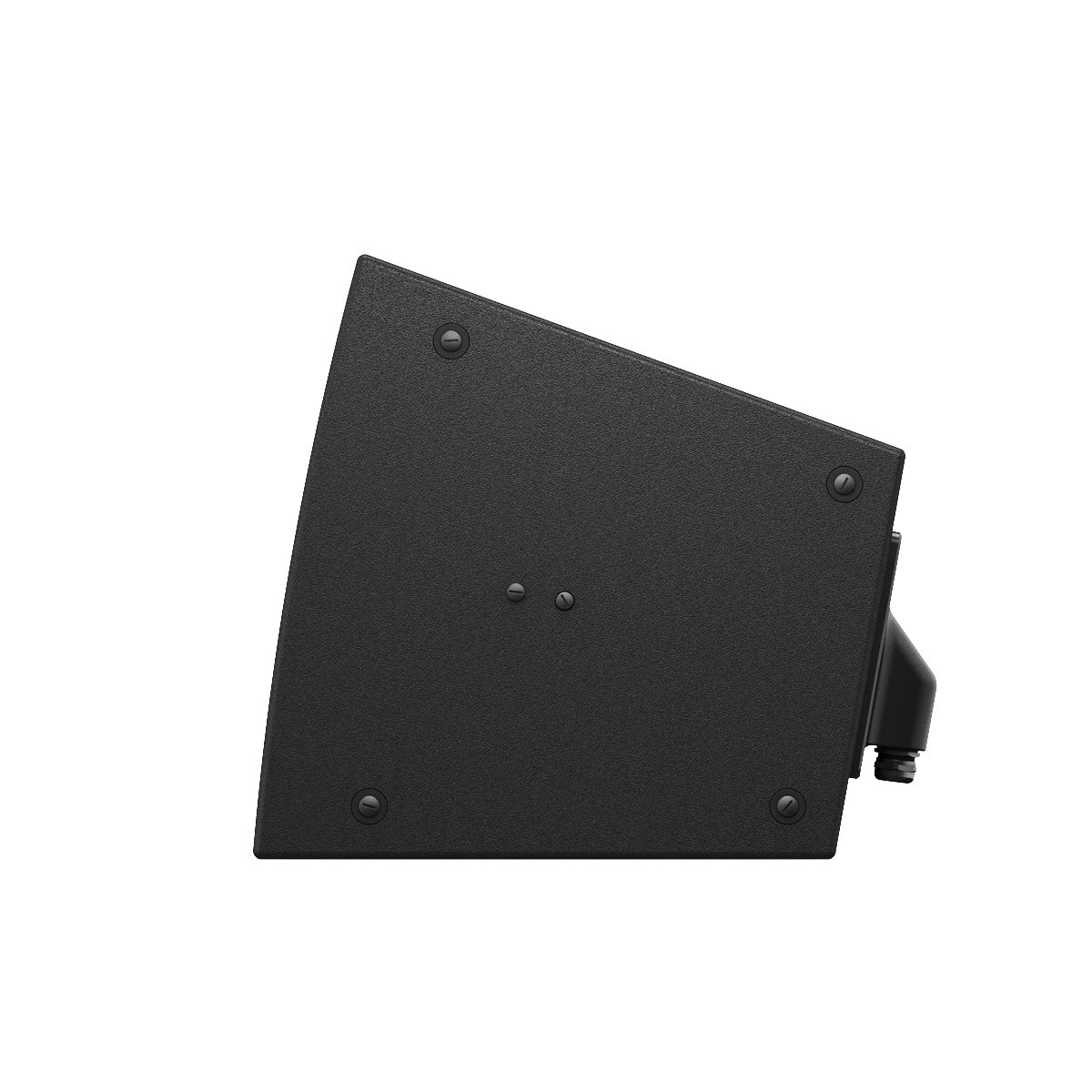

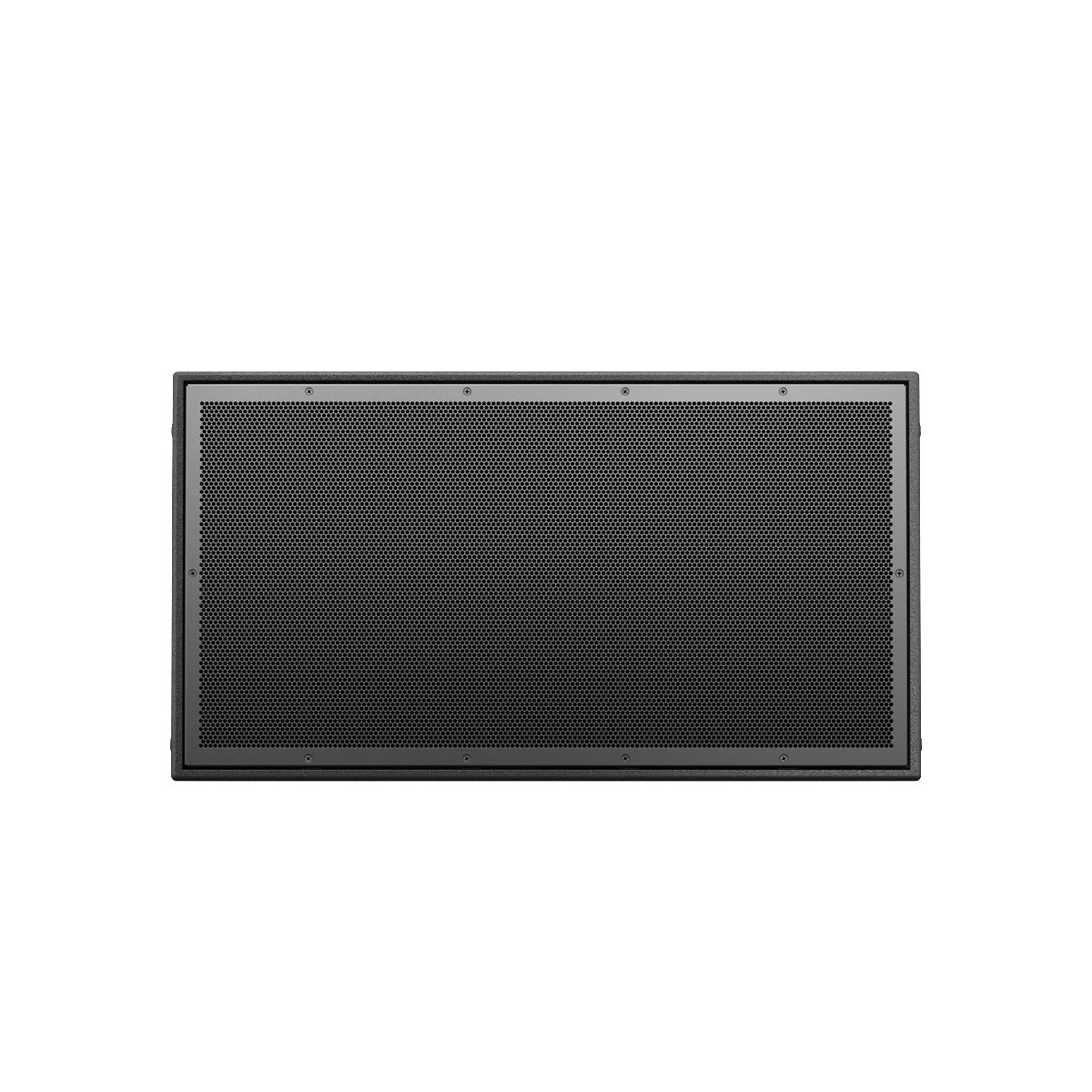

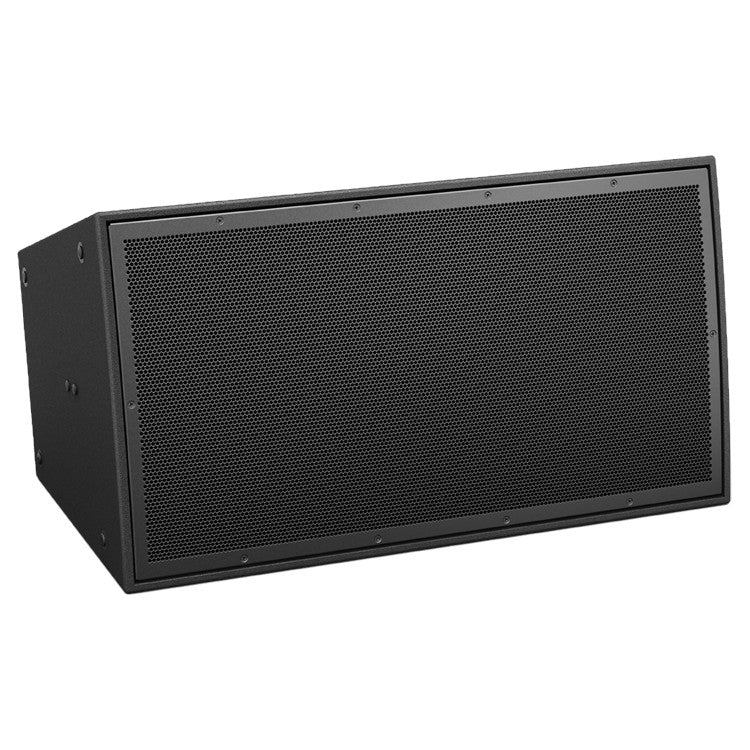

Bose ArenaMatch AM20 Outdoor Speaker with 100 Degree Horizontal Waveguide
The Bose ArenaMatch AM20 brings proven DeltaQ array sound quality to direct exposure outdoor installations such as stadiums, arenas and outdoor entertainment venues. This AM20 module ships with the 100 degree horizontal waveguide, one of three swappable horizontal options, paired with a fixed 20 degree vertical coverage pattern. Trianze Tech supplies and installs ArenaMatch systems for stadium and outdoor venue projects across Dubai, Abu Dhabi, the UAE and the wider GCC.
Key Features
- DeltaQ array loudspeaker technology for consistent, intelligible outdoor coverage
- 20 degree vertical coverage module with a 100 degree horizontal waveguide fitted
- Nine total coverage pattern combinations available across the ArenaMatch range by swapping 10, 20 or 40 degree vertical modules with 60, 80 or 100 degree horizontal waveguides
- Rated for direct exposure outdoor installation
- Lighter arrays and reduced installation time versus fixed coverage alternatives, lowering overall system cost
Technical Specifications
| Product Type | Outdoor line array loudspeaker module, ArenaMatch DeltaQ series |
| Vertical Coverage | 20 degrees |
| Horizontal Coverage (this configuration) | 100 degrees |
| Available Horizontal Waveguides | 60, 80 or 100 degrees (swappable) |
| Available Vertical Modules | 10, 20 or 40 degrees |
| Installation Rating | Direct exposure outdoor rated |
| Part Number | 794042-8860 |
Why Buy the Bose ArenaMatch AM20 from Trianze Tech?
- Genuine Bose Professional ArenaMatch hardware sourced and supported locally in the UAE
- Stadium and outdoor venue system design support across Dubai, Abu Dhabi and the GCC
- Fast delivery and installation coordination from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This ArenaMatch AM20 module provides 20 degrees of vertical coverage combined with a 100 degree horizontal waveguide, one of three swappable horizontal options (60, 80 or 100 degrees) available across the ArenaMatch DeltaQ range.
Yes. ArenaMatch AM20 modules use swappable horizontal waveguides, so installers can fit 60, 80 or 100 degree waveguides to the same 20 degree vertical module to match a venue's coverage requirements.
Yes. The ArenaMatch AM20 is rated for direct exposure outdoor installation, making it suitable for stadiums, arenas and other permanently installed outdoor sound systems.
The AM20 uses Bose DeltaQ array loudspeaker technology, designed to deliver consistent, intelligible sound coverage across large outdoor listening areas.
The ArenaMatch range offers nine total coverage combinations, created by pairing 10, 20 or 40 degree vertical modules with 60, 80 or 100 degree horizontal waveguides.
