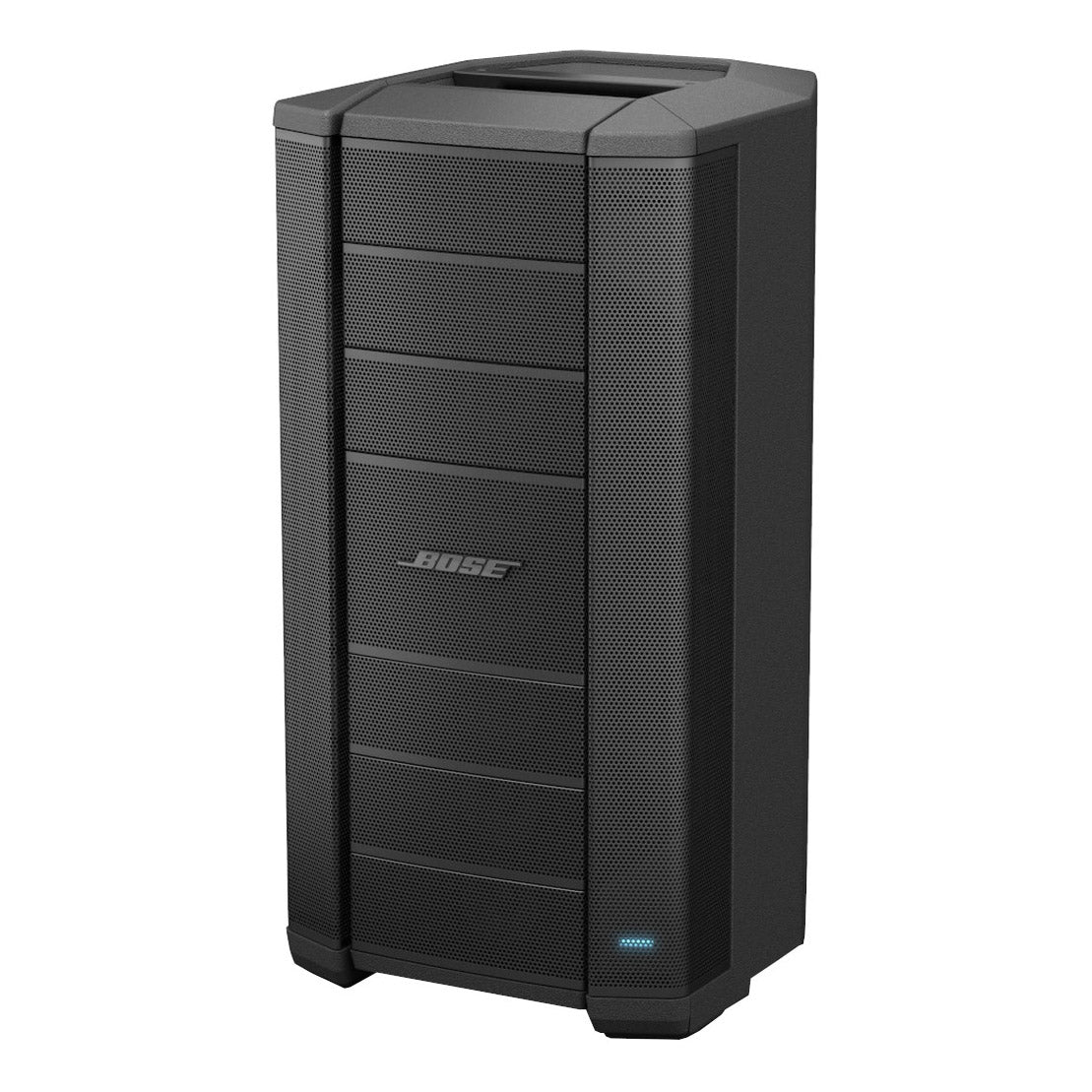

Bose F1 Model 812: 1000W Flexible Array Powered PA Loudspeaker
Model
:
731419-4110
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Bose F1 Model 812: 1000W Flexible Array Powered PA Loudspeaker
The Bose F1 Model 812 is a genuine Bose Professional powered loudspeaker built for live music, mobile DJs and portable PA use, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech.
Key Features
- 1000 watt full range system with 132dB peak SPL at 1 meter
- Flexible Array technology lets you reshape coverage into straight, J, reverse-J or C patterns
- Eight 2.25 inch mid-high drivers plus one 12 inch low frequency driver
- Nominal dispersion of 100 degrees horizontal by 40 degrees vertical in the C position
- Mounts directly onto the Bose F1 Powered Subwoofer's integrated stand
Technical Specifications
| System Power | 1000W |
| Max SPL @ 1m | 132dB peak |
| Frequency Response (+/-3dB) | 55Hz to 14kHz |
| Frequency Range (-10dB) | 48Hz to 16kHz |
| Dispersion | 100 degrees H x 40 degrees V (C position) |
| Crossover | 600Hz acoustic, 4th order Butterworth |
| Distortion | 0.1% max, 30Hz to 15kHz |
| Drivers | 8 x 2.25 inch mid-high, 1 x 12 inch LF |
| Part Number | 731419-4110 |
Why Buy the Bose F1 Model 812 from Trianze Tech?
- Genuine Bose Professional powered loudspeaker sourced and supported locally in the UAE
- Advice on flex array configuration for your venue, sourced from Trianze Tech's AV specialists
- Fast delivery across Dubai, Abu Dhabi and the GCC
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Bose F1 Model 812 produces a maximum SPL of 132dB peak at 1 meter, powered by a 1000 watt amplifier driving eight 2.25 inch mid-high drivers and one 12 inch low frequency driver.
The F1 Model 812 has a frequency response of 55Hz to 14kHz (plus or minus 3dB), with an extended frequency range down to 48Hz and up to 16kHz measured at minus 10dB.
Flexible Array technology lets you physically reshape the F1 Model 812 into straight, J, reverse-J or C patterns, changing its vertical coverage to match standing audiences, raised stages or raked seating without extra hardware.
In its straight (C) position, the F1 Model 812 has a nominal dispersion of 100 degrees horizontal by 40 degrees vertical, which changes as the array is reshaped into J, reverse-J or C patterns.
Yes, the F1 Model 812 is designed to mount directly onto the Bose F1 Powered Subwoofer's integrated stand, creating a complete full range PA system for bands, DJs and presentations.
