Bose ShowMatch SM20: DeltaQ Full-Range Line Array Module | 730999-8860
Model
:
SM20 (730999-8860)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Bose ShowMatch SM20: DeltaQ Full-Range Line Array Module | 730999-8860

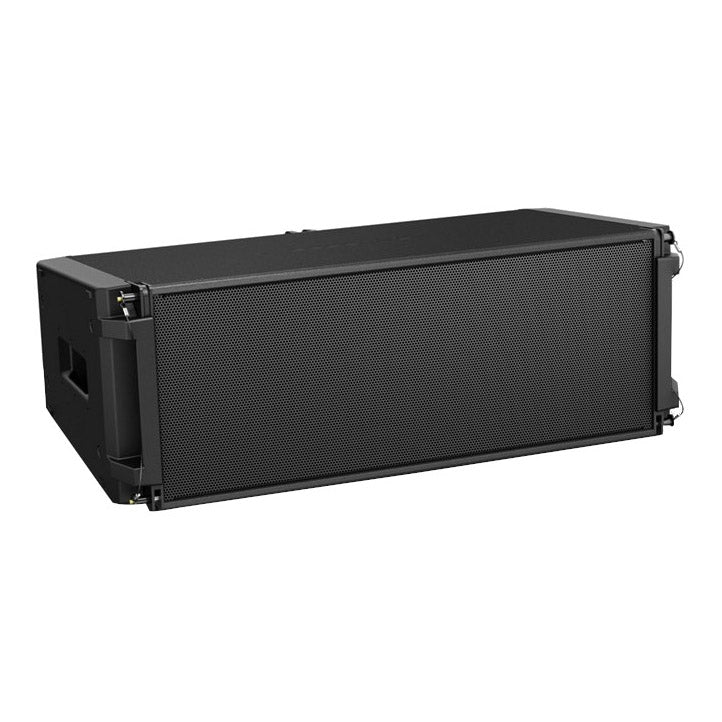

The Bose Professional ShowMatch SM20 is a 2-way full-range DeltaQ array module built for touring and installed sound systems covering large vertical angles with fewer boxes. Distributed across Dubai, Abu Dhabi and the wider UAE and GCC by Trianze Tech, the SM20 uses DeltaQ technology to vary directivity module by module, delivering consistent coverage over a wide frequency range and outstanding vocal clarity.
Key Features
- 20 degree nominal vertical coverage per module
- Field-changeable waveguides for 70 or 100 degree horizontal coverage as standard
- Optional 120 degree accessory waveguide (SM20WG12) for wider horizontal patterns
- Frequency response of 59 Hz to 18,000 Hz
- Peak array output of up to 145 dB
Technical Specifications
| Product Type | 2-way full-range DeltaQ line array module |
| Nominal Vertical Coverage | 20 degrees |
| Horizontal Coverage | 70 or 100 degrees standard, 120 degrees optional accessory |
| Frequency Response | 59 Hz to 18,000 Hz |
| Peak Array Output | Up to 145 dB |
| Amplification | Requires external 2-channel power amplifier and DSP |
| Part Number | 730999-8860 |
Why Buy the Bose ShowMatch SM20 from Trianze Tech?
- Genuine Bose Professional line array module sourced and supported locally in the UAE
- Expert array design and rigging support across Dubai, Abu Dhabi and the GCC
- Dedicated touring and installed sound support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The ShowMatch SM20 provides 20 degree nominal vertical coverage per module, wider than the SM5, letting fewer modules cover large vertical angles.

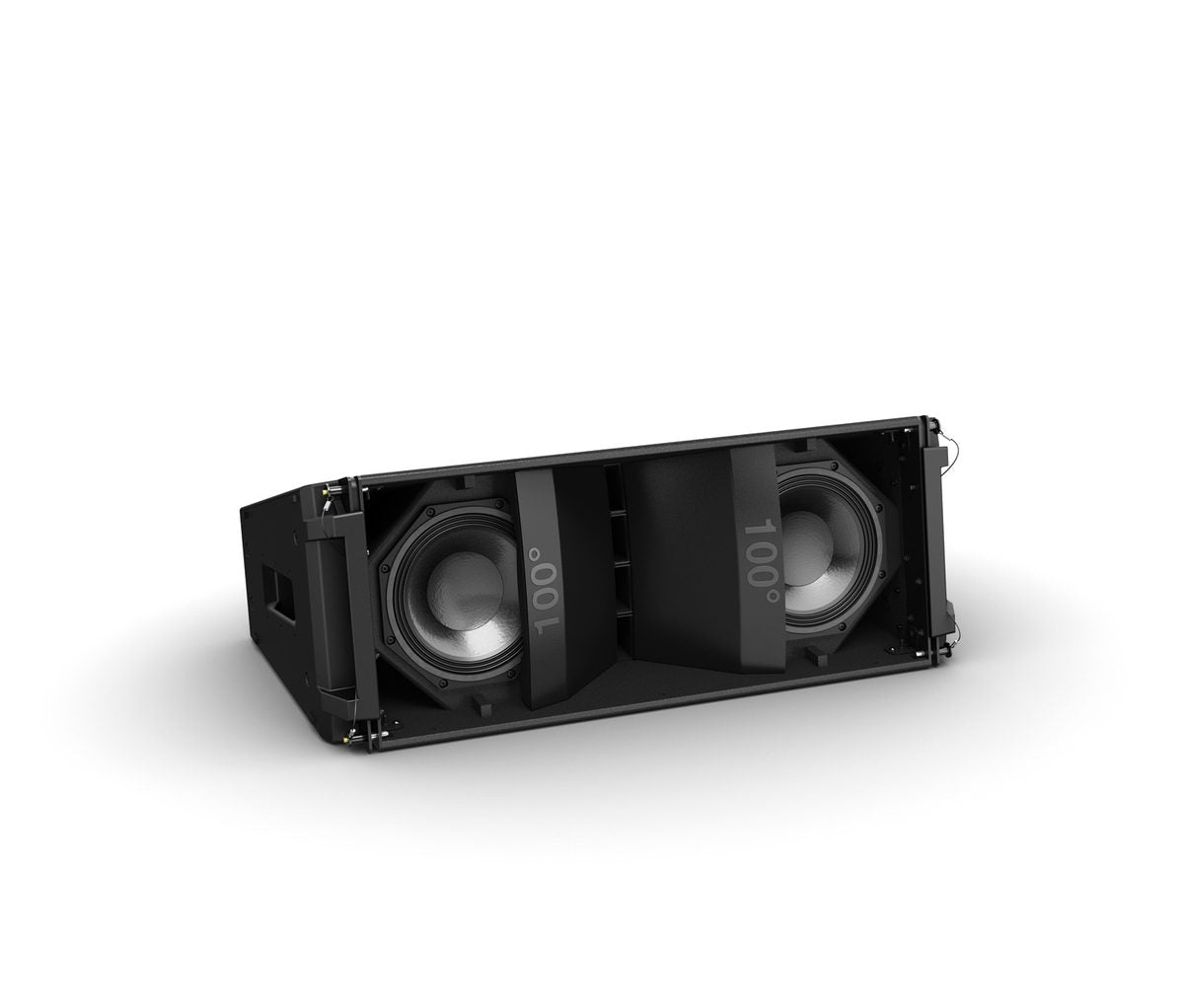

The SM20 ships with field-changeable waveguides for 70 or 100 degree horizontal coverage as standard, with an optional 120 degree SM20WG12 accessory waveguide for wider patterns.
No, the SM20 is a passive 2-way module that requires an external 2-channel power amplifier and DSP to operate.
The SM20 delivers a frequency response of 59 Hz to 18,000 Hz with a peak array output of up to 145 dB.
The SM20 has a wider 20 degree nominal vertical coverage per module compared to the SM5's 5 degrees, making the SM20 better suited to covering large vertical angles with fewer boxes.
Trianze Tech stocks the Bose ShowMatch SM20 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
