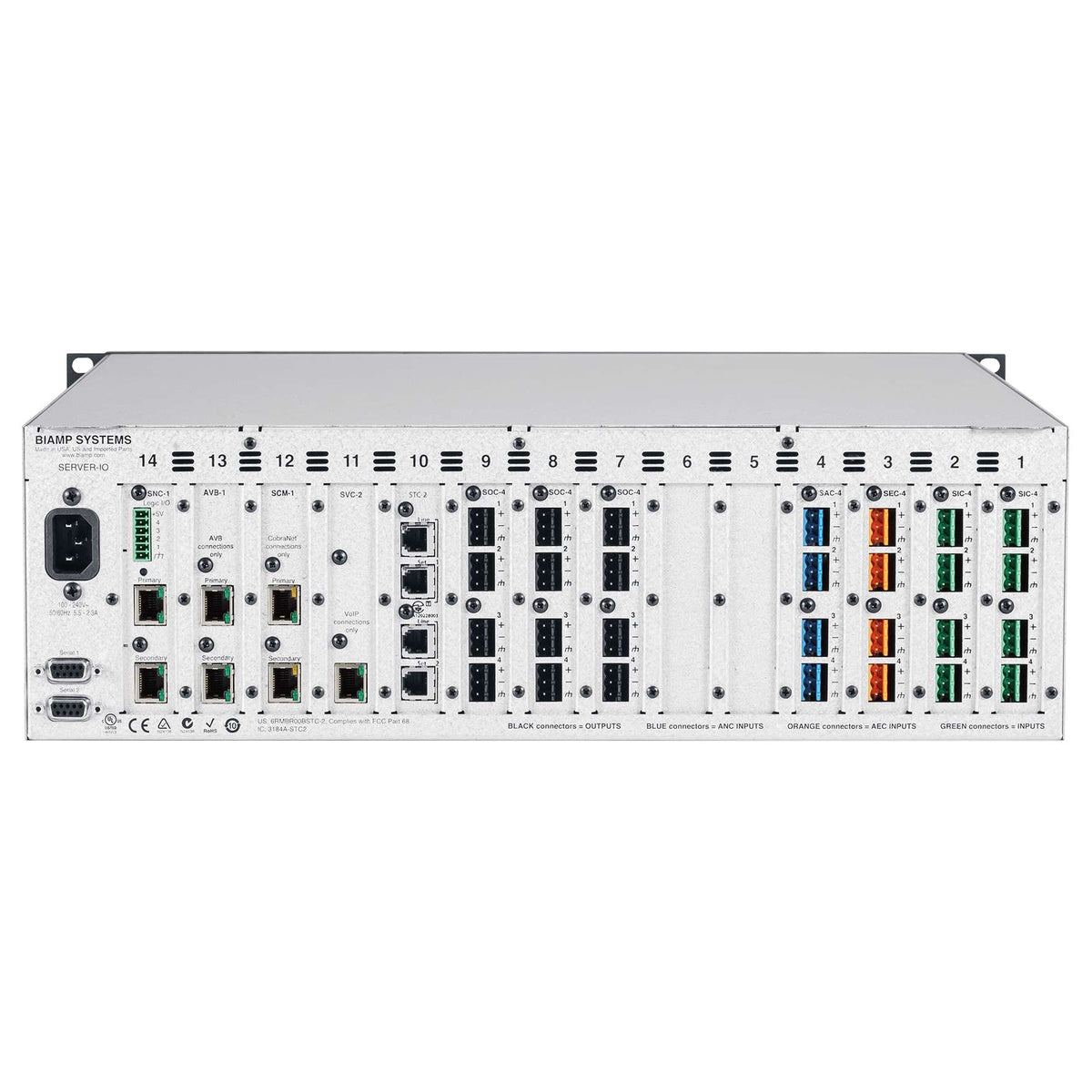

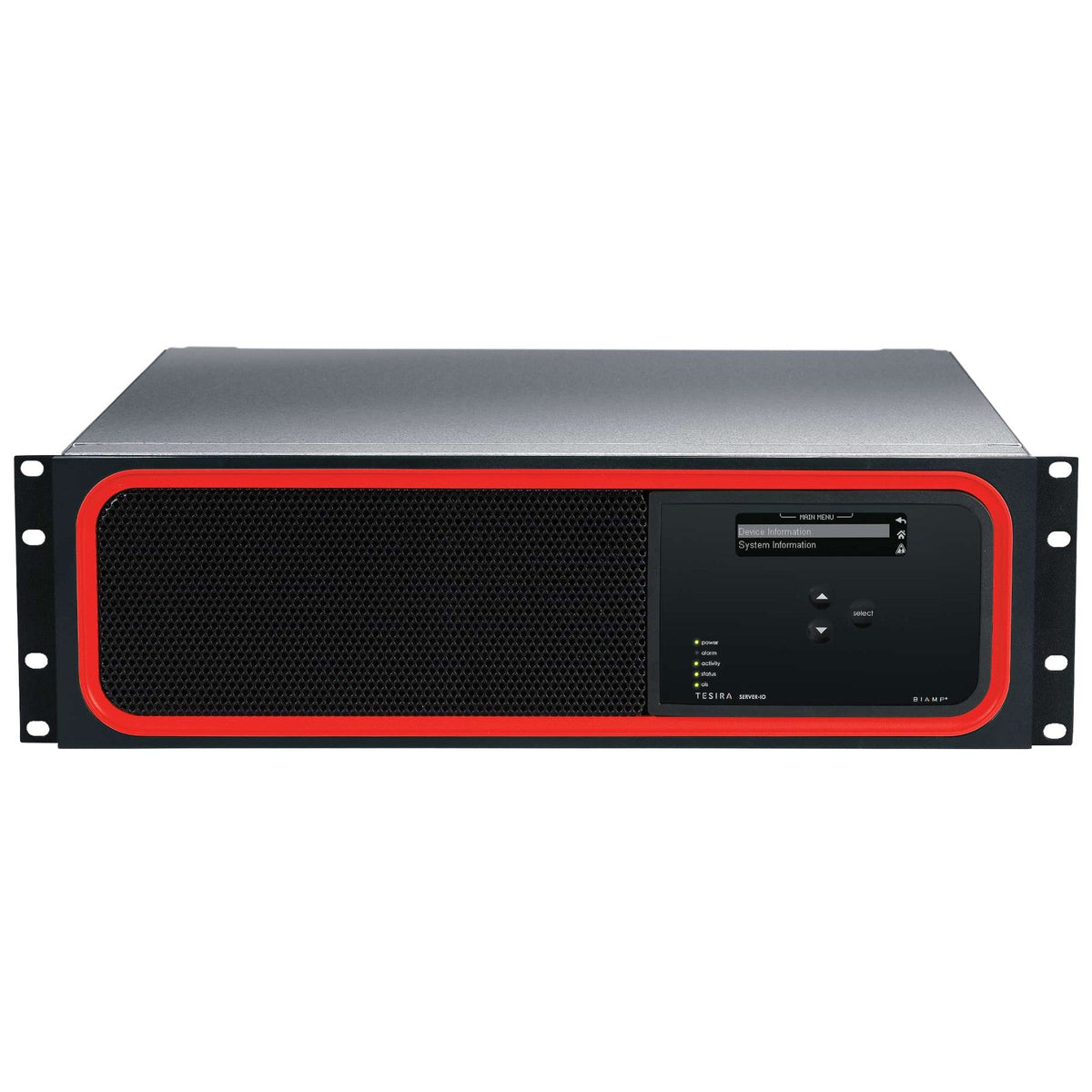

Biamp Tesira SERVER-IO Configurable I/O DSP Server
The Biamp Tesira SERVER-IO is a 3RU configurable I/O digital network server for large commercial audio systems. It ships with one DSP-2 card, accepts up to two more, and holds up to 12 Tesira I/O cards for up to 48 channels of analog audio, with optional AVB, CobraNet and Dante networking cards, for auditoriums, campuses and large meeting facilities across Dubai, Abu Dhabi and the UAE.
Key Features:
- Factory fitted with one DSP-2 card, up to 3 DSP-2 cards in total
- Up to 12 Tesira I/O cards for up to 48 channels of analog I/O
- Mic/line, VoIP and FXO telephone I/O card options
- Up to 3 networking cards: one AVB-1, up to two SCM-1 CobraNet, up to two DAN-1 Dante
- Front panel OLED display
- Configuration over Ethernet or serial in Tesira software
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Tesira SERVER-IO |
| Type | Configurable I/O DSP server |
| Chassis | 3RU |
| DSP | 1 DSP-2 fitted, up to 3 |
| I/O Cards | Up to 12, up to 48 analog channels |
| Network Cards | Up to 3 (AVB-1, SCM-1, DAN-1) |
| Display | Front panel OLED |
| Compliance | UL, CE, RoHS |
Why Buy the Biamp Tesira SERVER-IO from Trianze Tech?
- Genuine Biamp product with local UAE support from the Trianze Tech AV team
- System design help matching the Tesira SERVER-IO with compatible Biamp products
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance on meeting room and conferencing designs
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Biamp Tesira SERVER-IO holds up to 12 Tesira I/O cards for up to 48 channels of analog audio, such as mic/line, VoIP and FXO telephone interfaces.
Biamp Tesira SERVER-IO: It ships with one DSP-2 card and can take up to two more, for three in total.
Biamp Tesira SERVER-IO: Up to three networking cards in total: one AVB-1, up to two SCM-1 CobraNet and up to two DAN-1 Dante cards.
Both are the same configurable server. The SERVER-IO AVB version is supplied with AVB networking for use with Tesira AVB expanders.
Biamp Tesira SERVER-IO: It is configured and controlled in Biamp Tesira software over Ethernet or serial, with a front panel OLED for status.
