Bose Bi-pivot Bracket for MA12/MA12EX: White Wall Mount with Pitch and Yaw Adjustment | 318338-0200
Model
:
WMB-MA12/MA12EX
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Bose Bi-pivot Bracket for MA12/MA12EX: White Wall Mount with Pitch and Yaw Adjustment | 318338-0200

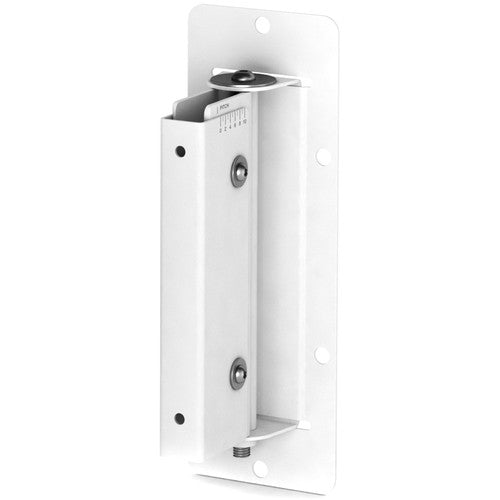

The Bose Bi-pivot Bracket is a genuine Bose Professional wall mount engineered for the MA12 and MA12EX Panaray modular column array loudspeakers, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech.
Key Features
- Independent pitch and yaw adjustment to direct coverage after the speaker is already mounted
- 0 to 10 degrees of positive pitch retention, load rated for triple stacked MA12/MA12EX arrays
- Steel construction finished in white to match white MA12/MA12EX enclosures
- Rated for both indoor and outdoor installation
Technical Specifications
| Compatibility | Bose MA12 and MA12EX Panaray modular column array loudspeakers |
| Adjustment | Independent pitch and yaw, 0 to 10 degree positive pitch retention |
| Load Rating | Triple stack MA12/MA12EX arrays |
| Dimensions | 11.1 x 3.8 x 4.1 in (281 x 98 x 105mm) |
| Material | Steel, white finish |
| Environmental Rating | Indoor and outdoor use |
| Part Number | 318338-0200 |
Why Buy the Bose Bi-pivot Bracket from Trianze Tech?
- Genuine Bose Professional accessory sourced and supported locally in the UAE
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio support from Trianze Tech for MA12/MA12EX deployments
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Bose Bi-pivot Bracket 318338-0200 is designed exclusively for white finish Bose MA12 and MA12EX Panaray modular column array loudspeakers. A matching black version, 318338-0100, is available for black enclosures.
The bracket provides 0 to 10 degrees of positive pitch retention plus independent yaw adjustment, and is load rated to support triple stacked MA12/MA12EX arrays.
Yes. The bracket is rated for both indoor and outdoor installation, suitable for fixed installs in stadiums, transit terminals and outdoor performance venues.
The bracket measures 11.1 x 3.8 x 4.1 inches (281 x 98 x 105mm) and is constructed from steel finished in white to match white MA12/MA12EX enclosures.
Yes. Independent pitch and yaw adjustment lets installers redirect the MA12/MA12EX coverage pattern after mounting, without removing the loudspeaker from the wall.
Trianze Tech stocks the Bose Bi-pivot Bracket for MA12/MA12EX in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
