Barco WD431 Compatible Lens: 0.38:1 Ultra Short Throw for IQ6-W6/W7
Model
:
WD431
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Barco WD431 Compatible Lens: 0.38:1 Ultra Short Throw for IQ6-W6/W7

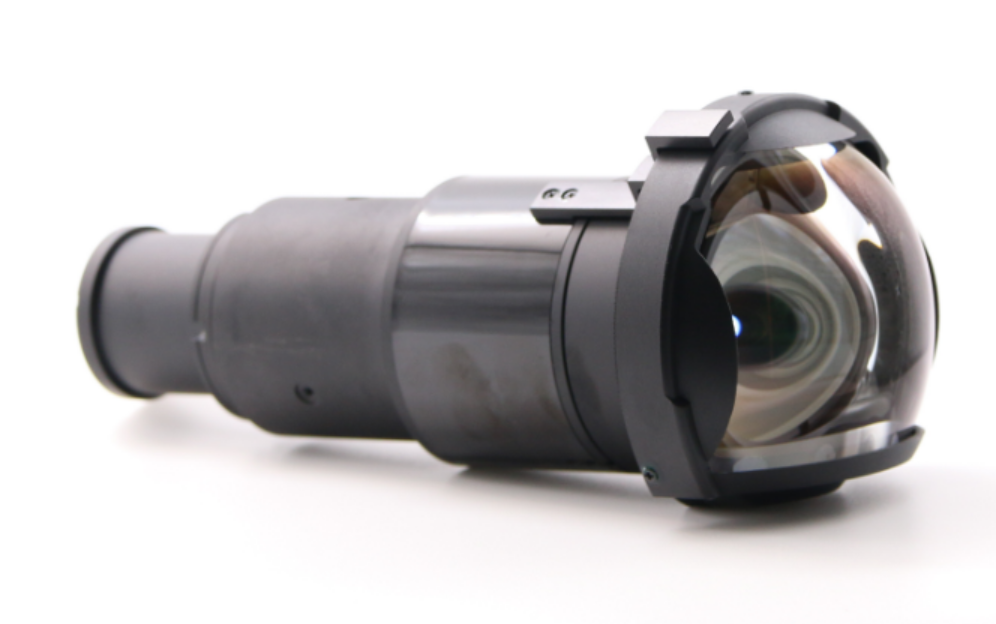

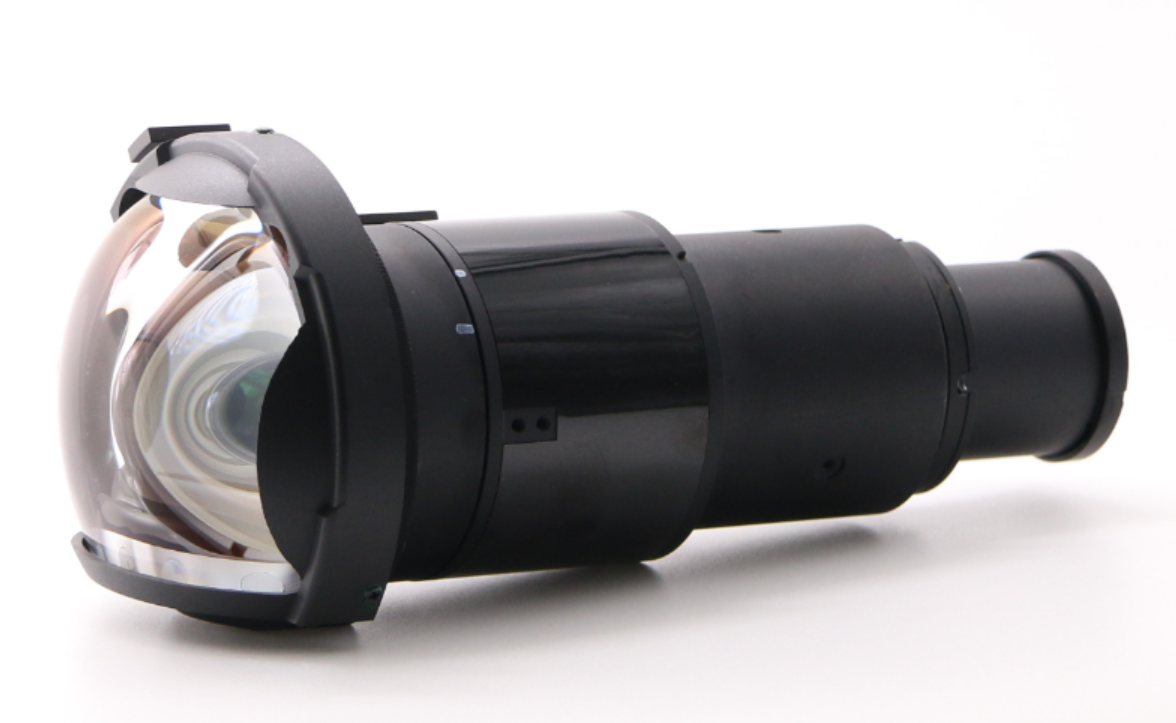

The Barco WD431 Compatible Lens is a third party replacement projection lens engineered to match the optical interface and mounting of select Barco IQ6 series projectors. It is not manufactured by Barco but is built to the same throw ratio and connection standard, giving corporate AV and large venue customers in Dubai, Abu Dhabi and across the UAE and GCC a cost effective alternative to sourcing an original Barco lens. Trianze Tech supplies and supports this lens for boardroom, auditorium and control room installations.
Key Features
- Ultra short throw ratio of 0.38:1 for tight installation spaces
- F-number 2.1 with a 5.29mm focal length
- MTF greater than 60% at 93 line pairs per mm for sharp edge to edge clarity
- Wide 90 degree horizontal, 59 degree vertical and 98 degree diagonal field of view
- Supports WUXGA and 4K resolution panels
Technical Specifications
| Throw Ratio | 0.38:1 |
| F-Number / Focal Length | 2.1 / 5.29mm |
| Resolution Support | WUXGA / 4K |
| Panel Size | 0.64 inch |
| MTF | Greater than 60% at 93 lp/mm |
| Field of View | 90° horizontal, 59° vertical, 98° diagonal |
| Lens Dimensions | 83mm diameter x 171mm length |
| Compatible Projector Models | Barco IQ6-W6, IQ6-W7 |
| Part Type | Third party compatible replacement lens, not an original Barco part |
Why Buy the Barco WD431 Compatible Lens from Trianze Tech?
- Real cost savings compared to OEM Barco lens pricing while matching the required throw ratio and mount
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
- Dedicated AV support from Trianze Tech for Barco IQ6 series deployments
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Barco WD431 compatible lens has a fixed ultra short throw ratio of 0.38:1, letting the projector sit very close to the screen while still filling a large image area.
The WD431 compatible lens is designed to mount and align with the Barco IQ6-W6 and IQ6-W7 projector models.
No. It is a third party compatible replacement lens engineered to match the optical and mounting specifications of the Barco IQ6-W6 and IQ6-W7, not a lens manufactured by Barco itself.
It supports WUXGA and 4K resolution panels with an MTF rating above 60% at 93 line pairs per mm for sharp image reproduction.
It offers a 90 degree horizontal, 59 degree vertical and 98 degree diagonal field angle, suited to ultra short throw large screen setups.
Trianze Tech stocks the Barco WD431 compatible lens in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
