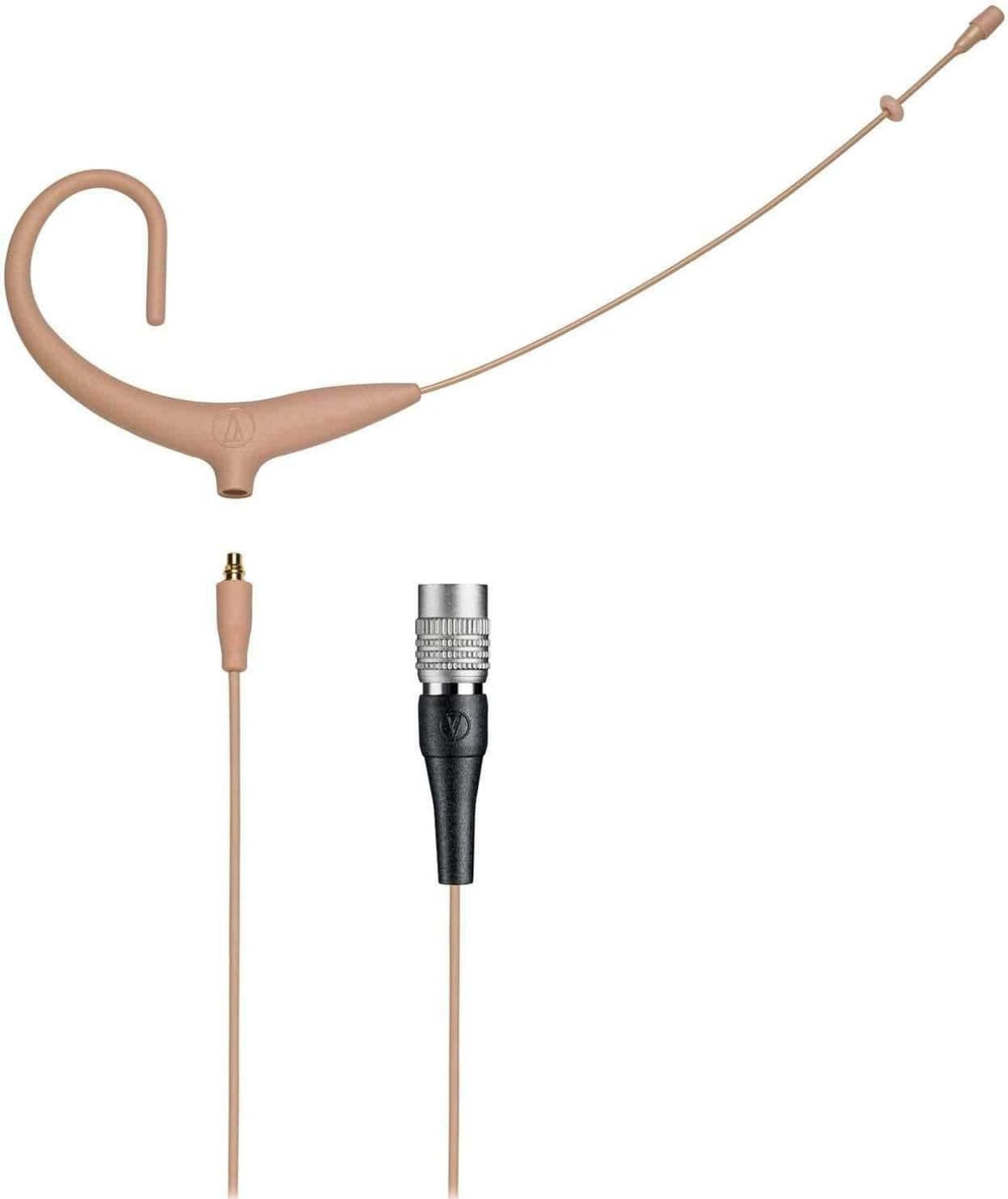

Audio-Technica BP892XCW-TH: BP892x Subminiature Omnidirectional Condenser Headworn Microphone
The BP892xcW-TH Omnidirectional Condenser Headworn Wireless Microphone is designed to provide intelligible natural audio for stage and television talent, lecturers, and worship leaders. The microphone includes the BPCB-cW-TH detachable, field-replaceable 1.4 m (55 inch) cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style wireless body-pack transmitters. Other detachable cables with a variety of output terminations are available separately. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
- Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
- Ergonomic under-ear design, the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
- BPCB-cW-TH detachable, field-replaceable 1.4 m (55 inch) cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style wireless body-pack transmitters
- Handles high sound pressure levels with ease

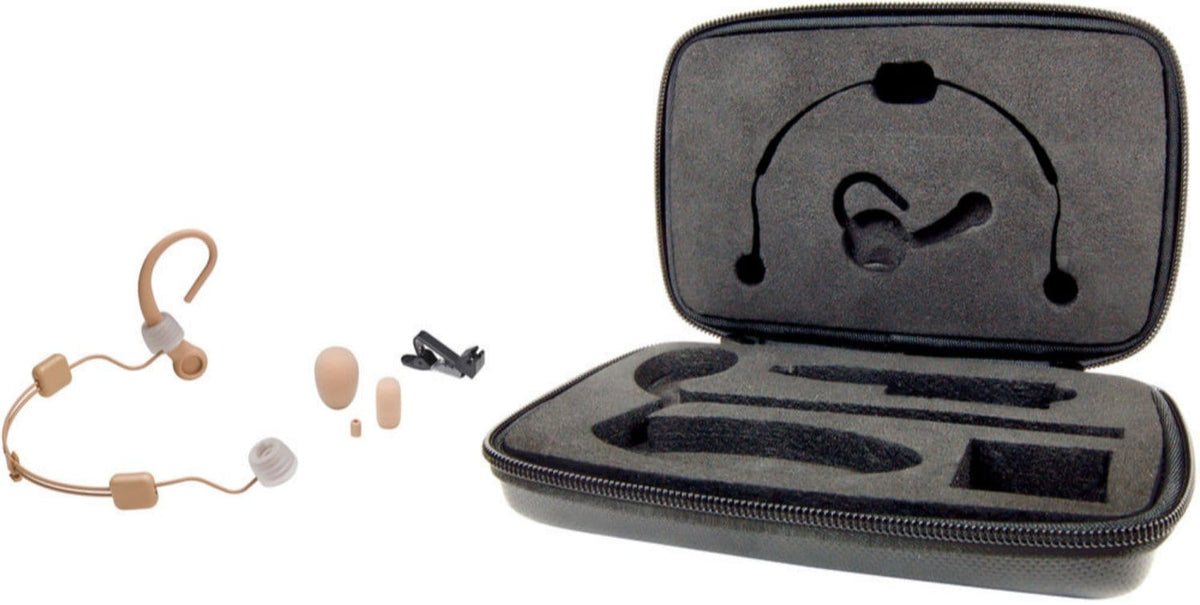

- Comes with the AT8464x-TH Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that's worn on both ears for maximum stability and comfort
- Constructed of hypoallergenic materials
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | BP892XCW-TH |
| Product Type | Headset Mics |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 to 20,000 Hz |
| Low Frequency Roll-Off | 80 Hz, 18 dB/octave (wired only) |
| Open Circuit Sensitivity | -43 dB (7.2 mV) re 1V at 1 Pa |
| Impedance | 250 ohms (wired only) |
| Maximum Input Sound Level | 136 dB SPL, 1 kHz at 3% T.H.D. |
| Dynamic Range (typical) | 104 dB, 1 kHz at Max SPL (wired only) |
| Signal-to-Noise Ratio | 63 dB, 1 kHz at 1 Pa |
| Phantom Power Requirement | 11 to 52V DC, 2 mA typical (wired only) |
| Switch | Flat, roll-off (wired only) |
| Current Consumption | 0.2 mA typical at 5V (wireless only) |
| Voltage Range | 2.5 to 10V (wireless only) |
| Weight (Microphone) | Microphone, boom & earpiece: 2.6 g (0.09 oz) |
| Weight (Power Module) | 85 g (3.0 oz) (wired only) |
| Dimensions | Microphone: 9.5 mm (0.37 inch) long, 2.6 mm (0.10 inch) diameter Boom: 98.5 mm (3.88 inch) long, 1.07 mm (0.04 inch) diameter |
| Microphone | 9.5 mm (0.37 inch) long, 2.6 mm (0.10 inch) diameter |
| Boom | 98.5 mm (3.88 inch) long, 1.07 mm (0.04 inch) diameter |
| Dimensions (Power Module) | 100.0 mm (3.94 inch) long, 18.9 mm (0.74 inch) diameter (wired only) |
Why Buy the Audio-Technica BP892XCW-TH BP892x Subminiature Omnidirectional Condenser Headworn Microphone from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the BP892XCW-TH to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica BP892XCW-TH uses a Omnidirectional polar pattern.
The Audio-Technica BP892XCW-TH has a frequency response of 20 to 20,000 Hz, with a low frequency roll-off of 80 Hz, 18 dB/octave (wired only).
The Audio-Technica BP892XCW-TH has an open circuit sensitivity of -43 dB (7.2 mV) re 1V at 1 Pa, and a maximum input sound level of 136 dB SPL, 1 kHz at 3% T.H.D. Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica BP892XCW-TH as 11 to 52V DC, 2 mA typical (wired only).
The Audio-Technica BP892XCW-TH has Integral 3-pin XLRM-type as its connector.
