Audio-Technica BP4025: Large Diaphragm Microphone
Brand
:Audio-Technica
Model
:
BP4025
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

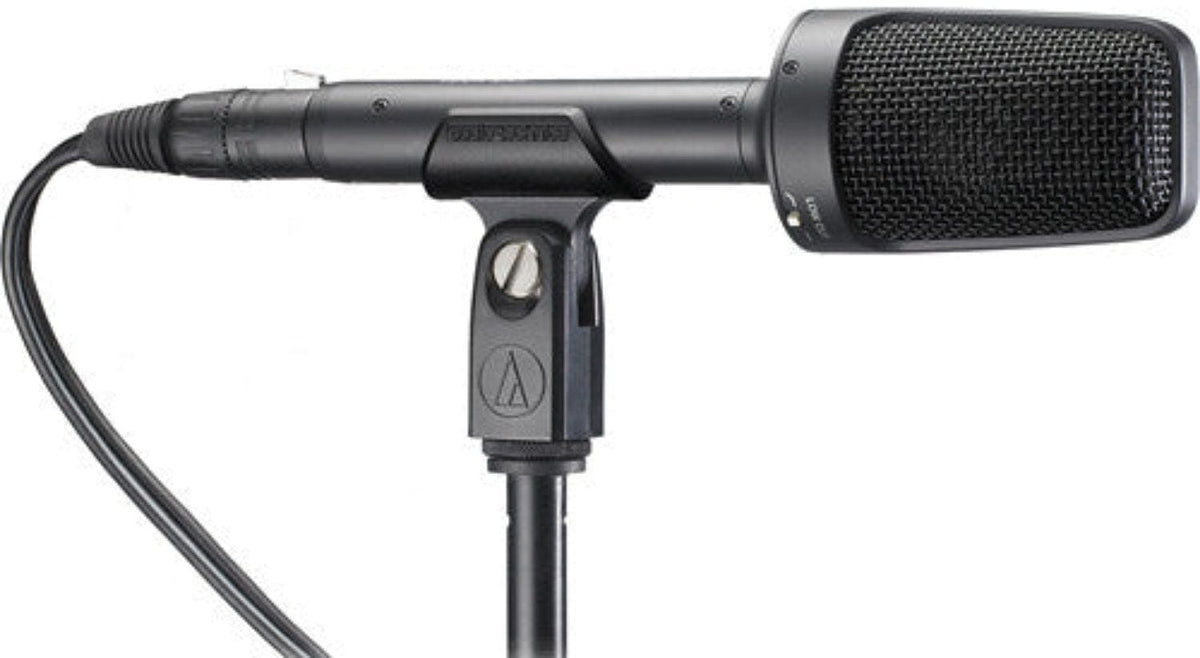

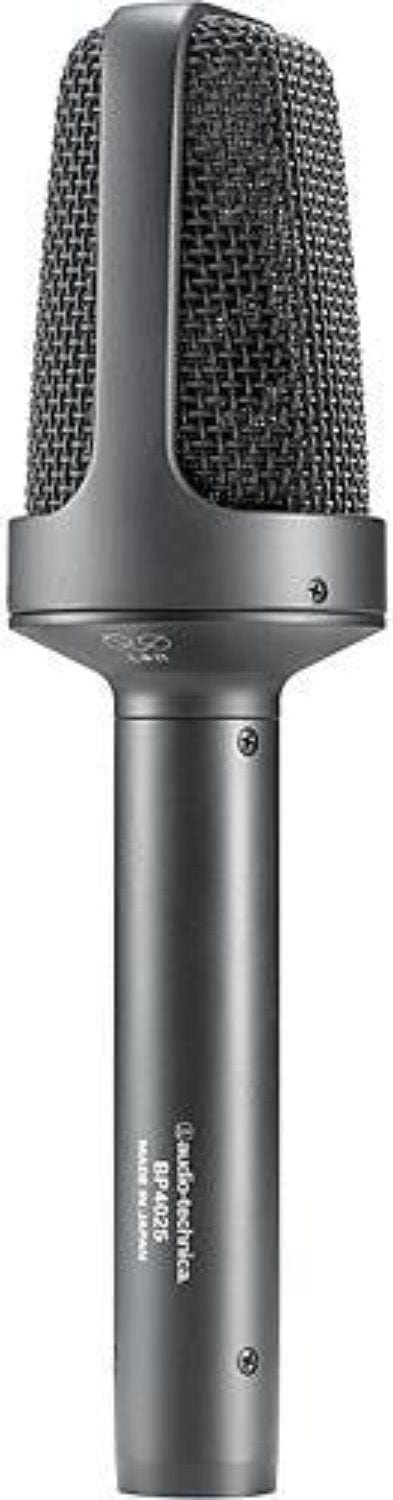

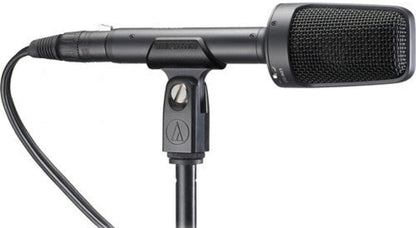

Audio-Technica BP4025: Large Diaphragm Microphone
Designed for broadcast and professional recording, Audio-Technica's BP4025 stereo condenser offers large-diaphragm capsules in an innovative coincident capsule configuration. This allows for a smaller housing while producing an X/Y stereo image with the spatial impact and realism of a live sound field. Ideal for use with professional audio and video equipment, the microphone is fully RoHS-compliant, free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS). Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Large-diaphragm capsules offer pristine sound quality and exceptionally low noise

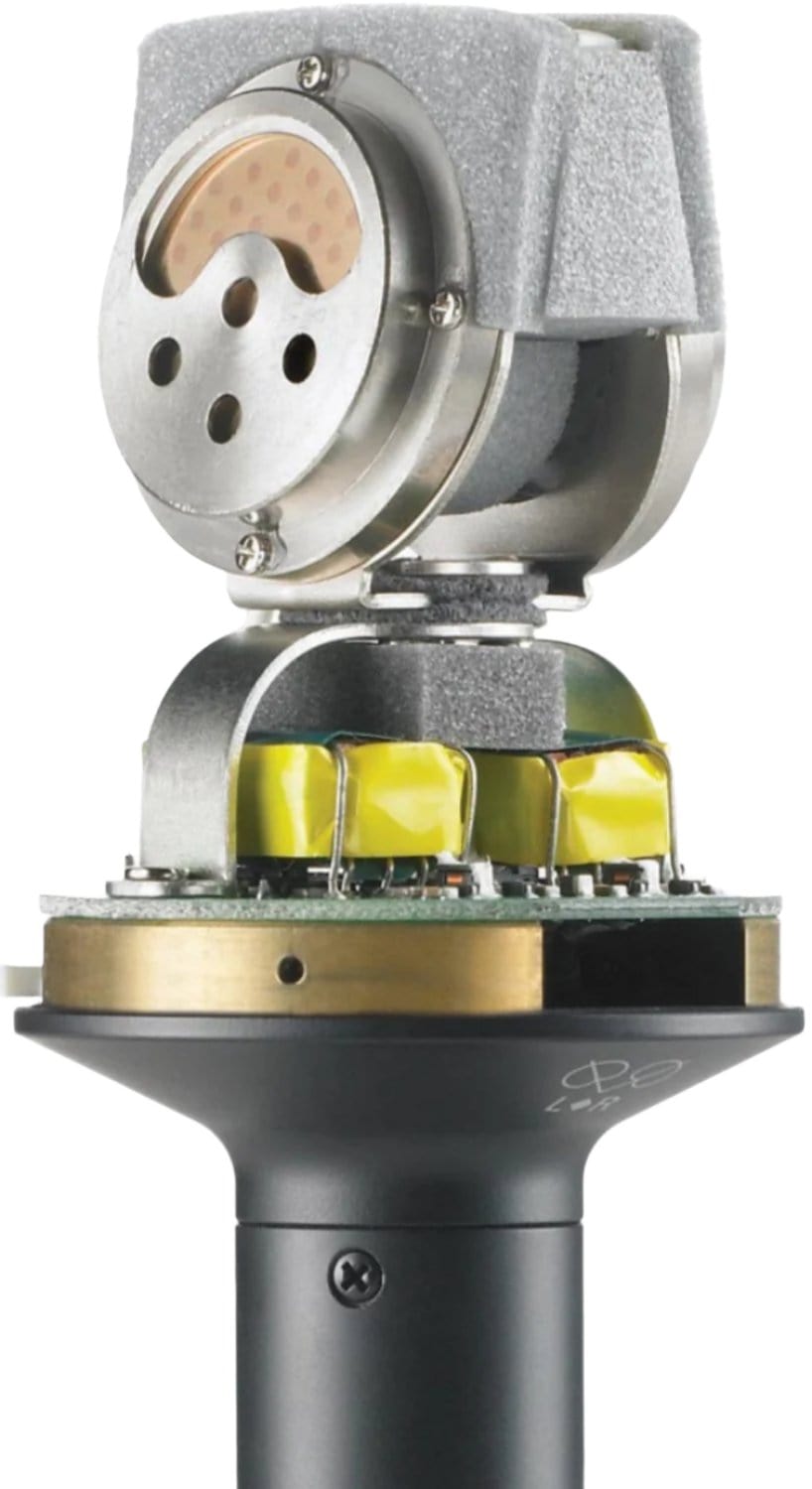

- Innovative coincident capsule configuration produces accurate stereo image in smaller housing
- Compact, lightweight design is ideal for camera-mount use
- Excellent channel separation
- Phantom power operation, for use with professional equipment
- Switchable low-frequency roll-off and 10 dB pad
- Includes one balanced cable (two 3-pin XLRM-type connectors at output)
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | BP4025 |
| Product Type | Large Diaphragm Condenser Mics |
| Polar Pattern | X/Y Stereo |
| Frequency Response | 20 to 17,000 Hz |
| Low Frequency Roll-Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | -32 dB (25.1 mV) re 1V at 1 Pa |
| Channel Balance | <2.5 dB |
| Impedance | 170 ohms |
| Maximum Input Sound Level | 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal) |
| DYNAMIC RANGE (typical) | 131 dB, 1 kHz at Max SPL |
| Signal-To-Noise Ratio | 80 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11 to 52V DC, 7 mA typical (both channels total) |
| Switch | Flat, roll-off; 10 dB pad (nominal) |
| Weight | 269 g (9.5 oz) |
| Dimensions | 186.0 mm (7.32 inch) long, 47.6 mm (1.87 inch) head diameter, 21.0 mm (0.83 inch) body diameter |
| Output Connector | Integral 5-pin XLRM-type |
| Cable | 5.0 m (16.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end |
| Accessories Furnished | AT8405a stand clamp for 5/8 inch-27 threaded stands; windscreen; soft protective pouch |
| Audio-Technica Case Style | S12 |
Why Buy the Audio-Technica BP4025 Large Diaphragm Microphone from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the BP4025 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica BP4025 uses a X/Y Stereo polar pattern.
The Audio-Technica BP4025 has a frequency response of 20 to 17,000 Hz, with a low frequency roll-off of 80 Hz, 12 dB/octave.
The Audio-Technica BP4025 has an open circuit sensitivity of -32 dB (25.1 mV) re 1V at 1 Pa, and a maximum input sound level of 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal). Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica BP4025 as 11 to 52V DC, 7 mA typical (both channels total).
The Audio-Technica BP4025 has Integral 5-pin XLRM-type as its connector.
Trianze Tech stocks the Audio-Technica BP4025 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
