Audio-Technica ATW-DT3207DF2: D50 Wireless Desk Stand Transmitter

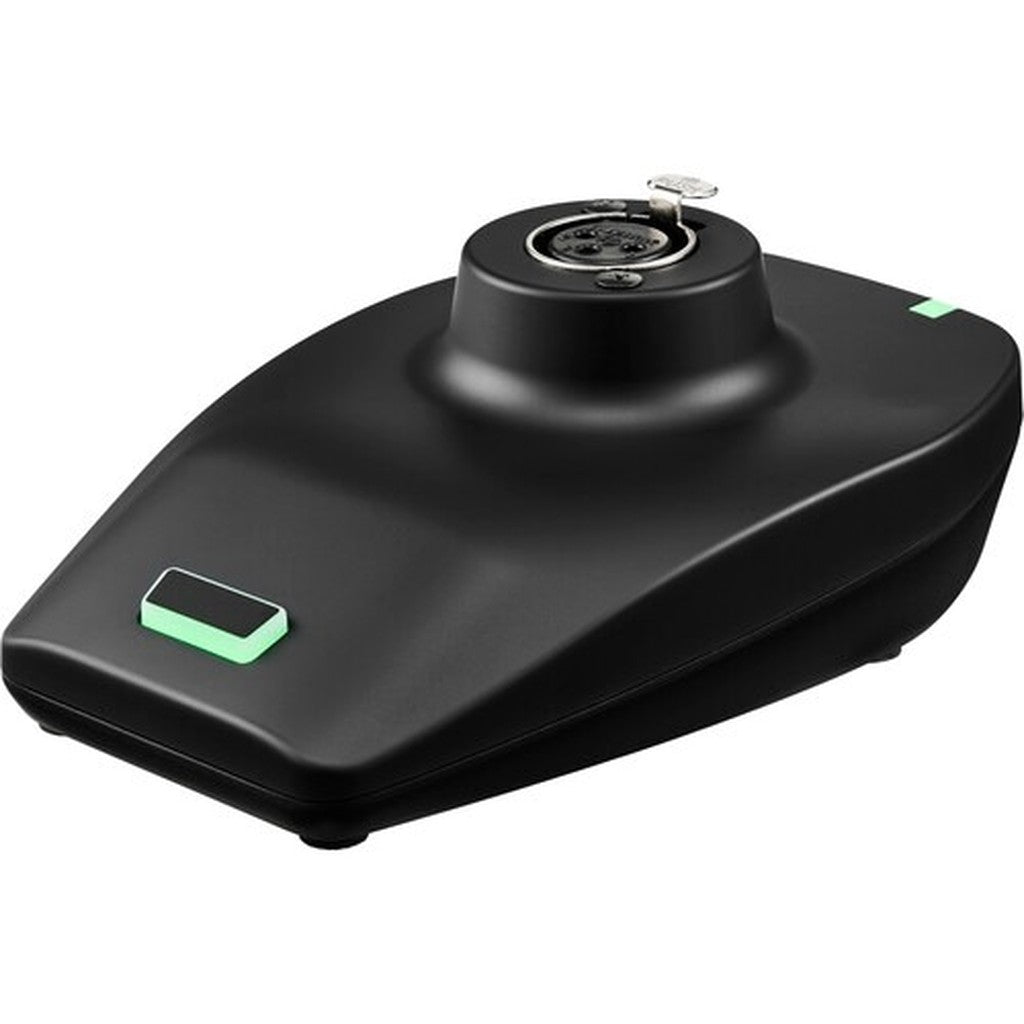

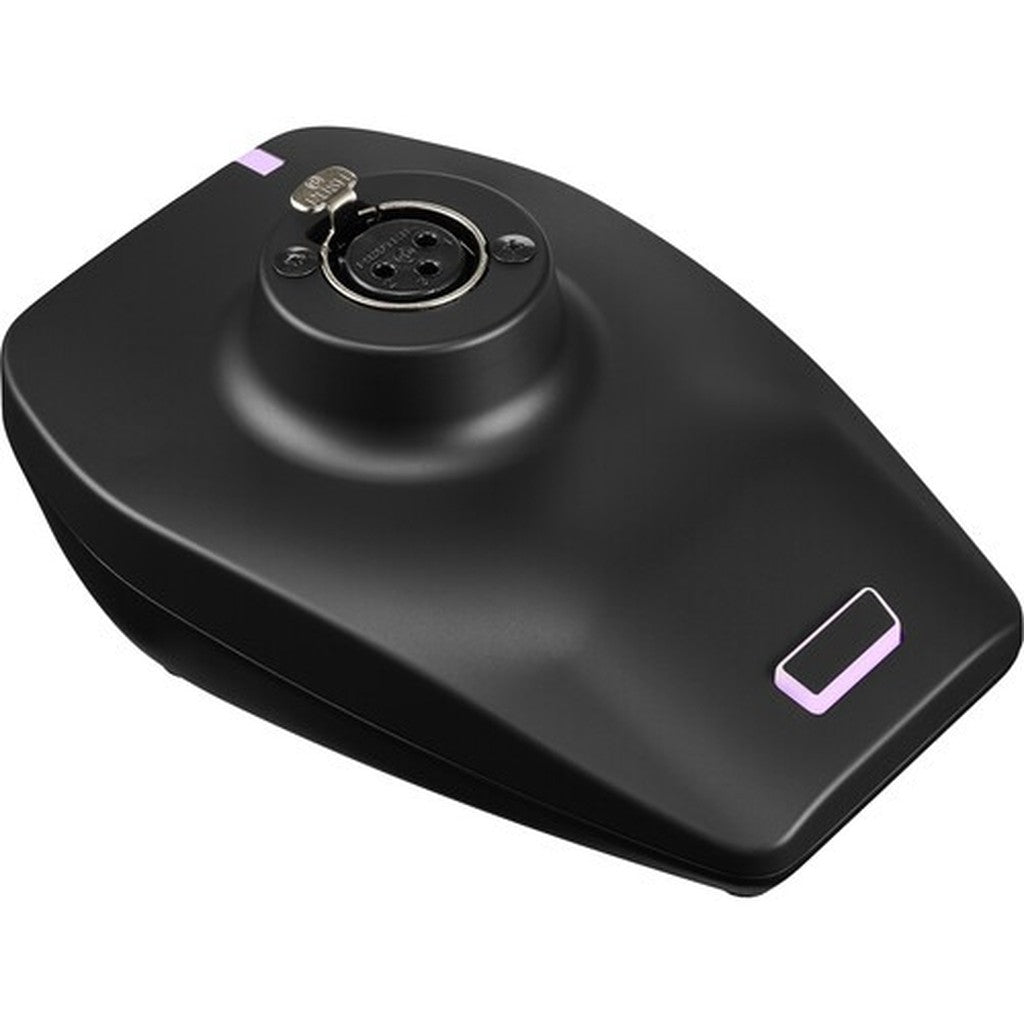

The Audio-Technica ATW-DT3207DF2 is a digital UHF desk stand transmitter built for D50 wireless conferencing systems. It connects compatible quick-mount gooseneck microphones through a 3-pin XLR female input, supplies 24V phantom power, and provides programmable talk-button control for meetings, presentations, panel discussions, and professional collaboration spaces. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Digital UHF Desk Stand: Creates a professional wireless microphone position for meetings, presentations, and moderated discussions.

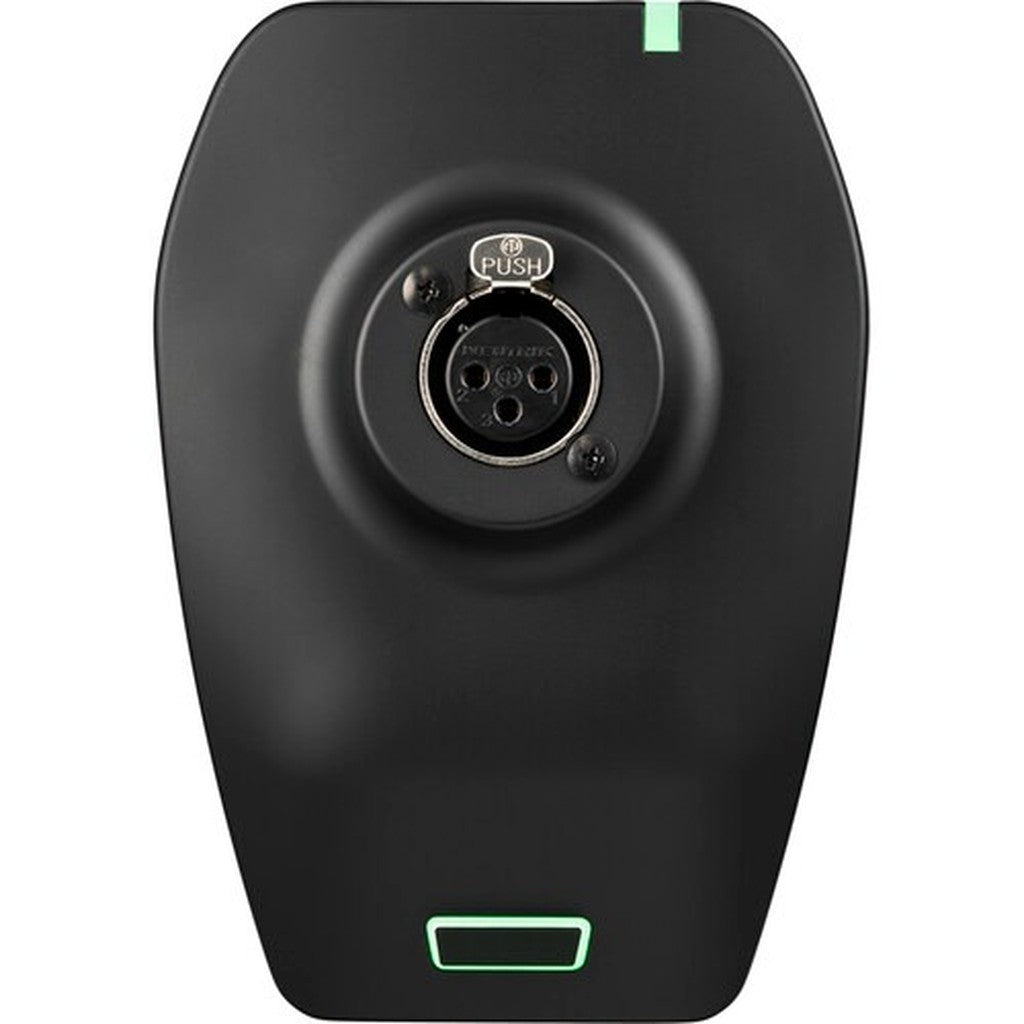

- Gooseneck Microphone Connection: Accepts compatible quick-mount microphones through a 3-pin XLR female connector.
- 24V Phantom Power: Powers compatible condenser gooseneck microphones directly from the transmitter base.
- Programmable Talk Button: Supports toggle mute, press-to-mute, or press-to-talk operation for different conference workflows.
- Configurable LED Indicators: Offers seven colors and three operating patterns for clear microphone status and channel identification.
- Standard and HD Modes: Balances RF robustness with higher channel density in congested wireless environments.
- Flexible Charging: Recharges through USB-C or the optional ATW-CHG7 four-bay charging station.
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATW-DT3207DF2 |
| Product Type | Replacement Transmitters For Wireless Mic Systems |
| Product Type | Digital UHF wireless desk stand transmitter |
| Compatible Wireless System | Audio-Technica D50 |
| Application | Conferencing, meetings, presentations, and discussion systems |
| Included Microphone | No microphone included |
| Supported Microphone Type | Compatible quick-mount gooseneck microphone |
| Microphone Input | 1 x 3-pin XLR female |
| Input Level | Microphone level |
| Phantom Power | 24V |
| Operating Frequency Range | DF2 band, 470.125 to 607.875 MHz |
| Wireless Technology | Digital UHF |
| Modulation Mode | Standard mode: 8-PSK; HD mode: 16QAM |
| Occupied Bandwidth | Standard mode: 192 kHz; HD mode: 96 kHz |
| RF Output Power | Standard mode: 20 mW, 10 mW, or 1 mW; HD mode: 1 mW |
| Operating Range | Up to 328' in an open environment without interfering signals |
| Frequency Response | 20 Hz to 20 kHz, depending on the attached microphone |
| Dynamic Range | 120 dB, A-weighted, typical |
| Total Harmonic Distortion | 0.1% or less at 1 kHz and -20 dBFS |
| Maximum Recommended Simultaneous Use | Standard mode: 17 channels per 6 MHz or 22 channels per 8 MHz; HD mode: 47 channels per 6 MHz or 63 channels per 8 MHz |
Why Buy the Audio-Technica ATW-DT3207DF2 D50 Wireless Desk Stand Transmitter from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATW-DT3207DF2 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATW-DT3207DF2 has a frequency response of 20 Hz to 20 kHz, depending on the attached microphone.
Published specifications list the power requirement of the Audio-Technica ATW-DT3207DF2 as 24V.
Published specifications give an operating range of Up to 328' in an open environment without interfering signals for the Audio-Technica ATW-DT3207DF2.
Published specifications list battery life for the Audio-Technica ATW-DT3207DF2 as Approximately 9.5 hours at 10 mW.
Published specifications list the dimensions of the Audio-Technica ATW-DT3207DF2 as 5.1 inch L x 3.56 inch W x 2.1 inch H, and the weight of the Audio-Technica ATW-DT3207DF2 as 1.09 lbs with included battery.
