Audio-Technica ATW-DT3202/C510DF2: D50 UHF Handheld Transmitter
The Audio-Technica D50 TX510 is a rugged digital UHF microphone transmitter with an ATW-C510 cardioid dynamic capsule, OLED status display, programmable mute control, and SideTrack output switching. It delivers secure, high-fidelity voice transmission for professional performances, presentations, meetings, and installed sound systems. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- ATW-C510 Cardioid Dynamic Capsule: Captures clear, focused vocals while reducing sound arriving from the sides and rear.
- Interchangeable Capsule Design: Supports multiple compatible Audio-Technica dynamic and condenser capsules for different performance applications.
- SideTrack Function: Switches audio between multiple outputs for discreet communication with performers, production staff, or audio engineers.
- OLED Status Display: Presents essential transmitter information through a clear, accessible interface.
- Programmable Mute Control: Provides flexible operation for presentations, live productions, meetings, and staged performances.
- IR Synchronization: Simplifies pairing and configuration with a compatible D50 receiver.
- Seven-Color Identification System: Uses an LED and physical color rings to help technicians identify assigned channels quickly.
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATW-DT3202/C510DF2 |
| Product Type | Replacement Transmitters For Wireless Mic Systems |
| Product Type | Digital UHF handheld wireless transmitter |
| Compatible Wireless System | Audio-Technica D50 |

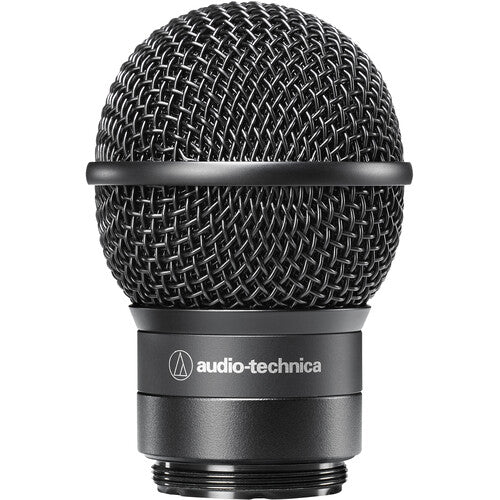

| Microphone Capsule | ATW-C510 cardioid dynamic capsule |
| Capsule Interface | Interchangeable microphone capsule compatible |
| Compatible Optional Capsules | ATW-C4100, ATW-C6100, ATW-C3300, ATW-C5400, and ATW-C710 |
| Operating Frequency Range | DF2 band, 470.125 to 607.875 MHz |
| RF Output Power | Standard mode: 20 mW, 10 mW, or 1 mW; HD mode: 1 mW |
| Modulation | Standard mode: 8-PSK; HD mode: 16QAM |
| Occupied Bandwidth | Standard mode: 192 kHz; HD mode: 96 kHz |
| Frequency Response | 20 Hz to 20 kHz, depending on the attached microphone capsule |
| Operating Range | Up to 328' in an open environment without interfering signals |
| Dynamic Range | 120 dB, A-weighted, typical |
| Total Harmonic Distortion | 0.1% or less at 1 kHz and -20 dBFS |
| Recommended Simultaneous Use | Standard mode: 17 channels per 6 MHz |
| Latency | Standard mode: 2.1 ms typical; HD mode: 3.3 ms typical |
| Audio Sampling Rate | 48 kHz |
| Encryption | AES256 |
| High-Pass Filter | 120 Hz, 12 dB per octave |
Why Buy the Audio-Technica ATW-DT3202/C510DF2 D50 UHF Handheld Transmitter from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATW-DT3202/C510DF2 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATW-DT3202/C510DF2 has a frequency response of 20 Hz to 20 kHz, depending on the attached microphone capsule.
Published specifications give an operating range of Up to 328' in an open environment without interfering signals for the Audio-Technica ATW-DT3202/C510DF2.
Published specifications list battery life for the Audio-Technica ATW-DT3202/C510DF2 as Up to 17.5 hours at 10 mW, depending on operating conditions.
Published specifications list the dimensions of the Audio-Technica ATW-DT3202/C510DF2 as 10 inch long x 2.1 inch maximum diameter, and the weight of the Audio-Technica ATW-DT3202/C510DF2 as 0.81 lbs with included battery.
Published specifications list these items with the Audio-Technica ATW-DT3202/C510DF2: ATW-DT3202 handheld transmitter, ATW-C510 cardioid dynamic microphone capsule, LI-320 rechargeable lithium-ion battery, AT8456a Quiet-Flex microphone stand clamp, 5/8 inch-27 male to 3/8 inch-16 female threaded adapter, ATW-RR1 removable anti-rolling ring, Seven-color transmitter indicator set.
