Audio-Technica ATW-901A-H: Wireless Headset Microphone System
Brand
:Audio-Technica
Model
:
ATW-901A-H
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Audio-Technica ATW-901A-H: Wireless Headset Microphone System

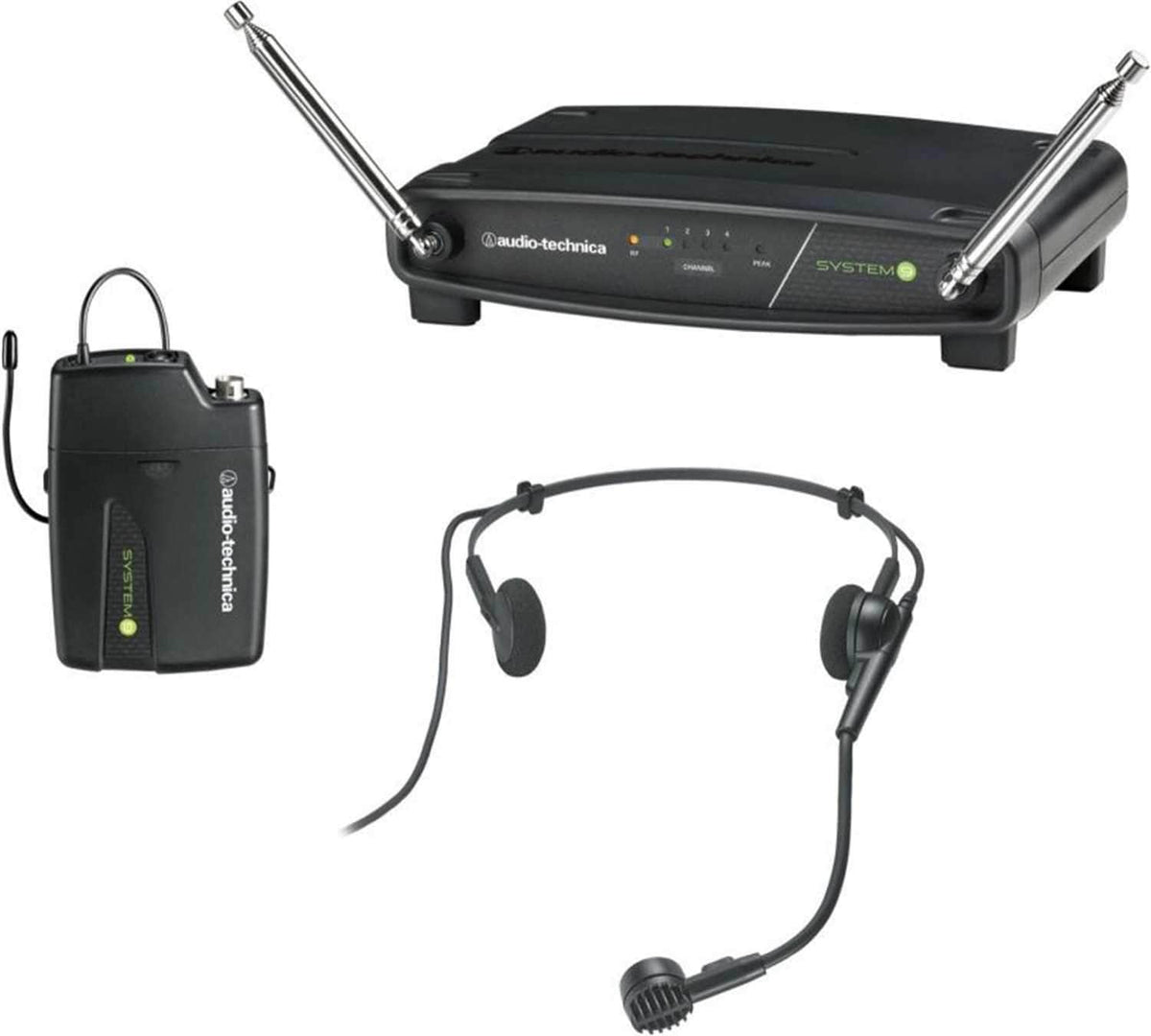

ATW-R900a receiver and ATW-T901a body-pack transmitter with PRO 8HEcW headworn microphone. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Easy operation and clear, natural sound quality
- 4 selectable frequency-coordinated VHF channels
- Balanced XLR and unbalanced 1/4 inch output jacks enable use with a wide variety of audio gear
- Reliable performance and durable construction
- Advanced dipole antenna system for extended operating range
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATW-901A-H |
| Product Type | VHF Headset Wireless Mic Systems |
| Modulation Mode | FM |
| Maximum Deviation | +/-10 kHz |
| Dynamic Range | >/=90 dB (A-weighted), typical |
| Total Harmonic Distortion | <1% (at 1 kHz, +/-10 kHz deviation) |
| Operating Range | 200' (60 m) typical |
| Operating Temperature Range | 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C) |
| Frequency Response | 80 Hz to 13 kHz |
| Receiving System | Non-diversity, single-channel, dual antenna system |
| Image Rejection | 50 dB minimum |
| RF Sensitivity | 20 dBuV at 60 dB S/N ratio (50 ohms termination) |
| Audio Output | Nominal Output Level, XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), 1/4 inch (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load |
| Power Supply | 100 to 240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
| Dimensions | 7.48 inch (190.0 mm) W x 1.82 inch (46.2 mm) H x 5.06 inch (128.5 mm) D |
| Net Weight | 12.0 oz (337 grams) |
| Accessory Included | Power supply |
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Input Connections | Four-pin Locking Connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
Why Buy the Audio-Technica ATW-901A-H Wireless Headset Microphone System from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATW-901A-H to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATW-901A-H has a frequency response of 80 Hz to 13 kHz.
Published specifications list the power requirement of the Audio-Technica ATW-901A-H as 100 to 240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply.
Published specifications give an operating range of 200' (60 m) typical for the Audio-Technica ATW-901A-H.
Published specifications list battery life for the Audio-Technica ATW-901A-H as 8 hours (alkaline).
The RF power output of the Audio-Technica ATW-901A-H is 10 mW. Check local wireless regulation before use in the UAE.
Trianze Tech stocks the Audio-Technica ATW-901A-H in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
