Audio-Technica ATW-3212-C510DE2: ATW-3212/C510 3000 Series Wireless Handheld Microphone DE2
Brand
:Audio-Technica
Model
:
ATW-3212-C510DE2
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

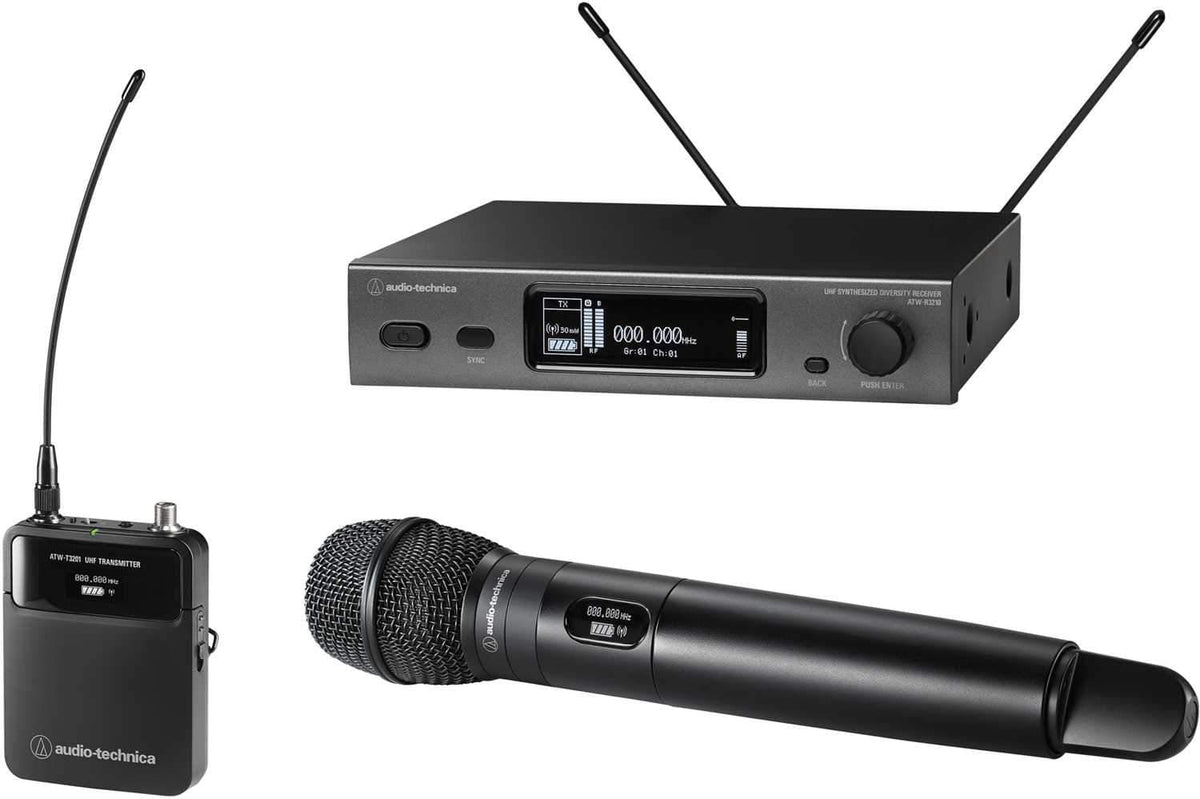

Audio-Technica ATW-3212-C510DE2: ATW-3212/C510 3000 Series Wireless Handheld Microphone DE2
Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica's fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in four frequency bands: DE2 (470 to 530 MHz), EE1 (530 to 590 MHz), EF1 (590 to 650 MHz) and FG1 (650 to 700 MHz).
- Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATW-3212-C510DE2 |
| Product Type | UHF Handheld Wireless Mics |
| Polar Pattern | Cardioid |
| Frequency Response | 90 to 12000 Hz |
| Impedance | 50 Ohms |
| Weight | 129 g |
| Dimensions | 78.5 mm long, 53.7 mm max. diameter |
| Output Connector | Interchangeable industry-standard thread |
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz |
| Minimum Frequency Step | 25 kHz |
| Modulation Mode | FM |
| Atw-T3201 | 38 kHz (THD:10%) |
| Atw-T3202 | 36 kHz (THD:10%) |
| Simultaneous Use | 40 Channels per band* |
| Operating Range | 100 m |
| ATW-T3201 Mic input | > 115 dB (A-weighted), typical |
| ATW-T3201 Inst input | > 112dB (A-weighted), typical |
| Total Harmonic Distortion | <1.0% (at 1 kHz, 17.5 kHz deviation) |
| Operating Temperature Range | -5 degreesC to +45 degreesC |
| Receiving System | True Diversity |
Why Buy the Audio-Technica ATW-3212-C510DE2 ATW-3212/C510 3000 Series Wireless Handheld Microphone from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATW-3212-C510DE2 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATW-3212-C510DE2 uses a Cardioid polar pattern.
The Audio-Technica ATW-3212-C510DE2 has a frequency response of 90 to 12000 Hz.
Published specifications list the power requirement of the Audio-Technica ATW-3212-C510DE2 as 100 to 240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply.
The Audio-Technica ATW-3212-C510DE2 has Interchangeable industry-standard thread as its connector.
Published specifications list the impedance of the Audio-Technica ATW-3212-C510DE2 as 50 Ohms.
