Audio-Technica ATW-1701: System 10 Wireless Camera-mount Set

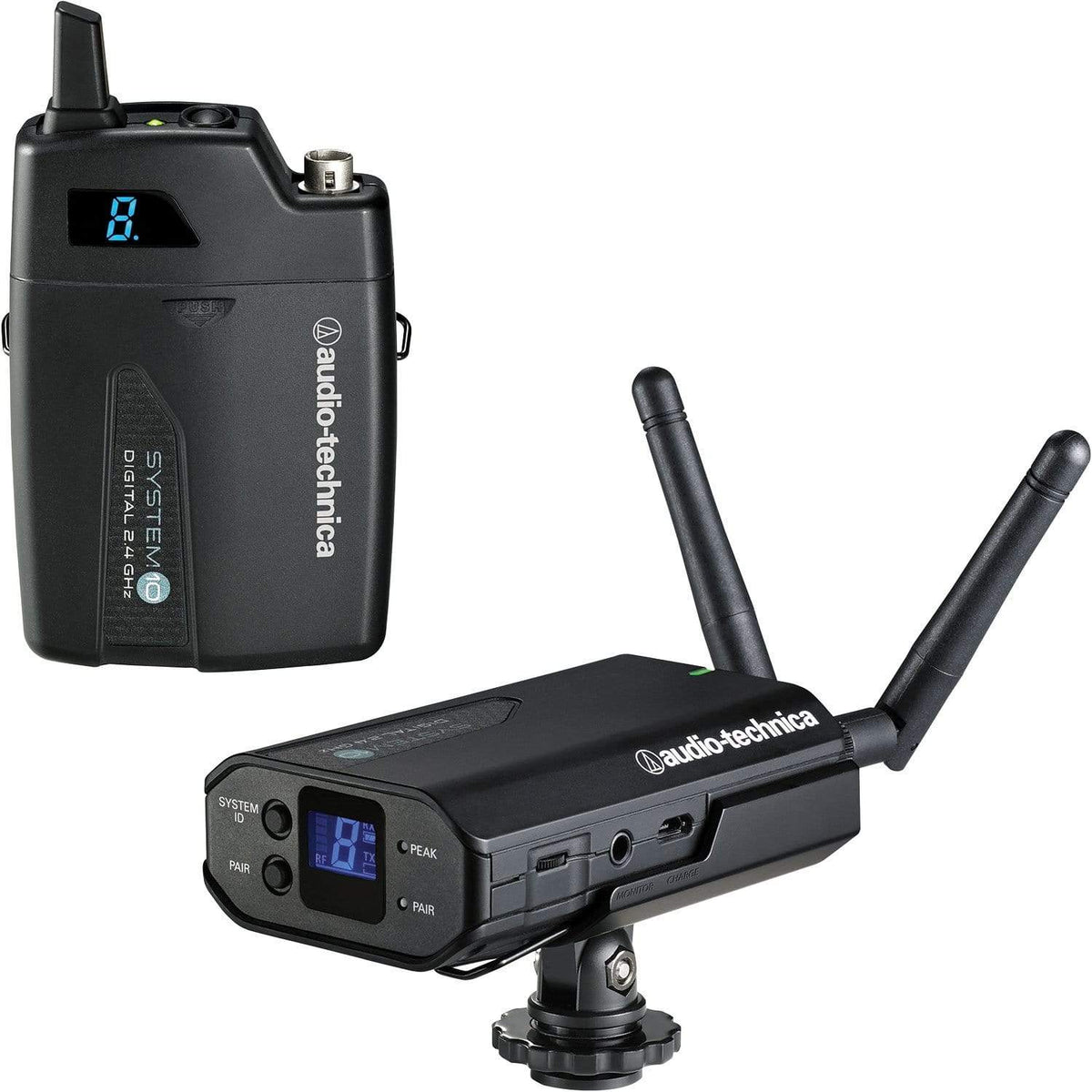

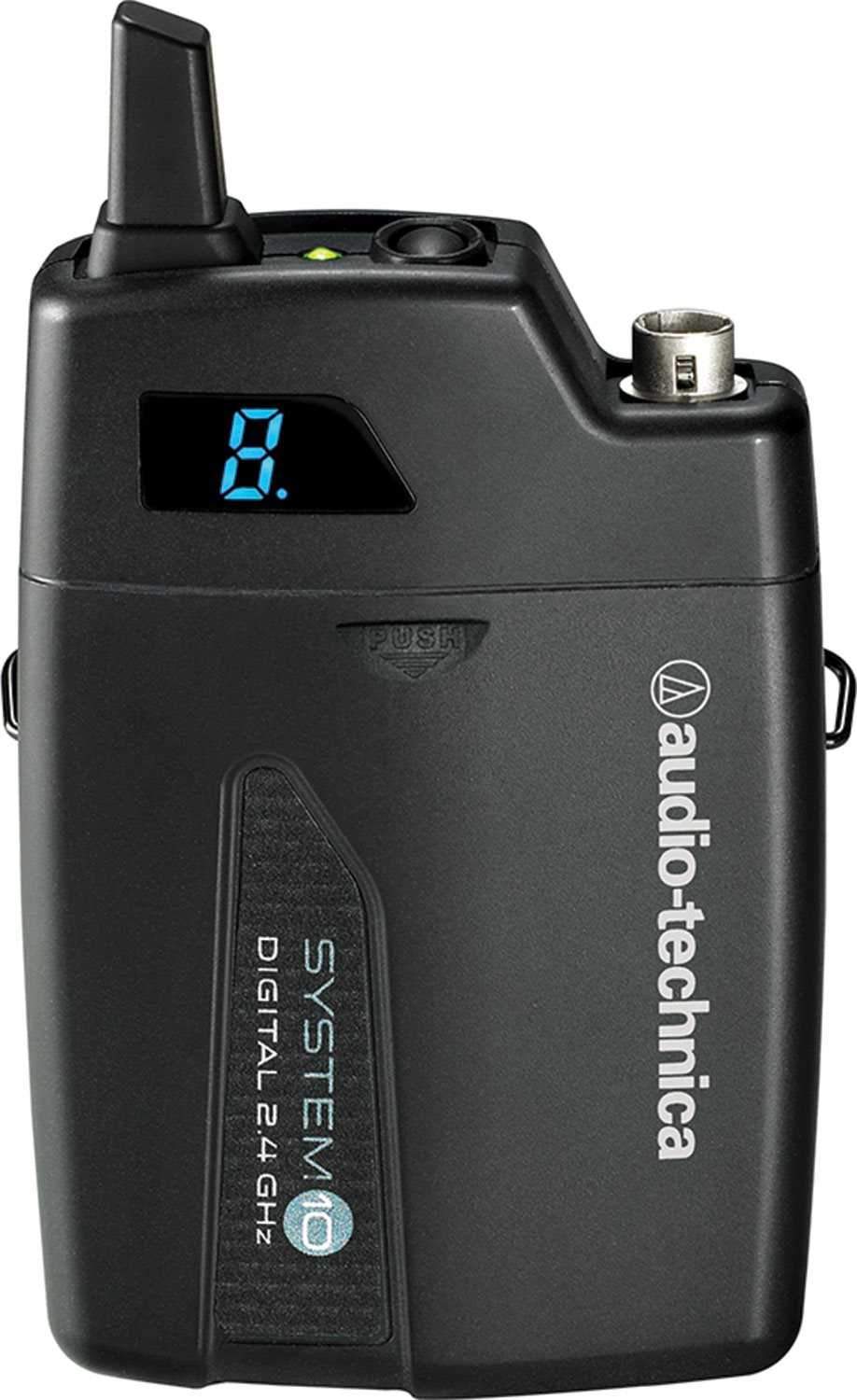

This system includes the Audio Technica ATW-R1700 receiver and ATW-T1001 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Operates in the 2.4 GHz range, completely free from TV interference
- Ultra compact receiver size with multiple mounting options
- Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
- Internal rechargeable 12-hr battery
- Separate headphone port and volume control for local audio monitoring
- Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATW-1701 |
| Product Type | Digital Combo Wireless Mic Systems |
| Dynamic range | >109 dB (A-weighted), typical |
| Total harmonic distortion | <0.05% typical |
| Operating range | 100' / 30m radius, 200' / 60m diameter typical |
| Operating temperature range | 0 degreesC to +40 degreesC / 32 degreesF to 104 degreesF |
| Frequency response | 20Hz to 20kHz, depending on microphone type |
| Audio sampling | 24 bits / 48 kHz |
| Receiving system | diversity (frequency/time/space) |
| Maximum output level | 3.5 mm (1/8 inch), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV |
| Power supply | 100 to 240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply |
| Batteryinternal battery | 3.7V rechargeable Li-ion battery |
| Battery rating | 5.5 Wh 1,460 mAh |
| Battery life | 12 hours, depending on environmental conditions |
| Battery charging time | 4 hours 30 minutes, depending on environmental conditions |
| Charging temperature range | 5 degreesC to +35 degreesC / 41 degreesF to 95 degreesF |
| Dimensions | 2.20 inch x 3.60 inch x 1.09 inch / 56mm x 91.4mm x 27.8mm (W x H x D) |
| Net weight | 105 grams / 3.7 oz |
| Accessories included | (2) antennas, camera shoe mount, AC adapter (USB-type), USB cable, 3.5mm (1/8 inch) stereo cable |
| RF power output | 10 mW |
Why Buy the Audio-Technica ATW-1701 System 10 Wireless Camera-mount Set from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATW-1701 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATW-1701 has a frequency response of 20Hz to 20kHz, depending on microphone type.
Published specifications list the power requirement of the Audio-Technica ATW-1701 as 100 to 240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply.
Published specifications give an operating range of 100' / 30m radius, 200' / 60m diameter typical for the Audio-Technica ATW-1701.
Published specifications list battery life for the Audio-Technica ATW-1701 as 12 hours, depending on environmental conditions.
The RF power output of the Audio-Technica ATW-1701 is 10 mW. Check local wireless regulation before use in the UAE.
