Audio-Technica ATM75CH: ATM75 Cardioid Condenser Headworn Microphone
Brand
:Audio-Technica
Model
:
ATM75CH
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

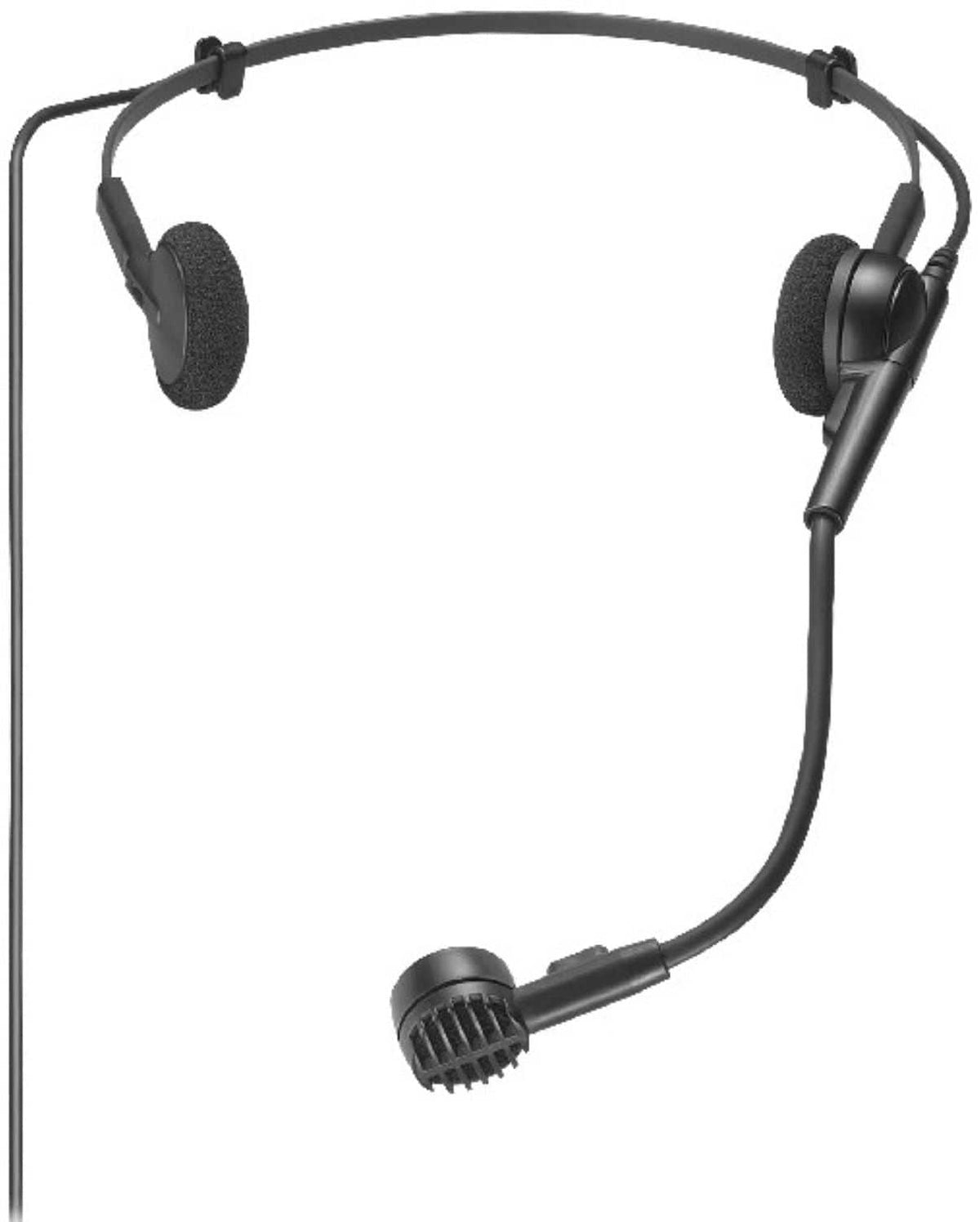

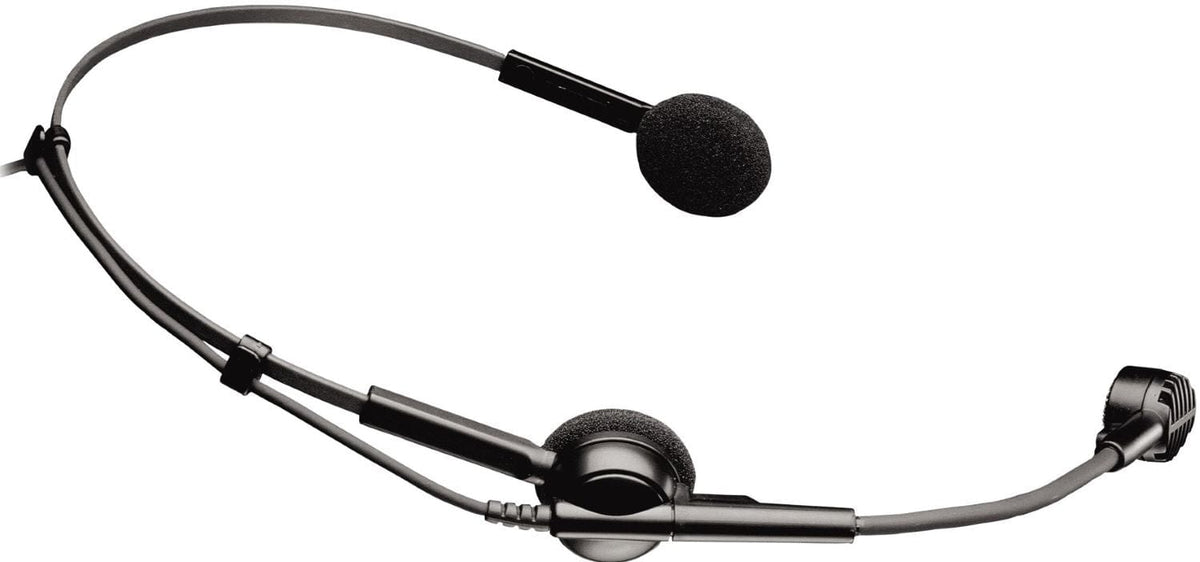

Audio-Technica ATM75CH: ATM75 Cardioid Condenser Headworn Microphone

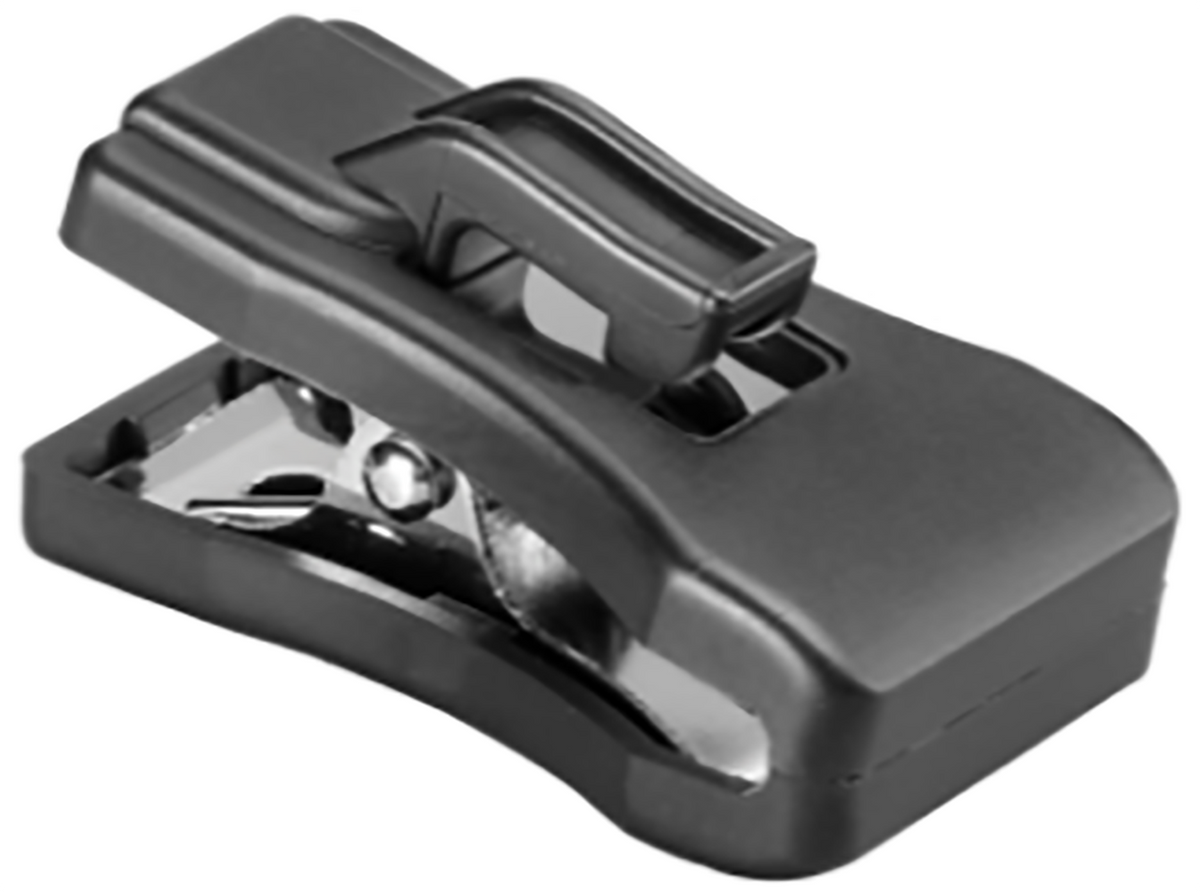

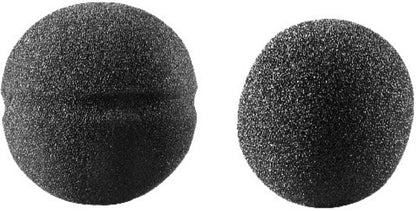

With a pivot-mounted flexible boom that can be positioned on either the left or right side of the head, the ATM75 headworn microphone delivers professional-quality vocal pickup with hands-free operation. Includes AT8139L large windscreen, AT8139S small windscreen, and AT8439 cable clip. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Professional-quality vocal pickup with hands-free operation
- Low-visibility headband provides stable, comfortable fit
- Pivot-mounted flexible microphone
- Cardioid polar pattern improves isolation of desired sound source
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATM75CH |
| Product Type | Headset Mics |
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 100 to 13,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave (wired only) |
| Open Circuit Sensitivity | PHANTOM: -51 dB (2.8 mV) re 1V at 1 Pa BATTERY: -53 dB (2.2 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | PHANTOM: 132 dB SPL, 1 kHz at 1% T.H.D. BATTERY: 121 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | PHANTOM: 96 dB, 1 kHz at Max SPL BATTERY: 85 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 58 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11 to 52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 (wired only) |
| Battery Current/Life | 0.4 mA / 2000 hours typical (alkaline) (wired only) |
| Switches | Off, on-flat, on-roll-off (wired only) |
| Weight (Microphone) | 2.1 oz (60 g) |
| Weight (Power Module) | 4.9 oz (139 g) (wired only) |
| Cable | 4.6' (1.4 m) long (permanently attached to microphone), 0.11 inch (2.8 mm) diameter, 2-conductor shielded cable(termination dependent) |
| Dimensions | Microphone: 20.4 mm (0.80 inch) diameter Power module (wired only): 84.0 mm (3.31 inch) H x 63.0 mm (2.48 inch) W x 22.0 mm (0.87 inch) D Headset: 120.0 mm (4.72 inch) nominal at widest point, 80.5 mm (3.17 inch) flexible boom |
| Microphone | 20.4 mm (0.80 inch) diameter |
| Power module (wired only) | 84.0 mm (3.31 inch) H x 63.0 mm (2.48 inch) W x 22.0 mm (0.87 inch) D |
Why Buy the Audio-Technica ATM75CH ATM75 Cardioid Condenser Headworn Microphone from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATM75CH to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATM75CH uses a Cardioid polar pattern. Cardioid polar pattern improves isolation of desired sound source.
The Audio-Technica ATM75CH has a frequency response of 100 to 13,000 Hz, with a low frequency roll-off of 80 Hz, 18 dB/octave (wired only).
The Audio-Technica ATM75CH has an open circuit sensitivity of PHANTOM: -51 dB (2.8 mV) re 1V at 1 Pa BATTERY: -53 dB (2.2 mV) re 1V at 1 Pa, and a maximum input sound level of PHANTOM: 132 dB SPL, 1 kHz at 1% T.H.D. BATTERY: 121 dB SPL, 1 kHz at 1% T.H.D. Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica ATM75CH as 11 to 52V DC, 2 mA typical.
The Audio-Technica ATM75CH has Integral 3-pin XLRM-type (wired only) as its connector.
Trianze Tech stocks the Audio-Technica ATM75CH in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
