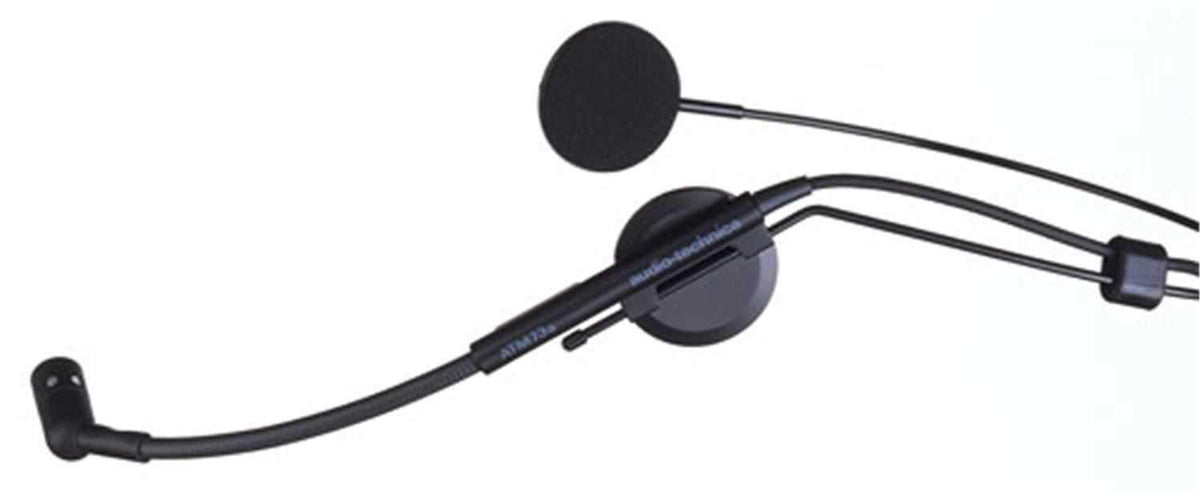

Audio-Technica ATM73CW: Headword Microphone with 4-Pin HRS
Brand
:Audio-Technica
Model
:
ATM73CW
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Audio-Technica ATM73CW: Headword Microphone with 4-Pin HRS
Cardioid Condenser Headworn Microphone Terminated with locking 4-pin connector for A-T UniPak? body-pack wireless transmitters. 55 inch (1.4 m) cable. Includes windscreens Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Ideal for drummers, keyboard players or anyone requiring hands-free operation
- Comfortable, unobtrusive headband design with side-of-mouth pickup
- Belt-mounted power module operates on battery or phantom power
- Cardioid polar pattern improves isolation of desired sound source
- Also available as ATM73cW ? less power module; 55 inch (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak? wireless systems
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATM73CW |
| Product Type | Headset Mics |
| Polar Pattern | Cardioid |
| Frequency Response | 40 to 15,000 Hz |
| Low Frequency Roll-Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | PHANTOM -55 dB (1.7 mV) re 1V at 1 Pa -BATTERY: ?56 dB (1.5 mV) re 1V at 1 Pa |
| Impedance | PHANTOM 200 ohms -BATTERY: 270 ohms |
| Maximum Input Sound Level | PHANTOM 146 dB SPL, 1 kHz at 1% T.H.D.- BATTERY: 132 dB SPL, 1 kHz at 1% T.H.D. |
| Signal-To-Noise Ratio | 59 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11 to 52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Weight (Microphone) | 1.1 oz (31 g) |
| Weight (Power Module) | 4.9 oz (139 g) |
| Dimensions (Microphone) | 0.39 inch (10.0 mm) diameter |
| Dimensions (Power Module) | 3.31 inch (84.0 mm) H x 2.48 inch (63.0 mm) W x 0.87 inch (22.0 mm) D |
| Dimensions (Headset) | 6.49 inch (165.0 mm) nominal at widest point, 2.64 inch (67.0 mm) flexible boom |
| Output Connector (Power Module) | Integral 3-pin XLRM-type |
| Cable | 4.6` (1.4 m) long (permanently attached to microphone), 0.10 inch (2.6 mm) diameter, 2-conductor shielded cable with TA3F-type connector |
Why Buy the Audio-Technica ATM73CW Headword Microphone with 4-Pin HRS from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATM73CW to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATM73CW uses a Cardioid polar pattern. Cardioid polar pattern improves isolation of desired sound source.
The Audio-Technica ATM73CW has a frequency response of 40 to 15,000 Hz, with a low frequency roll-off of 80 Hz, 18 dB/octave.
The Audio-Technica ATM73CW has an open circuit sensitivity of PHANTOM -55 dB (1.7 mV) re 1V at 1 Pa -BATTERY: ?56 dB (1.5 mV) re 1V at 1 Pa, and a maximum input sound level of PHANTOM 146 dB SPL, 1 kHz at 1% T.H.D.- BATTERY: 132 dB SPL, 1 kHz at 1% T.H.D. Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica ATM73CW as 11 to 52V DC, 2 mA typical.
The Audio-Technica ATM73CW has Integral 3-pin XLRM-type as its connector.
