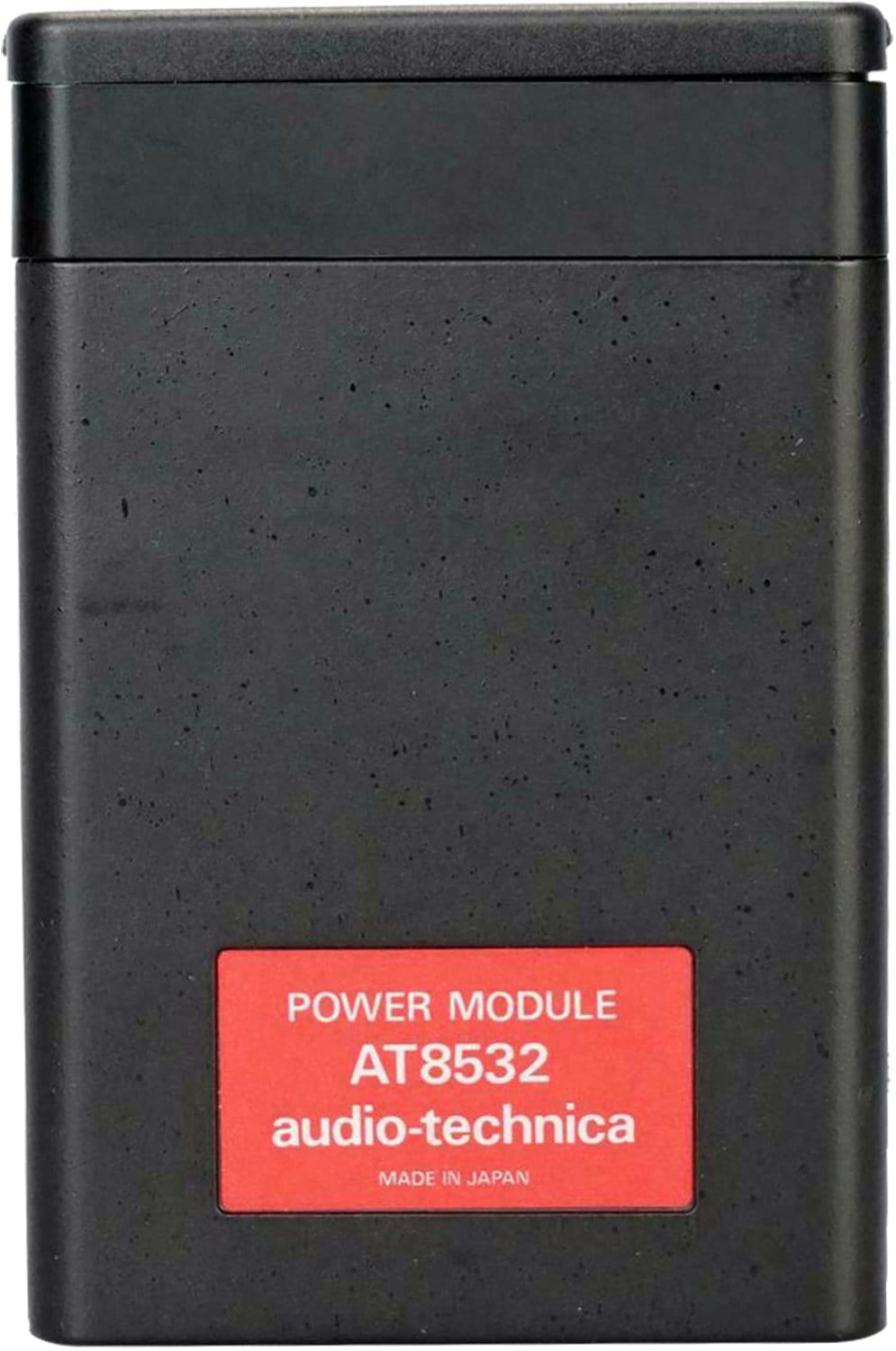

Audio-Technica AT8532: Belt Pack Power Module for ATM35BP
Brand
:Audio-Technica
Model
:
AT8532
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Audio-Technica AT8532: Belt Pack Power Module for ATM35BP
A cardioid condenser clip-on instrument microphone which will clip to brass, reeds, piano, acoustic bass, snare, and toms. It has a crisp, clear, well-balanced response, even at high SPLs. UniMount clip permits accurate positioning while protecting the element. Operates on battery or phantom power (has its own power supply). Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Audio-Technica part number AT8532
- Product type: Instrument Mics
- Supplied by Trianze Tech with UAE support
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | AT8532 |
| Product Type | Instrument Mics |
| Polar pattern | Cardioid |
| Frequency response | 30 to 20,000 Hz |
| Low frequency roll-off | 150 Hz, 12 dB/octave |
| Open circuit sensitivity | -45 dB (5.6 mV) re 1V at 1 Pa |
| Impedance | 200 ohms |
| Maximum input sound level | 145 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic range (typical) | 118 dB, 1 kHz at Max SPL |
| Signal-to-noise ratio | 67 dB, 1 kHz at 1 Pa |
| Phantom power requirements | 11 to 52V DC, 2 mA typical |
| Battery type | 9V |
| Battery current/life | 1 mA / 1000 hours typical |
| Weight (microphone) | 0.3 oz (8.5 g) |
| Weight (power module) | 5.4 oz (153 g) |
| Dimensions (microphone) | 1.39 inch (35.2 mm) long, 0.47 inch (12.0 mm) diameter |
| Dimensions (power module) | 3.78 inch (96.0 mm) H x 2.48 inch (63.0 mm) W x 0.87 inch (22.0 mm) D |
| Output connector (power module) | integral 3-pin XLRM-type |
| Cable | 25' (7.6 m) long (permanently attached to microphone), with TA3F output connector that mates with TB3M jack on power module |
Why Buy the Audio-Technica AT8532 Belt Pack Power Module for ATM35BP from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the AT8532 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica AT8532 uses a Cardioid polar pattern.
The Audio-Technica AT8532 has a frequency response of 30 to 20,000 Hz, with a low frequency roll-off of 150 Hz, 12 dB/octave.
The Audio-Technica AT8532 has an open circuit sensitivity of -45 dB (5.6 mV) re 1V at 1 Pa, and a maximum input sound level of 145 dB SPL, 1 kHz at 1% T.H.D. Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica AT8532 as 11 to 52V DC, 2 mA typical.
The Audio-Technica AT8532 has integral 3-pin XLRM-type as its connector.
Trianze Tech stocks the Audio-Technica AT8532 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
