Audio-Technica ATM350PL: Instrument Microphone
Designed for use with pianos, the ATM350PL UniMount mounting system gives you the tools to perform with confidence. The system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Low-profile mic design for minimum visibility
- Crisp, clear, well-balanced microphone response, even at high SPLs
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

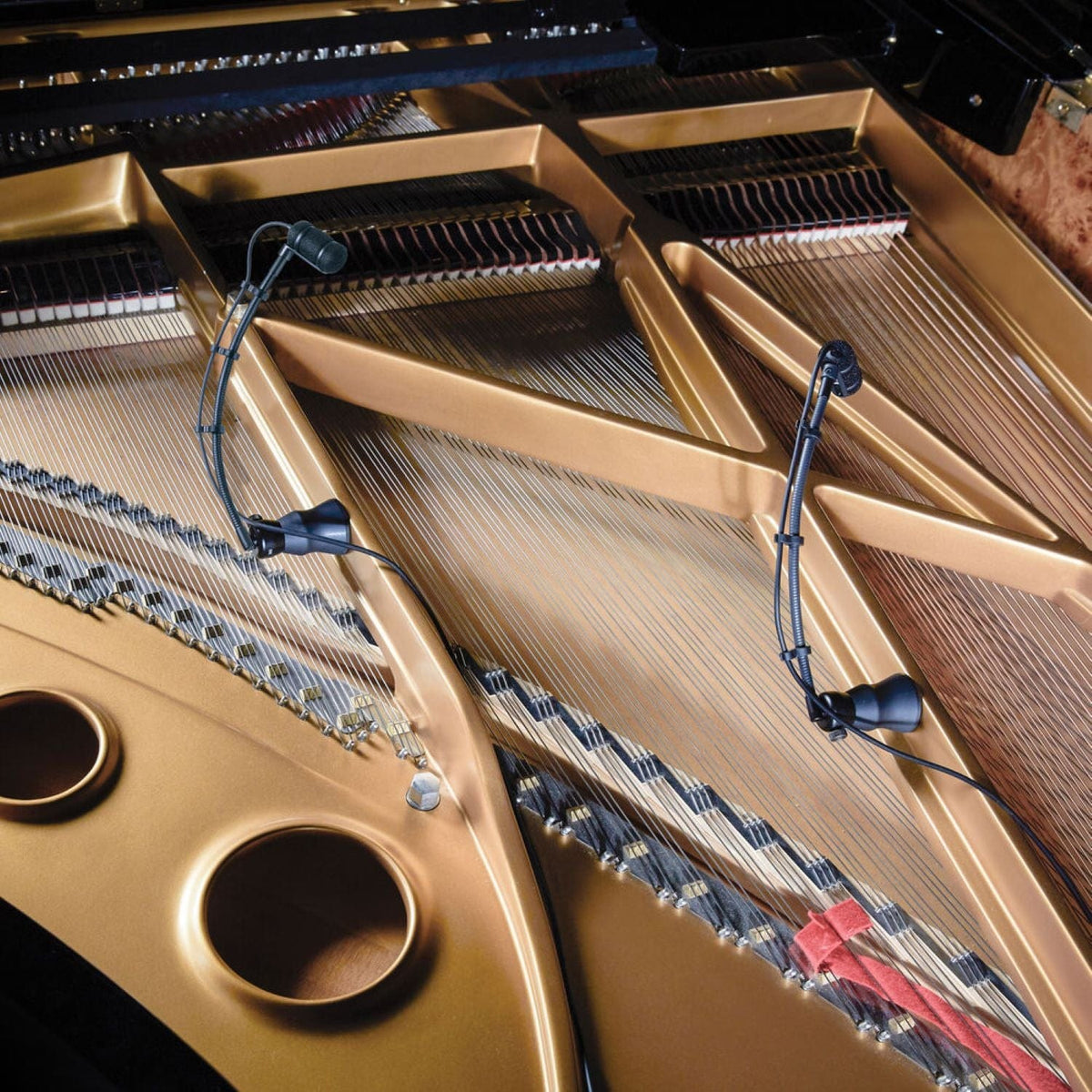

- UniMount magnetic piano mount attaches securely to the frame or other metal part of the piano, and provides excellent shock resistance for the microphone
- Rugged UniMount 9 inch gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
- In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
- Interchangeable elements available for hypercardioid and omnidirectional polar patterns
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATM350PL |
| Product Type | Instrument Mics |
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 40 to 20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | -49 dB (3.5 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 159 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 130 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11 to 52V DC, 3.5 mA typical |
| Switches | Flat, roll-off |
| Weight | Microphone: 14.5 g (0.5 oz) Power module: 90 g (3.2 oz) |
| Microphone | 14.5 g (0.5 oz) |
| Power module | 90 g (3.2 oz) |
| Cable | 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13 inch) diameter, 2-conductor shielded cable with HIROSE HR10-type connector |
| Dimensions | Microphone: 37.8 mm (1.49 inch) long, 12.2 mm (0.48 inch) maximum body diameter Power module: 92 mm (3.62 inch) long, 18.9 mm (0.74 inch) diameter |
| Dimensions (Power Module) | 92 mm (3.62 inch) long, 18.9 mm (0.74 inch) diameter |
| Dimensions (Microphone) | 37.8 mm (1.49 inch) long, 12.2 mm (0.48 inch) maximum body diameter |
| Output Connector (Power Module) Integral | 3-pin XLRM-type |
Why Buy the Audio-Technica ATM350PL Instrument Microphone from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATM350PL to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATM350PL uses a Cardioid polar pattern. Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.
The Audio-Technica ATM350PL has a frequency response of 40 to 20,000 Hz, with a low frequency roll-off of 80 Hz, 12 dB/octave.
The Audio-Technica ATM350PL has an open circuit sensitivity of -49 dB (3.5 mV) re 1V at 1 Pa, and a maximum input sound level of 159 dB SPL, 1 kHz at 1% T.H.D. Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica ATM350PL as 11 to 52V DC, 3.5 mA typical.
The Audio-Technica ATM350PL has 3-pin XLRM-type as its connector.
