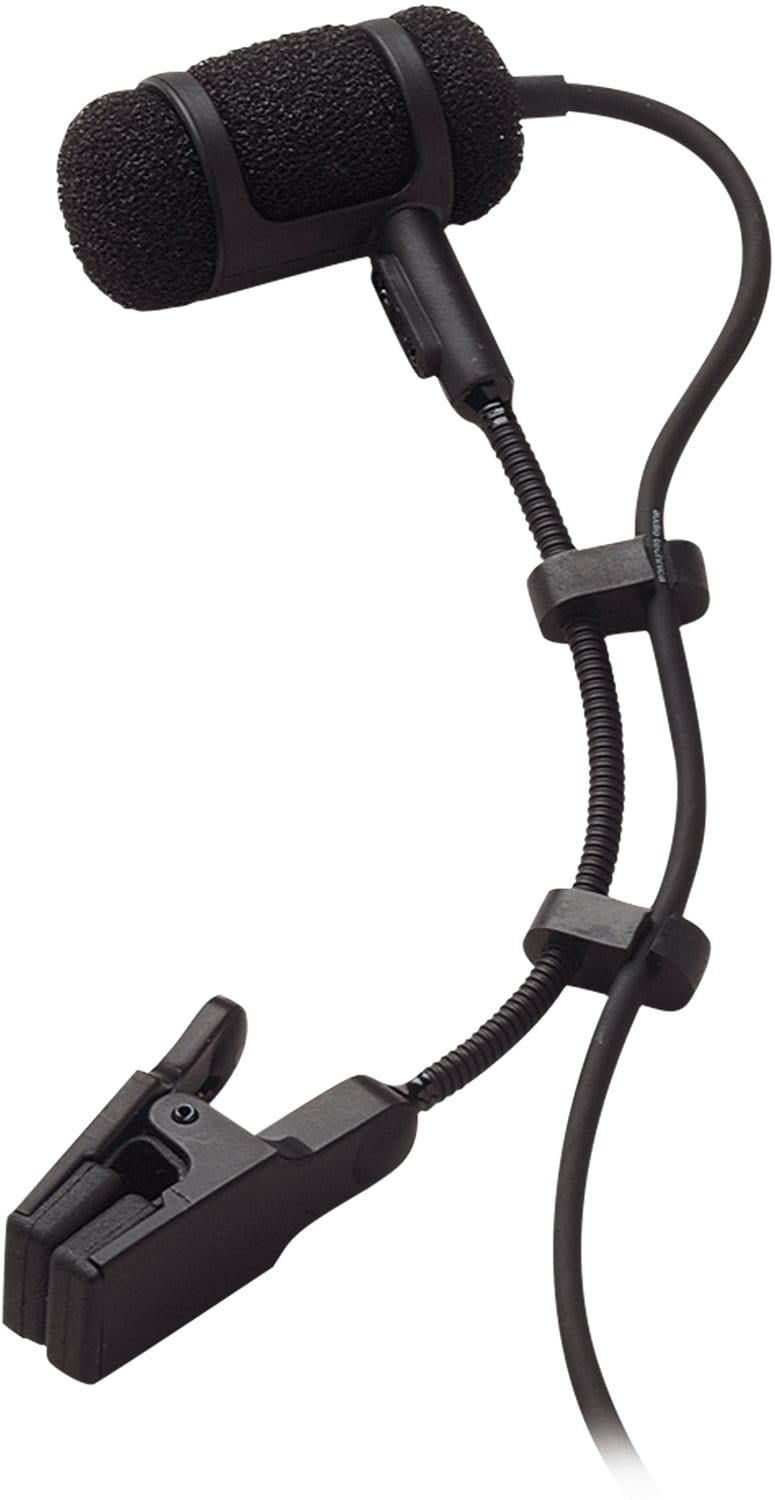

Audio-Technica ATM35: Cardioid Condenser Microphone
Brand
:Audio-Technica
Model
:
ATM35
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Audio-Technica ATM35: Cardioid Condenser Microphone
The ATM35 clips to brass, reeds, piano, acoustic bass, snare, and toms. It delivers a crisp, clear, well-balanced response, even at high SPLs. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Clips to brass, reeds, piano, acoustic bass, snare, and toms
- Crisp, clear, well-balanced response, even at high SPLs
- Interchangeable elements available for hypercardioid and subcardioid polar patterns
- UniMount clip permits accurate positioning while protecting element
- Operates on battery or phantom power
- Also available as: ATM35cW -- less power module; 55 inch (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak wireless systems
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATM35 |
| Product Type | Large Diaphragm Condenser Mics |
| Polar Pattern | Cardioid |
| Frequency Response | 30 to 20,000 Hz |
| Low Frequency Roll Off | 150 Hz, 12 dB/octave |
| Open Circuit Sensitivity | -45 dB (5.6 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 145 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 118 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 67 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11 to 52V DC, 2 mA typical |
| Battery Type | 9V |
| Battery Current/Life | 1 mA / 1000 hours typical |
| Switches | On-flat, on-roll-off (phantom) Off, on-flat, on-roll-off (battery) |
| Weight (Microphone) | 0.3 oz (8.5 g) |
| Weight (Power Module) | 5.4 oz (153 g) |
| Cable | 25' (7.6 m) long (permanently attached to microphone), with TA3F output connector that mates with TB3M jack on power module |
| Dimensions (Power Module) | 3.78 inch (96.0 mm) H x 2.48 inch (63.0 mm) W x 0.87 inch (22.0 mm) D |
| Dimensions (Microphone) | 1.39 inch (35.2 mm) long, 0.47 inch (12.0 mm) diameter |
| Output Connector (Power Module) | Integral 3-pin XLRM-type |
Why Buy the Audio-Technica ATM35 Cardioid Condenser Microphone from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATM35 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATM35 uses a Cardioid polar pattern. Interchangeable elements available for hypercardioid and subcardioid polar patterns.
The Audio-Technica ATM35 has a frequency response of 30 to 20,000 Hz, with a low frequency roll-off of 150 Hz, 12 dB/octave.
The Audio-Technica ATM35 has an open circuit sensitivity of -45 dB (5.6 mV) re 1V at 1 Pa, and a maximum input sound level of 145 dB SPL, 1 kHz at 1% T.H.D. Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica ATM35 as 11 to 52V DC, 2 mA typical.
The Audio-Technica ATM35 has Integral 3-pin XLRM-type as its connector.
Trianze Tech stocks the Audio-Technica ATM35 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
