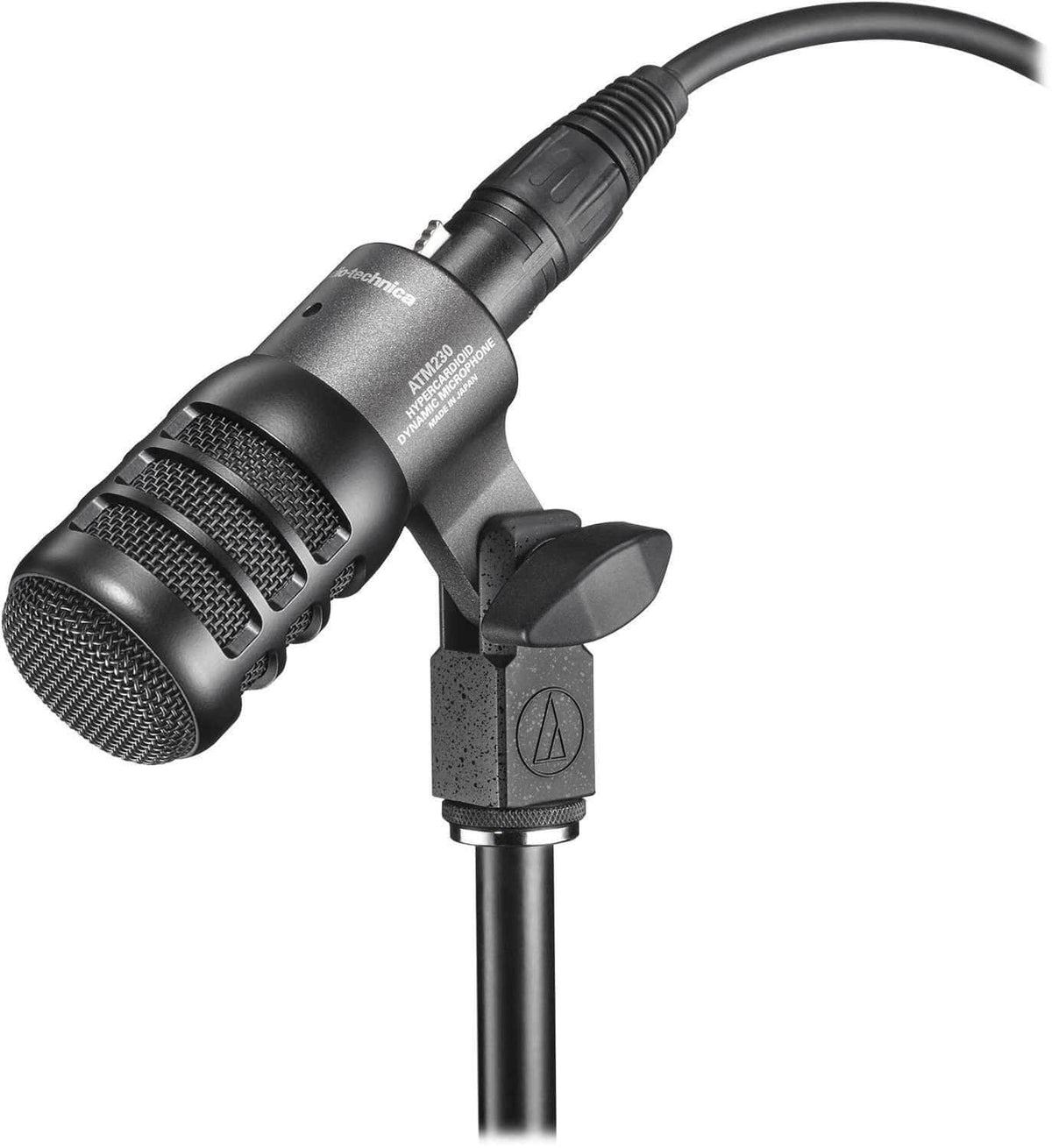

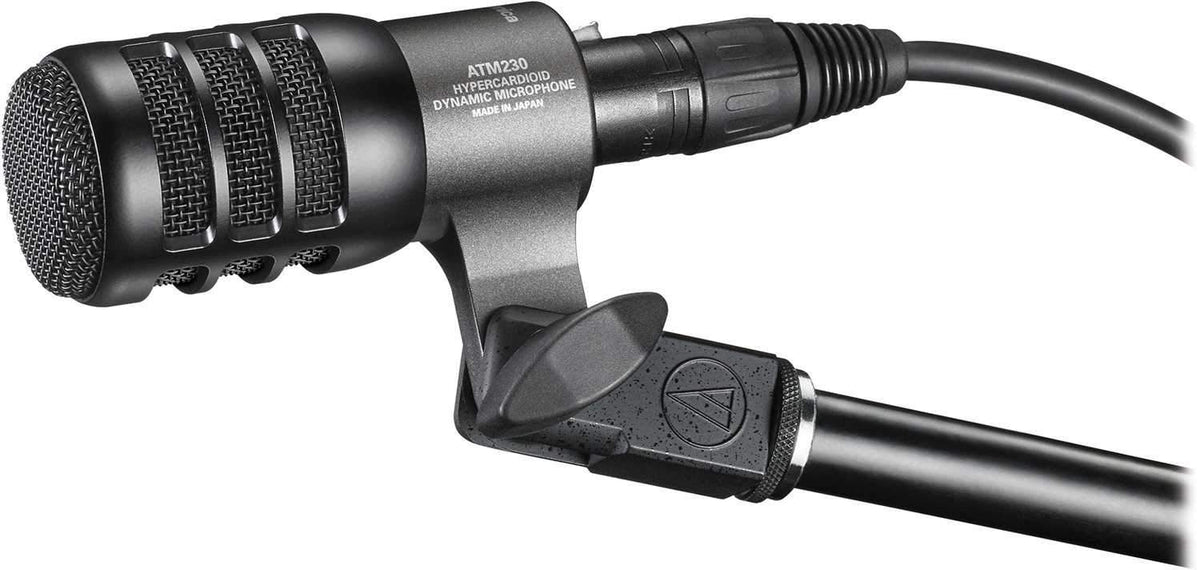

Audio-Technica ATM230: Instrument Microphone
The ATM230 hypercardioid instrument microphone brings a compact drum model to Audio-Technica's popular Artist Series line. The mic's proprietary capsule is designed to excel in high SPL applications, delivering full, well-rounded audio with an exceptional low-end. The hypercardioid polar pattern keeps the focus on the sound source, directionality that is aided by the mic's low-profile design, which allows it to be placed in a wide variety of setups. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Handles very high SPL at close range
- Big, warm low-frequency response with excellent attack

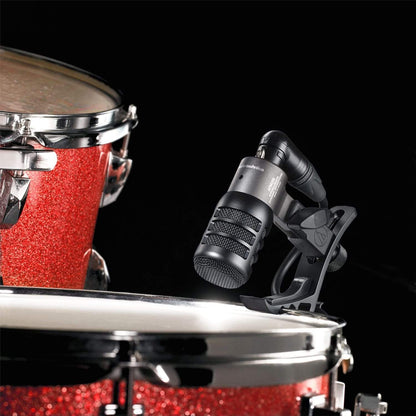

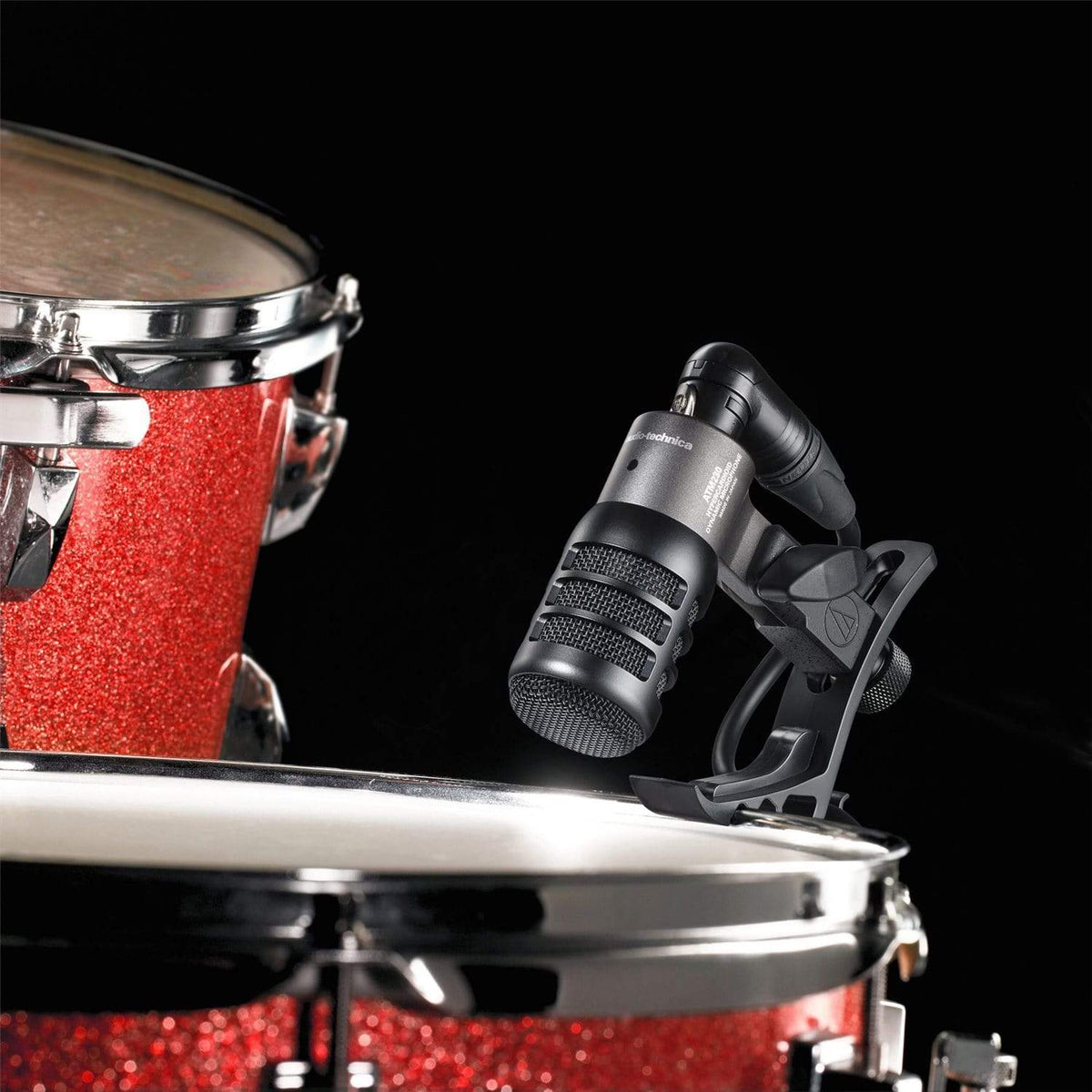

- Low-profile design permits versatile placement around drum kit
- Rare earth magnet for improved output and transient response
- Rugged, all-metal design and construction for years of trouble-free use
- Includes AT8665 drum mount and a soft protective pouch
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATM230 |
| Product Type | Instrument Mics |
| Polar Pattern | Hypercardioid |
| Frequency Response | 20 to 12,000 Hz |
| Open Circuit Sensitivity | 53 dB V (2.2mV) re 1V at 1 Pa |
| Impedance | 595 ohms |
| Weight | 415 g (14.6 oz) |
| Dimensions | 82.5 mm (3.2 inch) long, 38.0 mm (1.5 inch) diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Furnished | AT8665 drum mount; soft protective pouch |
| Audio-Technica Case Style | R2 |
Why Buy the Audio-Technica ATM230 Instrument Microphone from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATM230 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica ATM230 uses a Hypercardioid polar pattern. Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.
The Audio-Technica ATM230 has a frequency response of 20 to 12,000 Hz.
The Audio-Technica ATM230 has an open circuit sensitivity of 53 dB V (2.2mV) re 1V at 1 Pa. Trianze Tech can confirm figures for your application.
The Audio-Technica ATM230 has Integral 3-pin XLRM-type as its connector.
Published specifications list the impedance of the Audio-Technica ATM230 as 595 ohms.
